TE71-ECMZF (1981)
Toyota Corolla

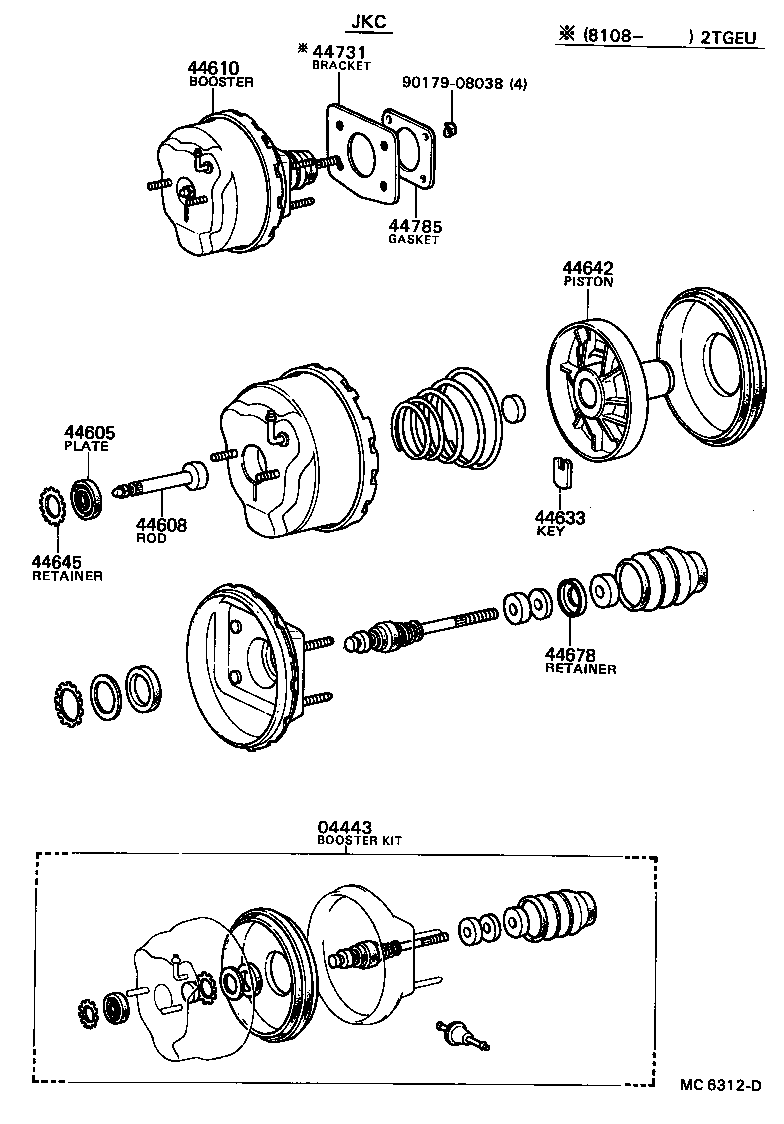

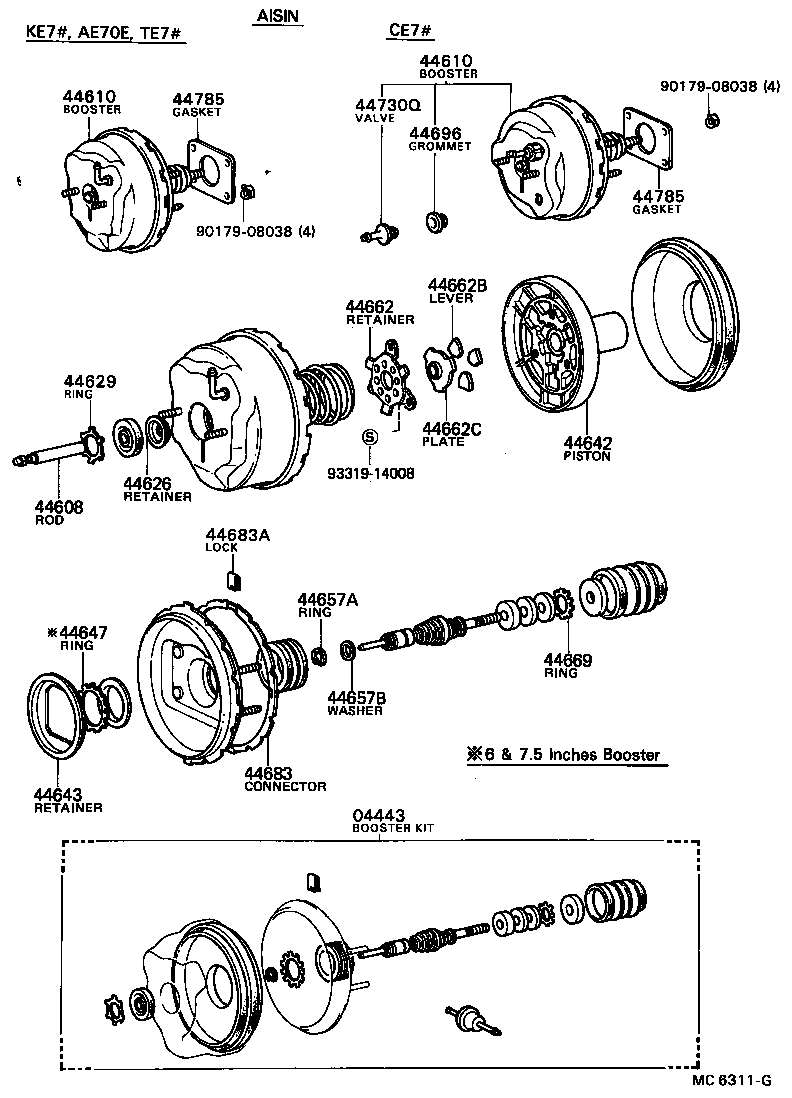

ILLUST NO. 1 OF 2(7903-8308)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 04443 - BOOSTER KIT, BRAKE | ||||
| 04443-12160 |
TE71 7.5 INCHES |
1 | ||
| 44608 - PUSH ROD SUB-ASSY, BOOSTER | ||||
| 44606-35100 |
TE71 7.5 INCHES,AISIN |
1 | ||
| 44610 - BOOSTER ASSY, BRAKE | ||||
| 44610-12250 |
TE71 7.5 INCHES |
1 | ||
| 44610 - BOOSTER ASSY, BRAKE | ||||
| 44610-12250 |
TE71 7.5 INCHES |
1 | ||
| 44626 - RETAINER, BOOSTER ROD CUP | ||||
| 44626-60010 |
AE70,KE70,TE71 AISIN |
1 | ||
| 44629 - RING, CIRCULAR INTERNAL | ||||
| 44628-60010 |
AE70,KE70,TE71 AISIN |
1 | ||
| 44642 - PISTON, BRAKE BOOSTER | ||||
| 44642-14170 |
TE71 7.5 INCHES,AISIN |
1 | ||
| 44643 - RETAINER, DIAPHRAGM | ||||
| 44643-60010 |
AE70,KE70,TE71 AISIN |
1 | ||
| 44647 - RING, CIRCULAR INTERNAL(FOR BOOSTER BODY SEAL STOPPER) | ||||
| 44629-30090 |
KE70..GL;AE70,TE71 6 & 7.5 INCHES,AISIN |
1 | ||
| 44657A - RING, SNAP(FOR BOOSTER AIR VALVE STOPPER) | ||||
| 96150-01600 |
AE70,KE70,TE71 AISIN |
1 | ||
| 44657B - WASHER, PLATE(FOR BOOSTER AIR VALVE STOPPER) | ||||
| 44645-20100 |
AE70,KE70,TE71 AISIN |
1 | ||
| 44662 - RETAINER, REACTION, NO.1 | ||||
| 44662-35100 |
AE70,KE70,TE71 AISIN |
1 | ||
| 44662B - LEVER, REACTION | ||||
| 44661-35100 |
AE70,KE70,TE71 AISIN |
3 | ||
| 44662C - PLATE, REACTION, NO.1 | ||||
| 44607-20470 |
TE71 7.5 INCHES,AISIN |
1 | ||
| 44669 - RING, CIRCULAR INTERNAL(FOR AIR CLEANER ELEMENT STOPPER | ||||
| 44669-60010 |
AE70,KE70,TE71 AISIN |
1 | ||
| 44683 - CONNECTOR, BOOSTER BODY | ||||
| 44682-20150 |
TE71 7.5 INCHES,AISIN |
1 | ||
| 44683A - LOCK, CONNECTOR | ||||
| 44683-20100 |
AE70,KE70,TE71 AISIN |
1 | ||
| 44785 - GASKET, BRAKE BOOSTER | ||||
| 44785-14010 |
AE70,CE7#,KE7#,TE7# |
1 | ||
| 44785 - GASKET, BRAKE BOOSTER | ||||
| 44785-14010 |
AE70,CE7#,KE7#,TE7# |
1 | ||
| Common parts | ||||
| 90179-08038 | ||||
| 93319-14008 | ||||
ILLUST NO. 1 OF 2(7903-8308)AE70,KE7#,TE7#
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 04443 - BOOSTER KIT, BRAKE | ||||
| 04443-12160 |
TE71 7.5 INCHES |
1 | ||
| 44608 - PUSH ROD SUB-ASSY, BOOSTER | ||||
| 44606-35100 |
TE71 7.5 INCHES,AISIN |
1 | ||
| 44610 - BOOSTER ASSY, BRAKE | ||||
| 44610-12250 |
TE71 7.5 INCHES |
1 | ||
| 44642 - PISTON, BRAKE BOOSTER | ||||
| 44642-14170 |
TE71 7.5 INCHES,AISIN |
1 | ||
| 44731 - BRACKET, BRAKE BOOSTER, FRONT | ||||
| 44731-14020 |
TE71 |
1 | ||
| 44785 - GASKET, BRAKE BOOSTER | ||||
| 44785-14010 |
AE70,CE7#,KE7#,TE7# |
1 | ||
| Common parts | ||||
| 90179-08038 | ||||

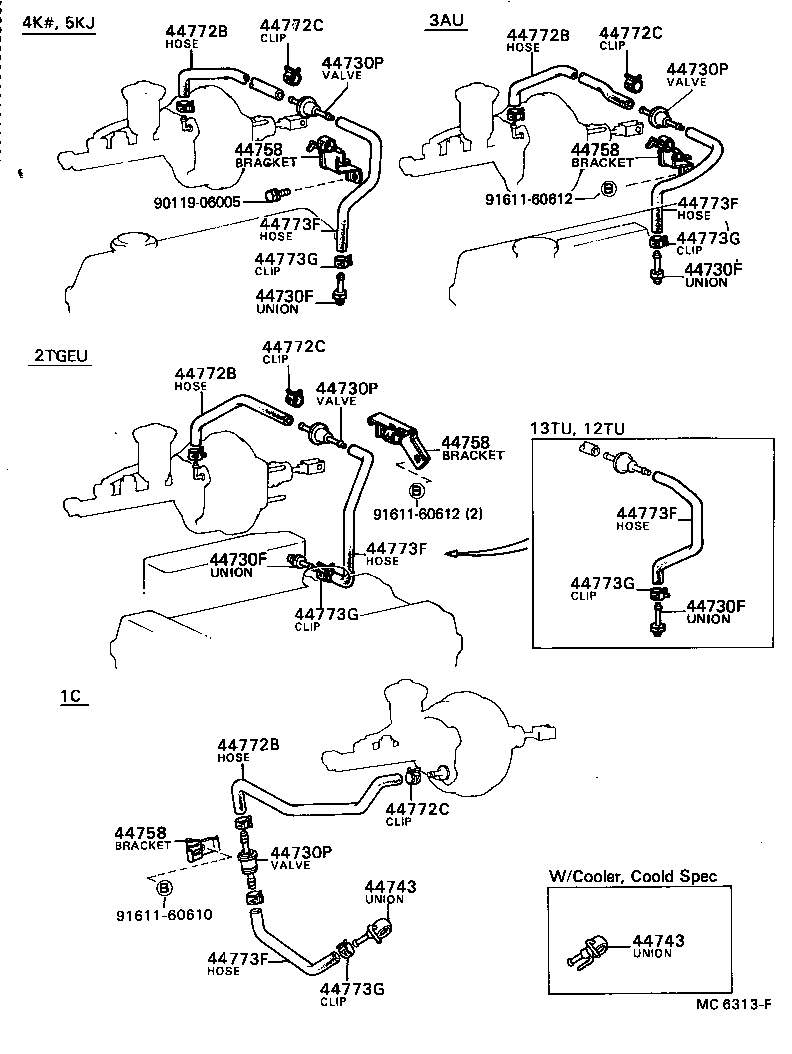

ILLUST NO. 2 OF 2(7903- )AE70,KE7#,TE7# ; (8202-8308)CE7#
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 44730F - UNION, VACUUM HOSE(FOR MANIFOLD SIDE) | ||||
| 90404-51237 |
AE70,TE7# |
1 | ||
| 44730F - UNION, VACUUM HOSE(FOR MANIFOLD SIDE) | ||||
| 90404-51237 |
AE70,TE7# |
1 | ||
| 44730F - UNION, VACUUM HOSE(FOR MANIFOLD SIDE) | ||||
| 90404-51237 |
AE70,TE7# |
1 | ||
| 44730F - UNION, VACUUM HOSE(FOR MANIFOLD SIDE) | ||||
| 90404-51237 |
AE70,TE7# |
1 | ||
| 44730P - VALVE ASSY, VACUUM CHECK, NO.1 | ||||
| 44730-10010 |
AE70,KE7#,TE7# |
1 | ||
| 44730P - VALVE ASSY, VACUUM CHECK, NO.1 | ||||
| 44730-10010 |
AE70,KE7#,TE7# |
1 | ||
| 44730P - VALVE ASSY, VACUUM CHECK, NO.1 | ||||
| 44730-10010 |
AE70,KE7#,TE7# |
1 | ||
| 44730P - VALVE ASSY, VACUUM CHECK, NO.1 | ||||
| 44730-10010 |
AE70,KE7#,TE7# |
1 | ||
| 44758 - BRACKET, VACUUM CHECK VALVE | ||||
| 44758-12130 |
TE7# |
1 | ||
| 44758 - BRACKET, VACUUM CHECK VALVE | ||||
| 44758-12130 |
TE7# |
1 | ||
| 44758 - BRACKET, VACUUM CHECK VALVE | ||||
| 44758-12130 |
TE7# |
1 | ||
| 44758 - BRACKET, VACUUM CHECK VALVE | ||||
| 44758-12130 |
TE7# |
1 | ||
| 44772B - HOSE, CHECK VALVE TO BRAKE BOOSTER | ||||
| 44772-12110 |
TE7# |
1 | ||
| 44772B - HOSE, CHECK VALVE TO BRAKE BOOSTER | ||||
| 44772-12110 |
TE7# |
1 | ||
| 44772B - HOSE, CHECK VALVE TO BRAKE BOOSTER | ||||
| 44772-12110 |
TE7# |
1 | ||
| 44772B - HOSE, CHECK VALVE TO BRAKE BOOSTER | ||||
| 44772-12110 |
TE7# |
1 | ||
| 44772C - CLIP(FOR CHECK VALVE TO BRAKE BOOSTER HOSE) | ||||
| 90467-16141 |
AE70,KE7#,TE7# |
2 | ||
| 44772C - CLIP(FOR CHECK VALVE TO BRAKE BOOSTER HOSE) | ||||
| 90467-16141 |
AE70,KE7#,TE7# |
2 | ||
| 44772C - CLIP(FOR CHECK VALVE TO BRAKE BOOSTER HOSE) | ||||
| 90467-16141 |
AE70,KE7#,TE7# |
2 | ||
| 44772C - CLIP(FOR CHECK VALVE TO BRAKE BOOSTER HOSE) | ||||
| 90467-16141 |
AE70,KE7#,TE7# |
2 | ||
| 44773F - HOSE, UNION TO CHECK VALVE | ||||
| 44773-12160 |
TE71 |
1 | ||
| 44773F - HOSE, UNION TO CHECK VALVE | ||||
| 44773-12160 |
TE71 |
1 | ||
| 44773F - HOSE, UNION TO CHECK VALVE | ||||
| 44773-12160 |
TE71 |
1 | ||
| 44773F - HOSE, UNION TO CHECK VALVE | ||||
| 44773-12160 |
TE71 |
1 | ||
| 44773F - HOSE, UNION TO CHECK VALVE | ||||
| 44773-12160 |
TE71 |
1 | ||
| 44773G - CLIP(FOR UNION TO CHECK VALVE HOSE) | ||||
| 90467-16141 |
AE70,KE7#,TE7# |
1 | ||
| 44773G - CLIP(FOR UNION TO CHECK VALVE HOSE) | ||||
| 90467-16141 |
AE70,KE7#,TE7# |
1 | ||
| 44773G - CLIP(FOR UNION TO CHECK VALVE HOSE) | ||||
| 90467-16141 |
AE70,KE7#,TE7# |
1 | ||
| 44773G - CLIP(FOR UNION TO CHECK VALVE HOSE) | ||||
| 90467-16141 |
AE70,KE7#,TE7# |
1 | ||
| 44773G - CLIP(FOR UNION TO CHECK VALVE HOSE) | ||||
| 90467-16141 |
AE70,KE7#,TE7# |
1 | ||
| Common parts | ||||
| 90119-06005 | ||||
| 91611-60610 | ||||
| 91611-60612 | ||||
