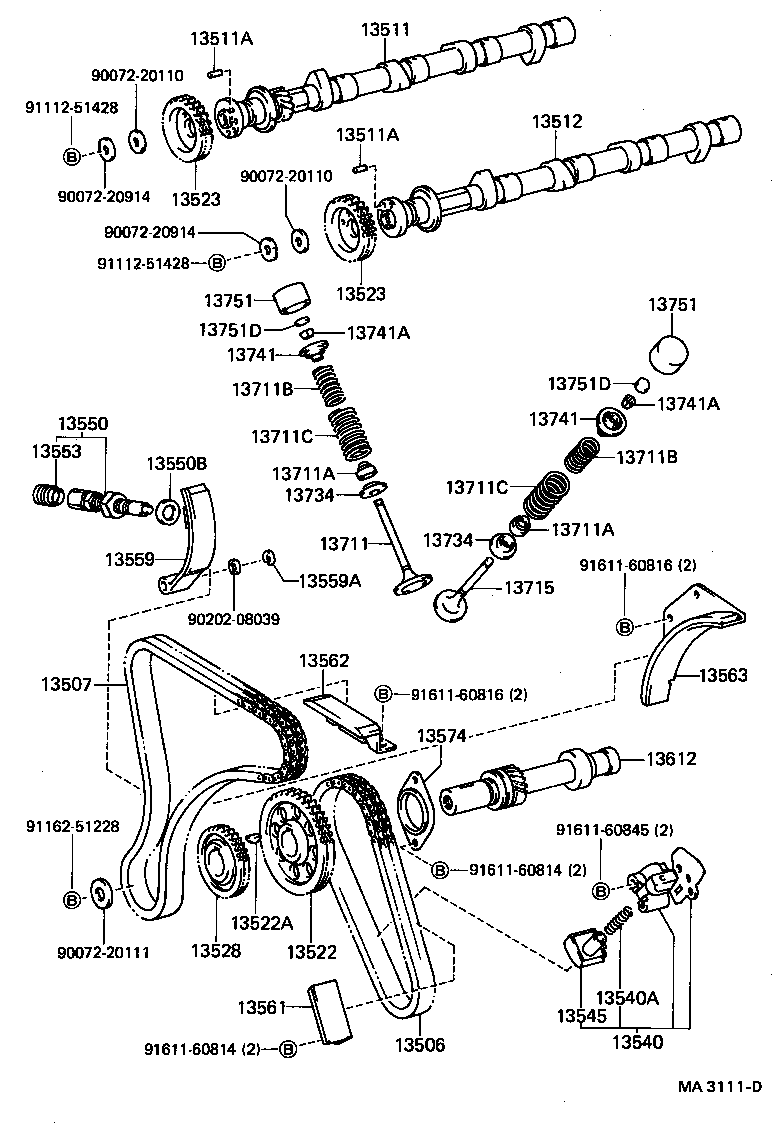

TE71-ECMZF (1981)
Toyota Corolla
(7903-8304)2TGEU
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 13506 - CHAIN SUB-ASSY | ||||
| 13506-25010 |
12TJ,13TU,2TGEU..TE7# |
1 | ||
| 13507 - CHAIN SUB-ASSY, NO.2 | ||||
| 13507-88210 |
2TGEU..TE71 |
1 | ||
| 13511 - CAMSHAFT | ||||
| 13501-88262 |
2TGEU..TE71 |
1 | ||
| 13501-88261 |
2TGEU..TE71 |
1 | ||
| 13511A - PIN, STRAIGHT(FOR CAMSHAFT KNOCK) | ||||
| 90072-25005 |
2TGEU..TE71 L=15,OD=6 |
2 | ||
| 13511A - PIN, STRAIGHT(FOR CAMSHAFT KNOCK) | ||||
| 90072-25005 |
2TGEU..TE71 L=15,OD=6 |
2 | ||
| 13512 - CAMSHAFT, NO.2 | ||||
| 13502-88261 |
2TGEU..TE71 |
1 | ||
| 13502-88262 |
2TGEU..TE71 |
1 | ||
| 13522 - GEAR, PUMP DRIVE SHAFT | ||||
| 13522-33010 |
2TGEU..TE71 N=36 |
1 | ||
| 13522A - KEY, WOODRUFF(FOR PUMP DRIVE SHAFT GEAR) | ||||
| 90280-05001 |
2TGEU..TE71 |
1 | ||
| 13523 - GEAR OR SPROCKET, CAMSHAFT TIMING | ||||
| 13523-88220 |
2TGEU..TE71 N=24 |
2 | ||
| 13523 - GEAR OR SPROCKET, CAMSHAFT TIMING | ||||
| 13523-88220 |
2TGEU..TE71 N=24 |
2 | ||
| 13528 - GEAR, CAMSHAFT DRIVE | ||||
| 13528-33010 |
2TGEU..TE71 N=24 |
1 | ||
| 13540 - TENSIONER ASSY, CHAIN, NO.1 | ||||
| 13540-88221 |
2TGEU..TE71 |
1 | ||
| 13540A - SPRING, COMPRESSION(FOR CHAIN TENSIONER) | ||||
| 90072-50129 |
2TGEU..TE71 |
1 | ||
| 13545 - PLUNGER, CHAIN TENSIONER | ||||
| 13545-25010 |
12TJ,13TU,2TGEU..TE7# |
1 | ||
| 13550 - TENSIONER ASSY, CHAIN, NO.2 | ||||
| 13550-88210 |
2TGEU..TE71 |
1 | ||
| 13550B - GASKET, CHAIN TENSIONER, NO.2 | ||||
| 90430-22135 |
2TGEU..TE71 |
1 | ||
| 13553 - COVER, CHAIN TENSIONER DUST | ||||
| 13553-88210 |
2TGEU..TE71 |
1 | ||
| 13559 - SLIPPER, CHAIN TENSIONER | ||||
| 13559-88220 |
2TGEU..TE71 |
1 | ||
| 13559A - RING, E(FOR CHAIN TENSIONER SLIPPER) | ||||
| 96160-00700 |
2TGEU..TE71 |
1 | ||
| 13561 - DAMPER, CHAIN VIBRATION, NO.1 | ||||
| 13561-25010 |
12TJ,13TU,2TGEU..TE7# |
1 | ||
| 13562 - DAMPER, CHAIN VIBRATION, NO.2 | ||||
| 13562-88280 |
2TGEU..TE71 |
1 | ||
| 13562-88210 |
2TGEU..TE71 |
1 | ||
| 13563 - DAMPER, CHAIN VIBRATION, NO.3 | ||||
| 13563-88220 |
2TGEU..TE71 |
1 | ||
| 13574 - PLATE, PUMP DRIVE SHAFT | ||||
| 13571-51010 |
2TGEU..TE71 |
1 | ||
| 13612 - SHAFT, PUMP DRIVE | ||||
| 13612-88260 |
2TGEU..TE71 |
1 | ||
| 13711 - VALVE, INTAKE | ||||
| 13711-88224 |
2TGEU..TE71 |
4 | ||
| 13711A - SEAL OR RING, O(FOR VALVE STEM OIL) | ||||
| 90072-72206 |
2TGEU..TE71 |
8 | ||
| 13711A - SEAL OR RING, O(FOR VALVE STEM OIL) | ||||
| 90072-72206 |
2TGEU..TE71 |
8 | ||
| 13711B - SPRING, COMPRESSION(FOR INNER) | ||||
| 90072-50137 |
2TGEU..TE71 |
8 | ||
| 13711B - SPRING, COMPRESSION(FOR INNER) | ||||
| 90072-50137 |
2TGEU..TE71 |
8 | ||
| 13711C - SPRING, COMPRESSION(FOR OUTER) | ||||
| 90072-50136 |
2TGEU..TE71 WD=4.2,CW=6.5 |
8 | ||
| 13711C - SPRING, COMPRESSION(FOR OUTER) | ||||
| 90072-50136 |
2TGEU..TE71 WD=4.2,CW=6.5 |
8 | ||
| 13715 - VALVE, EXHAUST | ||||
| 13715-88222 |
2TGEU..TE71 |
4 | ||
| 13734 - SEAT, VALVE SPRING | ||||
| 13734-88211 |
2TGEU..TE71 |
8 | ||
| 13734 - SEAT, VALVE SPRING | ||||
| 13734-88211 |
2TGEU..TE71 |
8 | ||
| 13741 - RETAINER, VALVE SPRING | ||||
| 13741-88211 |
2TGEU..TE71 |
8 | ||
| 13741 - RETAINER, VALVE SPRING | ||||
| 13741-88211 |
2TGEU..TE71 |
8 | ||
| 13741A - LOCK, VALVE SPRING RETAINER | ||||
| 90913-03022 |
2TGEU..TE71 |
16 | ||
| 90913-03010 |
2TGEU..TE71 |
16 | ||
| 13741A - LOCK, VALVE SPRING RETAINER | ||||
| 90913-03022 |
2TGEU..TE71 |
16 | ||
| 90913-03010 |
2TGEU..TE71 |
16 | ||
| 13751 - LIFTER, VALVE | ||||
| 13751-8821004 |
2TGEU..TE71 OD=37.943-OD=37.949,RED,BLUE |
8 | ||
| 13751-8821003 |
2TGEU..TE71 OD=37.937-OD=37.943,YELLOW,GRAY |
8 | ||
| 13751-8821002 |
2TGEU..TE71 OD=37.931-OD=37.937,BLUE,RED/MAROON |
8 | ||
| 13751-8821001 |
2TGEU..TE71 OD=37.925-OD=37.931,BLACK,BLACK |
8 | ||
| 13751 - LIFTER, VALVE | ||||
| 13751-8821004 |
2TGEU..TE71 OD=37.943-OD=37.949,RED,BLUE |
8 | ||
| 13751-8821003 |
2TGEU..TE71 OD=37.937-OD=37.943,YELLOW,GRAY |
8 | ||
| 13751-8821002 |
2TGEU..TE71 OD=37.931-OD=37.937,BLUE,RED/MAROON |
8 | ||
| 13751-8821001 |
2TGEU..TE71 OD=37.925-OD=37.931,BLACK,BLACK |
8 | ||
| 13751D - PAD, VALVE ADJUSTING | ||||
| 90072-72605 |
2TGEU..TE71 T=1.10 |
8 | ||
| 90072-72601 |
2TGEU..TE71 T=1.00 |
8 | ||
| 90072-72621 |
2TGEU..TE71 T=1.50 |
8 | ||
| 90072-72615 |
2TGEU..TE71 T=1.35 |
8 | ||
| 90072-72603 |
2TGEU..TE71 T=1.05 |
8 | ||
| 90072-72623 |
2TGEU..TE71 T=1.55 |
8 | ||
| 90072-72629 |
2TGEU..TE71 T=1.70 |
8 | ||
| 90072-72617 |
2TGEU..TE71 T=1.40 |
8 | ||
| 90072-72609 |
2TGEU..TE71 T=1.20 |
8 | ||
| 90072-72613 |
2TGEU..TE71 T=1.30 |
8 | ||
| 90072-72637 |
2TGEU..TE71 T=1.90 |
8 | ||
| 90072-72633 |
2TGEU..TE71 T=1.80 |
8 | ||
| 90072-72625 |
2TGEU..TE71 T=1.60 |
8 | ||
| 90072-72631 |
2TGEU..TE71 T=1.75 |
8 | ||
| 90072-72635 |
2TGEU..TE71 T=1.85 |
8 | ||
| 90072-72641 |
2TGEU..TE71 T=2.00 |
8 | ||
| 90072-72639 |
2TGEU..TE71 T=1.95 |
8 | ||
| 90072-72611 |
2TGEU..TE71 T=1.25 |
8 | ||
| 90072-72627 |
2TGEU..TE71 T=1.65 |
8 | ||
| 90072-72607 |
2TGEU..TE71 T=1.15 |
8 | ||
| 90072-72645 |
2TGEU..TE71 T=2.10 |
8 | ||
| 90072-72619 |
2TGEU..TE71 T=1.45 |
8 | ||
| 90072-72643 |
2TGEU..TE71 T=2.05 |
8 | ||
| 90072-72665 |
2TGEU..TE71 T=2.60 |
8 | ||
| 90072-72653 |
2TGEU..TE71 T=2.30 |
8 | ||
| 90072-72655 |
2TGEU..TE71 T=2.35 |
8 | ||
| 90072-72649 |
2TGEU..TE71 T=2.20 |
8 | ||
| 90072-72659 |
2TGEU..TE71 T=2.45 |
8 | ||
| 90072-72661 |
2TGEU..TE71 T=2.50 |
8 | ||
| 90072-72667 |
2TGEU..TE71 T=2.65 |
8 | ||
| 90072-72669 |
2TGEU..TE71 T=2.70 |
8 | ||
| 90072-72647 |
2TGEU..TE71 T=2.15 |
8 | ||
| 90072-72681 |
2TGEU..TE71 T=3.00 |
8 | ||
| 90072-72683 |
2TGEU..TE71 T=3.05 |
8 | ||
| 90072-72657 |
2TGEU..TE71 T=2.40 |
8 | ||
| 90072-72677 |
2TGEU..TE71 T=2.90 |
8 | ||
| 90072-72673 |
2TGEU..TE71 T=2.80 |
8 | ||
| 90072-72675 |
2TGEU..TE71 T=2.85 |
8 | ||
| 90072-72691 |
2TGEU..TE71 T=3.25 |
8 | ||
| 90072-72651 |
2TGEU..TE71 T=2.25 |
8 | ||
| 90072-72685 |
2TGEU..TE71 T=3.10 |
8 | ||
| 90072-72671 |
2TGEU..TE71 T=2.75 |
8 | ||
| 90072-72663 |
2TGEU..TE71 T=2.55 |
8 | ||
| 90072-72687 |
2TGEU..TE71 T=3.15 |
8 | ||
| 90072-72679 |
2TGEU..TE71 T=2.95 |
8 | ||
| 90072-72693 |
2TGEU..TE71 T=3.30 |
8 | ||
| 90072-72699 |
2TGEU..TE71 T=3.45 |
8 | ||
| 90072-72695 |
2TGEU..TE71 T=3.35 |
8 | ||
| 90072-72697 |
2TGEU..TE71 T=3.40 |
8 | ||
| 90072-72702 |
2TGEU..TE71 T=3.50 |
8 | ||
| 90072-72689 |
2TGEU..TE71 T=3.20 |
8 | ||
| 13751D - PAD, VALVE ADJUSTING | ||||
| 90072-72605 |
2TGEU..TE71 T=1.10 |
8 | ||
| 90072-72601 |
2TGEU..TE71 T=1.00 |
8 | ||
| 90072-72621 |
2TGEU..TE71 T=1.50 |
8 | ||
| 90072-72615 |
2TGEU..TE71 T=1.35 |
8 | ||
| 90072-72603 |
2TGEU..TE71 T=1.05 |
8 | ||
| 90072-72623 |
2TGEU..TE71 T=1.55 |
8 | ||
| 90072-72629 |
2TGEU..TE71 T=1.70 |
8 | ||
| 90072-72617 |
2TGEU..TE71 T=1.40 |
8 | ||
| 90072-72609 |
2TGEU..TE71 T=1.20 |
8 | ||
| 90072-72613 |
2TGEU..TE71 T=1.30 |
8 | ||
| 90072-72637 |
2TGEU..TE71 T=1.90 |
8 | ||
| 90072-72633 |
2TGEU..TE71 T=1.80 |
8 | ||
| 90072-72625 |
2TGEU..TE71 T=1.60 |
8 | ||
| 90072-72631 |
2TGEU..TE71 T=1.75 |
8 | ||
| 90072-72635 |
2TGEU..TE71 T=1.85 |
8 | ||
| 90072-72641 |
2TGEU..TE71 T=2.00 |
8 | ||
| 90072-72639 |
2TGEU..TE71 T=1.95 |
8 | ||
| 90072-72611 |
2TGEU..TE71 T=1.25 |
8 | ||
| 90072-72627 |
2TGEU..TE71 T=1.65 |
8 | ||
| 90072-72607 |
2TGEU..TE71 T=1.15 |
8 | ||
| 90072-72645 |
2TGEU..TE71 T=2.10 |
8 | ||
| 90072-72619 |
2TGEU..TE71 T=1.45 |
8 | ||
| 90072-72643 |
2TGEU..TE71 T=2.05 |
8 | ||
| 90072-72665 |
2TGEU..TE71 T=2.60 |
8 | ||
| 90072-72653 |
2TGEU..TE71 T=2.30 |
8 | ||
| 90072-72655 |
2TGEU..TE71 T=2.35 |
8 | ||
| 90072-72649 |
2TGEU..TE71 T=2.20 |
8 | ||
| 90072-72659 |
2TGEU..TE71 T=2.45 |
8 | ||
| 90072-72661 |
2TGEU..TE71 T=2.50 |
8 | ||
| 90072-72667 |
2TGEU..TE71 T=2.65 |
8 | ||
| 90072-72669 |
2TGEU..TE71 T=2.70 |
8 | ||
| 90072-72647 |
2TGEU..TE71 T=2.15 |
8 | ||
| 90072-72681 |
2TGEU..TE71 T=3.00 |
8 | ||
| 90072-72683 |
2TGEU..TE71 T=3.05 |
8 | ||
| 90072-72657 |
2TGEU..TE71 T=2.40 |
8 | ||
| 90072-72677 |
2TGEU..TE71 T=2.90 |
8 | ||
| 90072-72673 |
2TGEU..TE71 T=2.80 |
8 | ||
| 90072-72675 |
2TGEU..TE71 T=2.85 |
8 | ||
| 90072-72691 |
2TGEU..TE71 T=3.25 |
8 | ||
| 90072-72651 |
2TGEU..TE71 T=2.25 |
8 | ||
| 90072-72685 |
2TGEU..TE71 T=3.10 |
8 | ||
| 90072-72671 |
2TGEU..TE71 T=2.75 |
8 | ||
| 90072-72663 |
2TGEU..TE71 T=2.55 |
8 | ||
| 90072-72687 |
2TGEU..TE71 T=3.15 |
8 | ||
| 90072-72679 |
2TGEU..TE71 T=2.95 |
8 | ||
| 90072-72693 |
2TGEU..TE71 T=3.30 |
8 | ||
| 90072-72699 |
2TGEU..TE71 T=3.45 |
8 | ||
| 90072-72695 |
2TGEU..TE71 T=3.35 |
8 | ||
| 90072-72697 |
2TGEU..TE71 T=3.40 |
8 | ||
| 90072-72702 |
2TGEU..TE71 T=3.50 |
8 | ||
| 90072-72689 |
2TGEU..TE71 T=3.20 |
8 | ||
| Common parts | ||||
| 90072-20110 | ||||
| 90072-20111 | ||||
| 90072-20914 | ||||
| 90202-08039 | ||||
| 91112-51428 | ||||
| 91162-51228 | ||||
| 91611-60814 | ||||
| 91611-60816 | ||||
| 91611-60845 | ||||
