TE71-ECMQF (1979)
Toyota Corolla
Production
Mar 1979
-
Apr 1983
Engine
2TGEU
Transmission
5F MTM
Displacement
2500cc
Power
168 HP (125 kW)
(7903- )AE70,KE70,71,72,73..MTM

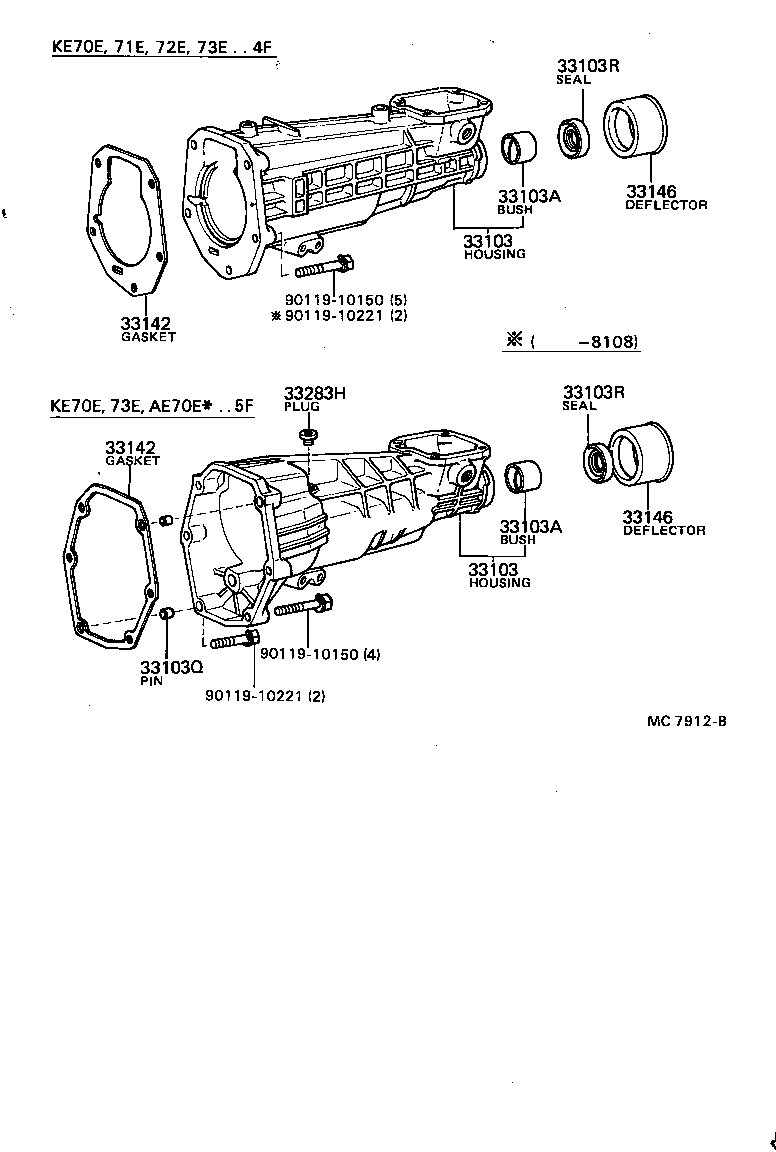

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 33103 - HOUSING SUB-ASSY, EXTENSION(MTM) | ||||
| 33103-20130 |
TE70,71..5F |
1 | ||
| 33103 - HOUSING SUB-ASSY, EXTENSION(MTM) | ||||
| 33103-20130 |
TE70,71..5F |
1 | ||
| 33103A - BUSH(FOR MANUAL TRANSMISSION EXTENSION HOUSING) | ||||
| 90999-72022 |
KE74,TE7#..MTM |
1 | ||
| 33103A - BUSH(FOR MANUAL TRANSMISSION EXTENSION HOUSING) | ||||
| 90999-72022 |
KE74,TE7#..MTM |
1 | ||
| 33103Q - PIN, RING(FOR EXTENSION HOUSING) | ||||
| 90253-13017 |
AE70,KE74,TE7#..MTM |
2 | ||
| 33103R - SEAL, OIL(FOR MANUAL TRANSMISSION EXTENSION HOUSING) | ||||
| 90311-32086 |
AE70,KE7#,TE7#..MTM |
1 | ||
| 33103R - SEAL, OIL(FOR MANUAL TRANSMISSION EXTENSION HOUSING) | ||||
| 90311-32086 |
AE70,KE7#,TE7#..MTM |
1 | ||
| 33142 - GASKET, EXTENSION HOUSING(MTM) | ||||
| 33142-14010 |
KE74,TE7#..MTM |
1 | ||
| 33142 - GASKET, EXTENSION HOUSING(MTM) | ||||
| 33142-14010 |
KE74,TE7#..MTM |
1 | ||
| 33146 - DEFLECTOR, EXTENSION HOUSING DUST(MTM) | ||||
| 33146-12010 |
AE70,KE7#,TE7#..MTM |
1 | ||
| 33146 - DEFLECTOR, EXTENSION HOUSING DUST(MTM) | ||||
| 33146-12010 |
AE70,KE7#,TE7#..MTM |
1 | ||
| 33283H - PLUG, W/HEAD STRAIGHT SCREW | ||||
| 90341-10065 |
AE70,KE70,73,74,TE70,71..5F |
1 | ||
| Common parts | ||||
| 90119-10150 | ||||
| 90119-10221 | ||||
(7903-8508)CE7#,KE74,TE7#..MTM ; (8508- )KE74..MTM
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 33103 - HOUSING SUB-ASSY, EXTENSION(MTM) | ||||
| 33103-20130 |
TE70,71..5F |
1 | ||
| 33103 - HOUSING SUB-ASSY, EXTENSION(MTM) | ||||
| 33103-20130 |
TE70,71..5F |
1 | ||
| 33103A - BUSH(FOR MANUAL TRANSMISSION EXTENSION HOUSING) | ||||
| 90999-72022 |
KE74,TE7#..MTM |
1 | ||
| 33103A - BUSH(FOR MANUAL TRANSMISSION EXTENSION HOUSING) | ||||
| 90999-72022 |
KE74,TE7#..MTM |
1 | ||
| 33103C - PLUG, NO.1(FOR EXTENSION HOUSING) | ||||
| 90341-18049 |
TE7#..MTM |
1 | ||
| 33103F - GASKET(FOR EXTENSION HOUSING PLUG NO.1) | ||||
| 12157-10010 |
TE7#..MTM |
1 | ||
| 12157-10010 |
TE70,71..5F |
1 | ||
| 33103Q - PIN, RING(FOR EXTENSION HOUSING) | ||||
| 90253-13017 |
AE70,KE74,TE7#..MTM |
2 | ||
| 33103R - SEAL, OIL(FOR MANUAL TRANSMISSION EXTENSION HOUSING) | ||||
| 90311-32086 |
AE70,KE7#,TE7#..MTM |
1 | ||
| 33103R - SEAL, OIL(FOR MANUAL TRANSMISSION EXTENSION HOUSING) | ||||
| 90311-32086 |
AE70,KE7#,TE7#..MTM |
1 | ||
| 33142 - GASKET, EXTENSION HOUSING(MTM) | ||||
| 33142-14010 |
KE74,TE7#..MTM |
1 | ||
| 33142 - GASKET, EXTENSION HOUSING(MTM) | ||||
| 33142-14010 |
KE74,TE7#..MTM |
1 | ||
| 33146 - DEFLECTOR, EXTENSION HOUSING DUST(MTM) | ||||
| 33146-12010 |
AE70,KE7#,TE7#..MTM |
1 | ||
| 33146 - DEFLECTOR, EXTENSION HOUSING DUST(MTM) | ||||
| 33146-12010 |
AE70,KE7#,TE7#..MTM |
1 | ||
| 33283H - PLUG, W/HEAD STRAIGHT SCREW | ||||
| 90341-10065 |
AE70,KE70,73,74,TE70,71..5F |
1 | ||
| Common parts | ||||
| 90119-10066 | ||||
| 90119-10142 | ||||
| 90119-10143 | ||||
| 90119-10161 | ||||
