TE71-ECMQF (1979)
Toyota Corolla
Production
Mar 1979
-
Apr 1983
Engine
2TGEU
Transmission
5F MTM
Displacement
2500cc
Power
168 HP (125 kW)
(7903-8108)2TGEU

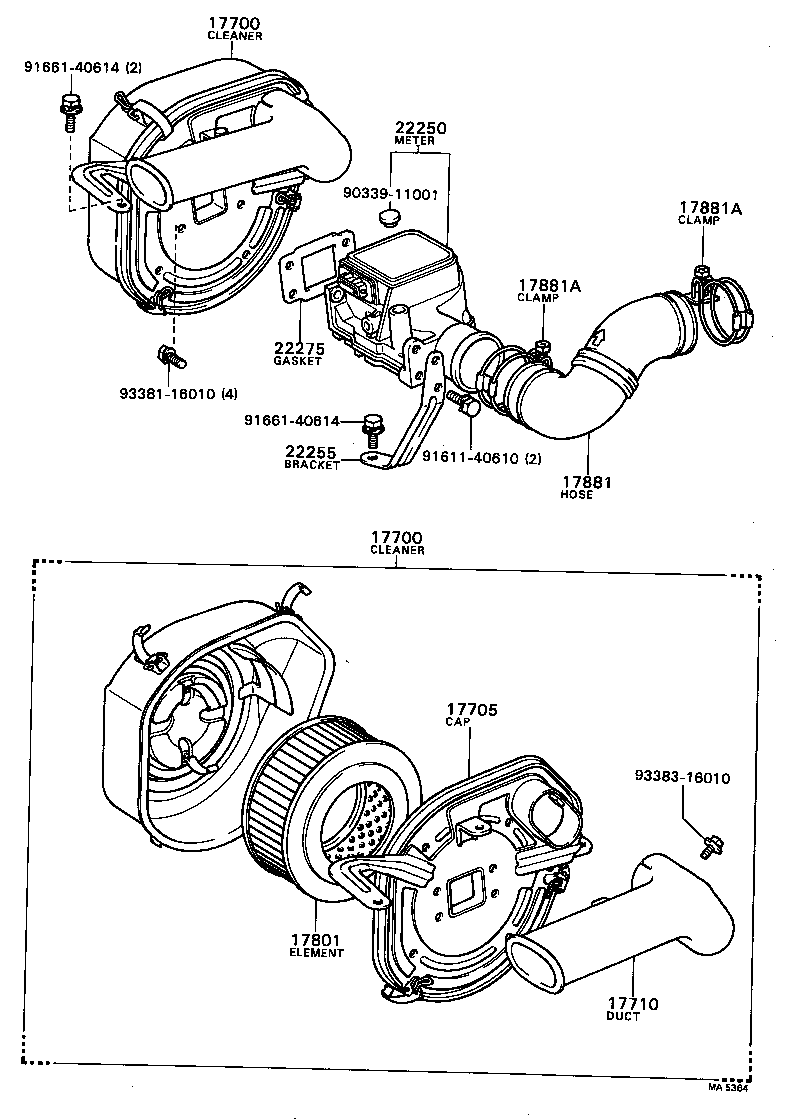

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 17700 - CLEANER ASSY, AIR | ||||
| 17700-26240 |
2TGEU..TE71 |
1 | ||
| 17700-26310 |
2TGEU..TE71 |
1 | ||
| 17705 - CAP SUB-ASSY, AIR CLEANER | ||||
| 17705-26070 |
2TGEU..TE71 |
1 | ||
| 17705-26050 |
2TGEU..TE71 |
1 | ||
| 17710 - DUCT SUB-ASSY, AIR CLEANER INLET, NO.1 | ||||
| 17751-26020 |
2TGEU..TE71 |
1 | ||
| 17751-34040 |
2TGEU..TE71 |
1 | ||
| 17710C - CLAMP(FOR AIR CLEANER INLET DUCT) | ||||
| 90461-10355 |
2TGEU..TE71 |
1 | ||
| 17801 - ELEMENT SUB-ASSY, AIR CLEANER FILTER | ||||
| 17801-24010 |
2TGEU..TE71 |
1 | ||
| 17881 - HOSE, AIR CLEANER, NO.1 | ||||
| 17881-26031 |
2TGEU..TE71 |
1 | ||
| 17881A - CLAMP(FOR AIR CLEANER HOSE, NO.1) | ||||
| 96111-10710 |
2TGEU..TE71 |
2 | ||
| 17881A - CLAMP(FOR AIR CLEANER HOSE, NO.1) | ||||
| 96111-10710 |
2TGEU..TE71 |
2 | ||
| 22250 - METER ASSY, INTAKE AIR FLOW | ||||
| 22250-26011 |
2TGEU..TE71 |
1 | ||
| 22255 - BRACKET, AIR FLOW METER | ||||
| 22255-26030 |
2TGEU..TE71 |
1 | ||
| 22275 - GASKET, AIR FLOW METER | ||||
| 22275-26021 |
2TGEU..TE71 |
1 | ||
| 22275-26020 |
2TGEU..TE71 |
1 | ||
| Common parts | ||||
| 90339-11001 | ||||
| 91611-40610 | ||||
| 91661-40614 | ||||
| 93280-16014 | ||||
| 93381-16010 | ||||
| 93383-16014 | ||||
| Linked diagrams | ||||
| 1709 | ||||
(8108-8304)2TGEU
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 17700 - CLEANER ASSY, AIR | ||||
| 17700-26240 |
2TGEU..TE71 |
1 | ||
| 17700-26310 |
2TGEU..TE71 |
1 | ||
| 17700 - CLEANER ASSY, AIR | ||||
| 17700-26240 |
2TGEU..TE71 |
1 | ||
| 17700-26310 |
2TGEU..TE71 |
1 | ||
| 17705 - CAP SUB-ASSY, AIR CLEANER | ||||
| 17705-26070 |
2TGEU..TE71 |
1 | ||
| 17705-26050 |
2TGEU..TE71 |
1 | ||
| 17710 - DUCT SUB-ASSY, AIR CLEANER INLET, NO.1 | ||||
| 17751-26020 |
2TGEU..TE71 |
1 | ||
| 17751-34040 |
2TGEU..TE71 |
1 | ||
| 17801 - ELEMENT SUB-ASSY, AIR CLEANER FILTER | ||||
| 17801-24010 |
2TGEU..TE71 |
1 | ||
| 17881 - HOSE, AIR CLEANER, NO.1 | ||||
| 17881-26031 |
2TGEU..TE71 |
1 | ||
| 17881A - CLAMP(FOR AIR CLEANER HOSE, NO.1) | ||||
| 96111-10710 |
2TGEU..TE71 |
2 | ||
| 17881A - CLAMP(FOR AIR CLEANER HOSE, NO.1) | ||||
| 96111-10710 |
2TGEU..TE71 |
2 | ||
| 22250 - METER ASSY, INTAKE AIR FLOW | ||||
| 22250-26011 |
2TGEU..TE71 |
1 | ||
| 22255 - BRACKET, AIR FLOW METER | ||||
| 22255-26030 |
2TGEU..TE71 |
1 | ||
| 22275 - GASKET, AIR FLOW METER | ||||
| 22275-26021 |
2TGEU..TE71 |
1 | ||
| 22275-26020 |
2TGEU..TE71 |
1 | ||
| Common parts | ||||
| 90339-11001 | ||||
| 91611-40610 | ||||
| 91661-40614 | ||||
| 93381-16010 | ||||
| 93383-16010 | ||||
