TE70-ESHNS (1979)
Toyota Corolla

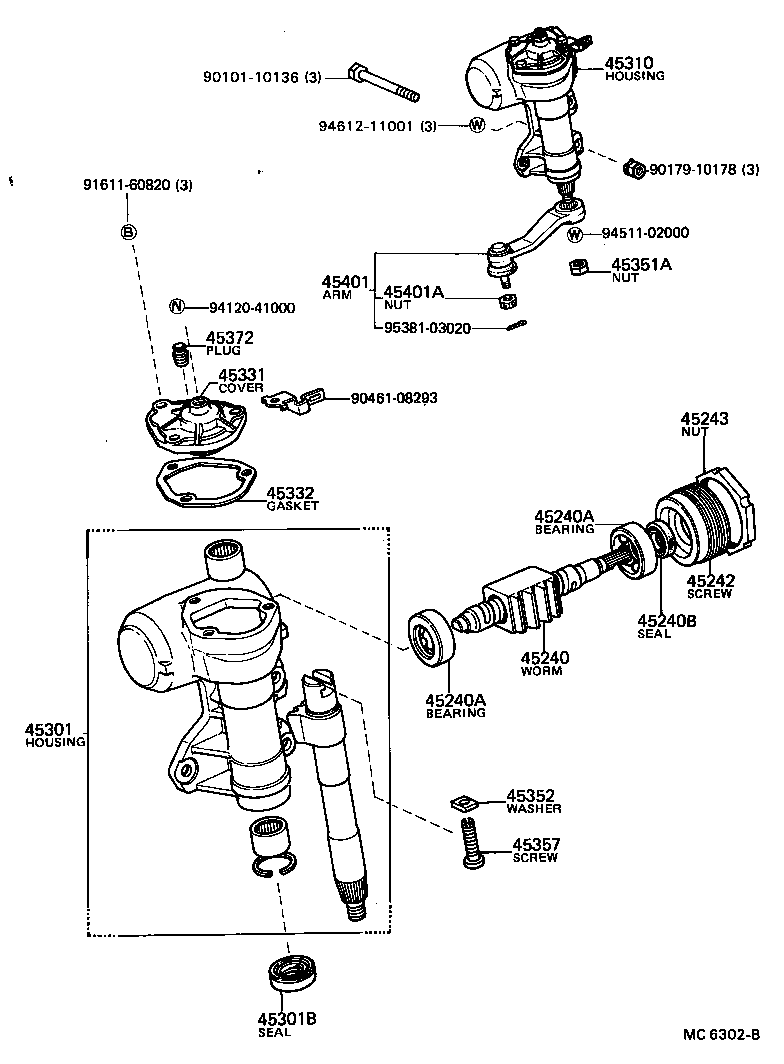

ILLUST NO. 2 OF 3(7903-8108)AE70,KE71,TE7# ; (8108- )CE7#,KE72,74,TE74
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 45240 - WORM ASSY, STEERING | ||||
| 45240-12010 |
AE70,KE71,TE70,73..DX,GL,SE,SL,STD VARIABLE TYPE |
1 | ||
| 45240A - BEARING(FOR STEERING WORM) | ||||
| 90369-40018 |
TE70..GL,SE,SL |
2 | ||
| 45240A - BEARING(FOR STEERING WORM) | ||||
| 90369-40018 |
TE70..GL,SE,SL |
2 | ||
| 45240B - SEAL, OIL(FOR STEERING WORM) | ||||
| 90311-17092 |
AE70,KE71,TE7# |
1 | ||
| 45242 - SCREW, WORM BEARING ADJUSTING | ||||
| 45242-22020 |
AE70,KE71,TE7# |
1 | ||
| 45243 - NUT, WORM BEARING ADJUSTING SCREW LOCK | ||||
| 45243-22020 |
AE70,KE71,TE7# |
1 | ||
| 45301 - HOUSING SUB-ASSY, STEERING GEAR | ||||
| 45301-14040 |
TE70..GL,SE,SL |
1 | ||
| 45301B - SEAL, OIL(FOR SECTOR SHAFT) | ||||
| 90310-28027 |
AE70,KE71,TE7# |
1 | ||
| 45310 - HOUSING ASSY, STEERING GEAR | ||||
| 45310-12190 |
TE70..GL,SE,SL VARIABLE TYPE |
1 | ||
| 45331 - COVER, SECTOR SHAFT END | ||||
| 45304-20040 |
TE70;AE70,TE71..GT,LVN,SR |
1 | ||
| 45332 - GASKET, SECTOR SHAFT END COVER | ||||
| 45332-22020 |
AE70,KE71,TE7# |
1 | ||
| 45351A - NUT, HEXAGON(FOR SECTOR SHAFT TO PITMAN ARM SETTING) | ||||
| 90170-20147 |
AE70,KE71,TE7# |
1 | ||
| 45352 - WASHER, SECTOR SHAFT THRUST | ||||
| 45352-14050 |
AE70,KE71,TE7# 厚さ=2.16,T=2.16 |
1 | ||
| 45352-14020 |
AE70,KE71,TE7# 厚さ=2.04,T=2.04 |
1 | ||
| 45352-14040 |
AE70,KE71,TE7# 厚さ=2.12,T=2.12 |
1 | ||
| 45352-14060 |
AE70,KE71,TE7# 厚さ=2.20,T=2.20 |
1 | ||
| 45352-14030 |
AE70,KE71,TE7# 厚さ=2.08,T=2.08 |
1 | ||
| 45352-14010 |
AE70,KE71,TE7# 厚さ=2.00,T=2.00 |
1 | ||
| 45357 - SCREW, SECTOR SHAFT ADJUSTING | ||||
| 45357-12010 |
TE70;AE70,TE71..GT,LVN,SR |
1 | ||
| 45372 - PLUG, STEERING GEAR HOUSING OIL | ||||
| 90930-03027 |
AE70,KE71,TE7# |
1 | ||
| 45401 - ARM SUB-ASSY, PITMAN | ||||
| 45401-19205 |
TE70..GL,SE,SL |
1 | ||
| 45401A - NUT, CASTLE(FOR PITMAN ARM) | ||||
| 90171-12028 |
AE70,KE71,TE7# |
1 | ||
| Common parts | ||||
| 90101-10136 | ||||
| 90179-10178 | ||||
| 90461-08293 | ||||
| 91611-60820 | ||||
| 94120-41000 | ||||
| 94511-02000 | ||||
| 94612-11001 | ||||
| 95381-03020 | ||||

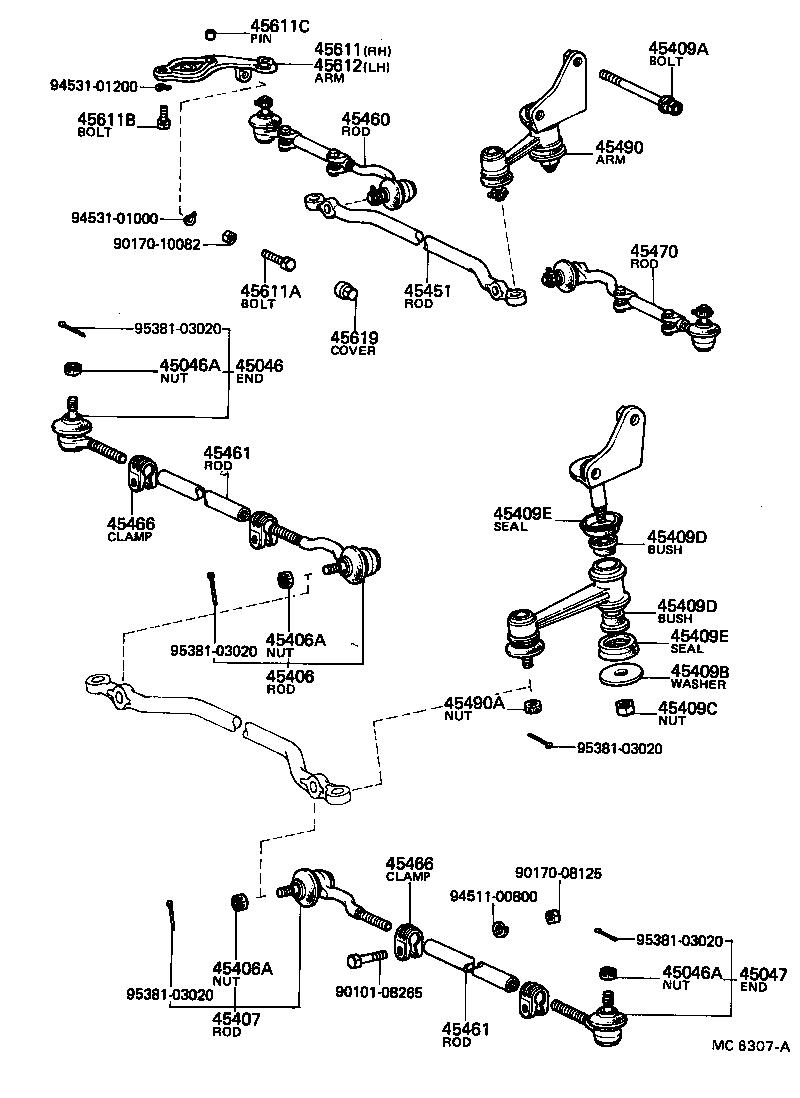

ILLUST NO. 1 OF 3(7903-8108)AE70,KE71,TE7# ; (8108- )CE7#,KE72,74,TE7#
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 45046 - END SUB-ASSY, TIE ROD, RH | ||||
| 45046-29075 |
AE70,TE70,71 |
1 | ||
| 45046A - NUT, CASTLE(FOR TIE ROD END) | ||||
| 90171-12028 |
AE70,CE7#,KE7#,TE7# |
2 | ||
| 45046A - NUT, CASTLE(FOR TIE ROD END) | ||||
| 90171-12028 |
AE70,CE7#,KE7#,TE7# |
2 | ||
| 45047 - END SUB-ASSY, TIE ROD, LH | ||||
| 45046-29075 |
AE70,TE70,71 |
1 | ||
| 45406 - ROD SUB-ASSY, TIE, RH | ||||
| 45406-19055 |
AE70,TE70,71 |
1 | ||
| 45406A - NUT, CASTLE(FOR TIE ROD) | ||||
| 90171-12028 |
AE70,KE71,TE7# |
2 | ||
| 45406A - NUT, CASTLE(FOR TIE ROD) | ||||
| 90171-12028 |
AE70,KE71,TE7# |
2 | ||
| 45407 - ROD SUB-ASSY, TIE, LH | ||||
| 45406-19055 |
AE70,TE70,71 |
1 | ||
| 45409A - BOLT, HEXAGON(FOR IDLER ARM SUPPORT SETTING) | ||||
| 90119-10118 |
AE70,KE71,TE7# |
2 | ||
| 45409B - WASHER, PLATE(FOR IDLER ARM RUBBER BUSH) | ||||
| 90201-14519 |
AE70,KE71,TE7# |
1 | ||
| 45409C - NUT(FOR IDLER ARM SUPPORT) | ||||
| 94182-11400 |
AE70,KE71,TE7# |
1 | ||
| 45409D - BUSH(FOR IDLER ARM) | ||||
| 90385-18068 |
AE70,KE71,TE7# |
2 | ||
| 45409D - BUSH(FOR IDLER ARM) | ||||
| 90385-18068 |
AE70,KE71,TE7# |
2 | ||
| 45409E - SEAL, DUST(FOR IDLER ARM SUPPORT) | ||||
| 90304-31012 |
AE70,KE71,TE7# |
2 | ||
| 45409E - SEAL, DUST(FOR IDLER ARM SUPPORT) | ||||
| 90304-31012 |
AE70,KE71,TE7# |
2 | ||
| 45451 - ROD, STEERING RELAY | ||||
| 45451-12040 |
AE70,TE70,71 |
1 | ||
| 45460 - ROD ASSY, TIE, RH | ||||
| 45460-19095 |
AE70,TE70,71 |
1 | ||
| 45461 - ROD, STEERING TIE | ||||
| 45465-12020 |
AE70,KE71,TE7# |
2 | ||
| 45461 - ROD, STEERING TIE | ||||
| 45465-12020 |
AE70,KE71,TE7# |
2 | ||
| 45466 - CLAMP, TIE ROD END | ||||
| 45466-22010 |
AE70,CE7#,KE7#,TE7# |
4 | ||
| 45466 - CLAMP, TIE ROD END | ||||
| 45466-22010 |
AE70,CE7#,KE7#,TE7# |
4 | ||
| 45470 - ROD ASSY, TIE, LH | ||||
| 45460-19095 |
AE70,TE70,71 |
1 | ||
| 45490 - ARM ASSY, STEERING IDLER | ||||
| 45490-19235 |
TE70..GL,SE,SL W/POWER STEERING |
1 | ||
| 45490-19215 |
AE70,KE71,TE7# |
1 | ||
| 45490A - NUT, CASTLE(FOR IDLER ARM) | ||||
| 90171-12028 |
AE70,KE71,TE7# |
1 | ||
| 45611 - ARM, STEERING KNUCKLE, RH | ||||
| 45611-12080 |
CE7#,TE7# |
1 | ||
| 45611A - BOLT, KNUCKLE STOPPER | ||||
| 90106-10032 |
AE70,KE71,TE7# |
2 | ||
| 45611B - BOLT, HEXAGON(FOR STEERING KNUCKLE TO SHOCK ABSORBER) | ||||
| 90101-12295 |
AE70,CE7#,KE7#,TE7# |
4 | ||
| 45611C - PIN, STRAIGHT(FOR STEERING KNUCKLE TO SHOCK ABSORBER) | ||||
| 90253-15016 |
AE70,CE7#,KE7#,TE7# |
4 | ||
| 45612 - ARM, STEERING KNUCKLE, LH | ||||
| 45612-12080 |
CE7#,TE7# |
1 | ||
| 45619 - COVER, KNUCKLE STOPPER | ||||
| 45619-14020 |
AE70,KE71,TE7# |
2 | ||
| Common parts | ||||
| 90101-08265 | ||||
| 90170-08125 | ||||
| 90170-10082 | ||||
| 94511-00800 | ||||
| 94531-01000 | ||||
| 94531-01200 | ||||
| 95381-03020 | ||||

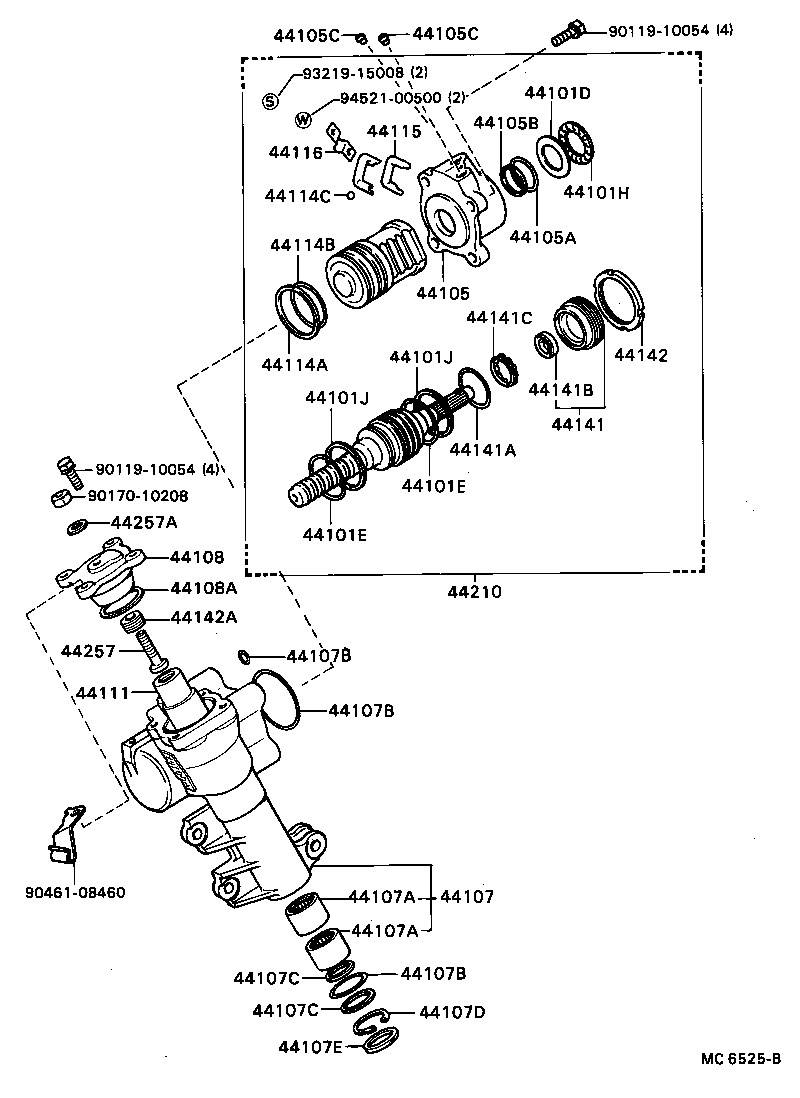

ILLUST NO. 3 OF 3(7908-8108)TE70..GL,SE,SL
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 44101D - WASHER, PLATE(FOR STEERING WORM) | ||||
| 90201-30003 |
TE70..GL,SE,SL |
1 | ||
| 44101E - RING, O(FOR STEERING WORM) | ||||
| 90301-44001 |
TE70..GL,SE,SL |
2 | ||
| 44101E - RING, O(FOR STEERING WORM) | ||||
| 90301-44001 |
TE70..GL,SE,SL |
2 | ||
| 44101H - BEARING, THRUST NEEDLE ROLLER(FOR STEERING WORM) | ||||
| 90374-30003 |
TE70..GL,SE,SL |
1 | ||
| 44101J - RING(FOR STEERING WORM) | ||||
| 90562-47002 |
TE70..GL,SE,SL |
2 | ||
| 90562-47001 |
TE70..GL,SE,SL |
2 | ||
| 44101J - RING(FOR STEERING WORM) | ||||
| 90562-47002 |
TE70..GL,SE,SL |
2 | ||
| 90562-47001 |
TE70..GL,SE,SL |
2 | ||
| 44105 - HOUSING SUB-ASSY, VALVE | ||||
| 44105-22040 |
TE70..GL,SE,SL |
1 | ||
| 44105A - RING, O(FOR VALVE HOUSING) | ||||
| 90301-32002 |
TE70..GL,SE,SL |
1 | ||
| 44105B - RING(FOR VALVE HOUSING) | ||||
| 90562-30002 |
TE70..GL,SE,SL |
1 | ||
| 44105C - SEAT, UNION(FOR VALVE BODY HOUSING) | ||||
| 90410-06030 |
TE70..GL,SE,SL |
2 | ||
| 44105C - SEAT, UNION(FOR VALVE BODY HOUSING) | ||||
| 90410-06030 |
TE70..GL,SE,SL |
2 | ||
| 44107 - HOUSING SUB-ASSY, POWER STEERING GEAR | ||||
| 44107-12010 |
TE70..GL,SE,SL |
1 | ||
| 44107A - BEARING, NEEDLE ROLLER(FOR POWER STEERING GEAR HOUSING) | ||||
| 90364-30002 |
TE70..GL,SE,SL |
2 | ||
| 44107A - BEARING, NEEDLE ROLLER(FOR POWER STEERING GEAR HOUSING) | ||||
| 90364-30002 |
TE70..GL,SE,SL |
2 | ||
| 44107B - RING, O(FOR POWER STEERING GEAR HOUSING) | ||||
| 96710-01010 |
TE70..GL,SE,SL OD=13,T=1.9 |
1 | ||
| 90301-62002 |
TE70..GL,SE,SL 内径=62.5,外径=66.5,OD=66.5,T=2.0 |
1 | ||
| 90301-32001 |
TE70..GL,SE,SL 内径=31.7,外径=38.7,OD=38.7,T=3.5 |
1 | ||
| 44107B - RING, O(FOR POWER STEERING GEAR HOUSING) | ||||
| 96710-01010 |
TE70..GL,SE,SL OD=13,T=1.9 |
1 | ||
| 90301-62002 |
TE70..GL,SE,SL 内径=62.5,外径=66.5,OD=66.5,T=2.0 |
1 | ||
| 90301-32001 |
TE70..GL,SE,SL 内径=31.7,外径=38.7,OD=38.7,T=3.5 |
1 | ||
| 44107B - RING, O(FOR POWER STEERING GEAR HOUSING) | ||||
| 96710-01010 |
TE70..GL,SE,SL OD=13,T=1.9 |
1 | ||
| 90301-62002 |
TE70..GL,SE,SL 内径=62.5,外径=66.5,OD=66.5,T=2.0 |
1 | ||
| 90301-32001 |
TE70..GL,SE,SL 内径=31.7,外径=38.7,OD=38.7,T=3.5 |
1 | ||
| 44107C - RING(FOR POWER STEERING GEAR HOUSING) | ||||
| 90562-30001 |
TE70..GL,SE,SL 内径=30.1,外径=38.0,OD=38,T=3.0 |
1 | ||
| 90562-29001 |
TE70..GL,SE,SL 内径=29.9,外径=32.3,OD=32.3,T=4.0 |
1 | ||
| 44107C - RING(FOR POWER STEERING GEAR HOUSING) | ||||
| 90562-30001 |
TE70..GL,SE,SL 内径=30.1,外径=38.0,OD=38,T=3.0 |
1 | ||
| 90562-29001 |
TE70..GL,SE,SL 内径=29.9,外径=32.3,OD=32.3,T=4.0 |
1 | ||
| 44107D - RING, HOLE SNAP(FOR POWER STEERING GEAR HOUSING) | ||||
| 90521-41001 |
TE70..GL,SE,SL |
1 | ||
| 44107E - SEAL, OIL(FOR POWER STEERING GEAR HOUSING) | ||||
| 90312-30001 |
TE70..GL,SE,SL |
1 | ||
| 44108 - COVER SUB-ASSY, SIDE | ||||
| 44108-12010 |
TE70..GL,SE,SL |
1 | ||
| 44108A - RING, O(FOR SIDE COVER) | ||||
| 90301-58001 |
TE70..GL,SE,SL |
1 | ||
| 44111 - SHAFT, CROSS | ||||
| 44111-22030 |
TE70..GL,SE,SL |
1 | ||
| 44114A - RING(FOR POWER PISTON NUT) | ||||
| 90562-58001 |
TE70..GL,SE,SL |
1 | ||
| 44114B - RING, O(FOR POWER PISTON NUT) | ||||
| 90301-53001 |
TE70..GL,SE,SL |
1 | ||
| 44114C - BALL(FOR POWER PISTON NUT) | ||||
| 90360-06021 |
TE70..GL,SE,SL |
44 | ||
| 44115 - GUIDE, BALL | ||||
| 44115-20010 |
TE70..GL,SE,SL |
2 | ||
| 44116 - CLAMP, BALL GUIDE | ||||
| 44116-20010 |
TE70..GL,SE,SL |
1 | ||
| 44141 - PLUG, ADJUSTER | ||||
| 44104-22011 |
TE70..GL,SE,SL |
1 | ||
| 44141A - RING, O(FOR ADJUSTER PLUG) | ||||
| 90301-51001 |
TE70..GL,SE,SL |
1 | ||
| 44141B - SEAL, OIL(FOR ADJUSTER PLUG) | ||||
| 90311-19002 |
TE70..GL,SE,SL |
1 | ||
| 44141C - BEARING(FOR ADJUSTER PLUG) | ||||
| 90369-22001 |
TE70..GL,SE,SL |
1 | ||
| 44142 - NUT, LOCK | ||||
| 44142-22010 |
TE70..GL,SE,SL |
1 | ||
| 44142A - NUT, LOCK, NO.1 | ||||
| 44142-22020 |
TE70..GL,SE,SL |
1 | ||
| 44210 - VALVE ASSY, POWER STEERING CONTROL | ||||
| 44120-12010 |
TE70..GL,SE,SL |
1 | ||
| 44120-12011 |
TE70..GL,SE,SL |
1 | ||
| 44257 - SCREW, CROSS SHAFT ADJUSTING | ||||
| 45357-22010 |
TE70..GL,SE,SL |
1 | ||
| 44257A - WASHER, SEAL(FOR CROSS SHAFT ADJUSTING SCREW) | ||||
| 90210-10001 |
TE70..GL,SE,SL |
1 | ||
| Common parts | ||||
| 90119-10054 | ||||
| 90170-10208 | ||||
| 90461-08460 | ||||
| 93219-15008 | ||||
| 94521-00500 | ||||

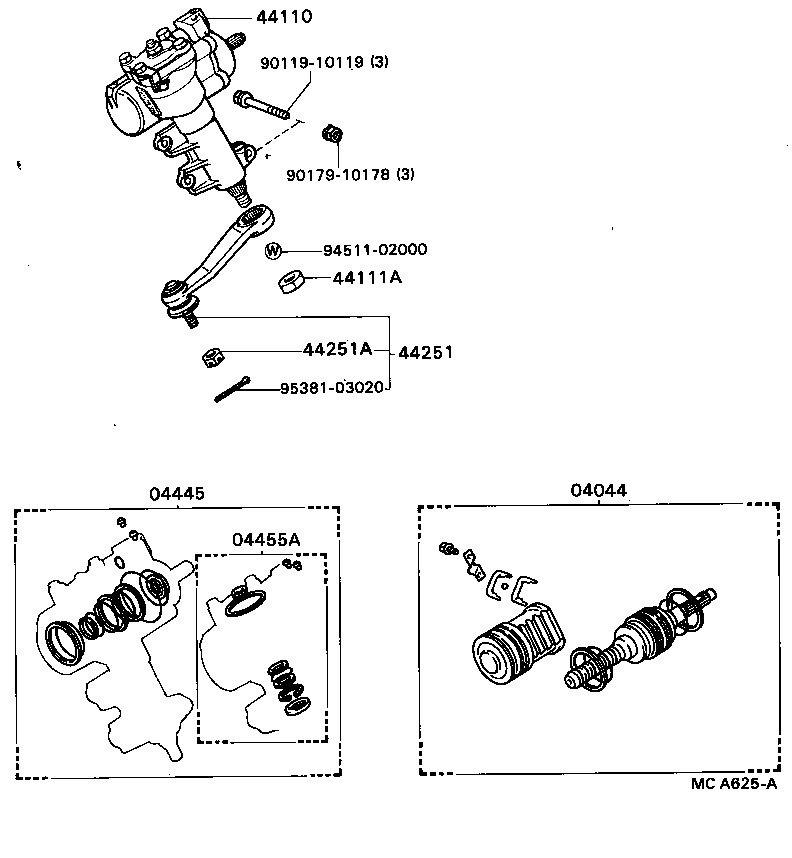

ILLUST NO. 2 OF 3(7908-8108)TE70..GL,SE,SL
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 04044 - WARM KIT, POWER STEERING | ||||
| 04044-12010 |
TE70..GL,SE,SL |
1 | ||
| 04044-12020 |
TE70..GL,SE,SL |
1 | ||
| 04445 - GASKET KIT, POWER STEERING GEAR(FOR RECIRCULATING BALL) | ||||
| 04445-22050 |
TE70..GL,SE,SL |
1 | ||
| 04455A - GASKET KIT, POWER STEERING CROSS SHAFT OVERHOLE | ||||
| 04455-22010 |
TE70..GL,SE,SL |
1 | ||
| 44110 - GEAR ASSY, POWER STEERING | ||||
| 44110-12011 |
TE70..GL,SE,SL |
1 | ||
| 44110-12010 |
TE70..GL,SE,SL |
1 | ||
| 44111A - NUT, HEXAGON(FOR CROSS SHAFT TO PITMAN ARM SETTING) | ||||
| 90170-20147 |
TE70..GL,SE,SL |
1 | ||
| 44251 - ARM, PITMAN | ||||
| 45401-19205 |
TE70..GL,SE,SL |
1 | ||
| 44251A - NUT, CASTLE(FOR PITMAN ARM) | ||||
| 90171-12028 |
TE70..GL,SE,SL |
1 | ||
| Common parts | ||||
| 90119-10119 | ||||
| 90179-10178 | ||||
| 94511-02000 | ||||
| 95381-03020 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
