TE70-ESHNS (1979)

Toyota Corolla

Production Aug 1979 - Aug 1981
Engine 13TU
Transmission 3FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(7908-8108)13TU

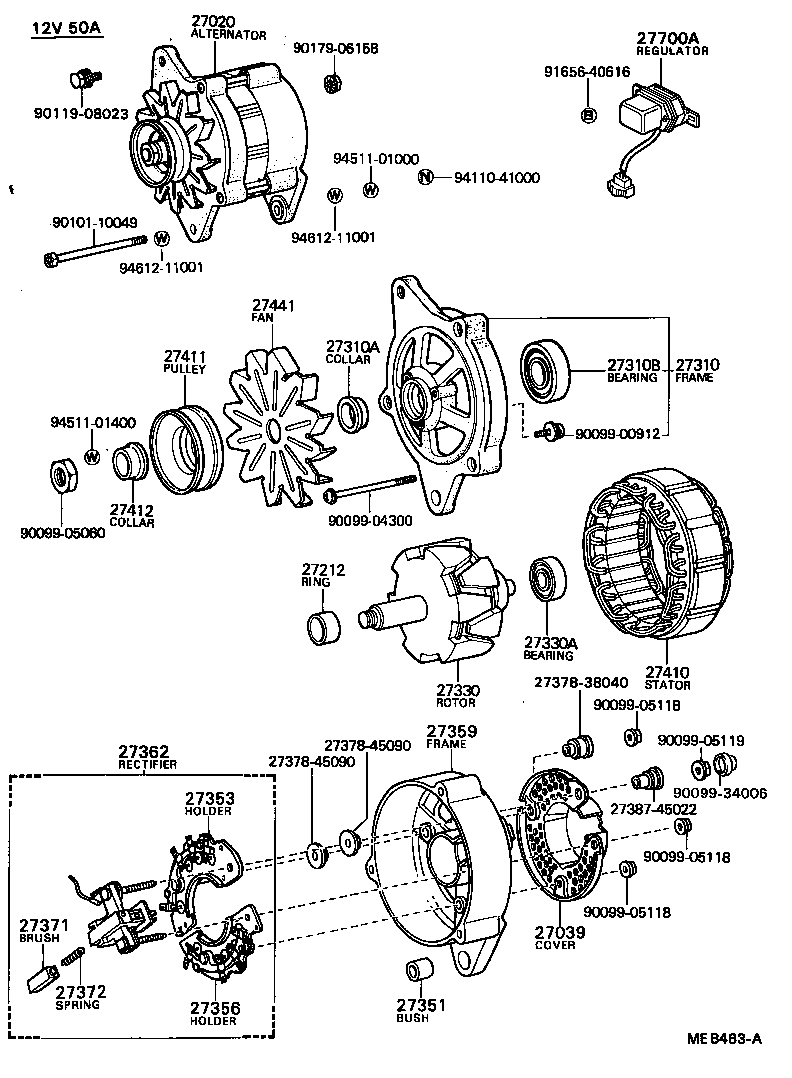

Click highlighted areas on diagram

diagram 27020 27039 27212 27310 27310A 27310B 27330 27330A 27351 27353 27356 27359 27362 27371 27372 2737838040 2737845090 2737845090 2738745022 27410 27411 27412 27441 27700A 9009900912 9009904300 9009905060 9009905118 9009905118 9009905118 9009905119 9009934006 9010110049 9011908023 9017906158 9165640616 9411041000 9451101000 9451101400 9461211001 9461211001
Part # Description Qty Price
27020 - ALTERNATOR ASSY
27020-34051

13TU..TE70

12V 50A,12V 50A

 1
27039 - COVER, ALTERNATOR REAR END
27039-45110

13TU,2TGEU..TE70,71

12V 50A,55A

 1
27212 - RING, SPACE(FOR ALTERNATOR ROTOR)
27412-45070

13TU,3AU,4K#,2TGEU..AE70,KE7#,TE70,71

12V 40A,50A,55A

 1
27310 - FRAME ASSY, DRIVE END, ALTERNATOR
27310-34050

13TU..TE70

12V 50A

 1
27310A - COLLAR OR NUT(FOR ALTERNATOR DRIVE END FRAME)
27412-31040

12TJ,13TU,3AU,4K#,5KJ,2TGEU..AE70,KE7#,TE7#

12V 40A,45A,50A,55A

 1
27310B - BEARING(FOR ALTERNATOR DRIVE END FRAME)
90099-10115

13TU,2TGEU..TE70,71

12V 50A,55A

 1
27330 - ROTOR ASSY, ALTERNATOR
27330-45070

13TU,3AU,4KU..AE70,KE70,TE70

12V 50A

 1
27330A - BEARING(FOR ALTERNATOR ROTOR)
90099-10116

13TU,2TGEU..TE70,71

12V 50A,55A

 1
27351 - BUSH(FOR ALTERNATOR RECTIFIER END FRAME)
27351-38051

12TJ,13TU,3AU,4K#,5KJ,2TGEU..AE70,KE7#,TE7#

12V 40A,45A,50A,55A

 1
27353 - HOLDER, W/RECTIFIER POSITIVE, ALTERNATOR
27353-34051

13TU..TE70

12V 50A

 1
27353-34051

13TU,3AU..AE70,TE70

12V 50A

 1
27356 - HOLDER, W/RECTIFIER NEGATIVE, ALTERNATOR
27356-34051

13TU..TE70

12V 50A

 1
27356-34051

13TU,3AU..AE70,TE70

12V 50A

 1
27359 - FRAME, ALTERNATOR RECTIFIER END
27359-24100

13TU..TE70

12V 50A

 1
27362 - RECTIFIER ASSY, W/BRUSH
27362-34050

13TU..TE70

12V 50A

 1
27362-15021

13TU,3AU..AE70,TE70

12V 50A

 1
27371 - BRUSH, ALTERNATOR
27371-44070

13TU,3AU,4KU,2TGEU..AE70,KE70,TE70,71

12V 50A,55A

 2
27371-44070

13TU,4KU,2TGEU..KE70,TE70,71

12V 50A,55A

 2
27372 - SPRING, ALTERNATOR BRUSH
90099-17114

13TU,4KU,2TGEU..KE70,TE70,71

12V 50A,55A

 2
90099-17114

13TU,3AU,4KU,2TGEU..AE70,KE70,TE70,71

12V 50A,55A

 2
27410 - STATOR ASSY, ALTERNATOR
27410-41080

13TU,2TGEU..TE70,71

12V 50A,55A

 1
27410-41080

13TU,3AU,4KU,2TGEU..AE70,KE70,TE70,71

12V 50A,55A

 1
27411 - PULLEY, ALTERNATOR
27411-31042

12TJ,13TU..TE70,73

12V 40A,50A

 1
27412 - COLLAR, SPACER(FOR ALTERNATOR PULLEY)
27412-44030

12TJ,13TU,3AU,4K#,2TGEU..AE70,KE7#,TE7#

12V 40A,50A,55A

 1
27441 - FAN, ALTERNATOR
27441-34030

12TJ,13TU,3AU,4K#,5KJ..AE70,KE7#,TE70,73,74

12V 40A,45A,50A,55A

 1
27700A - REGULATOR ASSY, GENERATOR
27700-15010

12TJ,13TU,3AU,4K#..AE70,KE7#,TE70,73

 1
Common parts
27378-38040
27378-45090
27387-45022
90099-00912
90099-04300
90099-05060
90099-05118
90099-05119
90099-34006
90101-10049
90119-08023
90179-06158
91656-40616
94110-41000
94511-01000
94511-01400
94612-11001
