TE70-EEMNS (1979)
Toyota Corolla

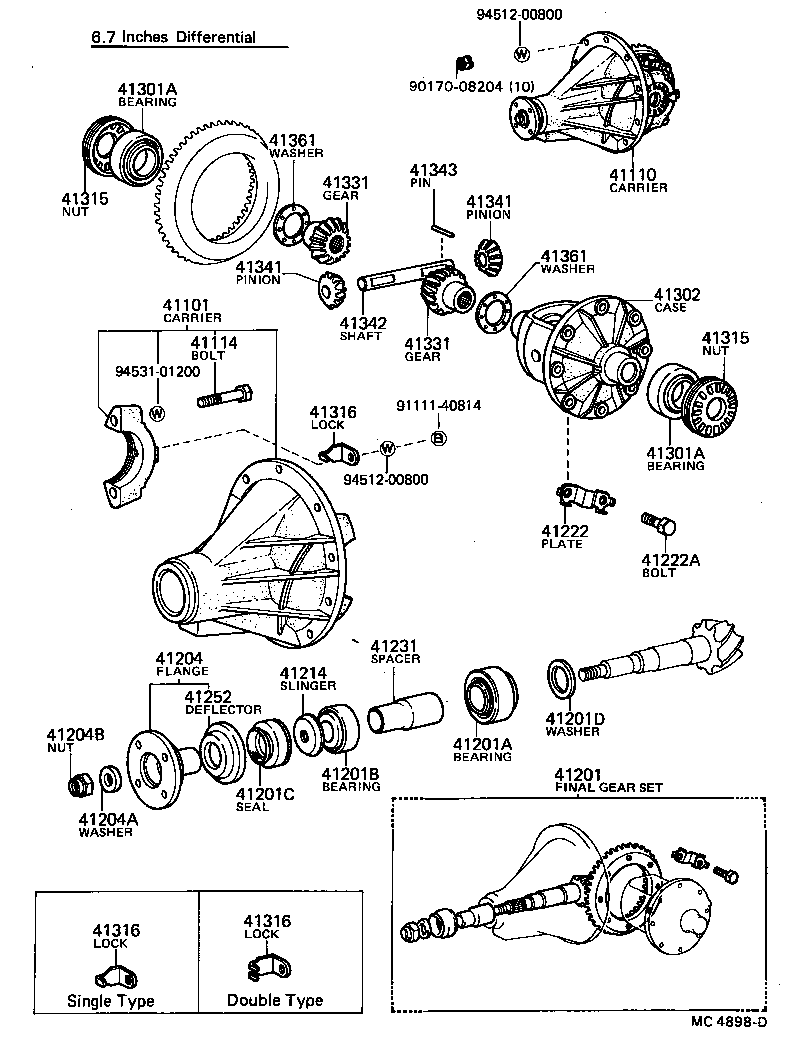

ILLUST NO. 1 OF 2(7903-8304)TE70,71
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 41101 - CARRIER SUB-ASSY, DIFFERENTIAL, REAR | ||||
| 41101-22010 |
TE70,71 |
1 | ||
| 41110 - CARRIER ASSY, DIFFERENTIAL, REAR | ||||
| 41110-20200 |
TE70 *AXC=T312 |
1 | ||
| 41110-20201 |
TE70 *AXC=T312 |
1 | ||
| 41114 - BOLT, REAR DIFFERENTIAL BEARING CAP | ||||
| 90101-12371 |
TE70,71 |
4 | ||
| 41201 - FINAL GEAR KIT, DIFFERENTIAL, REAR | ||||
| 41201-29236 |
TE70 N=43:11 |
1 | ||
| 41201A - BEARING (FOR REAR DRIVE PINION REAR) | ||||
| 90368-34049 |
TE70,71 |
1 | ||
| 41201B - BEARING (FOR REAR DRIVE PINION FRONT) | ||||
| 90368-30002 |
AE70,CE7#,KE71,72,73,74,TE7# |
1 | ||
| 41201C - SEAL, OIL (FOR REAR DIFFERENTIAL CARRIER) | ||||
| 90311-38015 |
TE70,71 |
1 | ||
| 41201D - WASHER, PLATE (FOR REAR DIFFERENTIAL DRIVE PINION) | ||||
| 90201-35398 |
TE70,71 厚さ=2.42,ﾏｰｸ 07,T=2.42 |
1 | ||
| 90201-35397 |
TE70,71 厚さ=2.39,ﾏｰｸ 06,T=2.39 |
1 | ||
| 90201-35401 |
TE70,71 厚さ=2.51,ﾏｰｸ 10,T=2.51 |
1 | ||
| 90201-35400 |
TE70,71 厚さ=2.48,ﾏｰｸ 09,T=2.48 |
1 | ||
| 90201-35402 |
TE70,71 厚さ=2.54,ﾏｰｸ 11,T=2.54 |
1 | ||
| 90201-35437 |
TE70,71 厚さ=2.33,ﾏｰｸ 04,T=2.33 |
1 | ||
| 90201-35396 |
TE70,71 厚さ=2.36,ﾏｰｸ 05,T=2.36 |
1 | ||
| 90201-35399 |
TE70,71 厚さ=2.43,ﾏｰｸ 08,T=2.45 |
1 | ||
| 90201-35435 |
TE70,71 厚さ=2.27,ﾏｰｸ 02,T=2.27 |
1 | ||
| 90201-35404 |
TE70,71 厚さ=2.60,ﾏｰｸ 13,T=2.60 |
1 | ||
| 90201-35436 |
TE70,71 厚さ=2.30,ﾏｰｸ 03,T=2.30 |
1 | ||
| 90201-35440 |
TE70,71 厚さ=2.69,ﾏｰｸ 16,T=2.69 |
1 | ||
| 90201-35403 |
TE70,71 厚さ=2.57,ﾏｰｸ 12,T=2.57 |
1 | ||
| 90201-35439 |
TE70,71 厚さ=2.66,ﾏｰｸ 15,T=2.66 |
1 | ||
| 90201-35438 |
TE70,71 厚さ=2.63,ﾏｰｸ 14,T=2.63 |
1 | ||
| 41204 - FLANGE SUB-ASSY, REAR DRIVE PINION COMPANION, REAR | ||||
| 41204-20020 |
TE70,71 |
1 | ||
| 41204A - WASHER, PLATE (FOR REAR DRIVE PINION) | ||||
| 90201-18485 |
AE70,CE7#,KE71,72,73,74,TE7# |
1 | ||
| 41204B - NUT (FOR REAR DRIVE PINION) | ||||
| 90179-18001 |
AE70,CE7#,KE71,72,73,74,TE7# # |
1 | ||
| 41214 - SLINGER, REAR DIFFERENTIAL DRIVE PINION OIL | ||||
| 41214-20020 |
AE70,CE7#,KE71,72,73,74,TE7# |
1 | ||
| 41222 - PLATE, REAR DIFFERENTIAL RING GEAR SET BOLT LOCK | ||||
| 41222-30030 |
TE70,71 |
4 | ||
| 41222A - BOLT (FOR REAR DIFFERENTIAL RING GEAR SET) | ||||
| 90101-11353 |
TE70,71 |
8 | ||
| 41231 - SPACER, REAR DIFFERENTIAL DRIVE PINION BEARING | ||||
| 41231-22010 |
TE70,71 |
1 | ||
| 41252 - DEFLECTOR, DUST (FOR REAR DIFFERENTIAL) | ||||
| 41252-22010 |
TE70,71 |
1 | ||
| 41301A - BEARING(FOR REAR DIFFERENTIAL CASE) | ||||
| 90368-41050 |
TE70,71 |
2 | ||
| 41301A - BEARING(FOR REAR DIFFERENTIAL CASE) | ||||
| 90368-41050 |
TE70,71 |
2 | ||
| 41302 - CASE SUB-ASSY, REAR DIFFERENTIAL | ||||
| 41311-22030 |
TE70,71..GL,GT,LVN,SE,SL,SR |
1 | ||
| 41315 - NUT, REAR DIFFERENTIAL BEARING ADJUSTING | ||||
| 41315-22011 |
TE70,71 |
2 | ||
| 41315 - NUT, REAR DIFFERENTIAL BEARING ADJUSTING | ||||
| 41315-22011 |
TE70,71 |
2 | ||
| 41316 - LOCK, REAR DIFFERENTIAL BEARING ADJUSTING NUT | ||||
| 41316-22011 |
TE70,71 SINGLE TYPE |
2 | ||
| 41317-22011 |
TE70,71 DOUBLE TYPE |
2 | ||
| 41316 - LOCK, REAR DIFFERENTIAL BEARING ADJUSTING NUT | ||||
| 41316-22011 |
TE70,71 SINGLE TYPE |
2 | ||
| 41317-22011 |
TE70,71 DOUBLE TYPE |
2 | ||
| 41316 - LOCK, REAR DIFFERENTIAL BEARING ADJUSTING NUT | ||||
| 41316-22011 |
TE70,71 SINGLE TYPE |
2 | ||
| 41317-22011 |
TE70,71 DOUBLE TYPE |
2 | ||
| 41331 - GEAR, REAR DIFFERENTIAL SIDE | ||||
| 41331-22020 |
TE70,71..GL,GT,LVN,SE,SL,SR |
2 | ||
| 41331 - GEAR, REAR DIFFERENTIAL SIDE | ||||
| 41331-22020 |
TE70,71..GL,GT,LVN,SE,SL,SR |
2 | ||
| 41341 - PINION, REAR DIFFERENTIAL | ||||
| 41341-22020 |
TE70,71..GL,GT,LVN,SE,SL,SR |
2 | ||
| 41341 - PINION, REAR DIFFERENTIAL | ||||
| 41341-22020 |
TE70,71..GL,GT,LVN,SE,SL,SR |
2 | ||
| 41342 - SHAFT, REAR DIFFERENTIAL PINION | ||||
| 41342-22010 |
TE70,71..GL,GT,LVN,SE,SL,SR |
1 | ||
| 41343 - PIN, REAR DIFFERENTIAL PINION SHAFT | ||||
| 90250-04193 |
TE70,71..GL,GT,LVN,SE,SL,SR |
1 | ||
| 41361 - WASHER, REAR DIFFERENTIAL SIDE GEAR THRUST, NO.1 | ||||
| 41361-22030 |
TE70,71..GL,GT,LVN,SE,SL,SR 厚さ=1.10,ﾏｰｸ 03,T=1.10 |
2 | ||
| 41361-22040 |
TE70,71..GL,GT,LVN,SE,SL,SR 厚さ=1.20,ﾏｰｸ 04,T=1.20 |
2 | ||
| 41361-22160 |
TE70,71..GL,GT,LVN,SE,SL,SR 厚さ=1.15,ﾏｰｸ 16,T=1.15 |
2 | ||
| 41361-22140 |
TE70,71..GL,GT,LVN,SE,SL,SR 厚さ=0.95,ﾏｰｸ 14,T=0.95 |
2 | ||
| 41361-22150 |
TE70,71..GL,GT,LVN,SE,SL,SR 厚さ=1.05,ﾏｰｸ 15,T=1.05 |
2 | ||
| 41361-22020 |
TE70,71..GL,GT,LVN,SE,SL,SR 厚さ=1.00,ﾏｰｸ 02,T=1.00 |
2 | ||
| 41361 - WASHER, REAR DIFFERENTIAL SIDE GEAR THRUST, NO.1 | ||||
| 41361-22030 |
TE70,71..GL,GT,LVN,SE,SL,SR 厚さ=1.10,ﾏｰｸ 03,T=1.10 |
2 | ||
| 41361-22040 |
TE70,71..GL,GT,LVN,SE,SL,SR 厚さ=1.20,ﾏｰｸ 04,T=1.20 |
2 | ||
| 41361-22160 |
TE70,71..GL,GT,LVN,SE,SL,SR 厚さ=1.15,ﾏｰｸ 16,T=1.15 |
2 | ||
| 41361-22140 |
TE70,71..GL,GT,LVN,SE,SL,SR 厚さ=0.95,ﾏｰｸ 14,T=0.95 |
2 | ||
| 41361-22150 |
TE70,71..GL,GT,LVN,SE,SL,SR 厚さ=1.05,ﾏｰｸ 15,T=1.05 |
2 | ||
| 41361-22020 |
TE70,71..GL,GT,LVN,SE,SL,SR 厚さ=1.00,ﾏｰｸ 02,T=1.00 |
2 | ||
| Common parts | ||||
| 90170-08204 | ||||
| 91111-40814 | ||||
| 94512-00800 | ||||
| 94531-01200 | ||||
