TE70-EEKNS (1979)

Toyota Corolla

Production Aug 1979 - Aug 1981
Engine 13TU
Transmission 4F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(7908-8008)12TJ,13TU

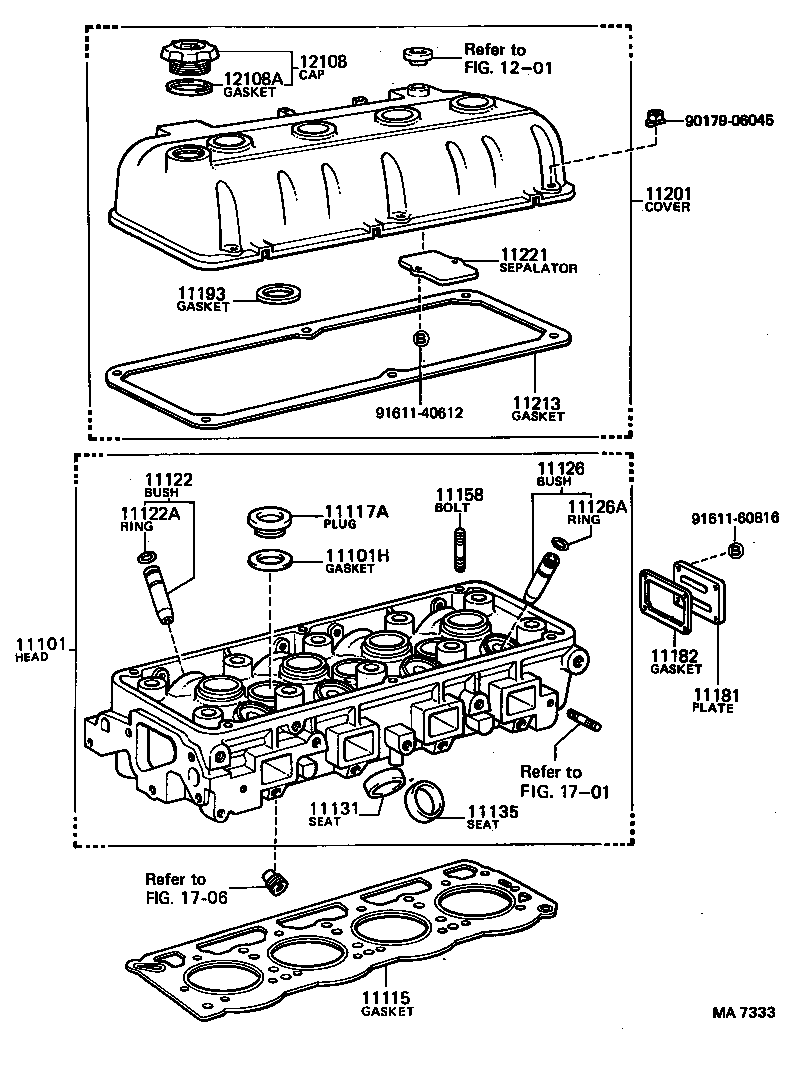

Click highlighted areas on diagram

diagram 11101 11101H 11115 11117A 11122 11122A 11126 11126A 11131 11135 11158 11181 11182 11193 11201 11213 11221 1201 12108 12108A 1701 1706 9017906045 9161140612 9161160816
Part # Description Qty Price
11101 - HEAD SUB-ASSY, CYLINDER
11101-19095

12TJ,13TU..TE70,73

 1
11122A - RING, SHAFT SNAP (FOR VALVE GUIDE BUSH)
90520-12049

12TJ,13TU..TE70,73,74

 4
11126A - RING, SHAFT SNAP(FOR VALVE GUIDE BUSH)
90520-12049

12TJ,13TU..TE70,73,74

 4
11158 - BOLT, STUD(FOR HEAD TO CYLINDER HEAD COVER)
92122-40620

12TJ,13TU..TE70,73

L=29,S=9&9

 6
11193 - GASKET, SPARK PLUG TUBE
11193-25011

12TJ,13TU..TE70,73

 4
11201 - COVER SUB-ASSY, CYLINDER HEAD
11201-29127

12TJ,13TU..TE70,73

 1
11213 - GASKET, CYLINDER HEAD COVER
11213-25011

12TJ,13TU..TE70,73

 1
11221 - SEPARATOR, CYLINDER HEAD COVER, NO.1
11221-25010

12TJ,13TU..TE70,73

 2
12108 - CAP SUB-ASSY, OIL FILLER
12180-13010

12TJ,13TU..TE70,73

 1
12108A - GASKET(FOR OIL FILLER CAP)
90430-37140

12TJ,13TU..TE70,73

 1
Common parts
90179-06045
91611-40612
91611-60816
Linked diagrams
1201
1701
1706
