TE70-EEHES (1979)
Toyota Corolla
Production
Aug 1979
-
Aug 1981
Engine
13TU
Transmission
3FC ATM
Displacement
2500cc
Power
168 HP (125 kW)
ILLUST NO. 1 OF 2(7908-8108)3FC ; (8108- )ATM
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 35505 - LEVER SUB-ASSY, MANUAL VALVE | ||||
| 35505-22010 |
AE70,TE70,73..3FC |
1 | ||
| 35506 - SHAFT SUB-ASSY, MANUAL VALVE LEVER | ||||
| 35561-20021 |
AE70,TE70,73..3FC |
1 | ||
| 35506C - PIN, SLOTTED SPRING (FOR MANUAL VALVE LEVER SHAFT) | ||||
| 90254-03044 |
AE70,TE70,73..3FC |
1 | ||
| 35506F - SEAL, OIL (FOR MANUAL VALVE LEVER SHAFT) | ||||
| 90311-11128 |
AE70,TE70,73..3FC |
2 | ||
| 35506F - SEAL, OIL (FOR MANUAL VALVE LEVER SHAFT) | ||||
| 90311-11128 |
AE70,TE70,73..3FC |
2 | ||
| 35506H - SPACER (FOR MANUAL VALVE LEVER SHAFT) | ||||
| 90560-20003 |
AE70,TE70,73..3FC |
1 | ||
| 35556 - SHAFT, PARKING LOCK PAWL | ||||
| 35556-22010 |
AE70,TE70,73..3FC |
1 | ||
| 35556E - RING, E (FOR PARKING LOCK PAWL SHAFT) | ||||
| 90523-08021 |
AE70,TE70,73..3FC |
1 | ||
| 35557 - PAWL, PARKING LOCK | ||||
| 35557-35010 |
AE70,TE70,73..3FC |
1 | ||
| 35557A - SPRING, TORSION (FOR PARKING LOCK PAWL) | ||||
| 90508-25001 |
AE70,TE70,73..3FC |
1 | ||
| 90508-25329 |
AE70,TE70,73..3FC |
1 | ||
| 35585 - ROD, PARKING LOCK | ||||
| 35501-22010 |
AE70,TE70,73..3FC |
1 | ||
| 35595 - BRACKET, PARKING LOCK PAWL | ||||
| 35595-22010 |
AE70,TE70,73..3FC |
1 | ||
| Common parts | ||||
| 90101-06416 | ||||
| 94110-50800 | ||||
| 94512-00800 | ||||
| 94542-00600 | ||||

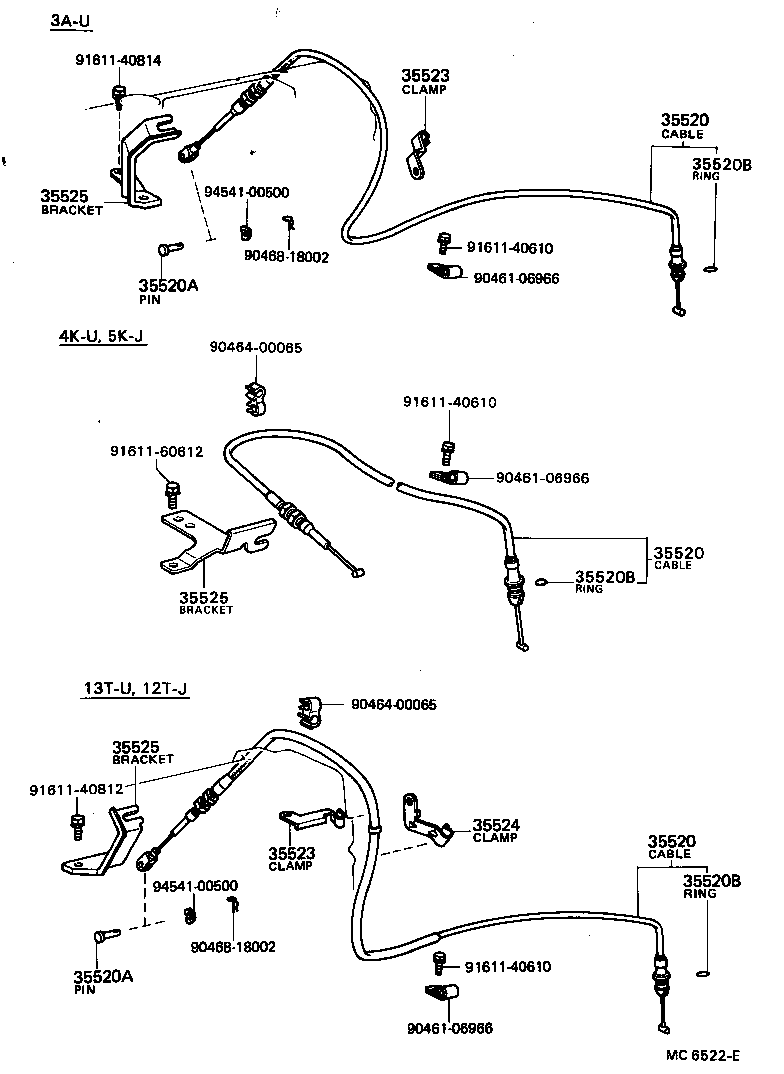

ILLUST NO. 2 OF 2(7908-8108)3FC ; (8108- )3FC
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 35520B - RING, O(FOR THROTTLE CABLE) | ||||
| 90301-09063 |
AE70,TE70,73..3FC |
1 | ||
| 35520B - RING, O(FOR THROTTLE CABLE) | ||||
| 90301-09063 |
AE70,TE70,73..3FC |
1 | ||
| 35520B - RING, O(FOR THROTTLE CABLE) | ||||
| 90301-09063 |
AE70,TE70,73..3FC |
1 | ||
| 35523 - CLAMP, THROTTLE CABLE | ||||
| 35523-12023 |
TE70,73..3FC |
1 | ||
| 35523 - CLAMP, THROTTLE CABLE | ||||
| 35523-12023 |
TE70,73..3FC |
1 | ||
| 35524 - CLAMP, THROTTLE CABLE, NO.2 | ||||
| 35524-12010 |
TE70,73..3FC |
1 | ||
| Common parts | ||||
| 90461-06966 | ||||
| 90464-00065 | ||||
| 90468-18002 | ||||
| 91611-40610 | ||||
| 91611-40812 | ||||
| 91611-40814 | ||||
| 91611-60612 | ||||
| 94541-00500 | ||||
