TE70-ECHSS (1979)

Toyota Corolla

Production Aug 1979 - Aug 1981
Engine 13TU
Transmission 3FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

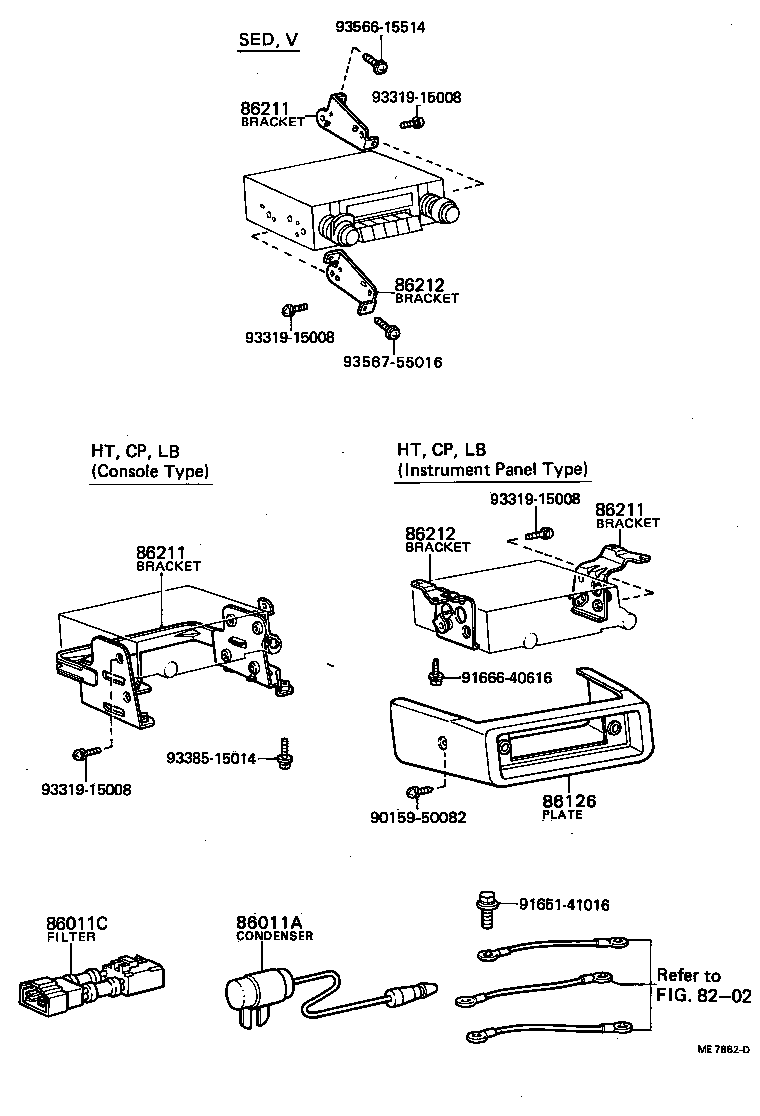

ILLUST NO. 2 OF 5(7903-8108)

Click highlighted areas on diagram

diagram 8202 86011A 86011C 86126 86211 86211 86211 86212 86212 9015950082 9165141016 9166640616 9331915008 9331915008 9331915008 9331915008 9338515014 9356615514 9356755016
Part # Description Qty Price
86011A - CONDENSER, RADIO SETTING
90980-04023

AE70,KE7#,TE7#

REGULATOR

 1
90980-04030

AE70,KE7#,TE7#

IG COIL

 1
90980-04010

AE70,KE7#,TE7#

REGULATOR

 1
90980-04036

AE70,KE7#,TE7#

IG COIL

 1
86011C - FILTER, NOISE
90980-05049

AE70,CE70,KE70,73,TE70,71

WIPER(NO.1)

 1
86211 - BRACKET, RADIO, NO.1
86201-12030

AE70,TE70,71..2D

CONSOLE TYPE,W/*RCM

 1
86201-12020

AE70,KE70,TE70..(CP,HT,LB)..(DX,GL,SL,SR)

CONSOL TYPE

 1
86211 - BRACKET, RADIO, NO.1
86201-12030

AE70,TE70,71..2D

CONSOLE TYPE,W/*RCM

 1
86201-12020

AE70,KE70,TE70..(CP,HT,LB)..(DX,GL,SL,SR)

CONSOL TYPE

 1
86211 - BRACKET, RADIO, NO.1
86201-12030

AE70,TE70,71..2D

CONSOLE TYPE,W/*RCM

 1
86201-12020

AE70,KE70,TE70..(CP,HT,LB)..(DX,GL,SL,SR)

CONSOL TYPE

 1
Common parts
90159-50082
91651-41016
91666-40616
93319-15008
93385-15014
93566-15514
93567-55016
Linked diagrams
8202

ILLUST NO. 1 OF 5(7903-8108)

Click highlighted areas on diagram

diagram 86011 86120 86124 86124 86125 86125 9017009167 9017009167 9020109365 9020109365
Part # Description Qty Price
86011 - RADIO & SETTING PARTS SET
86011-19365

AE70,KE70,TE70,71

AM/FM,MULTIPLEX

 1
86120 - RECEIVER ASSY, RADIO
86120-12230

AE70,KE7#,TE7#

AM

 1
86120-12240

AE70,KE70,TE70,71

AM/FM,MULTIPLEX

 1
86124 - KNOB, RADIO RECEIVER CONTROL
86124-14040

AE70,KE70,TE70,71

BALANCE

 1
86124-12010

AE70,KE7#,TE7#

 2
86124 - KNOB, RADIO RECEIVER CONTROL
86124-14040

AE70,KE70,TE70,71

BALANCE

 1
86124-12010

AE70,KE7#,TE7#

 2
86125 - KNOB, RADIO RECEIVER SWITCH
86125-12011

AE70,KE7#,TE7#

 2
86125 - KNOB, RADIO RECEIVER SWITCH
86125-12011

AE70,KE7#,TE7#

 2
Common parts
90170-09167
90201-09365

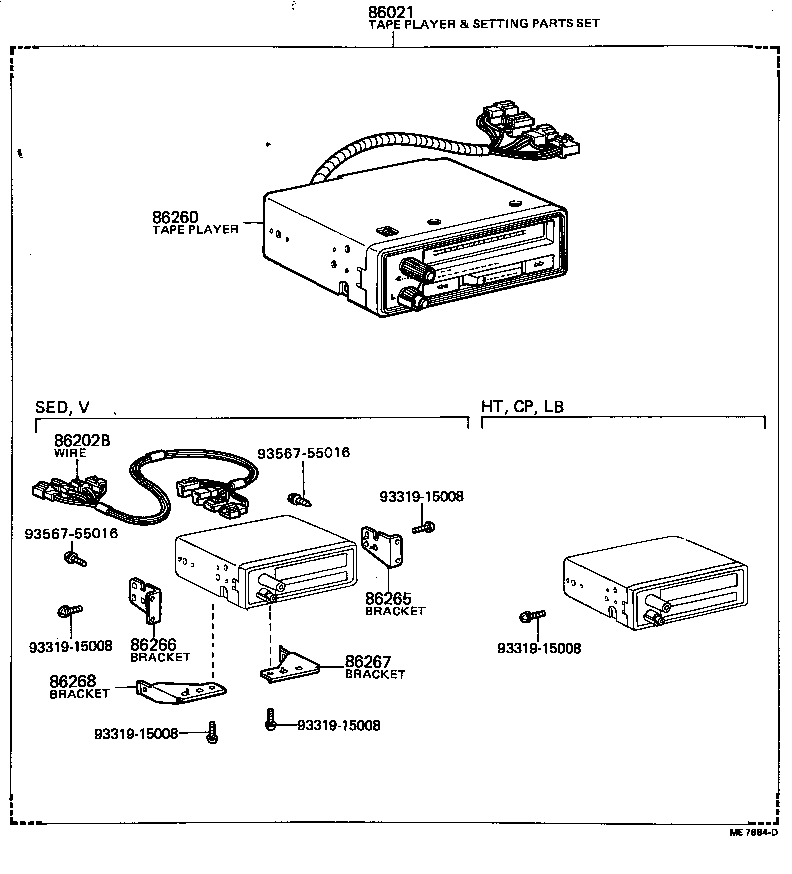

ILLUST NO. 3 OF 5(7903-8108)

Click highlighted areas on diagram

diagram 86021 86202B 86260 86265 86266 86267 86268 9331915008 9331915008 9331915008 9331915008 9331915008 9356755016 9356755016
Part # Description Qty Price
86021 - TAPE PLAYER AND SETTING PARTS SET
86021-12170

AE70,KE70,TE70,71..CP,HT,LB

 1
86260 - TAPE PLAYER ASSY
86021-12170

AE70,KE7#,TE7#

 1
Common parts
93319-15008
93567-55016

ILLUST NO. 4 OF 5(7903-8108)

Click highlighted areas on diagram

diagram 86180 86270 86280
Part # Description Qty Price
86180 - TUNER ASSY, STEREO COMPONENT
86180-12020

AE70,KE70,TE70,71..(CP,HT,LB)..(GL,GT,LVN,SE,SL,SR)

AM/FM MULTIPLEX

 1
86270 - DECK ASSY, STEREO COMPONENT
86270-12010

AE70,KE70,TE70,71..GL,GT,LVN,SE,SL,SR

 1
86280 - AMPLIFIER ASSY, STEREO COMPONENT
86280-12010

AE70,KE70,TE70,71..GL,GT,LVN,SE,SL,SR

 1

ILLUST NO. 5 OF 5(7903-8108)CP,LB

Click highlighted areas on diagram

diagram 86011A 86011A 86011A 86011A 86011C 86011C 8602 86022A 86022A 86022B 86022B 86211A 86211A 9015950048 9015950048 9017906183 9017906183 9046400118 9046400118 9098209002 9098209002 9331915008 9331915008 9338516016 9338516016 9338616012 9338616016 9338616016 9338616016 9338616016 9338616016 9338616016 9351055016 9351055016 9356015016 9356055016 9356055016 9418040600 9418040600
Part # Description Qty Price
86011A - CONDENSER, RADIO SETTING
90980-04023

AE70,KE7#,TE7#

REGULATOR

 1
90980-04030

AE70,KE7#,TE7#

IG COIL

 1
90980-04010

AE70,KE7#,TE7#

REGULATOR

 1
90980-04036

AE70,KE7#,TE7#

IG COIL

 1
86011A - CONDENSER, RADIO SETTING
90980-04023

AE70,KE7#,TE7#

REGULATOR

 1
90980-04030

AE70,KE7#,TE7#

IG COIL

 1
90980-04010

AE70,KE7#,TE7#

REGULATOR

 1
90980-04036

AE70,KE7#,TE7#

IG COIL

 1
86011A - CONDENSER, RADIO SETTING
90980-04023

AE70,KE7#,TE7#

REGULATOR

 1
90980-04030

AE70,KE7#,TE7#

IG COIL

 1
90980-04010

AE70,KE7#,TE7#

REGULATOR

 1
90980-04036

AE70,KE7#,TE7#

IG COIL

 1
86011A - CONDENSER, RADIO SETTING
90980-04023

AE70,KE7#,TE7#

REGULATOR

 1
90980-04030

AE70,KE7#,TE7#

IG COIL

 1
90980-04010

AE70,KE7#,TE7#

REGULATOR

 1
90980-04036

AE70,KE7#,TE7#

IG COIL

 1
86011C - FILTER, NOISE
90980-05049

AE70,CE70,KE70,73,TE70,71

WIPER(NO.1)

 1
86011C - FILTER, NOISE
90980-05049

AE70,CE70,KE70,73,TE70,71

WIPER(NO.1)

 1
86022A - PARTS SET, STEREO COMPONENT SETTING
86022-19065

AE70,KE70,TE70,71..LVN,SL,SR

 1
86022A - PARTS SET, STEREO COMPONENT SETTING
86022-19065

AE70,KE70,TE70,71..LVN,SL,SR

 1
86211A - BRACKET, STEREO COMPONENT, NO.1
86211-12110

AE70,KE70,TE70,71..(CP,HT,LB)..(GL,GT,LVN,SE,SL,SR)

 1
86211A - BRACKET, STEREO COMPONENT, NO.1
86211-12110

AE70,KE70,TE70,71..(CP,HT,LB)..(GL,GT,LVN,SE,SL,SR)

 1
Common parts
90159-50048
90179-06183
90464-00118
90982-09002
93319-15008
93385-16016
93386-16012
93386-16016
93510-55016
93560-15016
93560-55016
94180-40600
Linked diagrams
8602
