NRE210W-AWFSZ (2019)

Toyota Corolla

Production Sep 2019 - Sep 9999
Engine 8NRFTS
Transmission 6F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(1909- )WG

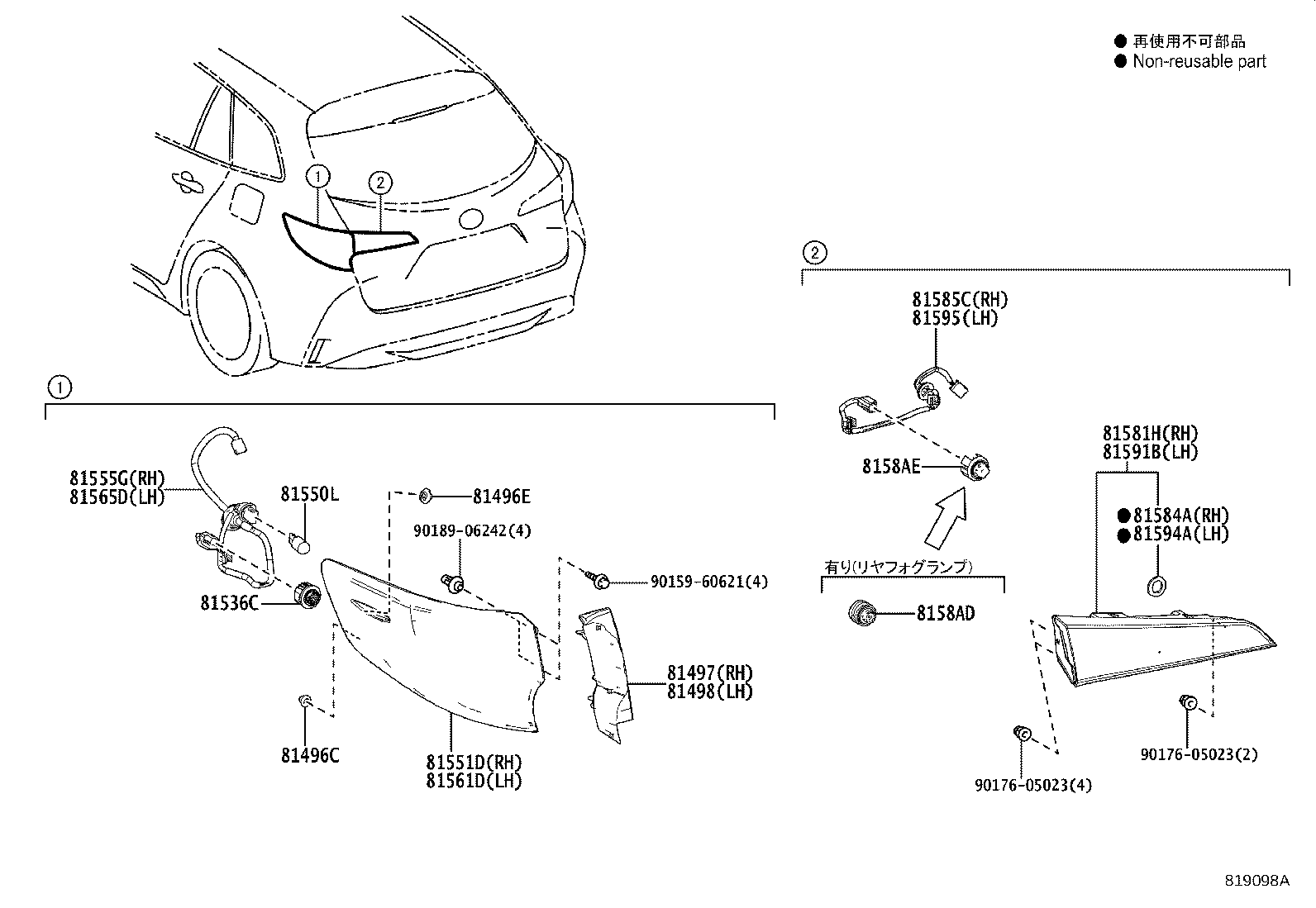

Click highlighted areas on diagram

diagram 81496C 81496E 81497 81498 81536C 81550L 81551D 81555G 81561D 81565D 81581H 81584A 81585C 8158AD 8158AE 81591B 81594A 81595 9015960621 9017605023 9017605023 9018906242
Part # Description Qty Price
81496C - GUIDE, REAR COMBINATION LAMP, NO.2
81496-52020

MZEA12,NRE210,ZRE212,ZWE21#

 2
81496E - GUIDE, REAR COMBINATION LAMP, NO.3
81496-12070

MZEA12,NRE210,ZRE212,ZWE21#..WG

 2
81497 - COVER, REAR COMBINATION LAMP, RH
81497-12050

MZEA12,NRE210,ZRE212,ZWE21#..WG

 1
81498 - COVER, REAR COMBINATION LAMP, LH
81498-12050

MZEA12,NRE210,ZRE212,ZWE21#..WG

 1
81536C - LED, TAIL & STOP LAMP
81536-15120

MZEA12,NRE210,ZRE212,ZWE21#

 2
81550L - BULB, REAR TURN SIGNAL LAMP
90981-15021

MZEA12,NRE210,ZRE212,ZWE21#

12V 21W,ｱﾝﾊﾞｰ

 2
81551D - LENS & BODY, REAR COMBINATION LAMP, RH
81551-12E20

MZEA12,NRE210,ZRE212,ZWE21#..WG

 1
81555G - CORD, REAR COMBINATION LAMP, RH
81555-12E20

MZEA12,NRE210,ZRE212,ZWE21#..WG

 1
81561D - LENS & BODY, REAR COMBINATION LAMP, LH
81561-12D70

MZEA12,NRE210,ZRE212,ZWE21#..WG

 1
81565D - CORD, REAR COMBINATION LAMP, LH
81565-12D70

MZEA12,NRE210,ZRE212,ZWE21#..WG

 1
81581H - LENS & BODY, REAR LAMP
81581-12390

MZEA12,NRE210,ZRE212,ZWE21#..WG

ﾘﾔﾌｫｸﾞﾗﾝﾌﾟ−有り

 1
81581-12380

MZEA12,NRE210,ZRE212,ZWE21#..WG

 1
81584A - GASKET, REAR LAMP RH
81584-12380

MZEA12,NRE210,ZRE212,ZWE21#..WG

 1
81585C - SOCKET & WIRE, REAR LAMP, RH
81585-12390

MZEA12,NRE210,ZRE212,ZWE21#..WG

ﾘﾔﾌｫｸﾞﾗﾝﾌﾟ−有り

 1
81585-12380

MZEA12,NRE210,ZRE212,ZWE21#..WG

 1
8158AD - LED, REAR FOG LAMP
8158A-0D610

MZEA12,NRE210,ZRE212,ZWE21#

ﾘﾔﾌｫｸﾞﾗﾝﾌﾟ−有り

 1
8158AE - LED, BACK-UP LAMP
8158A-12260

MZEA12,NRE210,ZRE212,ZWE21#..WG

ﾘﾔﾌｫｸﾞﾗﾝﾌﾟ−有り

 1
8158A-12260

MZEA12,NRE210,ZRE212,ZWE21#..WG

 2
81591B - LENS AND BODY, REAR LAMP, LH
81591-12380

MZEA12,NRE210,ZRE212,ZWE21#..WG

 1
81594A - GASKET, REAR LAMP LH
81584-12380

MZEA12,NRE210,ZRE212,ZWE21#..WG

 1
81595 - SOCKET & WIRE, REAR LAMP, LH
81595-12380

MZEA12,NRE210,ZRE212,ZWE21#..WG

 1
Common parts
90159-60621
90176-05023
90189-06242
