NRE210-AEFSZ (2019)

Toyota Corolla

Production Aug 2019 - Sep 9999
Engine 8NRFTS
Transmission 6F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(1908- )MZEA12,NRE210,ZRE212

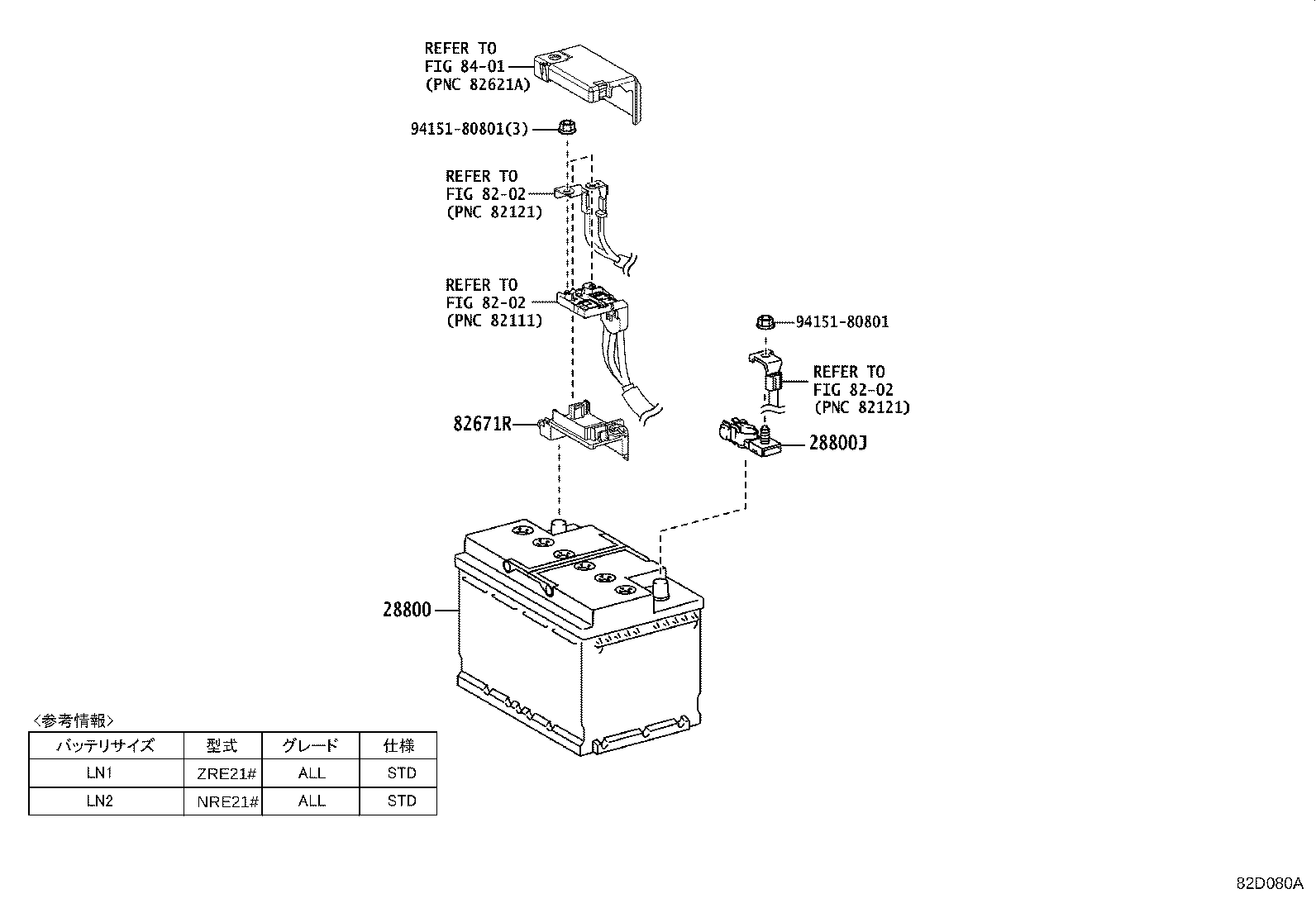

Click highlighted areas on diagram

diagram 28800 28800J 8202 8202 8202 82671R 8401 9415180801 9415180801
Part # Description Qty Price
28800 - BATTERY
28800-25010

M20AFKS,8NRFTS..MZEA12,NRE210

LN2

 1
28800J - TERMINAL, BATTERY NEGATIVE
90982-06070

M20AFKS,8NRFTS,2ZRFAE..MZEA12,NRE210,ZRE212

 1
82671R - STOPPER, BATTERY TERMINAL
82651-10010

MZEA12,NRE210,ZRE212

 1
Common parts
94151-80801
Linked diagrams
8202
8401
