Toyota Corolla NRE210 FUEL TANK & TUBE

NRE210-AEFSZ (2019)

Toyota Corolla

Production Aug 2019 - Sep 9999

Engine 8NRFTS

Transmission 6F MTM

Displacement 2500cc

Power 168 HP (125 kW)

ILLUST NO. 1 OF 3(1908- )NRE210

Click highlighted areas on diagram

ﾌｭｰｴﾙﾀﾝｸ

Part #	Description	Period	Qty
23221 - PUMP, FUEL
23220-47070	8NRFTS..NRE210	08/2019 - 12/2999	1
23225A - SPACER, FUEL PUMP
23225-21020	8NRFTS,2ZR#..NRE210,ZRE212,ZWE21#	08/2019 - 12/2999	1
23226 - RING, O(FOR FUEL PUMP)
90301-08020	8NRFTS,2ZR#..NRE210,ZRE212,ZWE21#	08/2019 - 12/2999	1
23280J - REGULATOR ASSY, FUEL PRESSURE
23280-36020	8NRFTS..NRE210	08/2019 - 12/2999	1
23280K - RING, O(FOR FUEL PRESSURE REGULATOR)
90301-04013	8NRFTS,2ZR#..NRE210,ZRE212,ZWE21#	08/2019 - 12/2999	1
23280N - RING, O(FOR FUEL PRESSURE REGULATOR), NO.2
90301-15024	8NRFTS,2ZR#..NRE210,ZRE212,ZWE21#	08/2019 - 12/2999	1
77020A - TUBE ASSY, FUEL SUCTION W/PUMP & GAGE
77020-10110	NRE210	08/2019 - 12/2999	1
77024A - PLATE SUB-ASSY, FUEL SUCTION
77024-10030	NRE210	08/2019 - 12/2999	1
77026A - TUBE SUB-ASSY, FUEL EVAPORATION, NO.1
77026-10040	MZEA12,NRE210	08/2019 - 12/2999	1
77100 - TANK ASSY, FUEL
77001-10380	MZEA12,NRE210,ZRE212	08/2019 - 12/2999	1
77144 - RETAINER, FUEL PUMP GAUGE
77144-30030	MZEA12,NRE210,ZRE212,ZWE21#	08/2019 - 12/2999	1
77169A - GASKET, FUEL SUCTION TUBE SET
77169-47030	MZEA12,NRE210,ZRE212,ZWE21#	08/2019 - 12/2999	1
77174 - SUPPORT, FUEL SUCTION, NO.1
77174-75010	NRE210	08/2019 - 12/2999	1
77209F - TUBE SUB-ASSY, FUEL TANK MAIN
77209-10130	MZEA12,NRE210	08/2019 - 12/2999	1
77210 - PIPE ASSY, FUEL TANK FILLER
77210-12620	NRE210,ZRE212,ZWE21#	08/2019 - 01/2020	1
77210-12621	MZEA12,NRE210,ZRE212,ZWE21#	02/2020 - 12/2999	1
77211B - CLAMP (FOR FUEL FILLER PIPE)
90460-50008	MZEA12,NRE210,ZRE212,ZWE21#	08/2019 - 12/2999	1
77213E - HOSE, FUEL TANK TO FILLER PIPE
77213-12360	MZEA12,NRE210,ZRE212,ZWE21#	08/2019 - 12/2999	1
77216A - SUPPORT, FUEL TANK FILLER PIPE, NO.1
77216-12290	MZEA12,NRE210,ZRE212,ZWE21#	02/2020 - 12/2999	1
77217A - SUPPORT, FUEL TANK FILLER PIPE, NO.2
77217-12200	MZEA12,NRE210,ZRE212,ZWE21#	02/2020 - 12/2999	1
77241W - CLIP, TUBE JOINT
77241-33011	MZEA12,NRE210,ZRE212,ZWE21#	08/2019 - 12/2999	1
77285K - CLAMP, FUEL TUBE, NO.1
77285-10060	MZEA12,NRE210,ZRE212	08/2019 - 12/2999	1
77286S - CUSHION, FUEL TANK PROTECTOR
77286-12110	MZEA12,NRE210,ZRE212	08/2019 - 12/2999	1
77291A - SHIELD, FUEL TANK FILLER PIPE
77291-12250	MZEA12,NRE210,ZRE212,ZWE21#	08/2019 - 12/2999	1
77310A - CAP ASSY, FUEL TANK
77300-12020	MZEA12,NRE210,ZRE212,ZWE21#	08/2019 - 12/2999	1
77316 - GASKET, FUEL TANK CAP
77316-52040	MZEA12,NRE210,ZRE212,ZWE21#	08/2019 - 12/2999	1
77391 - RING, FUEL INLET BOX
77391-12020	MZEA12,NRE210,ZRE212,ZWE21#	08/2019 - 12/2999	1
77391A - RING, FUEL INLET BOX
77391-20040	MZEA12,NRE210,ZRE212,ZWE21#	08/2019 - 12/2999	1
77512C - BRACKET, FUEL TANK
77512-35140	MZEA12,NRE210,ZRE212,ZWE21#	08/2019 - 12/2999	4
77601B - BAND SUB-ASSY, FUEL TANK, NO.1 RH
77601-10080	MZEA12,NRE210,ZRE212	08/2019 - 12/2999	1
77602B - BAND SUB-ASSY, FUEL TANK, NO.1 LH
77602-10030	MZEA12,NRE210,ZRE212	08/2019 - 12/2999	1
77606 - PROTECTOR SUB-ASSY, FUEL TANK, NO.1
77606-10060	MZEA12,NRE210,ZRE212	08/2019 - 12/2999	1
77613 - BOLT, FUEL TANK BAND SET
90119-10995	MZEA12,NRE210,ZRE212	08/2019 - 12/2999	4
77613 - BOLT, FUEL TANK BAND SET
90119-10995	MZEA12,NRE210,ZRE212	08/2019 - 12/2999	4
77613 - BOLT, FUEL TANK BAND SET
90119-10995	MZEA12,NRE210,ZRE212	08/2019 - 12/2999	4
77613 - BOLT, FUEL TANK BAND SET
90119-10995	MZEA12,NRE210,ZRE212	08/2019 - 12/2999	4
77652 - CUSHION, FUEL TANK, NO.1
77652-10070	MZEA12,NRE210,ZRE212	08/2019 - 12/2999	2
77652 - CUSHION, FUEL TANK, NO.1
77652-10070	MZEA12,NRE210,ZRE212	08/2019 - 12/2999	2
77754B - HOSE, CHARCOAL CANISTER OUTLET
77754-10020	MZEA12,NRE210,ZRE212	08/2019 - 12/2999	1
77785 - HARNESS, FUEL PUMP
77785-12010	NRE210,ZRE212,ZWE21#	08/2019 - 12/2999	1
Common parts
90119-08D17
90182-06012
90269-05049
90460-46005
90467-12056
Linked diagrams
8401

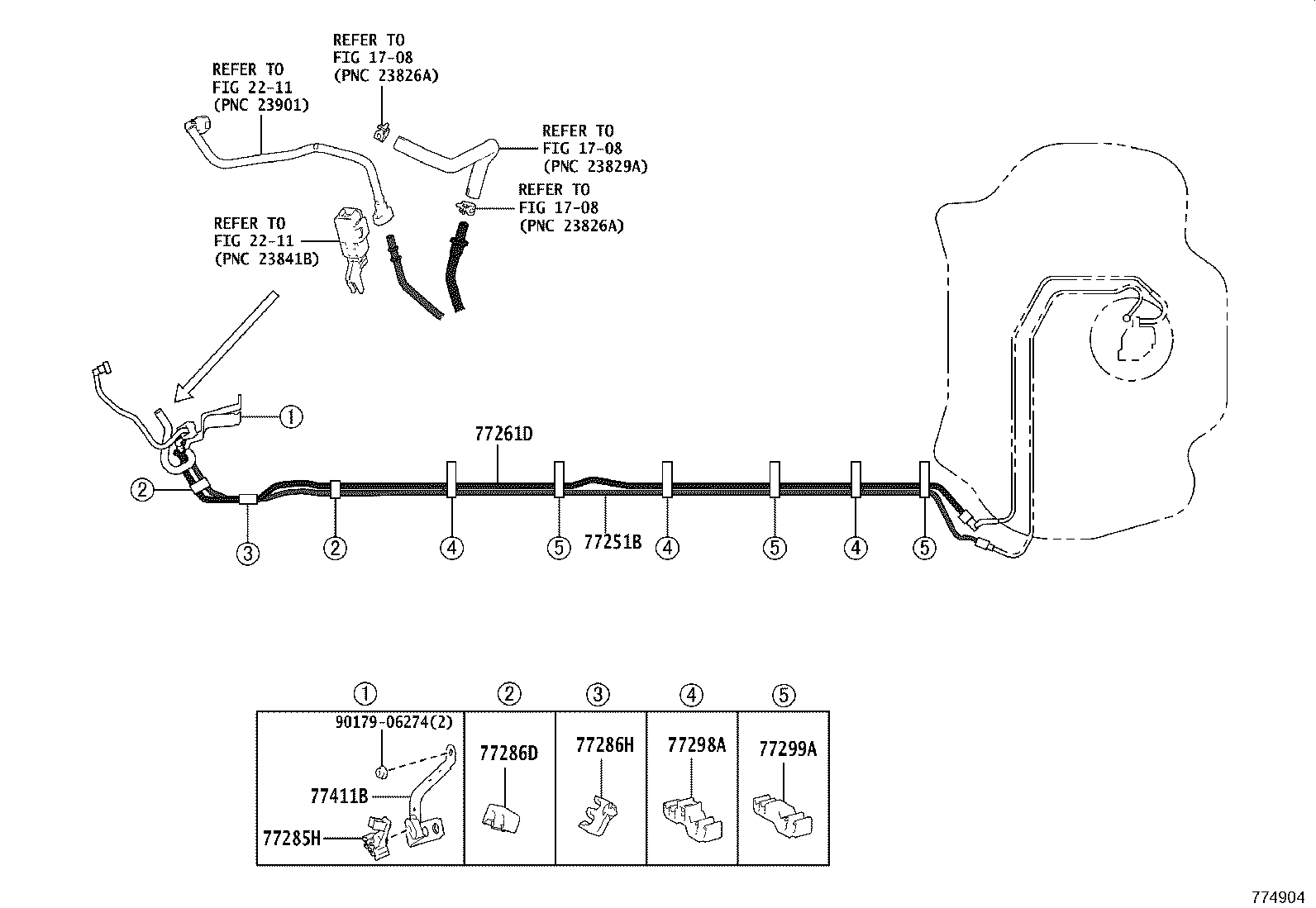

ILLUST NO. 2 OF 3(1908- )NRE210

Click highlighted areas on diagram

ﾌｭｰｴﾙﾁｭｰﾌﾞ

Part #	Description	Period	Qty
77251B - TUBE, FUEL MAIN
77251-12A40	NRE210	08/2019 - 12/2999	1
77261D - TUBE, FUEL TANK TO CANISTER
77261-12720	MZEA12,NRE210	08/2019 - 12/2999	1
77285H - CLAMP, FUEL TUBE, NO.1
77286-12250	MZEA12,NRE210	08/2019 - 12/2999	1
77286D - CLAMP, FUEL TUBE, NO.2
77289-12070	MZEA12,NRE210	08/2019 - 12/2999	2
77286H - CLAMP, FUEL TUBE, NO.3
77286-12220	MZEA12,NRE210	08/2019 - 12/2999	1
77298A - CLAMP, FUEL TUBE, NO.4
77298-12160	MZEA12,NRE210	08/2019 - 12/2999	3
77299A - CLAMP, FUEL TUBE, NO.5
77298-12170	MZEA12,NRE210	08/2019 - 12/2999	3
77411B - SUPPORT, FUEL TUBE GROMMET, NO.1
77411-10020	MZEA12,NRE210,ZRE212	08/2019 - 12/2999	1
Common parts
90179-06274
Linked diagrams
1708
2211

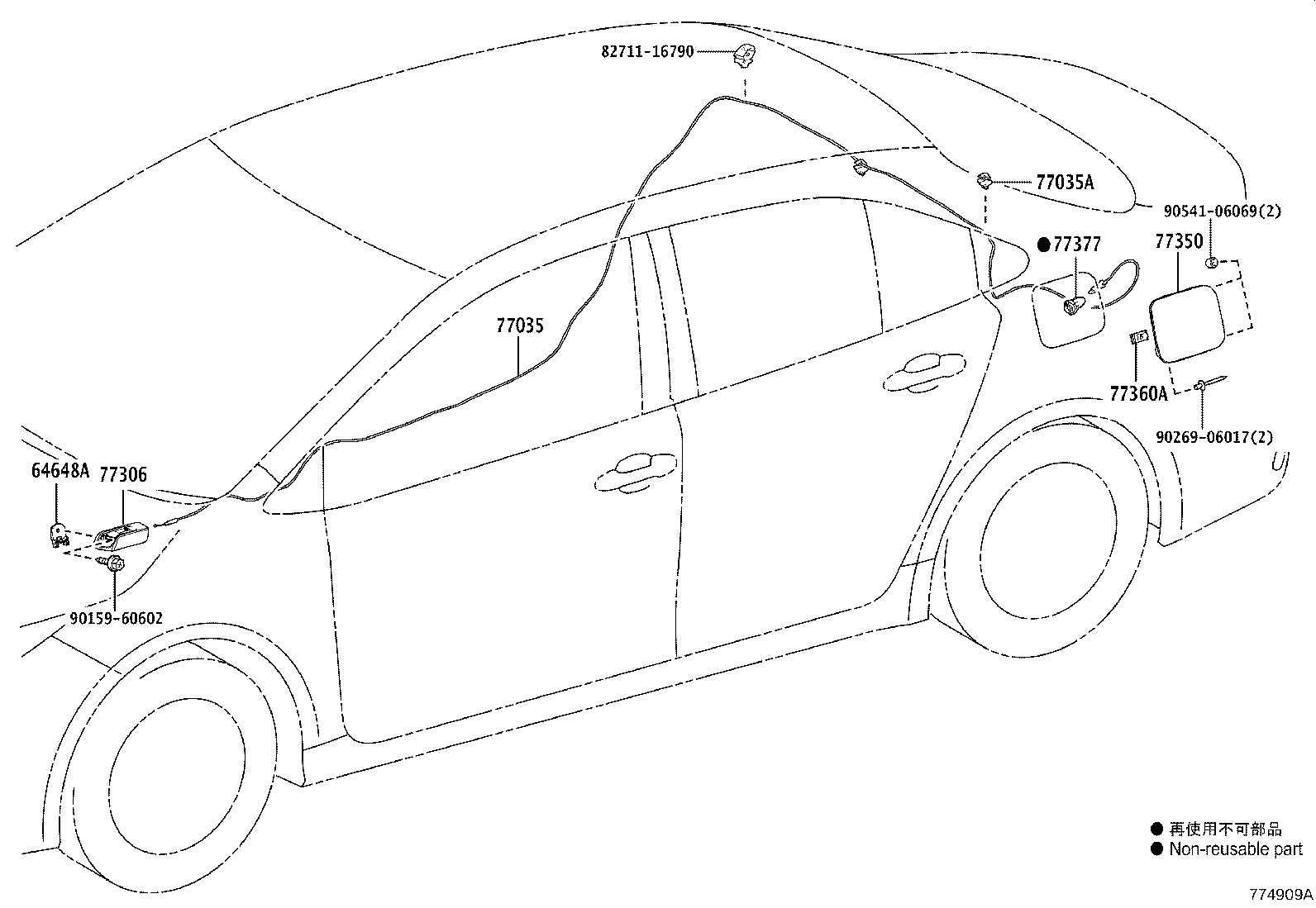

ILLUST NO. 3 OF 3(1908- )SED

Click highlighted areas on diagram

ﾌｭｰｴﾙﾘｯﾄﾞｵｰﾌﾟﾅ

Part #	Description	Period	Qty
64648A - GROMMET, LUGGAGE DOOR LOCK OPENER
64648-12020	MZEA12,NRE210,ZRE212,ZWE21#	08/2019 - 12/2999	1
77035 - CABLE SUB-ASSY, FUEL LID LOCK CONTROL
77035-12680	NRE210,ZRE212,ZWE21#..SED	08/2019 - 12/2999	1
77035A - CLAMP (FOR FUEL LID LOCK CONTROL CABLE)
90469-06005	MZEA12,NRE210,ZRE212,ZWE21#	08/2019 - 12/2999	1
77306 - LEVER SUB-ASSY, FUEL LID LOCK OPEN
64606-12110	NRE210,ZRE212,ZWE21#..SED	08/2019 - 12/2999	1
77350 - LID ASSY, FUEL FILLER OPENING
77350-12590	NRE210,ZRE212,ZWE21#..SED	08/2019 - 12/2999	1
77360A - SPRING ASSY, FUEL FILLER OPENING LID
77360-30080	MZEA12,NRE210,ZRE212,ZWE21#	08/2019 - 12/2999	1
77377 - RETAINER, FUEL FILLER OPENING LID LOCK
77377-12100	MZEA12,NRE210,ZRE212,ZWE21#	08/2019 - 12/2999	1
Common parts
82711-16790
90159-60602
90269-06017
90541-06069
