NRE210-AEFSZ (2019)
Toyota Corolla

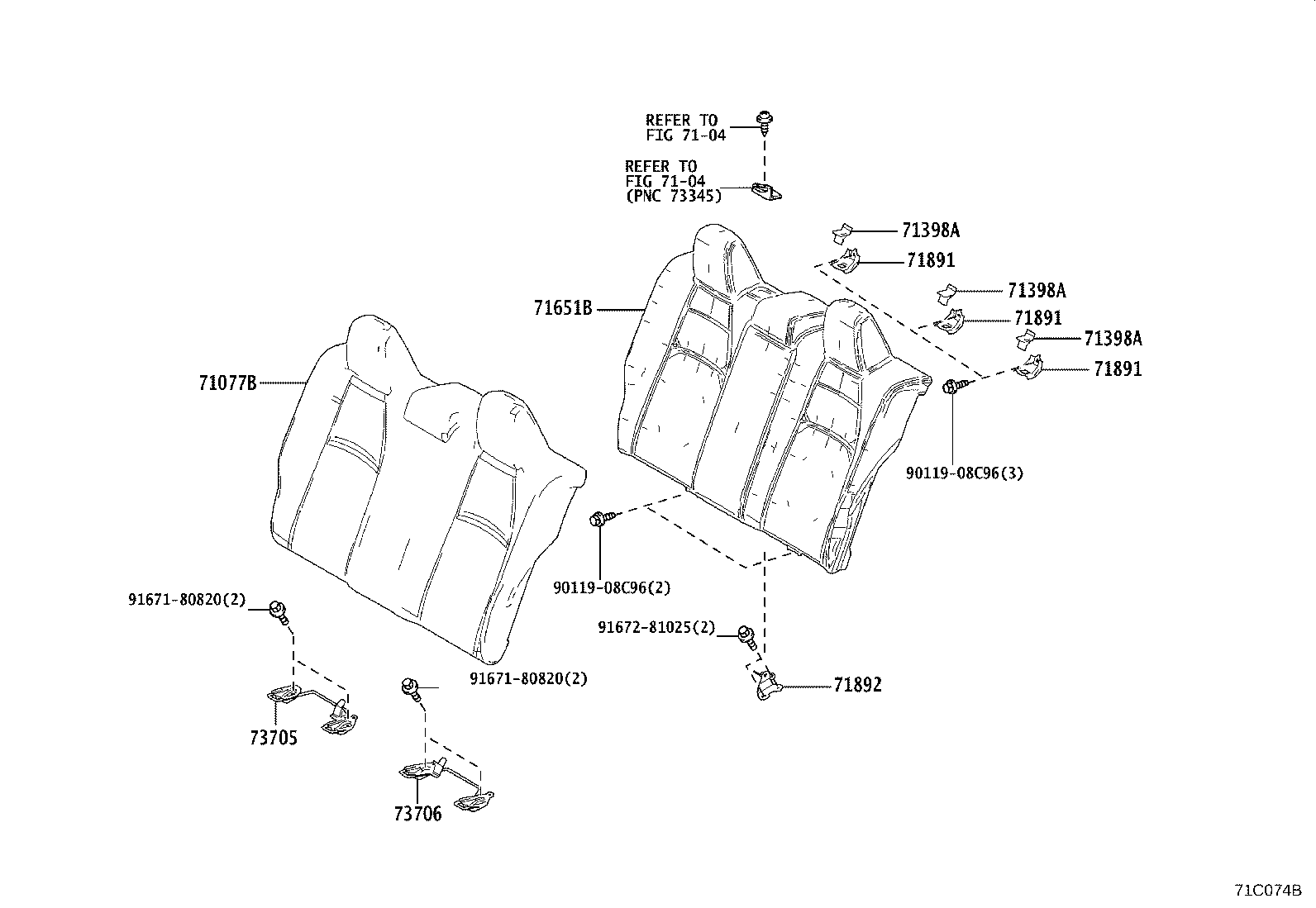

ILLUST NO. 1 OF 2(1908- )SED
ｼｰﾄﾊﾞｯｸ(ｺﾃｲｼｷ)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 73705 - BRACKET SUB-ASSY, CHILD RESTRAINT SEAT ANCHOR, RH | ||||
| 73705-12170 |
NRE210,ZRE212,ZWE21#..SED..(HBDWB,WB) |
1 | ||
| 73706 - BRACKET SUB-ASSY, CHILD RESTRAINT SEAT ANCHOR, LH | ||||
| 73705-12180 |
NRE210,ZRE212,ZWE21#..SED..(HBDWB,WB) |
1 | ||
| Common parts | ||||
| 90119-08C96 | ||||
| 91671-80820 | ||||
| 91672-81025 | ||||
| Linked diagrams | ||||
| 7104 | ||||

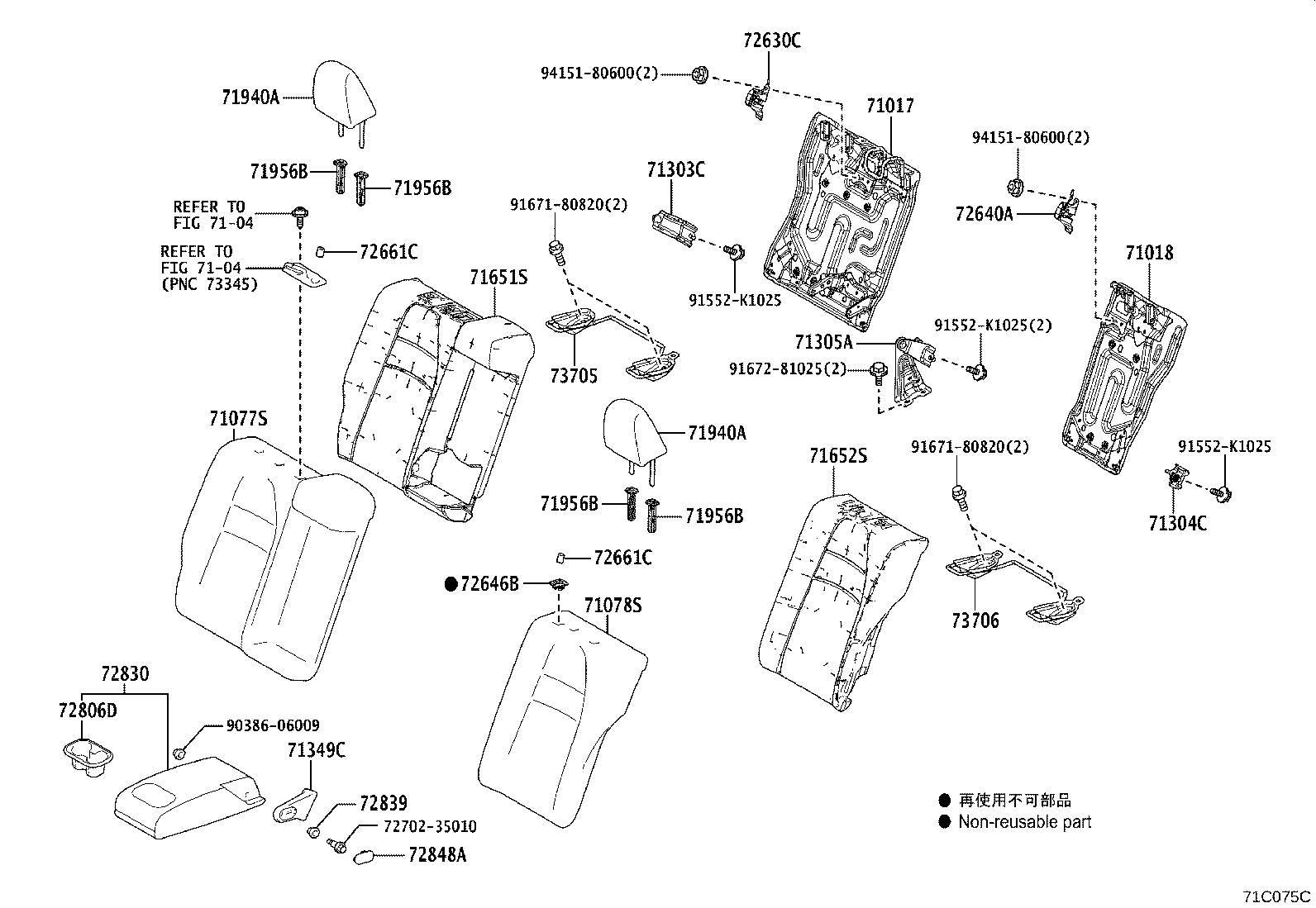

ILLUST NO. 1 OF 2(1908- )SED
ｼｰﾄﾊﾞｯｸ(ｶﾄｳｼｷ)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 71017 - FRAME SUB-ASSY, REAR SEAT BACK, RH | ||||
| 71017-12B70 |
NRE210,ZRE212,ZWE21#..SED..(HBDWB,WB) |
1 | ||
| 71018 - FRAME SUB-ASSY, REAR SEAT BACK, LH | ||||
| 71018-12510 |
NRE210,ZRE212,ZWE21#..SED..(HBDWB,WB) |
1 | ||
| 71077S - COVER, REAR SEAT BACK, RH (FOR SEPARATE TYPE) | ||||
| 71077-12X30C5 |
NRE210,ZRE212,ZWE211..SED..(HBDWB,WB) BLACK,TRIM2# |
1 | ||
| 71077-13D50C2 |
NRE210,ZRE212,ZWE211..SED..(HBDWB,WB) ｼｰﾄ表皮−合成皮革 & ﾚｻﾞﾃｯｸ(ﾎﾜｲﾄ)&ｼｰﾄﾋｰﾀ−有り(運転席 &助手席),BLACK,TRIM2# |
1 | ||
| 71078S - COVER, REAR SEAT BACK, LH(FOR SEPARATE TYPE) | ||||
| 71078-12S40C2 |
NRE210,ZRE212,ZWE21#..SED..(HBDWB,WB) ｼｰﾄ表皮−合成皮革 & ﾚｻﾞﾃｯｸ(ﾎﾜｲﾄ)&ｼｰﾄﾋｰﾀ−有り(運転席 &助手席),BLACK,TRIM2# |
1 | ||
| 71078-12R90C5 |
NRE210,ZRE212,ZWE21#..SED..(HBDWB,WB) BLACK,TRIM2# |
1 | ||
| 71303C - HINGE SUB-ASSY, REAR SEAT BACK, RH | ||||
| 71303-12200 |
NRE210,ZRE212,ZWE21#..SED..(HBDWB,WB) |
1 | ||
| 71304C - HINGE SUB-ASSY, REAR SEAT BACK, LH | ||||
| 71304-12070 |
NRE210,ZRE212,ZWE21#..SED..(HBDWB,WB) |
1 | ||
| 71305A - HINGE SUB-ASSY, REAR SEAT BACK, CENTER | ||||
| 71305-12250 |
NRE210,ZRE212,ZWE21#..SED..(HBDWB,WB) |
1 | ||
| 71349C - COVER, REAR SEAT BACK HINGE | ||||
| 71349-12020C0 |
NRE210,ZRE212,ZWE21#..SED..(HBDWB,WB) BLACK,TRIM2# |
1 | ||
| 71651S - PAD, REAR SEAT BACK, RH(FOR SEPARATE TYPE) | ||||
| 71651-12B60 |
NRE210,ZRE212,ZWE21#..SED..(HBDWB,WB) |
1 | ||
| 71652S - PAD, REAR SEAT BACK, LH(FOR SEPARATE TYPE) | ||||
| 71652-12870 |
NRE210,ZRE212,ZWE21#..SED..(HBDWB,WB) |
1 | ||
| 71940A - HEADREST ASSY, REAR SEAT | ||||
| 71940-12E8021 |
NRE210,ZRE212,ZWE21#..SED..(HBDWB,WB) BLACK,TRIM2# |
2 | ||
| 71940-12E8121 |
NRE210,ZRE212,ZWE21#..SED..(HBDWB,WB) BLACK/BEIGE,TRIM2# |
2 | ||
| 71940-12E8125 |
NRE210,ZRE212,ZWE21#..SED..(HBDWB,WB) BLACK/BEIGE,TRIM2# |
2 | ||
| 71940-12G40A0 |
NRE210,ZRE212,ZWE21#..SED..(HBDWB,WB) ｼｰﾄ表皮−合成皮革 & ﾚｻﾞﾃｯｸ(ﾎﾜｲﾄ)&ｼｰﾄﾋｰﾀ−有り(運転席 &助手席),WHITE,TRIM2# |
2 | ||
| 71940A - HEADREST ASSY, REAR SEAT | ||||
| 71940-12E8021 |
NRE210,ZRE212,ZWE21#..SED..(HBDWB,WB) BLACK,TRIM2# |
2 | ||
| 71940-12E8121 |
NRE210,ZRE212,ZWE21#..SED..(HBDWB,WB) BLACK/BEIGE,TRIM2# |
2 | ||
| 71940-12E8125 |
NRE210,ZRE212,ZWE21#..SED..(HBDWB,WB) BLACK/BEIGE,TRIM2# |
2 | ||
| 71940-12G40A0 |
NRE210,ZRE212,ZWE21#..SED..(HBDWB,WB) ｼｰﾄ表皮−合成皮革 & ﾚｻﾞﾃｯｸ(ﾎﾜｲﾄ)&ｼｰﾄﾋｰﾀ−有り(運転席 &助手席),WHITE,TRIM2# |
2 | ||
| 71956B - SUPPORT, REAR SEAT HEADREST | ||||
| 71931-47030A7 |
NRE210,ZRE212,ZWE21#..SED..(HBDWB,WB) ﾛｯｸ無,ｼｰﾄ表皮−合成皮革 & ﾚｻﾞﾃｯｸ(ﾎﾜｲﾄ)&ｼｰﾄﾋｰﾀ−有り(運]席 & 助手席),WHITE,TRIM2# |
2 | ||
| 71931-47030C4 |
NRE210,ZRE212..WB;ZWE21#..SED..HBDWB ﾛｯｸ無,BLACK,TRIM2# |
2 | ||
| 71930-47050A7 |
NRE210,ZRE212,ZWE21#..SED..(HBDWB,WB) ﾛｯｸ付,ｼｰﾄ表皮−合成皮革 & ﾚｻﾞﾃｯｸ(ﾎﾜｲﾄ)&ｼｰﾄﾋｰﾀ−有り(運]席 & 助手席),WHITE,TRIM2# |
2 | ||
| 71930-47050C5 |
NRE210,ZRE212..WB;ZWE21#..SED..HBDWB ﾛｯｸ付,BLACK,TRIM2# |
2 | ||
| 71956B - SUPPORT, REAR SEAT HEADREST | ||||
| 71931-47030A7 |
NRE210,ZRE212,ZWE21#..SED..(HBDWB,WB) ﾛｯｸ無,ｼｰﾄ表皮−合成皮革 & ﾚｻﾞﾃｯｸ(ﾎﾜｲﾄ)&ｼｰﾄﾋｰﾀ−有り(運]席 & 助手席),WHITE,TRIM2# |
2 | ||
| 71931-47030C4 |
NRE210,ZRE212..WB;ZWE21#..SED..HBDWB ﾛｯｸ無,BLACK,TRIM2# |
2 | ||
| 71930-47050A7 |
NRE210,ZRE212,ZWE21#..SED..(HBDWB,WB) ﾛｯｸ付,ｼｰﾄ表皮−合成皮革 & ﾚｻﾞﾃｯｸ(ﾎﾜｲﾄ)&ｼｰﾄﾋｰﾀ−有り(運]席 & 助手席),WHITE,TRIM2# |
2 | ||
| 71930-47050C5 |
NRE210,ZRE212..WB;ZWE21#..SED..HBDWB ﾛｯｸ付,BLACK,TRIM2# |
2 | ||
| 71956B - SUPPORT, REAR SEAT HEADREST | ||||
| 71931-47030A7 |
NRE210,ZRE212,ZWE21#..SED..(HBDWB,WB) ﾛｯｸ無,ｼｰﾄ表皮−合成皮革 & ﾚｻﾞﾃｯｸ(ﾎﾜｲﾄ)&ｼｰﾄﾋｰﾀ−有り(運]席 & 助手席),WHITE,TRIM2# |
2 | ||
| 71931-47030C4 |
NRE210,ZRE212..WB;ZWE21#..SED..HBDWB ﾛｯｸ無,BLACK,TRIM2# |
2 | ||
| 71930-47050A7 |
NRE210,ZRE212,ZWE21#..SED..(HBDWB,WB) ﾛｯｸ付,ｼｰﾄ表皮−合成皮革 & ﾚｻﾞﾃｯｸ(ﾎﾜｲﾄ)&ｼｰﾄﾋｰﾀ−有り(運]席 & 助手席),WHITE,TRIM2# |
2 | ||
| 71930-47050C5 |
NRE210,ZRE212..WB;ZWE21#..SED..HBDWB ﾛｯｸ付,BLACK,TRIM2# |
2 | ||
| 71956B - SUPPORT, REAR SEAT HEADREST | ||||
| 71931-47030A7 |
NRE210,ZRE212,ZWE21#..SED..(HBDWB,WB) ﾛｯｸ無,ｼｰﾄ表皮−合成皮革 & ﾚｻﾞﾃｯｸ(ﾎﾜｲﾄ)&ｼｰﾄﾋｰﾀ−有り(運]席 & 助手席),WHITE,TRIM2# |
2 | ||
| 71931-47030C4 |
NRE210,ZRE212..WB;ZWE21#..SED..HBDWB ﾛｯｸ無,BLACK,TRIM2# |
2 | ||
| 71930-47050A7 |
NRE210,ZRE212,ZWE21#..SED..(HBDWB,WB) ﾛｯｸ付,ｼｰﾄ表皮−合成皮革 & ﾚｻﾞﾃｯｸ(ﾎﾜｲﾄ)&ｼｰﾄﾋｰﾀ−有り(運]席 & 助手席),WHITE,TRIM2# |
2 | ||
| 71930-47050C5 |
NRE210,ZRE212..WB;ZWE21#..SED..HBDWB ﾛｯｸ付,BLACK,TRIM2# |
2 | ||
| 72630C - LOCK ASSY, REAR SEAT BACK, RH | ||||
| 72630-12380 |
NRE210,ZRE212,ZWE21#..SED..(HBDWB,WB) |
1 | ||
| 72640A - LOCK ASSY, REAR SEAT BACK, LH | ||||
| 72640-12350 |
NRE210,ZRE212,ZWE21#..SED..(HBDWB,WB) |
1 | ||
| 72646B - GROMMET, REAR SEAT BACK STOP BUTTON | ||||
| 72646-12100C0 |
NRE210,ZRE212,ZWE21#..SED..(HBDWB,WB) BLACK,TRIM2# |
1 | ||
| 72661C - BUTTON, REAR SEAT BACK LOCK RELEASE | ||||
| 72661-35010C1 |
NRE210,ZRE212,ZWE21#..SED..(HBDWB,WB) BLACK,TRIM2# |
2 | ||
| 72661C - BUTTON, REAR SEAT BACK LOCK RELEASE | ||||
| 72661-35010C1 |
NRE210,ZRE212,ZWE21#..SED..(HBDWB,WB) BLACK,TRIM2# |
2 | ||
| 72806D - HOLDER SUB-ASSY, REAR SEAT CENTER ARMREST CUP | ||||
| 72806-33100C2 |
NRE210,ZRE212,ZWE21#..SED..(HBDWB,WB) BLACK,TRIM2# |
1 | ||
| 72806-33100A1 |
NRE210,ZRE212,ZWE21#..SED..(HBDWB,WB) ｼｰﾄ表皮−合成皮革 & ﾚｻﾞﾃｯｸ(ﾎﾜｲﾄ)&ｼｰﾄﾋｰﾀ−有り(運転席 &助手席),WHITE,TRIM2# |
1 | ||
| 72830 - ARMREST ASSY, REAR SEAT, CENTER | ||||
| 72830-12A80C6 |
NRE210,ZRE212,ZWE21#..SED..(HBDWB,WB) BLACK,TRIM2# |
1 | ||
| 72830-12C10A0 |
NRE210,ZRE212,ZWE21#..SED..(HBDWB,WB) ｼｰﾄ表皮−合成皮革 & ﾚｻﾞﾃｯｸ(ﾎﾜｲﾄ)&ｼｰﾄﾋｰﾀ−有り(運転席 &助手席),WHITE,TRIM2# |
1 | ||
| 72839 - SHIM, REAR SEAT ARMREST HINGE | ||||
| 72839-12010 |
MZEA12,NRE210;ZRE212,ZWE21#..WG;ZRE212,ZWE21#..SED..(HBDWB,WB) |
1 | ||
| 72848A - CAP, SEAT ARMREST, NO.1 | ||||
| 72848-12010C0 |
NRE210,ZRE212,ZWE21#..SED..(HBDWB,WB) BLACK,TRIM2# |
1 | ||
| 73705 - BRACKET SUB-ASSY, CHILD RESTRAINT SEAT ANCHOR, RH | ||||
| 73705-12170 |
NRE210,ZRE212,ZWE21#..SED..(HBDWB,WB) |
1 | ||
| 73706 - BRACKET SUB-ASSY, CHILD RESTRAINT SEAT ANCHOR, LH | ||||
| 73705-12180 |
NRE210,ZRE212,ZWE21#..SED..(HBDWB,WB) |
1 | ||
| Common parts | ||||
| 72702-35010 | ||||
| 90386-06009 | ||||
| 91552-K1025 | ||||
| 91671-80820 | ||||
| 91672-81025 | ||||
| 94151-80600 | ||||
| Linked diagrams | ||||
| 7104 | ||||

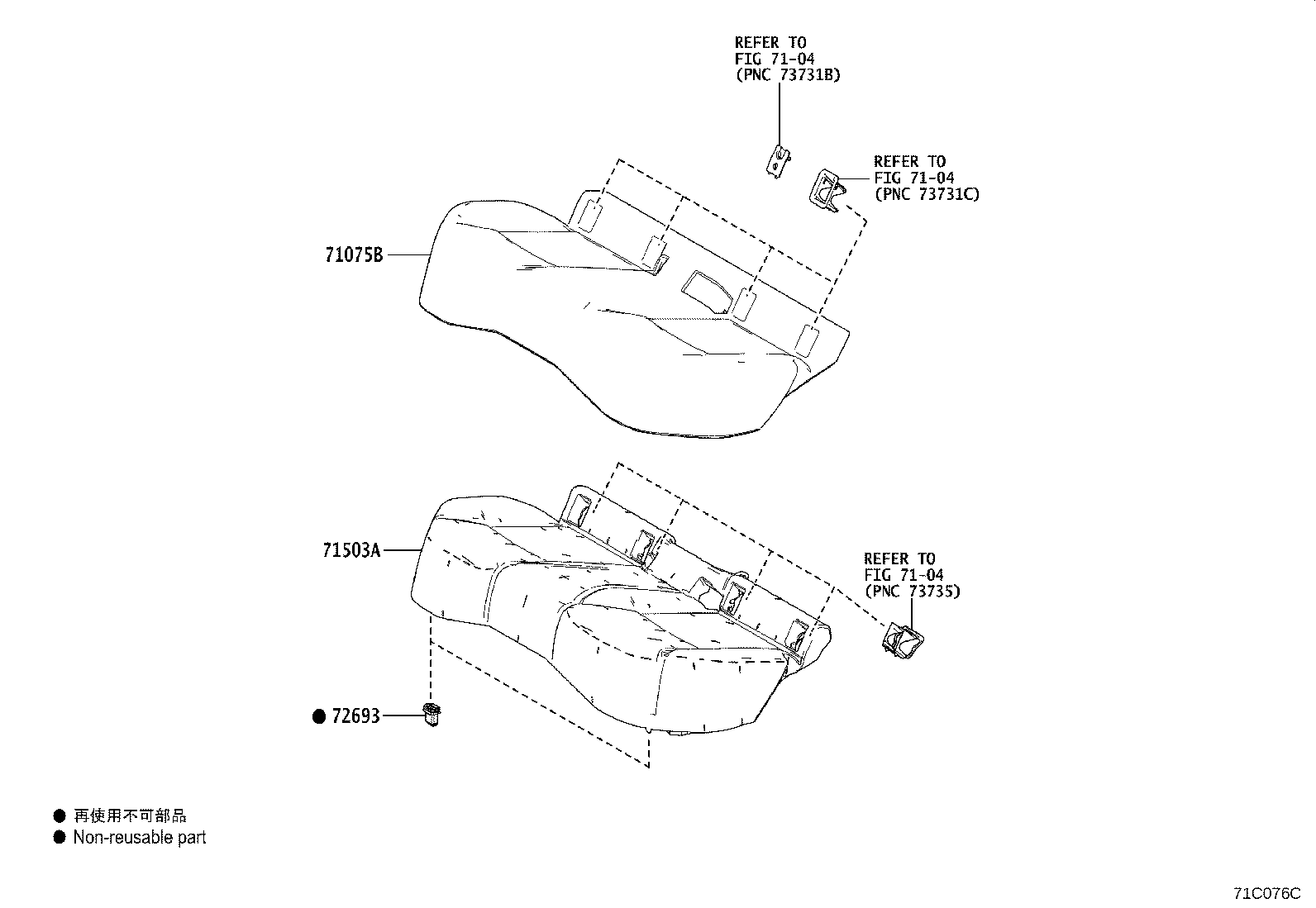

ILLUST NO. 2 OF 2(1908- )NRE210,ZRE212..SED
ｼｰﾄｸｯｼｮﾝ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 71075B - COVER, REAR SEAT CUSHION (FOR BENCH TYPE) | ||||
| 71075-12V90C7 |
NRE210,ZRE212..WB BLACK,TRIM2# |
1 | ||
| 71075-12X20A0 |
NRE210,ZRE212..WB ｼｰﾄ表皮−合成皮革 & ﾚｻﾞﾃｯｸ(ﾎﾜｲﾄ)&ｼｰﾄﾋｰﾀ−有り(運転席 &助手席),WHITE,TRIM2# |
1 | ||
| 71503A - PAD SUB-ASSY, REAR SEAT CUSHION | ||||
| 71503-12310 |
MZEA12,NRE210,ZRE212 |
1 | ||
| 72693 - HOOK, REAR SEAT CUSHION LOCK | ||||
| 72693-12080 |
MZEA12,NRE210,ZRE212,ZWE21# |
2 | ||
| Linked diagrams | ||||
| 7104 | ||||
