NRE210-AEFSZ (2019)
Toyota Corolla

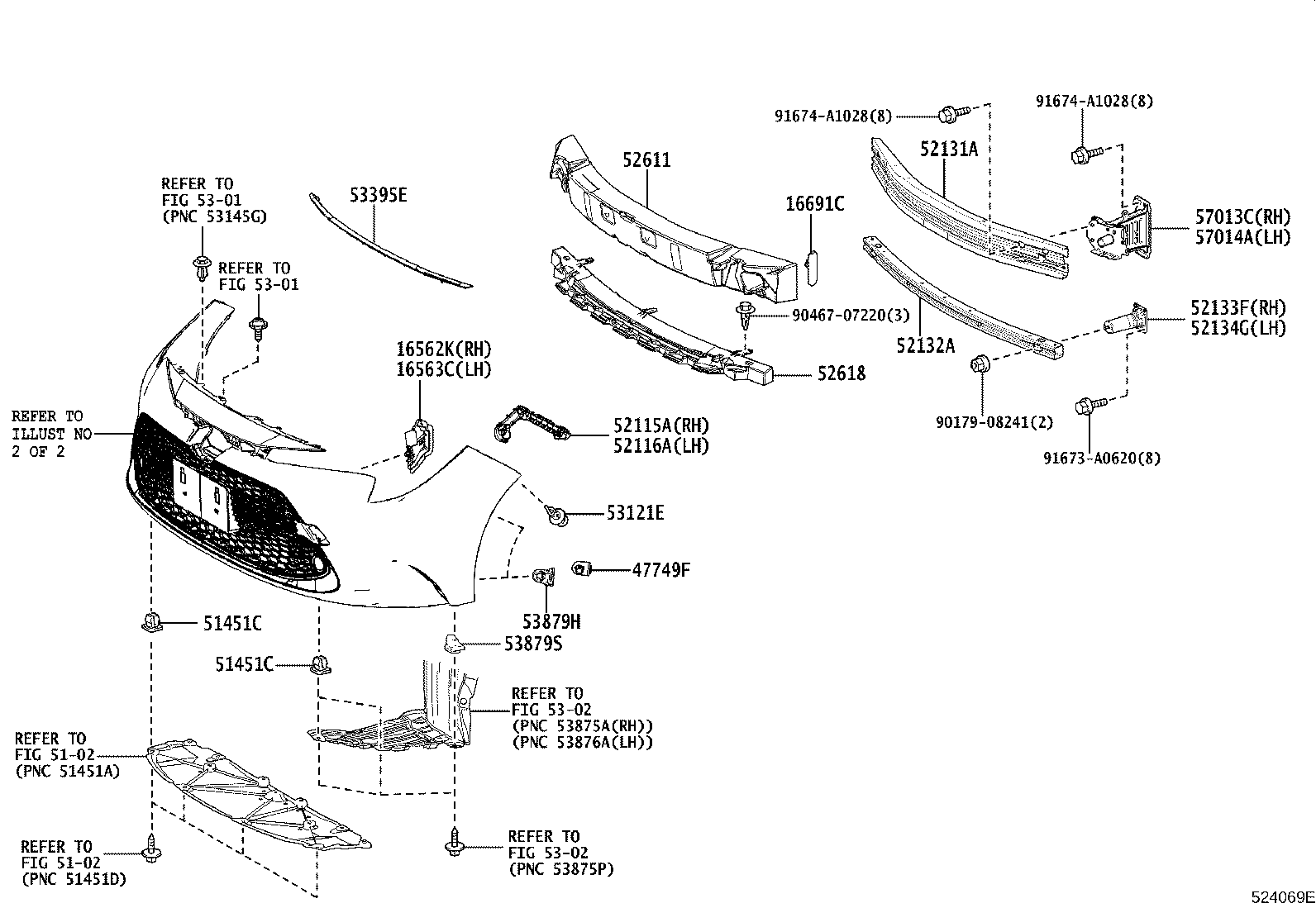

ILLUST NO. 1 OF 2(1908- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 16562K - SEAL, RADIATOR TO SUPPORT, NO.2 | ||||
| 16562-37040 |
M20AFKS,8NRFTS,2ZR#..MZEA12,NRE210,ZRE212,ZWE21# |
1 | ||
| 16563C - SEAL, RADIATOR TO SUPPORT, NO.3 | ||||
| 16563-37040 |
M20AFKS,8NRFTS,2ZR#..MZEA12,NRE210,ZRE212,ZWE21# |
1 | ||
| 16691C - PLATE, RADIATOR SIDE AIR GUIDE, FRONT | ||||
| 16691-37020 |
M20AFKS,8NRFTS,2ZR#..MZEA12,NRE210,ZRE212,ZWE21# |
2 | ||
| 47749F - CLIP, PIN HOLD | ||||
| 47749-33030 |
MZEA12,NRE210,ZRE212,ZWE21# |
4 | ||
| 51451C - GROMMET(FOR ENGINE UNDER COVER) | ||||
| 90189-06237 |
MZEA12,NRE210,ZRE212,ZWE21# |
8 | ||
| 51451C - GROMMET(FOR ENGINE UNDER COVER) | ||||
| 90189-06237 |
MZEA12,NRE210,ZRE212,ZWE21# |
8 | ||
| 52115A - SUPPORT, FRONT BUMPER SIDE, RH | ||||
| 52115-12480 |
MZEA12,NRE210,ZRE212,ZWE21# |
1 | ||
| 52116A - SUPPORT, FRONT BUMPER SIDE, LH | ||||
| 52116-12440 |
MZEA12,NRE210,ZRE212,ZWE21# |
1 | ||
| 52131A - REINFORCEMENT, FRONT BUMPER | ||||
| 52131-12320 |
MZEA12,NRE210,ZRE212,ZWE21# |
1 | ||
| 52132A - REINFORCEMENT, FRONT BUMPER, NO.2 | ||||
| 52132-12160 |
MZEA12,NRE210,ZRE212,ZWE21#..G,HBDWB,WB |
1 | ||
| 52133F - BRACKET, FRONT BUMPER, RH | ||||
| 52133-12190 |
MZEA12,NRE210,ZRE212,ZWE21# |
1 | ||
| 52134G - BRACKET, FRONT BUMPER, LH | ||||
| 52133-12190 |
MZEA12,NRE210,ZRE212,ZWE21# |
1 | ||
| 52611 - ABSORBER, FRONT BUMPER ENERGY | ||||
| 52611-12450 |
MZEA12,NRE210,ZRE212,ZWE21# |
1 | ||
| 52618 - ABSORBER, FRONT BUMPER, LOWER | ||||
| 52618-12130 |
MZEA12,NRE210,ZRE212,ZWE21# |
1 | ||
| 53121E - CLIP(FOR FRONT BUMPER), NO.1 | ||||
| 90467-05170 |
MZEA12,NRE210,ZRE212,ZWE21# |
2 | ||
| 53395E - SEAL, HOOD TO FRONT END PANEL | ||||
| 53395-12140 |
MZEA12,NRE210,ZRE212,ZWE21# |
1 | ||
| 53879H - RETAINER, FRONT FENDER LINER | ||||
| 53879-33030 |
MZEA12,NRE210,ZRE212,ZWE21# |
4 | ||
| 53879S - RETAINER, FRONT FENDER LINER | ||||
| 53879-17020 |
MZEA12,NRE210,ZRE212,ZWE21# |
2 | ||
| 57013C - BRACKET SUB-ASSY, FRONT SIDE MEMBER, RH | ||||
| 57013-12080 |
MZEA12,NRE210,ZRE212,ZWE21# |
1 | ||
| 57014A - BRACKET SUB-ASSY, FRONT SIDE MEMBER, LH | ||||
| 57014-12080 |
MZEA12,NRE210,ZRE212,ZWE21# |
1 | ||
| Common parts | ||||
| 90179-08241 | ||||
| 90467-07220 | ||||
| 91673-A0620 | ||||
| 91674-A1028 | ||||
| Linked diagrams | ||||
| 5102 | ||||
| 5301 | ||||
| 5302 | ||||

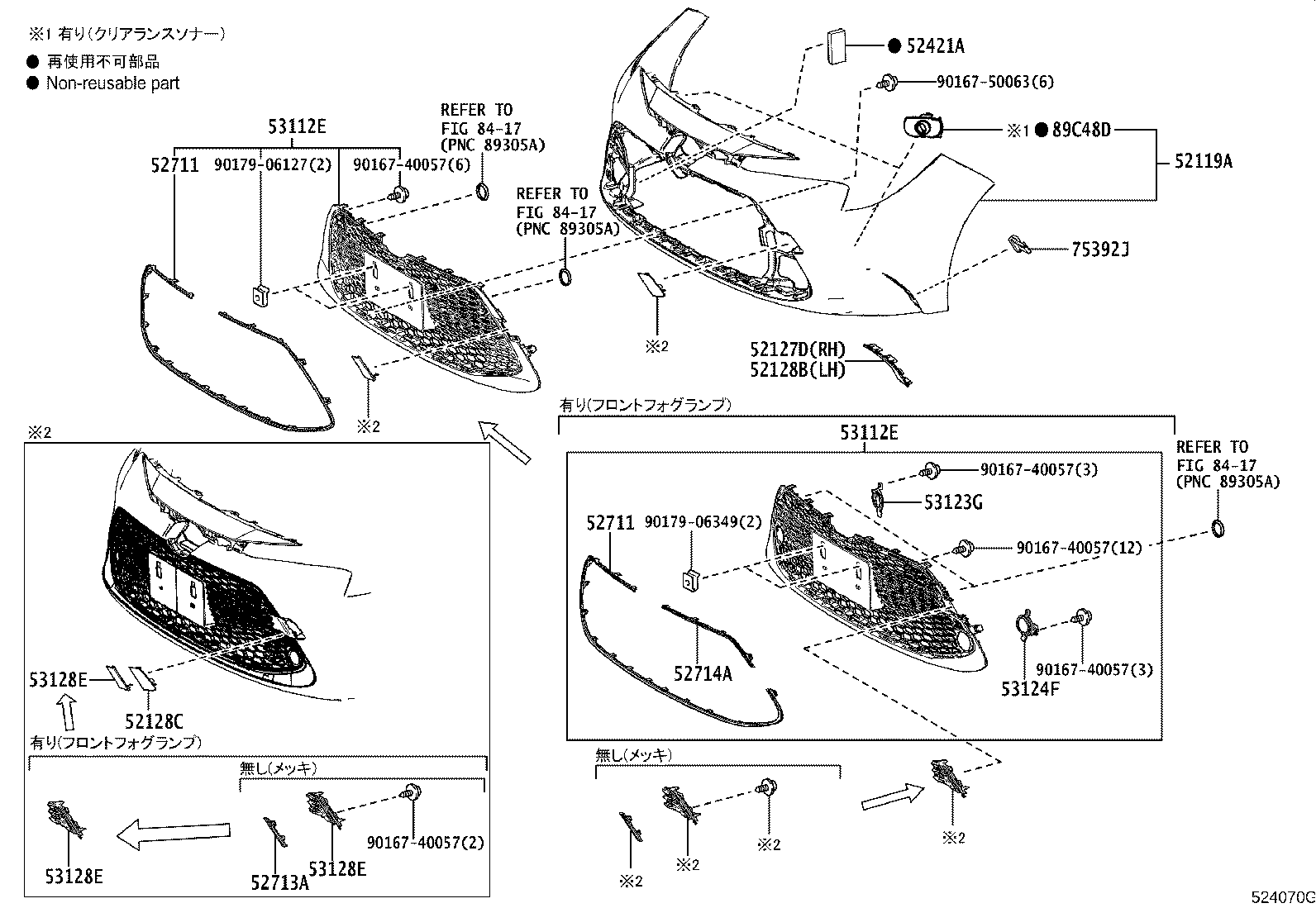

ILLUST NO. 2 OF 2(1908- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 52119A - COVER, FRONT BUMPER | ||||
| 52119-12G70A0 |
ZRE212..GX;NRE210,ZWE21#..HBDGX,WB WHITE PEARL CS.,070 ,2KR |
1 | ||
| 52119-1A920A0 |
NRE210 ｸﾘｱﾗﾝｽ & ﾊﾞｯｸｿﾅｰ−有り,WHITE PEARL CS.,070 ,2KR |
1 | ||
| 52119-12G70C0 |
ZRE212..GX;NRE210,ZWE21#..HBDGX,WB BLACK MC.,209 |
1 | ||
| 52119-12G70C1 |
NRE210 SPARKLING BLACK PEARL CS.,220 |
1 | ||
| 52119-1A920C1 |
NRE210 ｸﾘｱﾗﾝｽ & ﾊﾞｯｸｿﾅｰ−有り,SPARKLING BLACK PEARL CS.,220 |
1 | ||
| 52119-1A920C0 |
NRE210 ｸﾘｱﾗﾝｽ & ﾊﾞｯｸｿﾅｰ−有り,BLACK MC.,209 |
1 | ||
| 52119-1A920B0 |
NRE210 ｸﾘｱﾗﾝｽ & ﾊﾞｯｸｿﾅｰ−有り,SILVER ME.,2KS |
1 | ||
| 52119-12G70B0 |
NRE210 SILVER ME.,2KS |
1 | ||
| 52119-12G70J0 |
NRE210 DK.BLUE M.M.,2TT |
1 | ||
| 52119-1A920J0 |
NRE210 ｸﾘｱﾗﾝｽ & ﾊﾞｯｸｿﾅｰ−有り,DK.BLUE M.M.,2TT |
1 | ||
| 52127D - COVER, FRONT BUMPER HOLE, RH | ||||
| 81481-12360 |
MZEA12,NRE210,ZRE212,ZWE21# |
1 | ||
| 52128B - COVER, FRONT BUMPER HOLE, LH | ||||
| 81482-12270 |
MZEA12,NRE210,ZRE212,ZWE21# |
1 | ||
| 52128C - COVER, FRONT BUMPER HOLE, LH | ||||
| 52128-12320B0 |
NRE210,ZRE212..WB SILVER ME.,2KS |
1 | ||
| 52128-12320A1 |
MZEA12,NRE210,ZRE212,ZWE21# WHITE PEARL CS.,070 ,2KR |
1 | ||
| 52128-12320C0 |
ZRE212..GX,S;NRE210,ZWE21# BLACK MC.,209 |
1 | ||
| 52128-12320J0 |
NRE210,ZRE212,ZWE21#..HBDWB,WB DK.BLUE M.M.,2TT |
1 | ||
| 52128-12320C1 |
NRE210,ZRE212,ZWE21#..HBDWB,WB SPARKLING BLACK PEARL CS.,220 |
1 | ||
| 52421A - PAD, FRONT BUMPER | ||||
| 52421-12090 |
MZEA12,NRE210,ZRE212,ZWE21# |
2 | ||
| 52711 - MOULDING, FRONT BUMPER | ||||
| 52711-12410 |
MZEA12,NRE210,ZRE212,ZWE21#..G,HBDWB,WB 塗装不要 |
1 | ||
| 52711 - MOULDING, FRONT BUMPER | ||||
| 52711-12410 |
MZEA12,NRE210,ZRE212,ZWE21#..G,HBDWB,WB 塗装不要 |
1 | ||
| 52714A - MOULDING, FRONT BUMPER, NO.2 | ||||
| 52714-12020 |
MZEA12,NRE210,ZRE212,ZWE21#..G,HBDWB,WB |
1 | ||
| 53112E - GRILLE, RADIATOR, LOWER NO.1 | ||||
| 53102-12210 |
NRE210 ﾒｯｷ |
1 | ||
| 53102-12220 |
NRE210 ﾒｯｷ,ｸﾘｱﾗﾝｽ & ﾊﾞｯｸｿﾅｰ−有り |
1 | ||
| 53112E - GRILLE, RADIATOR, LOWER NO.1 | ||||
| 53102-12210 |
NRE210 ﾒｯｷ |
1 | ||
| 53102-12220 |
NRE210 ﾒｯｷ,ｸﾘｱﾗﾝｽ & ﾊﾞｯｸｿﾅｰ−有り |
1 | ||
| 53123G - MOULDING, RADIATOR GRILLE SIDE, RH | ||||
| 53123-12100 |
MZEA12,NRE210,ZRE212,ZWE21#..G,HBDWB,WB |
1 | ||
| 53124F - MOULDING, RADIATOR GRILLE SIDE, LH | ||||
| 53124-12090 |
MZEA12,NRE210,ZRE212,ZWE21#..G,HBDWB,WB |
1 | ||
| 53128E - GRILLE, RADIATOR, LOWER SIDE LH | ||||
| 52040-12150 |
MZEA12,NRE210,ZRE212,ZWE21#..G,HBDWB,WB |
1 | ||
| 53128E - GRILLE, RADIATOR, LOWER SIDE LH | ||||
| 52040-12150 |
MZEA12,NRE210,ZRE212,ZWE21#..G,HBDWB,WB |
1 | ||
| 53128E - GRILLE, RADIATOR, LOWER SIDE LH | ||||
| 52040-12150 |
MZEA12,NRE210,ZRE212,ZWE21#..G,HBDWB,WB |
1 | ||
| 75392J - RETAINER, OUTSIDE MOULDING | ||||
| 75392-35220 |
MZEA12,NRE210,ZRE212,ZWE21# |
2 | ||
| 89C48D - RETAINER, ULTRASONIC SENSOR, FRONT CORNER | ||||
| 89348-12230C1 |
NRE210 ｸﾘｱﾗﾝｽ & ﾊﾞｯｸｿﾅｰ−有り,SPARKLING BLACK PEARL CS.,220 |
2 | ||
| 89348-12230A0 |
NRE210 ｸﾘｱﾗﾝｽ & ﾊﾞｯｸｿﾅｰ−有り,WHITE PEARL CS.,070 ,2KR |
2 | ||
| 89348-12230C0 |
NRE210 ｸﾘｱﾗﾝｽ & ﾊﾞｯｸｿﾅｰ−有り,BLACK MC.,209 |
2 | ||
| 89348-12230B0 |
NRE210 ｸﾘｱﾗﾝｽ & ﾊﾞｯｸｿﾅｰ−有り,SILVER ME.,2KS |
2 | ||
| 89348-12230J0 |
NRE210 ｸﾘｱﾗﾝｽ & ﾊﾞｯｸｿﾅｰ−有り,DK.BLUE M.M.,2TT |
2 | ||
| Common parts | ||||
| 90167-40057 | ||||
| 90167-50063 | ||||
| 90179-06127 | ||||
| 90179-06349 | ||||
| Linked diagrams | ||||
| 8417 | ||||
