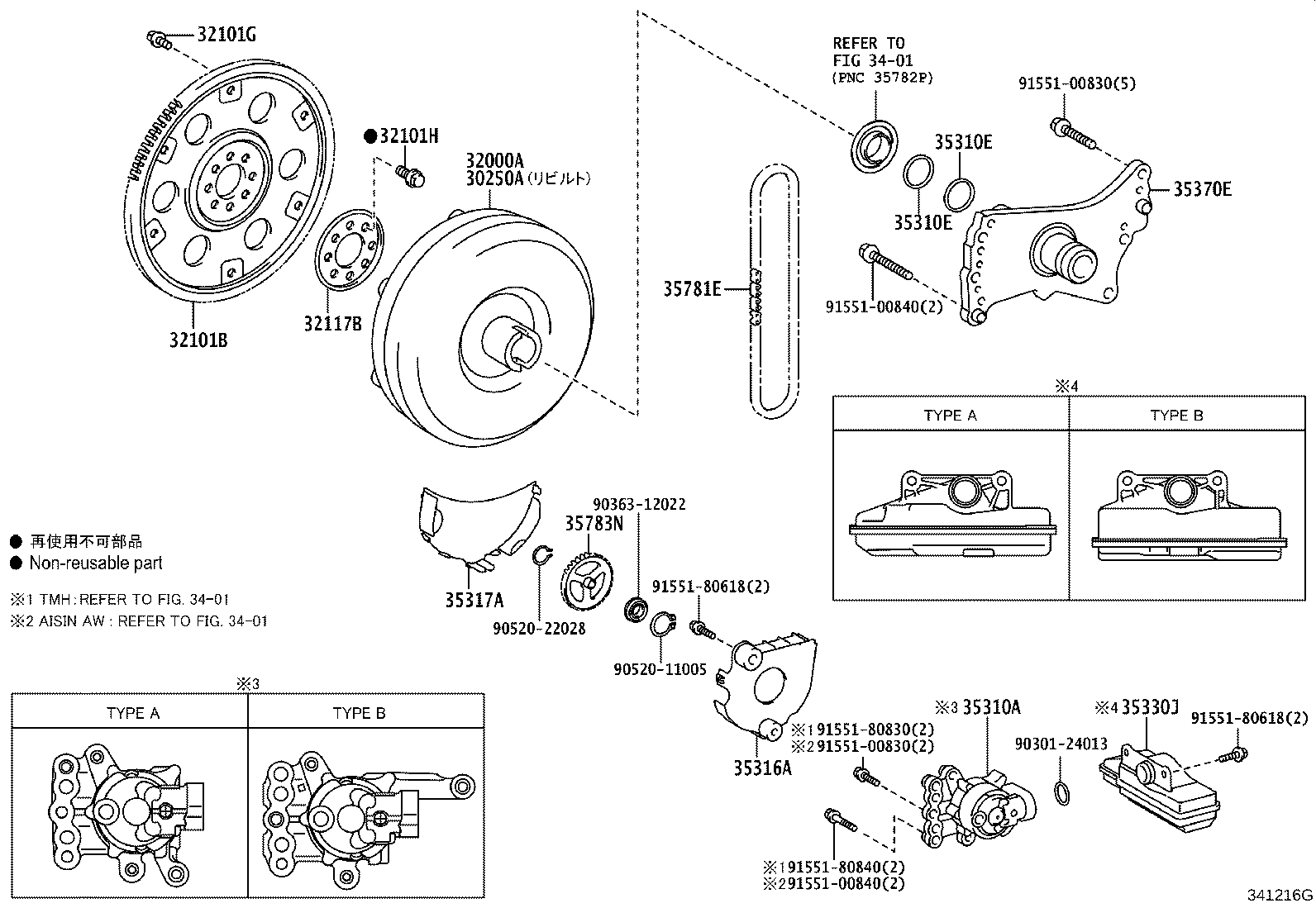

MZEA12W-AWXGB (2020)
Toyota Corolla
(2006- )MZEA12
K120
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 30250A - CONVERTER ASSY, TORQUE, REBUILT | ||||
| 30250-12460 |
MZEA12 |
1 | ||
| 32000A - CONVERTER ASSY, TORQUE | ||||
| 32000-12460 |
MZEA12 |
1 | ||
| 32000-12520 |
MZEA12 TMH:FIG.34−01参照 |
1 | ||
| 32101B - GEAR SUB-ASSY, DRIVE PLATE & RING | ||||
| 32101-12120 |
MZEA12 |
1 | ||
| 32101G - BOLT(FOR DRIVE PLATE & TORQUE CONVERTER SETTING) | ||||
| 90109-09001 |
MZEA12 *9−1.25PX12.4−7.3,ﾌﾞﾗｯｸ |
1 | ||
| 90119-09025 |
MZEA12 *9−1.25PX12.4−8.4,ｼﾙﾊﾞ− ﾎﾜｲﾄ |
5 | ||
| 32101H - BOLT, HEXAGON(FOR DRIVE PLATE SETTING) | ||||
| 90105-12404 |
MZEA12 |
8 | ||
| 32117B - SPACER, DRIVE PLATE, REAR | ||||
| 32117-33010 |
MZEA12 |
1 | ||
| 35310A - PUMP ASSY, FRONT OIL | ||||
| 35310-12200 |
MZEA12 AISIN AW:FIG.34−01参照 |
1 | ||
| 35310-12200 |
MZEA12 TYPE A,TMH:34−01参照 |
1 | ||
| 35310E - SEAL, TYPE T OIL (FOR FRONT OIL PUMP) | ||||
| 35617-12070 |
MZEA12 AISIN AW:FIG.34−01参照 |
2 | ||
| 35617-12060 |
MZEA12 TMH:FIG.34−01参照 |
2 | ||
| 35310E - SEAL, TYPE T OIL (FOR FRONT OIL PUMP) | ||||
| 35617-12070 |
MZEA12 AISIN AW:FIG.34−01参照 |
2 | ||
| 35617-12060 |
MZEA12 TMH:FIG.34−01参照 |
2 | ||
| 35316A - PLATE, TRANSMISSION OIL PUMP SEPARATOR, NO.1 | ||||
| 35316-12010 |
MZEA12 TMH:FIG.34−01参照 |
1 | ||
| 35316-12020 |
MZEA12 AISIN AW:FIG.34−01参照 |
1 | ||
| 35317A - PLATE, TRANSMISSION OIL PUMP SEPARATOR, NO.2 | ||||
| 35317-12020 |
MZEA12 AISIN AW:FIG.34−01参照 |
1 | ||
| 35317-12010 |
MZEA12 TMH:FIG.34−01参照 |
1 | ||
| 35330J - STRAINER ASSY, OIL | ||||
| 35330-12080 |
MZEA12 TYPE A,TMH:34−01参照 |
1 | ||
| 35330-12090 |
MZEA12 AISIN AW:FIG.34−01参照 |
1 | ||
| 35370E - SHAFT ASSY, STATOR (CVT) | ||||
| 35370-12120 |
MZEA12 TMH:FIG.34−01参照 |
1 | ||
| 35370-12130 |
MZEA12 AISIN AW:FIG.34−01参照 |
1 | ||
| 35781E - CHAIN, TRANSMISSION DRIVE | ||||
| 35781-12010 |
MZEA12 AISIN AW:FIG.34−01参照,TMH:FIG.34−01参照 |
1 | ||
| 35783N - SPROCKET, DRIVEN | ||||
| 35783-12060 |
MZEA12 AISIN AW:FIG.34−01参照,TMH:FIG.34−01参照 |
1 | ||
| Common parts | ||||
| 90301-24013 | ||||
| 90363-12022 | ||||
| 90520-11005 | ||||
| 90520-22028 | ||||
| 91551-00830 | ||||
| 91551-00840 | ||||
| 91551-80618 | ||||
| 91551-80830 | ||||
| 91551-80840 | ||||
| Linked diagrams | ||||
| 3401 | ||||
