KE74V-EXMDS (1983)

Toyota Corolla

Production Aug 1983 - Aug 1985
Engine 5KJ
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8308- )5KJ

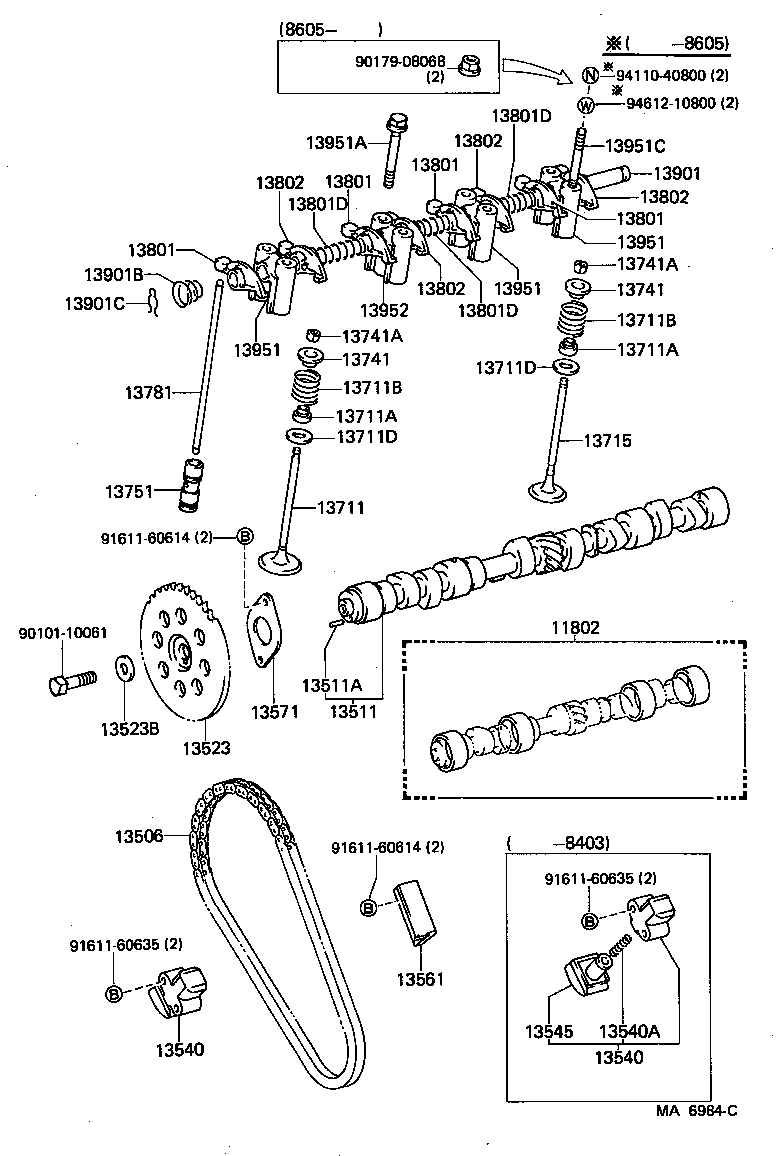

Click highlighted areas on diagram

diagram 11802 13506 13511 13511A 13523 13523B 13540 13540 13540A 13545 13561 13571 13711 13711A 13711A 13711B 13711B 13711D 13711D 13715 13741 13741 13741A 13741A 13751 13781 13801 13801 13801 13801 13801D 13801D 13801D 13802 13802 13802 13802 13901 13901B 13901C 13951 13951 13951 13951A 13951C 13952 9010110061 9017908068 9161160614 9161160614 9161160635 9161160635 9411040800 9461210800
Part # Description Qty Price
13511 - CAMSHAFT
13501-13041

5KJ..KE74

 1
13511A - PIN, STRAIGHT(FOR CAMSHAFT KNOCK)
90250-05121

4K#,5KJ..KE7#

長さ=15,外径=5,L=15,OD=5

 1
13523B - WASHER, PLATE(FOR TIMING GEAR)
90201-10489

4K#,5KJ..KE7#

 1
13571 - PLATE, CAMSHAFT THRUST
13571-13010

4K#,5KJ..KE7#

 1
13711 - VALVE, INTAKE
13711-24011

4K#,5KJ..KE7#

 4
13711B - SPRING, COMPRESSION(FOR INNER)
90501-42008

5KJ..KE74

 8
13711B - SPRING, COMPRESSION(FOR INNER)
90501-42008

5KJ..KE74

 8
13711D - WASHER, PLATE(FOR VALVE SPRING SEAT)
90201-16002

4K#,5KJ..KE7#

 8
13711D - WASHER, PLATE(FOR VALVE SPRING SEAT)
90201-16002

4K#,5KJ..KE7#

 8
13741 - RETAINER, VALVE SPRING
13741-24020

4K#,5KJ..KE7#

 8
13741 - RETAINER, VALVE SPRING
13741-24020

4K#,5KJ..KE7#

 8
13741A - LOCK, VALVE SPRING RETAINER
90913-03005

4K#,5KJ..KE7#

 16
13741A - LOCK, VALVE SPRING RETAINER
90913-03005

4K#,5KJ..KE7#

 16
13781 - ROD, VALVE PUSH
13781-13090

5KJ..KE74

USUI

 8
13781-13080

5KJ..KE74

MARUYASU

 8
13781-13090

5KJ..KE74

USUI

 8
13901 - SHAFT SUB-ASSY, VALVE ROCKER, NO.1
13901-22011

4K#,5KJ..KE7#

 1
13901B - SPRING, CONICAL(FOR VALVE ROCKER SHAFT)
90502-14022

4K#,5KJ..KE7#

 2
13901C - SPRING, RETAINER(FOR VALVE ROCKER SHAFT)
90524-13009

4K#,5KJ..KE7#

 4
13951 - SUPPORT, VALVE ROCKER, NO.1
13952-24012

4K#,5KJ..KE7#

 3
13951 - SUPPORT, VALVE ROCKER, NO.1
13952-24012

4K#,5KJ..KE7#

 3
13951 - SUPPORT, VALVE ROCKER, NO.1
13952-24012

4K#,5KJ..KE7#

 3
13951A - BOLT(FOR ROCKER SUPPORT SET)
90105-08028

4K#,5KJ..KE7#

*8-1.25PX53-15

 6
13951C - BOLT, STUD(FOR ROCKER SUPPORT)
90116-08082

4K#,5KJ..KE7#

L=100,S=10&54

 2
13952 - SUPPORT, VALVE ROCKER, NO.2
13952-24012

4K#,5KJ..KE7#

 1
Common parts
90101-10061
90179-08068
91611-60614
91611-60635
94110-40800
94612-10800
