KE74V-EXKDS (1983)

Toyota Corolla

Production Aug 1983 - Jul 1987
Engine 5KJ
Transmission 4F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(7903-8508)

Click highlighted areas on diagram

diagram 51201 51229 51441 51448 51961 51962 51962 9011910026 9011910139 9017012007 9017012008 9017906175 9020112020 9165161025 9165161025 9166140614 9166140616 9451201200 9461111200
Part # Description Qty Price
51201 - CROSSMEMBER SUB-ASSY, FRONT SUSPENSION
51201-13010

KE72,74

 1
51441 - COVER, ENGINE UNDER, NO.1
51405-13010

KE72,74..4F

 1
51405-12010

KE7#

 1
51448 - PROTECTOR, OIL PAN
51447-12040

AE70,KE7#,TE7#

 1
51961 - HOOK, NO.1
51963-12050

AE70,CE7#,KE7#,TE7#

 2
Common parts
90119-10026
90119-10139
90170-12007
90170-12008
90179-06175
90201-12020
91651-61025
91661-40614
91661-40616
94512-01200
94611-11200

(8508- )

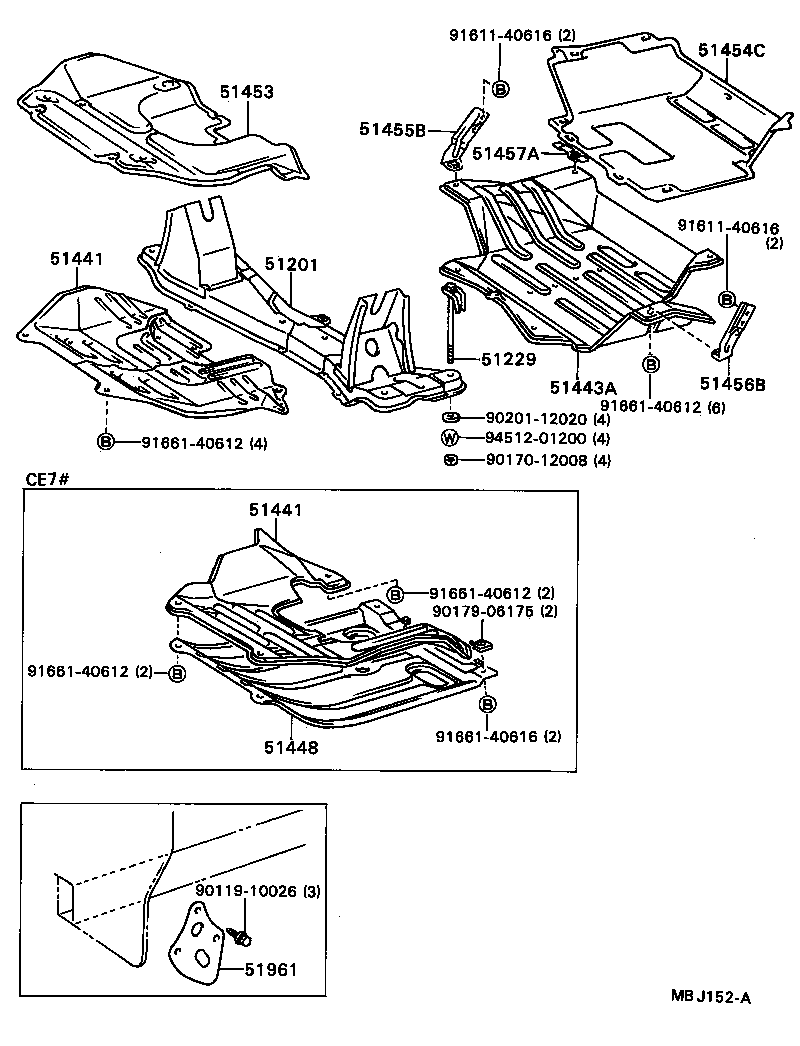

Click highlighted areas on diagram

diagram 51201 51229 51441 51441 51443A 51448 51453 51454C 51455B 51456B 51457A 51961 9011910026 9017012008 9017906175 9020112020 9161140616 9161140616 9166140612 9166140612 9166140612 9166140612 9166140616 9451201200
Part # Description Qty Price
51201 - CROSSMEMBER SUB-ASSY, FRONT SUSPENSION
51201-13010

KE72,74

 1
51441 - COVER, ENGINE UNDER, NO.1
51405-13010

KE72,74..4F

 1
51405-12010

KE7#

 1
51441 - COVER, ENGINE UNDER, NO.1
51405-13010

KE72,74..4F

 1
51405-12010

KE7#

 1
51443A - COVER, ENGINE UNDER, REAR
51443-13010

KE72,74..4F

 1
51448 - PROTECTOR, OIL PAN
51447-12040

AE70,KE7#,TE7#

 1
51453 - SILENCER, ENGINE UNDER COVER, FRONT
51453-13010

KE72,74..4F

 1
51454C - SILENCER, ENGINE UNDER COVER, REAR
51454-13010

KE72,74..4F

 1
51455B - BRACKET, ENGINE UNDER COVER, REAR RH
51407-13010

KE74..4F

 1
51456B - BRACKET, ENGINE UNDER COVER, REAR LH
51456-13010

KE72,74..4F

 1
51457A - BRACKET, ENGINE UNDER COVER, NO.3
51457-13010

KE72,74..MTM

 1
51961 - HOOK, NO.1
51963-12050

AE70,CE7#,KE7#,TE7#

 2
Common parts
90119-10026
90170-12008
90179-06175
90201-12020
91611-40616
91661-40612
91661-40616
94512-01200
