KE74V-EXKDS (1983)

Toyota Corolla

Production Aug 1983 - Jul 1987
Engine 5KJ
Transmission 4F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8308- )5KJ

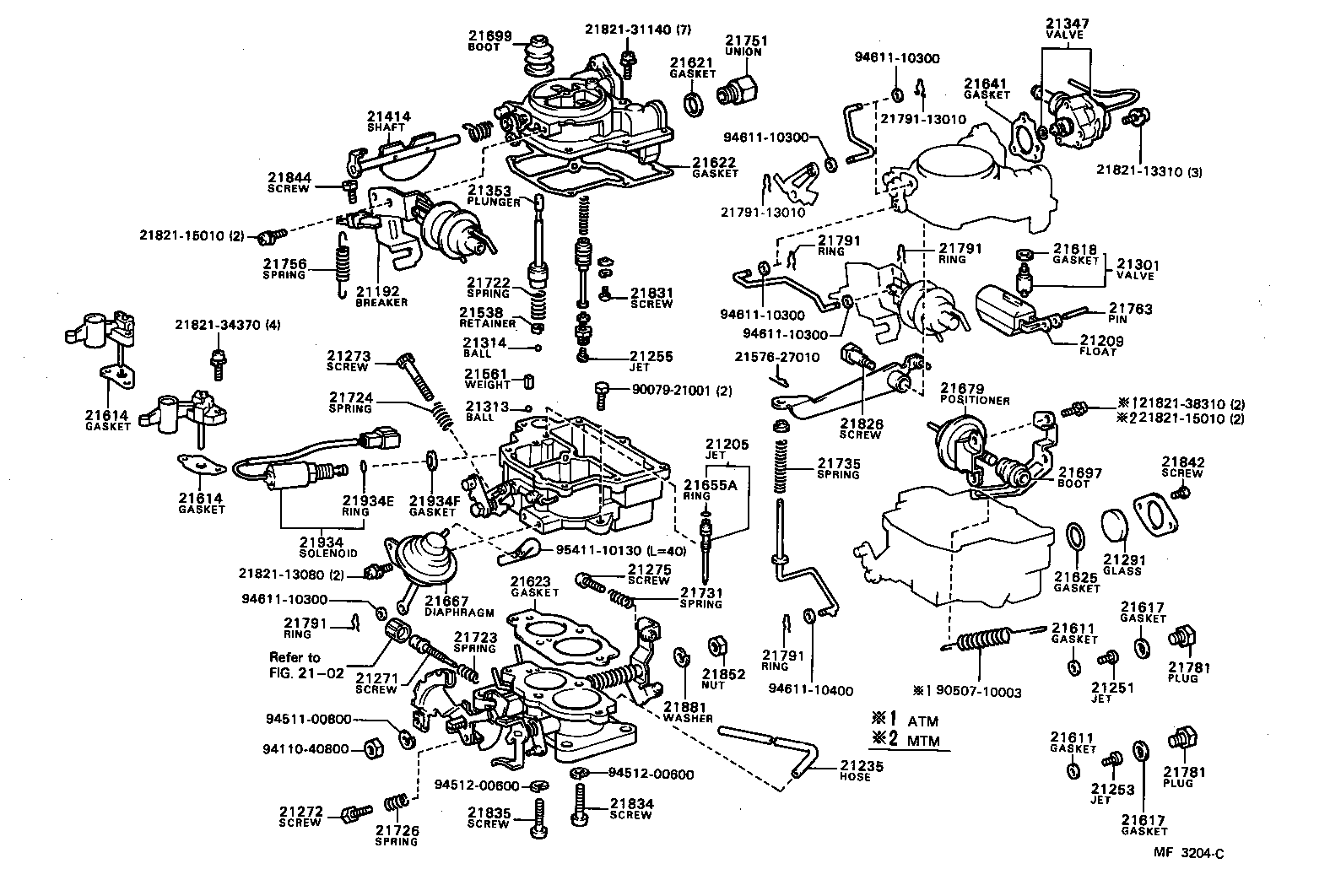

Click highlighted areas on diagram

diagram 2102 21192 21205 21209 21235 21251 21253 21255 21271 21272 21273 21275 21291 21301 21313 21314 21347 21353 21414 21538 21561 2157627010 21611 21611 21614 21614 21617 21617 21618 21621 21622 21623 21625 21641 21655A 21667 21679 21697 21699 21722 21723 21724 21726 21731 21735 21751 21756 21763 21781 21781 21791 21791 21791 21791 2179113010 2179113010 2182113080 2182113310 2182115010 2182115010 2182131140 2182134370 2182138310 21826 21831 21834 21835 21842 21844 21852 21881 21934 21934E 21934F 9007921001 9050710003 9411040800 9451100800 9451200600 9451200600 9461110300 9461110300 9461110300 9461110300 9461110300 9461110400 9541110130
Part # Description Qty Price
21205 - JET SUB-ASSY, SLOW
21205-13450

5KJ..KE74

 1
21209 - FLOAT SUB-ASSY
21209-24480

4K#,5KJ..KE7#

 1
21251 - JET, 1ST MAIN
90999-41119

5KJ..KE74

ID=1.19

 1
21253 - JET, 2ND MAIN
90999-42177

5KJ..KE74

ID=1.77

 1
21255 - JET, POWER
90999-43068

5KJ..KE74

ID=0.68

 1
21272 - SCREW, 1ST IDLE ADJUSTING
21814-33010

4K#,5KJ..KE7#

 1
21273 - SCREW, THROTTLE ADJUSTING
21273-13390

4K#,5KJ..KE7#

 1
21291 - GLASS, LEVEL GAGE
21291-34320

4K#,5KJ..KE7#

 1
21313 - BALL, STEEL, NO.1(FOR DISCHARGE WEIGHT)
21313-11020

4K#,5KJ..KE7#

 1
21314 - BALL, STEEL, NO.2(FOR PUMP PLUNGER)
21314-60010

4K#,5KJ..KE7#

 1
21353 - PLUNGER, PUMP
21353-13450

5KJ..KE74

 1
21538 - RETAINER, BALL CHECK
21538-31010

4K#,5KJ..KE7#

 1
21561 - WEIGHT, PUMP DISCHARGE
21561-22010

4K#,5KJ..KE7#

 1
21611 - GASKET, MAIN JET
21611-22010

4K#,5KJ..KE7#

 2
21611 - GASKET, MAIN JET
21611-22010

4K#,5KJ..KE7#

 2
21614 - GASKET, VENTURI
21614-22010

4K#,5KJ..KE7#

1ST VENTURI

 1
21614-24360

4K#,5KJ..KE7#

2ND VENTURI

 1
21614 - GASKET, VENTURI
21614-22010

4K#,5KJ..KE7#

1ST VENTURI

 1
21614-24360

4K#,5KJ..KE7#

2ND VENTURI

 1
21617 - GASKET, MAIN PASSAGE PLUG
21617-30010

4K#,5KJ..KE7#

 2
21617 - GASKET, MAIN PASSAGE PLUG
21617-30010

4K#,5KJ..KE7#

 2
21621 - GASKET, UNION NIPPLE
21633-24030

4K#,5KJ..KE7#

 2
21622 - GASKET, AIR HORN
21622-24360

4K#,5KJ..KE7#

 1
21722 - SPRING, PUMP DAMPING
21722-22010

4K#,5KJ..KE7#

 1
21723 - SPRING, IDLE ADJUSTING
21723-21030

4K#,5KJ..KE7#

 1
21724 - SPRING, THROTTLE ADJUSTING
21864-24230

4K#,5KJ..KE7#

 1
21726 - SPRING, 1ST IDLE ADJUSTING
21726-40010

4K#,5KJ..KE7#

 1
21731 - SPRING, DASH POT OR POSITIONER ADJUSTING
21864-24010

4K#,5KJ..KE7#

 1
21763 - PIN, FLOAT LEVER
21763-38010

4K#,5KJ..KE7#

 1
21791 - RING, SNAP, NO.1(FOR CARBURETOR LINK)
21791-60010

4K#,5KJ..KE7#

 10
21791 - RING, SNAP, NO.1(FOR CARBURETOR LINK)
21791-60010

4K#,5KJ..KE7#

 10
21791 - RING, SNAP, NO.1(FOR CARBURETOR LINK)
21791-60010

4K#,5KJ..KE7#

 10
21791 - RING, SNAP, NO.1(FOR CARBURETOR LINK)
21791-60010

4K#,5KJ..KE7#

 10
21834 - SCREW, SET, NO.2(FOR CARBURETOR BODY SET)
21834-31010

4K#,5KJ..KE7#

 1
21835 - SCREW, SET, NO.3(FOR CARBURETOR BODY SET)
21835-40010

4K#,5KJ..KE7#

 1
21852 - NUT, THROTTLE LEVER SET
21852-30010

4K#,5KJ..KE7#

 1
21881 - WASHER, LOCK(FOR THROTTLE SHAFT)
21881-60010

4K#,5KJ..KE7#

 1
21934E - RING, O(FOR SOLENOID VALVE)
21655-44101

4K#,5KJ..KE7#

 2
21934F - GASKET
21617-10010

4K#,5KJ..KE7#

 1
21649-38010

4K#,5KJ..KE7#

 1
Common parts
21576-27010
21791-13010
21821-13080
21821-13310
21821-15010
21821-31140
21821-34370
21821-38310
90079-21001
90507-10003
94110-40800
94511-00800
94512-00600
94611-10300
94611-10400
95411-10130
