KE74V-EXHDS (1983)
Toyota Corolla

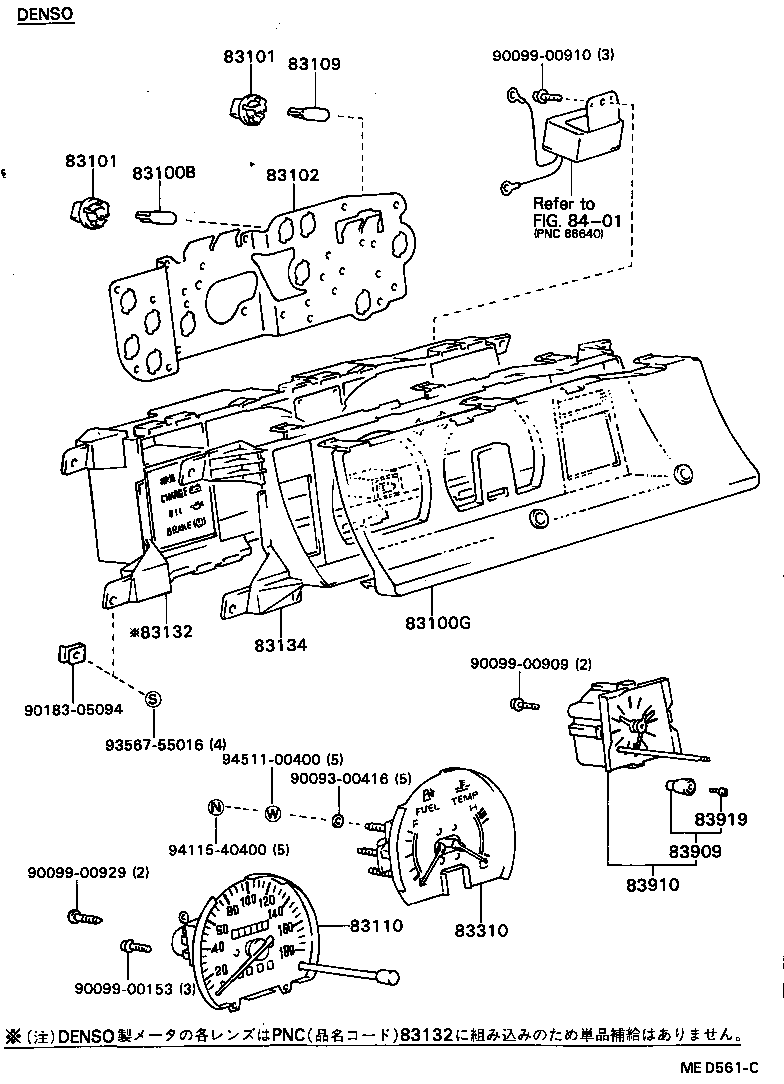

ILLUST NO. 1 OF 2(8308- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 83100B - BULB, COMBINATION METER, NO.1 | ||||
| 99132-12034 |
AE70,CE7#,KE7#,TE7# 12V 3.4W,12V 3.4W |
14 | ||
| 83100G - GLASS, COMBINATION METER | ||||
| 83138-12610 |
KE7#..DX,STD W/O CLOCK,DENSO |
1 | ||
| 83138-13040 |
KE7#..DX,STD YAZAKI |
1 | ||
| 83138-13020 |
KE7#..DX,STD YAZAKI |
1 | ||
| 83138-12570 |
CE7#,KE7# W/CLOCK,DENSO |
1 | ||
| 83138-13040 |
KE7#..DX YAZAKI |
1 | ||
| 83101 - SOCKET SUB-ASSY, COMBINATION METER BULB | ||||
| 83101-14030 |
AE70,CE70,71,KE7#,TE7# 12V 3.4W |
14 | ||
| 83101 - SOCKET SUB-ASSY, COMBINATION METER BULB | ||||
| 83101-14030 |
AE70,CE70,71,KE7#,TE7# 12V 3.4W |
14 | ||
| 83102 - PLATE SUB-ASSY, COMBINATION METER CIRCUIT, NO.1 | ||||
| 83247-12490 |
AE70,KE7#,TE70,73..(SED,V)..(CTD,DX,GL) W/CLOCK |
1 | ||
| 83247-12550 |
AE70,KE7#,TE73..(SED,V)..(CTD,DX,STD) |
1 | ||
| 83247-13020 |
KE7#..DX,STD YAZAKI |
1 | ||
| 83247-1E470 |
KE7#..DX,STD DENSO |
1 | ||
| 83247-13040 |
KE7#..DX,STD YAZAKI |
1 | ||
| 83109 - BULB, COMBINATION METER, NO.2 | ||||
| 83109-24030 |
CE7#,KE7# 12V 3.4W ｸﾞﾘｰﾝ ｷｬｯﾌﾟ付き,W/GREEN CAP |
3 | ||
| 83110 - SPEEDOMETER ASSY | ||||
| 83110-12570 |
AE70,KE7#,TE70,73..(SED,V)..(DX,GL) |
1 | ||
| 83110-13050 |
KE7#..DX,STD YAZAKI |
1 | ||
| 83110-13051 |
KE7#..DX,STD YAZAKI |
1 | ||
| 83110-13051 |
KE7#..DX YAZAKI |
1 | ||
| 83110-13041 |
KE7# DENSO |
1 | ||
| 83110-13040 |
KE7# DENSO |
1 | ||
| 83132 - CASE, COMBINATION METER | ||||
| 83132-12030 |
AE70,KE7#,TE70,73..(SED,V)..(CTD,DX,GL,STD) |
1 | ||
| 83132-12850 |
KE7#..DX,STD DENSO |
1 | ||
| 83132-13020 |
KE7#..DX,STD YAZAKI |
1 | ||
| 83132-13040 |
KE7#..DX,STD YAZAKI |
1 | ||
| 83134 - COVER, COMBINATION METER, NO.1 | ||||
| 83133-12050 |
AE70,KE7#,TE73..(SED,V)..DX |
1 | ||
| 83134-13040 |
KE7#..DX,STD YAZAKI |
1 | ||
| 83134-13020 |
KE7#..DX,STD YAZAKI |
1 | ||
| 83133-12870 |
KE7# DENSO |
1 | ||
| 83310 - GAGE ASSY, FUEL RECEIVER | ||||
| 83243-12770 |
KE7#..DX,STD DENSO |
1 | ||
| 83243-13040 |
KE7#..DX,STD YAZAKI |
1 | ||
| 83243-13020 |
KE7#..DX,STD YAZAKI |
1 | ||
| 83909 - KNOB, CLOCK | ||||
| 83909-13010 |
CE7#,KE7# |
1 | ||
| 83910 - CLOCK ASSY | ||||
| 83910-12220 |
AE70,KE7#,TE70,73..(SED,V)..(CTD,DX,GL) |
1 | ||
| 83910-13010 |
CE7#,KE7# |
1 | ||
| 83919 - SCREW, CLOCK | ||||
| 83919-13010 |
CE7#,KE7# |
1 | ||
| Common parts | ||||
| 90093-00416 | ||||
| 90099-00153 | ||||
| 90099-00909 | ||||
| 90099-00910 | ||||
| 90099-00929 | ||||
| 90183-05094 | ||||
| 93567-55016 | ||||
| 94115-40400 | ||||
| 94511-00400 | ||||
| Linked diagrams | ||||
| 8401 | ||||

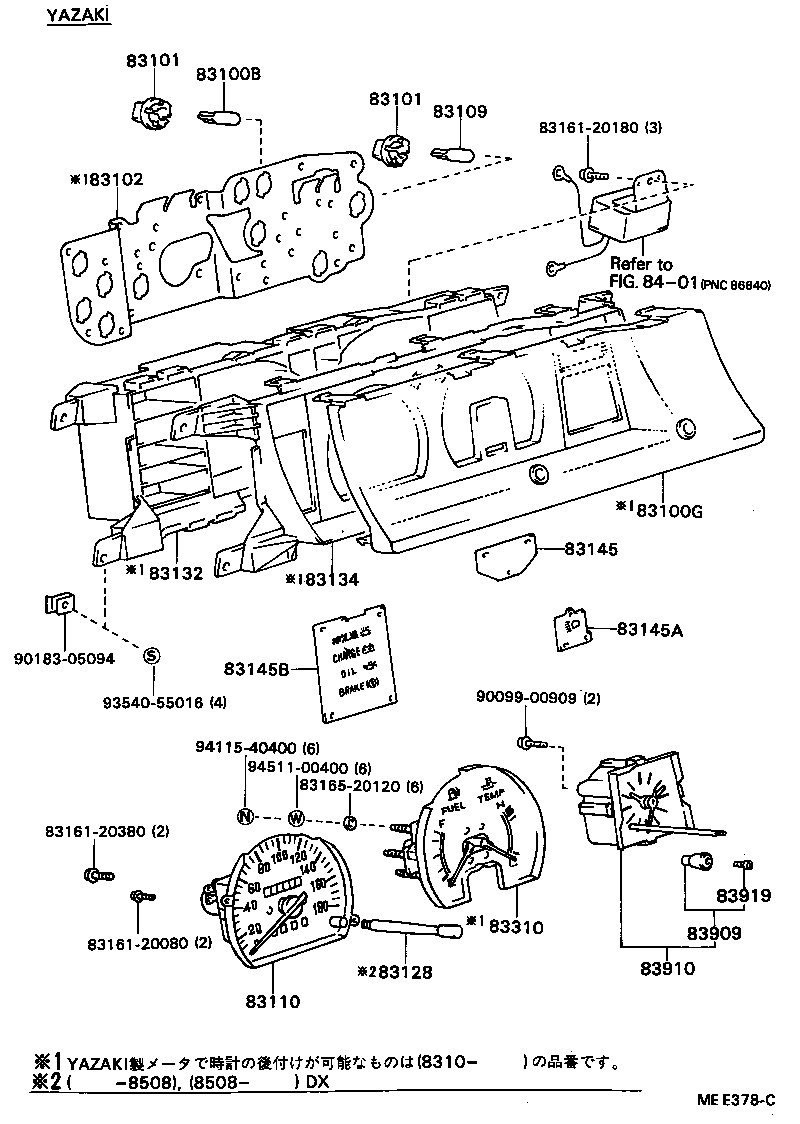

ILLUST NO. 1 OF 2(8308- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 83100B - BULB, COMBINATION METER, NO.1 | ||||
| 99132-12034 |
AE70,CE7#,KE7#,TE7# 12V 3.4W,12V 3.4W |
14 | ||
| 83100G - GLASS, COMBINATION METER | ||||
| 83138-12610 |
KE7#..DX,STD W/O CLOCK,DENSO |
1 | ||
| 83138-13040 |
KE7#..DX,STD YAZAKI |
1 | ||
| 83138-13020 |
KE7#..DX,STD YAZAKI |
1 | ||
| 83138-12570 |
CE7#,KE7# W/CLOCK,DENSO |
1 | ||
| 83138-13040 |
KE7#..DX YAZAKI |
1 | ||
| 83101 - SOCKET SUB-ASSY, COMBINATION METER BULB | ||||
| 83101-14030 |
AE70,CE70,71,KE7#,TE7# 12V 3.4W |
14 | ||
| 83101 - SOCKET SUB-ASSY, COMBINATION METER BULB | ||||
| 83101-14030 |
AE70,CE70,71,KE7#,TE7# 12V 3.4W |
14 | ||
| 83102 - PLATE SUB-ASSY, COMBINATION METER CIRCUIT, NO.1 | ||||
| 83247-12490 |
AE70,KE7#,TE70,73..(SED,V)..(CTD,DX,GL) W/CLOCK |
1 | ||
| 83247-12550 |
AE70,KE7#,TE73..(SED,V)..(CTD,DX,STD) |
1 | ||
| 83247-13020 |
KE7#..DX,STD YAZAKI |
1 | ||
| 83247-1E470 |
KE7#..DX,STD DENSO |
1 | ||
| 83247-13040 |
KE7#..DX,STD YAZAKI |
1 | ||
| 83109 - BULB, COMBINATION METER, NO.2 | ||||
| 83109-24030 |
CE7#,KE7# 12V 3.4W ｸﾞﾘｰﾝ ｷｬｯﾌﾟ付き,W/GREEN CAP |
3 | ||
| 83110 - SPEEDOMETER ASSY | ||||
| 83110-12570 |
AE70,KE7#,TE70,73..(SED,V)..(DX,GL) |
1 | ||
| 83110-13050 |
KE7#..DX,STD YAZAKI |
1 | ||
| 83110-13051 |
KE7#..DX,STD YAZAKI |
1 | ||
| 83110-13051 |
KE7#..DX YAZAKI |
1 | ||
| 83110-13041 |
KE7# DENSO |
1 | ||
| 83110-13040 |
KE7# DENSO |
1 | ||
| 83128 - KNOB, TRIP COUNTER | ||||
| 83128-12670 |
AE70,KE7#,TE7#..(SED,V)..(CTD,DX,GL,GT,SE) |
1 | ||
| 83128-89130 |
KE7#..DX YAZAKI |
1 | ||
| 83128-89130 |
KE7#..DX,STD YAZAKI |
1 | ||
| 83132 - CASE, COMBINATION METER | ||||
| 83132-12030 |
AE70,KE7#,TE70,73..(SED,V)..(CTD,DX,GL,STD) |
1 | ||
| 83132-12850 |
KE7#..DX,STD DENSO |
1 | ||
| 83132-13020 |
KE7#..DX,STD YAZAKI |
1 | ||
| 83132-13040 |
KE7#..DX,STD YAZAKI |
1 | ||
| 83134 - COVER, COMBINATION METER, NO.1 | ||||
| 83133-12050 |
AE70,KE7#,TE73..(SED,V)..DX |
1 | ||
| 83134-13040 |
KE7#..DX,STD YAZAKI |
1 | ||
| 83134-13020 |
KE7#..DX,STD YAZAKI |
1 | ||
| 83133-12870 |
KE7# DENSO |
1 | ||
| 83145 - LENS, METER, NO.1 | ||||
| 83145-13020 |
KE7#..DX YAZAKI |
1 | ||
| 83145A - LENS, METER, NO.2 | ||||
| 83145-13040 |
KE7#..DX YAZAKI |
1 | ||
| 83145B - LENS, METER, NO.3 | ||||
| 83145-13060 |
KE7#..DX YAZAKI |
1 | ||
| 83310 - GAGE ASSY, FUEL RECEIVER | ||||
| 83243-12770 |
KE7#..DX,STD DENSO |
1 | ||
| 83243-13040 |
KE7#..DX,STD YAZAKI |
1 | ||
| 83243-13020 |
KE7#..DX,STD YAZAKI |
1 | ||
| 83909 - KNOB, CLOCK | ||||
| 83909-13010 |
CE7#,KE7# |
1 | ||
| 83910 - CLOCK ASSY | ||||
| 83910-12220 |
AE70,KE7#,TE70,73..(SED,V)..(CTD,DX,GL) |
1 | ||
| 83910-13010 |
CE7#,KE7# |
1 | ||
| 83919 - SCREW, CLOCK | ||||
| 83919-13010 |
CE7#,KE7# |
1 | ||
| Common parts | ||||
| 83161-20080 | ||||
| 83161-20180 | ||||
| 83161-20380 | ||||
| 83165-20120 | ||||
| 90099-00909 | ||||
| 90183-05094 | ||||
| 93540-55016 | ||||
| 94115-40400 | ||||
| 94511-00400 | ||||
| Linked diagrams | ||||
| 8401 | ||||
