KE74V-EXHDS (1983)
Toyota Corolla

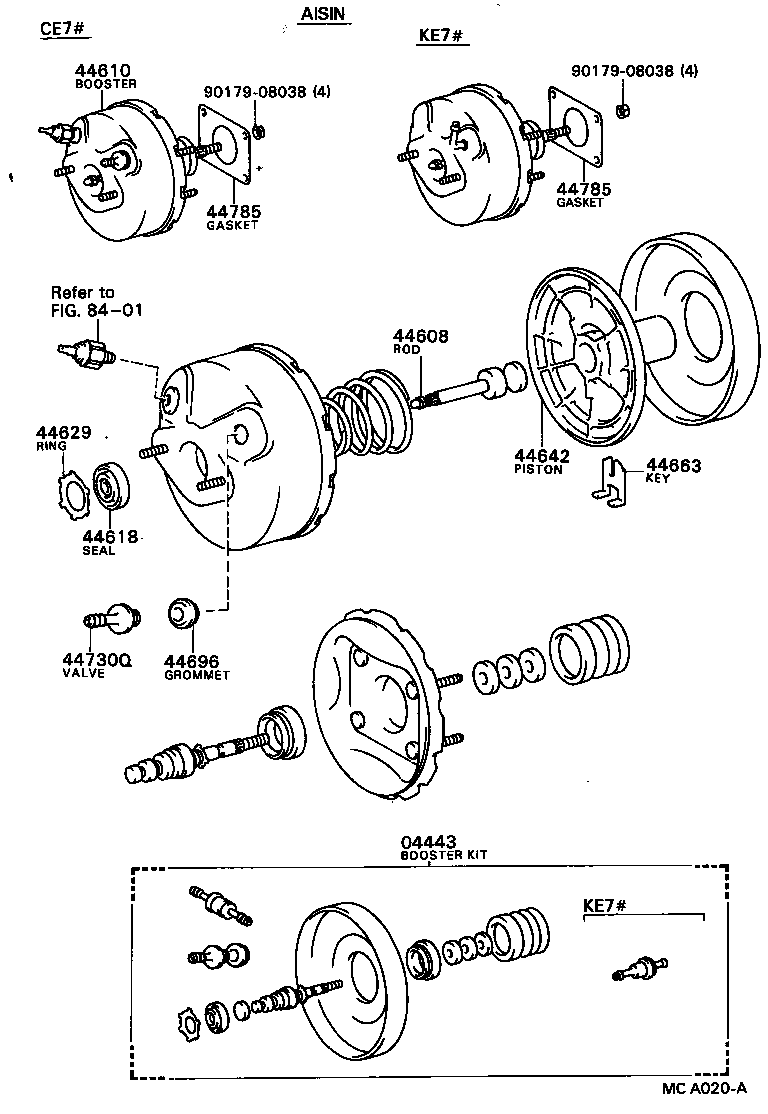

ILLUST NO. 1 OF 2(8308- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 04443 - BOOSTER KIT, BRAKE | ||||
| 04443-12140 |
AE70,TE70,73,74;KE7#..GL,SE,SL,SR 6 INCHES,AISIN |
1 | ||
| 04443-12120 |
KE7#..CTD,DX,STD 5 INCHES |
1 | ||
| 04443-12400 |
KE7# 6 INCHES,AISIN |
1 | ||
| 04443-12390 |
KE7# 6 INCHES,JKC |
1 | ||
| 04443-12150 |
AE70,TE70,73,74;KE7#..GL,SE,SL,SR 6 INCHES,JKC |
1 | ||
| 44608 - PUSH ROD SUB-ASSY, BOOSTER | ||||
| 44606-20460 |
AE70,CE7#,KE7#,TE70,73,74 5 & 6 INCHES,AISIN |
1 | ||
| 44606-12520 |
CE7#,KE7# AISIN |
1 | ||
| 44608-32020 |
KE7# JKC |
1 | ||
| 44608-12080 |
AE70,TE70,73,74;KE7#..GL,SE,SL,SR 6 INCHES,JKC |
1 | ||
| 44610 - BOOSTER ASSY, BRAKE | ||||
| 44610-12210 |
KE7#..CTD,DX,STD 5 INCHES |
1 | ||
| 44610-12230 |
AE70,TE70,73,74;KE7#..GL,SE,SL,SR 6 INCHES |
1 | ||
| 44610-12470 |
KE7# 6 INCHES |
1 | ||
| 44618 - SEAL, BOOSTER BODY | ||||
| 44621-28120 |
CE7#,KE7# AISIN |
1 | ||
| 44629 - RING, CIRCULAR INTERNAL | ||||
| 44628-28120 |
CE7#,KE7# AISIN |
1 | ||
| 44642 - PISTON, BRAKE BOOSTER | ||||
| 44642-14040 |
AE70,TE70,73,74;KE7#..GL,SE,SL,SR 6 INCHES,JKC |
1 | ||
| 44642-14190 |
KE7#..GL,SE,SL,SR;AE70,CE7#,TE70,73,74 6 INCHES,AISIN |
1 | ||
| 44642-12460 |
CE7#,KE7# AISIN |
1 | ||
| 44642-12070 |
KE7#..CTD,DX,STD 5 INCHES,AISIN |
1 | ||
| 44663 - KEY, VALVE STOPPER | ||||
| 44635-12480 |
CE7#,KE7# AISIN |
1 | ||
| 44785 - GASKET, BRAKE BOOSTER | ||||
| 44785-14010 |
AE70,CE7#,KE7#,TE7# |
1 | ||
| 44785 - GASKET, BRAKE BOOSTER | ||||
| 44785-14010 |
AE70,CE7#,KE7#,TE7# |
1 | ||
| Common parts | ||||
| 90179-08038 | ||||
| Linked diagrams | ||||
| 8401 | ||||

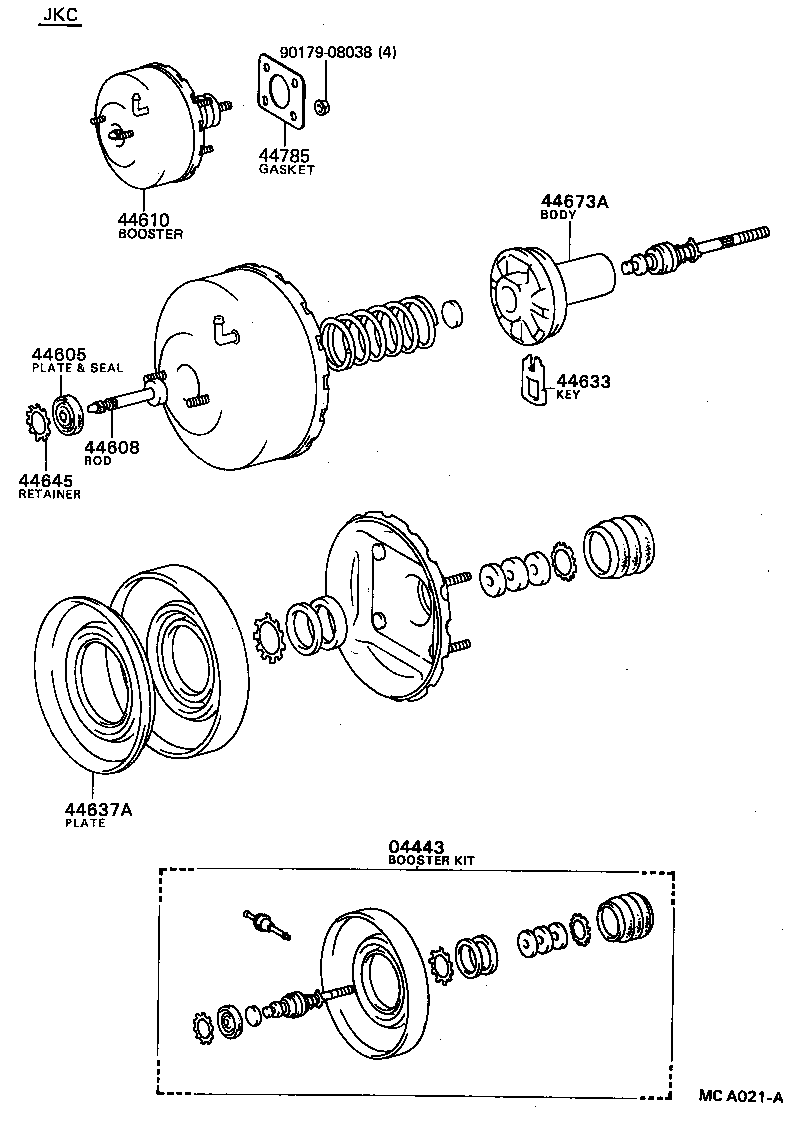

ILLUST NO. 1 OF 2(8308- )KE7#
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 04443 - BOOSTER KIT, BRAKE | ||||
| 04443-12140 |
AE70,TE70,73,74;KE7#..GL,SE,SL,SR 6 INCHES,AISIN |
1 | ||
| 04443-12120 |
KE7#..CTD,DX,STD 5 INCHES |
1 | ||
| 04443-12400 |
KE7# 6 INCHES,AISIN |
1 | ||
| 04443-12390 |
KE7# 6 INCHES,JKC |
1 | ||
| 04443-12150 |
AE70,TE70,73,74;KE7#..GL,SE,SL,SR 6 INCHES,JKC |
1 | ||
| 44605 - PLATE & SEAL SUB-ASSY, BOOSTER | ||||
| 44605-22021 |
KE7# JKC |
1 | ||
| 44608 - PUSH ROD SUB-ASSY, BOOSTER | ||||
| 44606-20460 |
AE70,CE7#,KE7#,TE70,73,74 5 & 6 INCHES,AISIN |
1 | ||
| 44606-12520 |
CE7#,KE7# AISIN |
1 | ||
| 44608-32020 |
KE7# JKC |
1 | ||
| 44608-12080 |
AE70,TE70,73,74;KE7#..GL,SE,SL,SR 6 INCHES,JKC |
1 | ||
| 44610 - BOOSTER ASSY, BRAKE | ||||
| 44610-12210 |
KE7#..CTD,DX,STD 5 INCHES |
1 | ||
| 44610-12230 |
AE70,TE70,73,74;KE7#..GL,SE,SL,SR 6 INCHES |
1 | ||
| 44610-12470 |
KE7# 6 INCHES |
1 | ||
| 44633 - KEY, BOOSTER VALVE PLUNGER | ||||
| 44633-28130 |
KE7# JKC |
1 | ||
| 44637A - PLATE, BOOSTER DIAPHRAGM | ||||
| 44637-12470 |
KE7# JKC |
1 | ||
| 44645 - RETAINER, BOOSTER PUSH ROD SEAL | ||||
| 44645-22020 |
KE7# JKC |
1 | ||
| 44673A - BODY, BOOSTER VALVE | ||||
| 44673-28180 |
KE7# JKC |
1 | ||
| 44785 - GASKET, BRAKE BOOSTER | ||||
| 44785-14010 |
AE70,CE7#,KE7#,TE7# |
1 | ||
| Common parts | ||||
| 90179-08038 | ||||
