KE73G-EWMNS (1982)

Toyota Corolla

Production May 1982 - Jul 1987
Engine 4KU
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8308- )

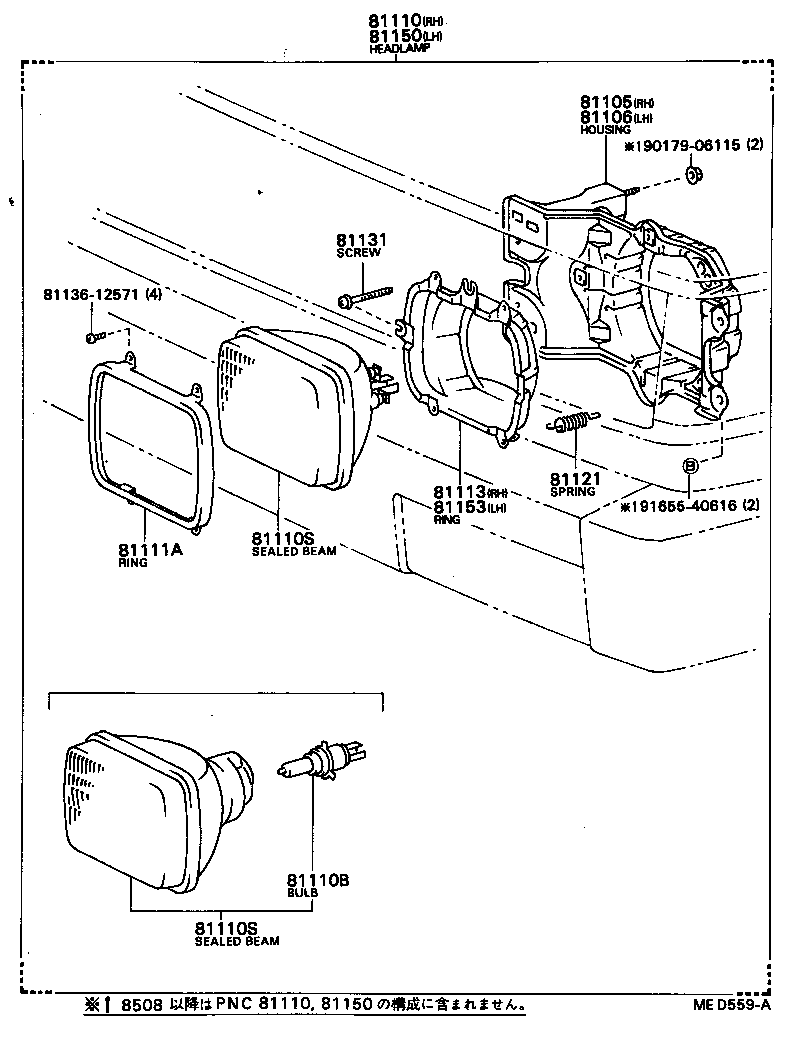

Click highlighted areas on diagram

diagram 81105 81106 81110 81110B 81110S 81110S 81111A 81113 81121 81131 8113612571 81150 81153 9017906115 9165540616
Part # Description Qty Price
81105 - HOUSING SUB-ASSY, HEADLAMP, RH
81105-13080

CE7#,KE7#

 1
81105-13060

CE7#,KE7#

 1
81106 - HOUSING SUB-ASSY, HEADLAMP, LH
81106-13080

CE7#,KE7#

 1
81106-13060

CE7#,KE7#

 1
81110 - HEADLAMP ASSY, RH
81110-80339

CE72,KE73..GL

HALOGEN

 1
81110-80338

CE7#,KE7#

 1
81110-13080

CE7#,KE7#

 1
81110-13090

CE72,KE73..GL

HALOGEN

 1
81110-80203

KE73

SEMI-SEALED TYPE,HALOGEN

 1
81110B - BULB(FOR HEADLAMP, NO.1)
90981-13015

CE72,KE73..GL

12V 60/55W,*HAL *WH,12V 60/55W,HALOGEN

 2
81110S - SEALED BEAM UNIT, NO.1
90981-04010

CE72,KE73..GL

12V 60/55W,*HWS,HALOGEN

 2
90981-04010

KE73

12V 60/55W,*HWS,HALOGEN

 2
90981-04029

CE7#,KE7#

12V 65/55W,*WB

 2
90981-04027

CE72,KE73..GL

12V 60/55W,*HWS,HALOGEN

 2
81110S - SEALED BEAM UNIT, NO.1
90981-04010

CE72,KE73..GL

12V 60/55W,*HWS,HALOGEN

 2
90981-04010

KE73

12V 60/55W,*HWS,HALOGEN

 2
90981-04029

CE7#,KE7#

12V 65/55W,*WB

 2
90981-04027

CE72,KE73..GL

12V 60/55W,*HWS,HALOGEN

 2
81113 - RING, SEALED BEAM MOUNTING, NO.1 RH
81113-10310

CE7#,KE7#

 1
81121 - SPRING, HEADLAMP TENSION
81121-16020

CE7#,KE7#

 1
81150 - HEADLAMP ASSY, LH
81150-80336

CE72,KE73..GL

HALOGEN

 1
81150-13080

CE7#,KE7#

 1
81150-13090

CE72,KE73..GL

HALOGEN

 1
81150-80200

KE73

SEMI-SEALED TYPE,HALOGEN

 1
81150-80335

CE7#,KE7#

 1
81153 - RING, SEALED BEAM MOUNTING, NO.1 LH
81153-10250

CE7#,KE7#

 1
Common parts
81136-12571
90179-06115
91655-40616
