KE72V-EYKDS (1981)
Toyota Corolla
(8108-8308)CE71,KE72,TE74 ; (8205-8308)KE73

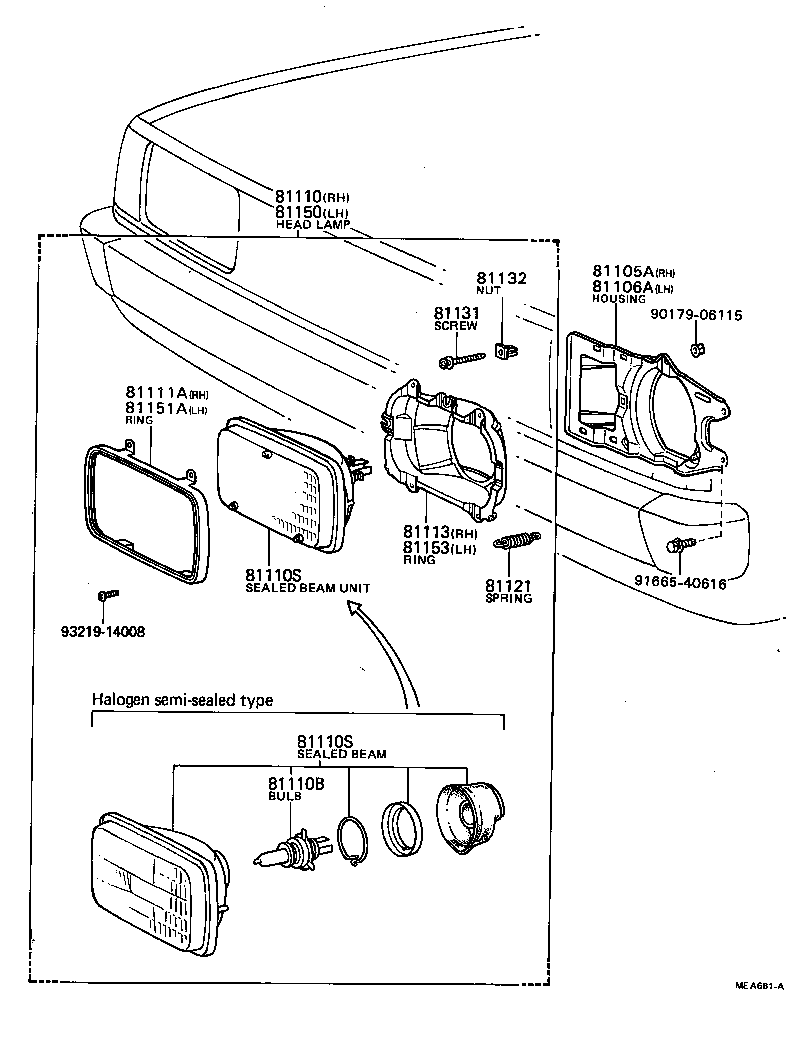

| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 81105A - BRACKET SUB-ASSY, HEADLAMP, RH | ||||
| 53037-12061 |
CE71,KE72,73,TE74 |
1 | ||
| 81106A - BRACKET SUB-ASSY, HEADLAMP, LH | ||||
| 53038-12041 |
CE71,KE72,73,TE74 |
1 | ||
| 81110 - HEADLAMP ASSY, RH | ||||
| 81110-80022 |
AE70,KE7#,TE7#..SED,V IKI |
1 | ||
| 81110-80021 |
AE70,KE7#,TE7#..SED,V KOITO |
1 | ||
| 81110-80155 |
CE71,KE72,73,TE74 IKI |
1 | ||
| 81110-80338 |
CE7#,KE7# |
1 | ||
| 81110-80154 |
CE71,KE72,73,TE74 KOITO |
1 | ||
| 81110-13080 |
CE7#,KE7# |
1 | ||
| 81110S - SEALED BEAM UNIT, NO.1 | ||||
| 90981-02039 |
AE70,KE7#,TE7#..SED,V 12V 37.5W,*WB,12V 37.5W,IKI |
2 | ||
| 90981-04002 |
CE71,KE72,73,TE74 12V 65/55W,IKI |
2 | ||
| 90981-02011 |
AE70,KE7#,TE7#..SED,V 12V 37.5W,*WB,12V 37.5W,KOITO |
2 | ||
| 90981-04001 |
CE71,72,KE72,73,74,TE74 12V 65/55W,*WB,12V 65/55W,KOITO |
2 | ||
| 90981-04029 |
CE7#,KE7# 12V 65/55W,*WB |
2 | ||
| 81110S - SEALED BEAM UNIT, NO.1 | ||||
| 90981-02039 |
AE70,KE7#,TE7#..SED,V 12V 37.5W,*WB,12V 37.5W,IKI |
2 | ||
| 90981-04002 |
CE71,KE72,73,TE74 12V 65/55W,IKI |
2 | ||
| 90981-02011 |
AE70,KE7#,TE7#..SED,V 12V 37.5W,*WB,12V 37.5W,KOITO |
2 | ||
| 90981-04001 |
CE71,72,KE72,73,74,TE74 12V 65/55W,*WB,12V 65/55W,KOITO |
2 | ||
| 90981-04029 |
CE7#,KE7# 12V 65/55W,*WB |
2 | ||
| 81111A - RING, SEALED BEAM RETAINING, NO.1 RH | ||||
| 81111-14261 |
AE70,KE7#,TE7#..SED,V IKI |
1 | ||
| 81111-16010 |
CE71,KE72,73,TE74 IKI |
1 | ||
| 81111-20280 |
AE70,KE7#,TE7#..SED,V KOITO |
1 | ||
| 81111-16020 |
CE71,72,KE72,73,74,TE74 KOITO |
1 | ||
| 81113 - RING, SEALED BEAM MOUNTING, NO.1 RH | ||||
| 81113-10310 |
CE7#,KE7# |
1 | ||
| 81113-12581 |
CE71,KE72,73,TE74 IKI |
1 | ||
| 81113-20100 |
AE70,KE7#,TE7#..SED,V KOITO |
1 | ||
| 81113-14260 |
AE70,KE7#,TE7#..SED,V IKI |
1 | ||
| 81113-12571 |
CE71,KE72,73,TE74 KOITO |
1 | ||
| 81121 - SPRING, HEADLAMP TENSION | ||||
| 90506-18018 |
AE70,KE7#,TE7#..SED,V IKI |
4 | ||
| 81121-16020 |
CE7#,KE7# |
1 | ||
| 81121-20100 |
AE70,KE7#,TE7#..SED,V KOITO |
4 | ||
| 81121-12570 |
CE71,KE72,73,TE74 KOITO |
2 | ||
| 81121-12581 |
CE71,KE72,73,TE74 IKI |
2 | ||
| 81131 - SCREW, HEADLAMP ADJUSTING | ||||
| 81131-20053 |
AE70,KE7#,TE7#..SED,V IKI |
8 | ||
| 81131-10031 |
CE71,72,KE72,73,74,TE74 KOITO |
4 | ||
| 81131-20043 |
AE70,KE7#,TE7#..SED,V KOITO |
8 | ||
| 81131-16010 |
CE71,KE72,73,TE74 IKI |
4 | ||
| 81132 - NUT, HEADLAMP SELF LOCKING | ||||
| 81132-20380 |
AE70,KE7#,TE7#..SED,V IKI |
8 | ||
| 90189-05015 |
CE71,KE72,73,TE74 |
8 | ||
| 81150 - HEADLAMP ASSY, LH | ||||
| 81150-80021 |
AE70,KE7#,TE7#..SED,V KOITO |
1 | ||
| 81150-80022 |
AE70,KE7#,TE7#..SED,V IKI |
1 | ||
| 81150-80151 |
CE71,KE72,73,TE74 KOITO |
1 | ||
| 81150-13080 |
CE7#,KE7# |
1 | ||
| 81150-80335 |
CE7#,KE7# |
1 | ||
| 81150-80152 |
CE71,KE72,73,TE74 IKI |
1 | ||
| 81151A - RING, SEALED BEAM RETAINING, NO.1 LH | ||||
| 81111-16010 |
CE71,KE72,73,TE74 IKI |
1 | ||
| 81111-20280 |
AE70,KE7#,TE7#..SED,V KOITO |
1 | ||
| 81111-14261 |
AE70,KE7#,TE7#..SED,V IKI |
1 | ||
| 81111-16020 |
CE71,72,KE72,73,74,TE74 KOITO |
1 | ||
| 81153 - RING, SEALED BEAM MOUNTING, NO.1 LH | ||||
| 81153-20100 |
AE70,KE7#,TE7#..SED,V KOITO |
1 | ||
| 81153-12501 |
CE71,KE72,73,TE74 KOITO |
1 | ||
| 81153-10250 |
CE7#,KE7# |
1 | ||
| 81153-14260 |
AE70,KE7#,TE7#..SED,V IKI |
1 | ||
| 81153-12511 |
CE71,KE72,73,TE74 IKI |
1 | ||
| Common parts | ||||
| 90179-06115 | ||||
| 91665-40616 | ||||
| 93219-14008 | ||||
(8308- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 81105 - HOUSING SUB-ASSY, HEADLAMP, RH | ||||
| 81105-13080 |
CE7#,KE7# |
1 | ||
| 81105-13060 |
CE7#,KE7# |
1 | ||
| 81105-12550 |
AE70,KE7#,TE7#..SED,V KOITO |
1 | ||
| 81105-12560 |
AE70,KE7#,TE7#..SED,V IKI |
1 | ||
| 81106 - HOUSING SUB-ASSY, HEADLAMP, LH | ||||
| 81106-12490 |
AE70,KE7#,TE7#..SED,V IKI |
1 | ||
| 81106-12480 |
AE70,KE7#,TE7#..SED,V KOITO |
1 | ||
| 81106-13080 |
CE7#,KE7# |
1 | ||
| 81106-13060 |
CE7#,KE7# |
1 | ||
| 81110 - HEADLAMP ASSY, RH | ||||
| 81110-80022 |
AE70,KE7#,TE7#..SED,V IKI |
1 | ||
| 81110-80021 |
AE70,KE7#,TE7#..SED,V KOITO |
1 | ||
| 81110-80155 |
CE71,KE72,73,TE74 IKI |
1 | ||
| 81110-80338 |
CE7#,KE7# |
1 | ||
| 81110-80154 |
CE71,KE72,73,TE74 KOITO |
1 | ||
| 81110-13080 |
CE7#,KE7# |
1 | ||
| 81110S - SEALED BEAM UNIT, NO.1 | ||||
| 90981-02039 |
AE70,KE7#,TE7#..SED,V 12V 37.5W,*WB,12V 37.5W,IKI |
2 | ||
| 90981-04002 |
CE71,KE72,73,TE74 12V 65/55W,IKI |
2 | ||
| 90981-02011 |
AE70,KE7#,TE7#..SED,V 12V 37.5W,*WB,12V 37.5W,KOITO |
2 | ||
| 90981-04001 |
CE71,72,KE72,73,74,TE74 12V 65/55W,*WB,12V 65/55W,KOITO |
2 | ||
| 90981-04029 |
CE7#,KE7# 12V 65/55W,*WB |
2 | ||
| 81110S - SEALED BEAM UNIT, NO.1 | ||||
| 90981-02039 |
AE70,KE7#,TE7#..SED,V 12V 37.5W,*WB,12V 37.5W,IKI |
2 | ||
| 90981-04002 |
CE71,KE72,73,TE74 12V 65/55W,IKI |
2 | ||
| 90981-02011 |
AE70,KE7#,TE7#..SED,V 12V 37.5W,*WB,12V 37.5W,KOITO |
2 | ||
| 90981-04001 |
CE71,72,KE72,73,74,TE74 12V 65/55W,*WB,12V 65/55W,KOITO |
2 | ||
| 90981-04029 |
CE7#,KE7# 12V 65/55W,*WB |
2 | ||
| 81111A - RING, SEALED BEAM RETAINING, NO.1 RH | ||||
| 81111-14261 |
AE70,KE7#,TE7#..SED,V IKI |
1 | ||
| 81111-16010 |
CE71,KE72,73,TE74 IKI |
1 | ||
| 81111-20280 |
AE70,KE7#,TE7#..SED,V KOITO |
1 | ||
| 81111-16020 |
CE71,72,KE72,73,74,TE74 KOITO |
1 | ||
| 81113 - RING, SEALED BEAM MOUNTING, NO.1 RH | ||||
| 81113-10310 |
CE7#,KE7# |
1 | ||
| 81113-12581 |
CE71,KE72,73,TE74 IKI |
1 | ||
| 81113-20100 |
AE70,KE7#,TE7#..SED,V KOITO |
1 | ||
| 81113-14260 |
AE70,KE7#,TE7#..SED,V IKI |
1 | ||
| 81113-12571 |
CE71,KE72,73,TE74 KOITO |
1 | ||
| 81121 - SPRING, HEADLAMP TENSION | ||||
| 90506-18018 |
AE70,KE7#,TE7#..SED,V IKI |
4 | ||
| 81121-16020 |
CE7#,KE7# |
1 | ||
| 81121-20100 |
AE70,KE7#,TE7#..SED,V KOITO |
4 | ||
| 81121-12570 |
CE71,KE72,73,TE74 KOITO |
2 | ||
| 81121-12581 |
CE71,KE72,73,TE74 IKI |
2 | ||
| 81131 - SCREW, HEADLAMP ADJUSTING | ||||
| 81131-20053 |
AE70,KE7#,TE7#..SED,V IKI |
8 | ||
| 81131-10031 |
CE71,72,KE72,73,74,TE74 KOITO |
4 | ||
| 81131-20043 |
AE70,KE7#,TE7#..SED,V KOITO |
8 | ||
| 81131-16010 |
CE71,KE72,73,TE74 IKI |
4 | ||
| 81150 - HEADLAMP ASSY, LH | ||||
| 81150-80021 |
AE70,KE7#,TE7#..SED,V KOITO |
1 | ||
| 81150-80022 |
AE70,KE7#,TE7#..SED,V IKI |
1 | ||
| 81150-80151 |
CE71,KE72,73,TE74 KOITO |
1 | ||
| 81150-13080 |
CE7#,KE7# |
1 | ||
| 81150-80335 |
CE7#,KE7# |
1 | ||
| 81150-80152 |
CE71,KE72,73,TE74 IKI |
1 | ||
| 81153 - RING, SEALED BEAM MOUNTING, NO.1 LH | ||||
| 81153-20100 |
AE70,KE7#,TE7#..SED,V KOITO |
1 | ||
| 81153-12501 |
CE71,KE72,73,TE74 KOITO |
1 | ||
| 81153-10250 |
CE7#,KE7# |
1 | ||
| 81153-14260 |
AE70,KE7#,TE7#..SED,V IKI |
1 | ||
| 81153-12511 |
CE71,KE72,73,TE74 IKI |
1 | ||
| Common parts | ||||
| 81136-12571 | ||||
| 90179-06115 | ||||
| 91655-40616 | ||||
