KE72V-EYKDS (1981)

Toyota Corolla

Production Aug 1981 - Jul 1987
Engine 4KJ
Transmission 4F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(7903-8308)4K#

Click highlighted areas on diagram

ME7874A,ME8066C

diagram 19100P 19100P 19500 19500 19730 19730 19901 19901 19901A 19901A 19901B 19901B 19901C 19901C 19901D 19901D 19901E 19901E 19901R 19901R 19901R 19901R 19941A 19941A 19965 9011906018 9011906018 9017904092 9017904092 9046400154
Part # Description Qty Price
19100P - PLUG, SPARK
90919-01118

4K#,5KJ..KE7#

BE529Y11,BE529Y11(NGK)

 4
90919-01117

4K#,5KJ..KE7#

J16B−U11,J16B-U11(DENSO)

 4
19100P - PLUG, SPARK
90919-01118

4K#,5KJ..KE7#

BE529Y11,BE529Y11(NGK)

 4
90919-01117

4K#,5KJ..KE7#

J16B−U11,J16B-U11(DENSO)

 4
19500 - COIL ASSY, IGNITION
90919-02132

4KJ..KE72

 1
90919-02147

4K#,5KJ..KE7#

 1
19500 - COIL ASSY, IGNITION
90919-02132

4KJ..KE72

 1
90919-02147

4K#,5KJ..KE7#

 1
19730 - RESISTOR, IGNITION COIL
90919-04037

4KJ..KE72

 1
19730 - RESISTOR, IGNITION COIL
90919-04037

4KJ..KE72

 1
19901 - CORD SET, COIL & SPARK, W/RESISTIVE
90919-21070

4K#,5KJ..KE7#

 1
19901 - CORD SET, COIL & SPARK, W/RESISTIVE
90919-21070

4K#,5KJ..KE7#

 1
19901A - CORD, COIL RESISTIVE
90919-13048

4K#,5KJ..KE7#

 1
19901A - CORD, COIL RESISTIVE
90919-13048

4K#,5KJ..KE7#

 1
19901B - CORD, SPARK PLUG RESISTIVE, NO.1
90919-12084

4K#,5KJ..KE7#

 1
19901B - CORD, SPARK PLUG RESISTIVE, NO.1
90919-12084

4K#,5KJ..KE7#

 1
19901C - CORD, SPARK PLUG RESISTIVE, NO.2
90919-12083

4K#,5KJ..KE7#

 1
19901C - CORD, SPARK PLUG RESISTIVE, NO.2
90919-12083

4K#,5KJ..KE7#

 1
19901D - CORD, SPARK PLUG RESISTIVE, NO.3
90919-12083

4K#,5KJ..KE7#

 1
19901D - CORD, SPARK PLUG RESISTIVE, NO.3
90919-12083

4K#,5KJ..KE7#

 1
19901E - CORD, SPARK PLUG RESISTIVE, NO.4
90919-12084

4K#,5KJ..KE7#

 1
19901E - CORD, SPARK PLUG RESISTIVE, NO.4
90919-12084

4K#,5KJ..KE7#

 1
19901R - RING, RUBBER SPARK PLUG RESISTIVE CORD
90202-11067

4K#,5KJ..KE7#

 2
19901R - RING, RUBBER SPARK PLUG RESISTIVE CORD
90202-11067

4K#,5KJ..KE7#

 2
19901R - RING, RUBBER SPARK PLUG RESISTIVE CORD
90202-11067

4K#,5KJ..KE7#

 2
19901R - RING, RUBBER SPARK PLUG RESISTIVE CORD
90202-11067

4K#,5KJ..KE7#

 2
19941A - CLAMP(FOR RESISTIVE CORD)
90464-00073

4K#,5KJ..KE7#

 1
19941A - CLAMP(FOR RESISTIVE CORD)
90464-00073

4K#,5KJ..KE7#

 1
Common parts
90119-06018
90179-04092
90464-00154

(8308- )4K#,5KJ

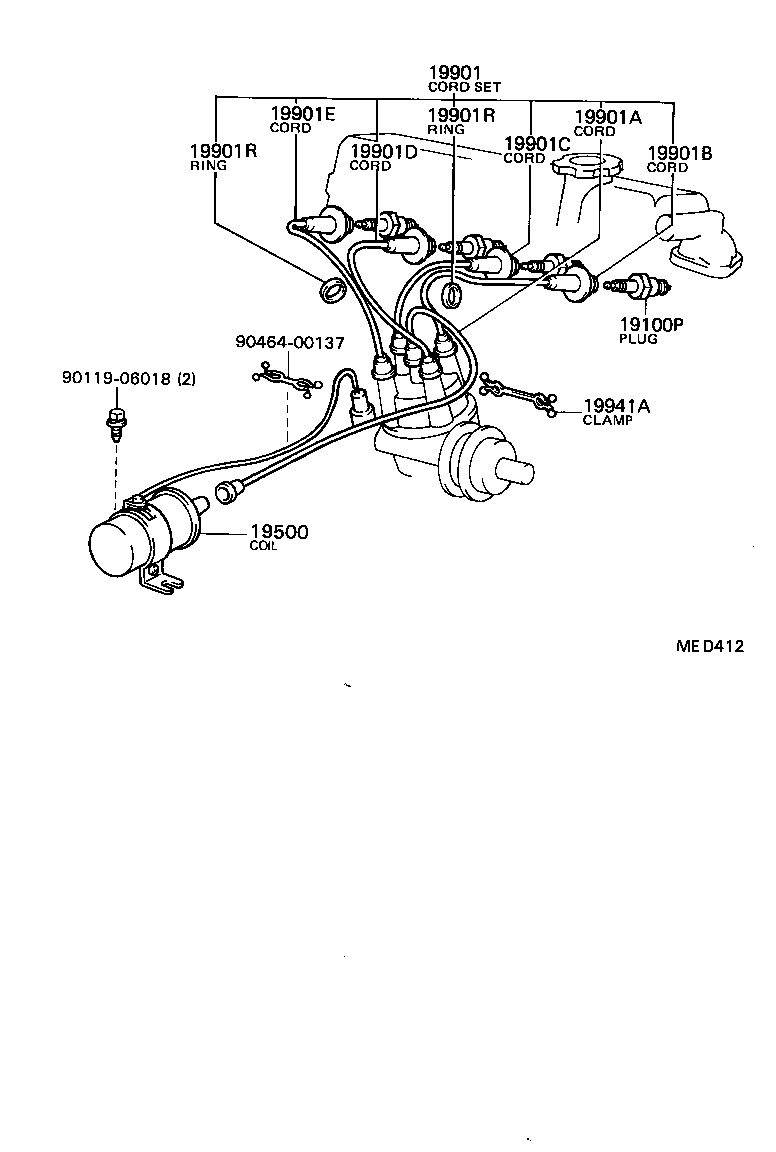

Click highlighted areas on diagram

diagram 19100P 19500 19901 19901A 19901B 19901C 19901D 19901E 19901R 19901R 19941A 9011906018 9046400137
Part # Description Qty Price
19100P - PLUG, SPARK
90919-01118

4K#,5KJ..KE7#

BE529Y11,BE529Y11(NGK)

 4
90919-01117

4K#,5KJ..KE7#

J16B−U11,J16B-U11(DENSO)

 4
19500 - COIL ASSY, IGNITION
90919-02132

4KJ..KE72

 1
90919-02147

4K#,5KJ..KE7#

 1
19901 - CORD SET, COIL & SPARK, W/RESISTIVE
90919-21070

4K#,5KJ..KE7#

 1
19901A - CORD, COIL RESISTIVE
90919-13048

4K#,5KJ..KE7#

 1
19901B - CORD, SPARK PLUG RESISTIVE, NO.1
90919-12084

4K#,5KJ..KE7#

 1
19901C - CORD, SPARK PLUG RESISTIVE, NO.2
90919-12083

4K#,5KJ..KE7#

 1
19901D - CORD, SPARK PLUG RESISTIVE, NO.3
90919-12083

4K#,5KJ..KE7#

 1
19901E - CORD, SPARK PLUG RESISTIVE, NO.4
90919-12084

4K#,5KJ..KE7#

 1
19901R - RING, RUBBER SPARK PLUG RESISTIVE CORD
90202-11067

4K#,5KJ..KE7#

 2
19901R - RING, RUBBER SPARK PLUG RESISTIVE CORD
90202-11067

4K#,5KJ..KE7#

 2
19941A - CLAMP(FOR RESISTIVE CORD)
90464-00073

4K#,5KJ..KE7#

 1
Common parts
90119-06018
90464-00137
