KE72V-EXKRS (1981)

Toyota Corolla

Production Aug 1981 - Jul 1987
Engine 4KJ
Transmission 4F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8108- )CE71,KE72,74,TE74 ; (8205- )CE72,KE73

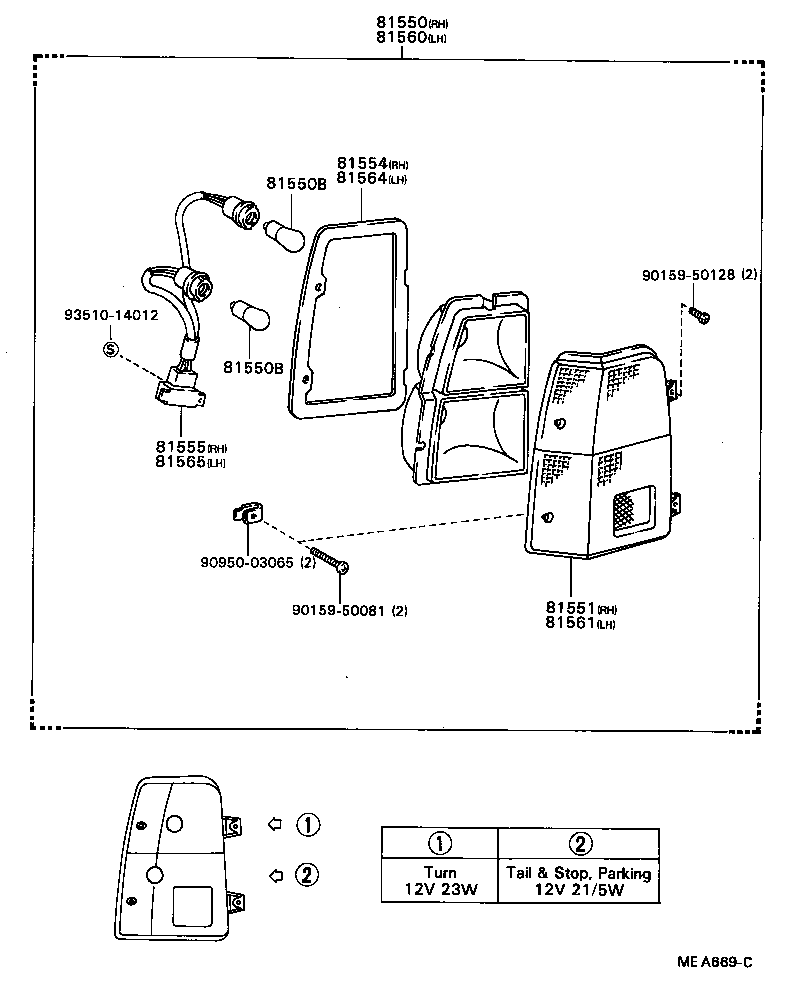

Click highlighted areas on diagram

diagram 81550 81550B 81550B 81551 81554 81555 81560 81561 81564 81565 9015950081 9015950128 9095003065 9351014012
Part # Description Qty Price
81550 - LAMP ASSY, REAR COMBINATION, RH
81550-80117

CE71,KE72,73,TE74

KOITO

 1
81550-80118

CE71,KE72,73,TE74

IKI

 1
81550-80169

CE7#,KE7#

 1
81550B - BULB(FOR REAR COMBINATION LAMP)
99132-11230

AE70,CE7#,KE7#,TE7#

12V 23W,12V 23W

 4
99132-21210

AE70,CE7#,KE7#,TE7#

12V 21/5W,12V 21/5W

 4
81550B - BULB(FOR REAR COMBINATION LAMP)
99132-11230

AE70,CE7#,KE7#,TE7#

12V 23W,12V 23W

 4
99132-21210

AE70,CE7#,KE7#,TE7#

12V 21/5W,12V 21/5W

 4
81551 - LENS, REAR COMBINATION LAMP, RH
81551-13280

CE7#,KE7#

KOITO

 1
81551-13201

CE71,KE72,73,TE74

IKI

 1
81551-13161

CE71,KE72,73,TE74

KOITO

 1
81554 - GASKET, REAR COMBINATION LAMP BODY, RH
81554-13201

CE71,KE72,73,TE74

IKI

 1
81554-13160

CE71,KE72,73,TE74

KOITO

 1
81554-13280

CE7#,KE7#

KOITO

 1
81555 - SOCKET & WIRE SUB-ASSY, REAR COMBINATION LAMP, RH
81555-13280

CE7#,KE7#

 1
81555-13160

CE71,KE72,73,TE74

KOITO

 1
81560 - LAMP ASSY, REAR COMBINATION, LH
81560-80122

CE71,KE72,73,TE74

IKI

 1
81560-80121

CE71,KE72,73,TE74

KOITO

 1
81560-80174

CE7#,KE7#

 1
81561 - LENS, REAR COMBINATION LAMP, LH
81561-13280

CE7#,KE7#

 1
81561-13161

CE71,KE72,73,TE74

KOITO

 1
81561-13201

CE71,KE72,73,TE74

IKI

 1
81564 - GASKET, REAR COMBINATION LAMP BODY, LH
81564-13201

CE71,KE72,73,TE74

IKI

 1
81554-13280

CE7#,KE7#

 1
81554-13160

CE71,KE72,73,TE74

KOITO

 1
81565 - SOCKET & WIRE SUB-ASSY, REAR COMBINATION LAMP, LH
81555-13160

CE71,KE72,73,TE74

KOITO

 1
81555-13280

CE7#,KE7#

 1
Common parts
90159-50081
90159-50128
90950-03065
93510-14012
