KE72V-EXKRS (1981)
Toyota Corolla

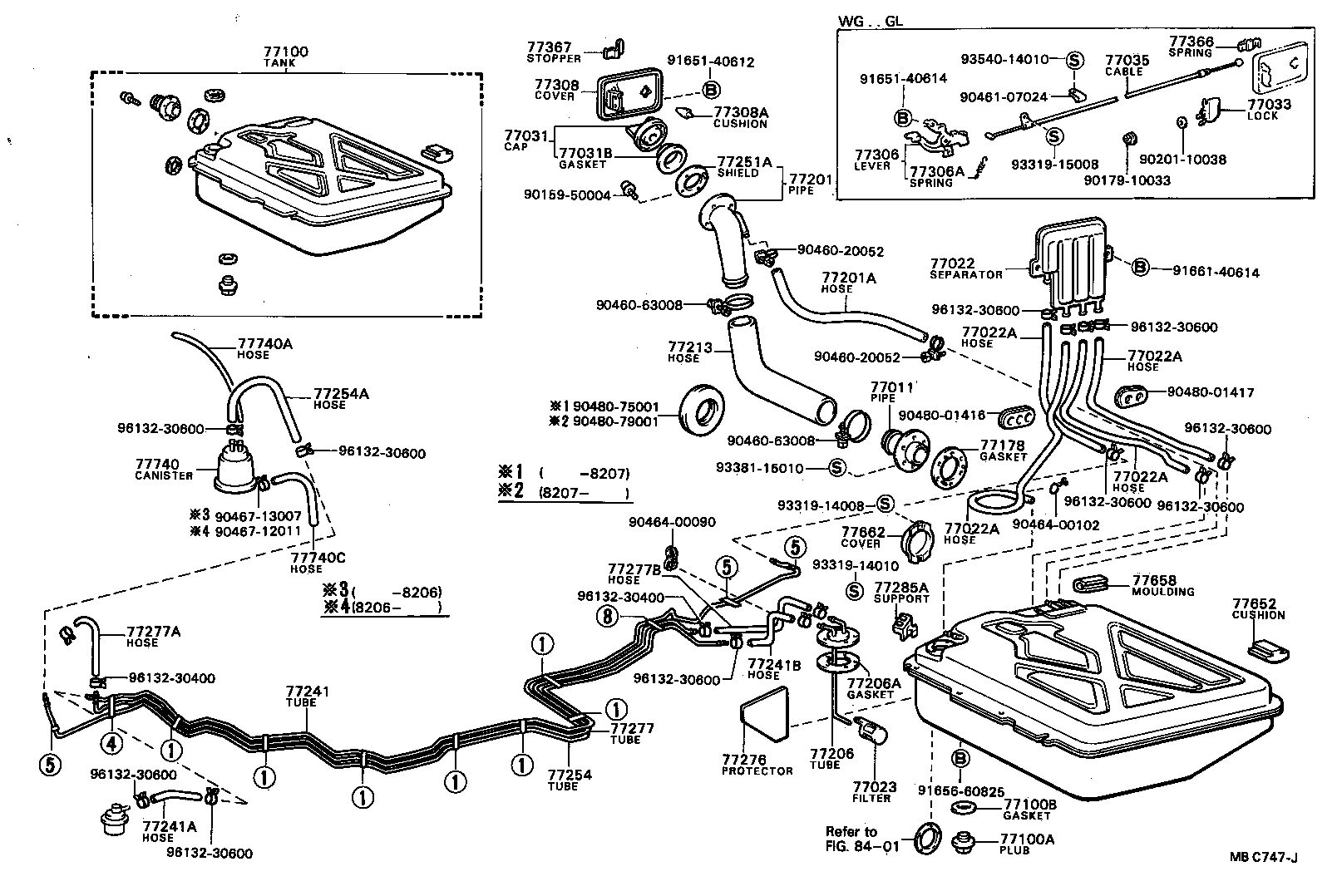

ILLUST NO. 1 OF 2(8108- )KE72,73,74,TE74
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 77022A - HOSE, FUEL(FOR FUEL EVAPORATIVE SEPARATOR) | ||||
| 90910-05153 |
CE71,72,KE72,73,74,TE74 |
1 | ||
| 95332-06010 |
CE71,72 *H,L=50 |
1 | ||
| 95333-06060 |
CE7#,KE7# *H,L=600 |
1 | ||
| 77022A - HOSE, FUEL(FOR FUEL EVAPORATIVE SEPARATOR) | ||||
| 90910-05153 |
CE71,72,KE72,73,74,TE74 |
1 | ||
| 95332-06010 |
CE71,72 *H,L=50 |
1 | ||
| 95333-06060 |
CE7#,KE7# *H,L=600 |
1 | ||
| 77022A - HOSE, FUEL(FOR FUEL EVAPORATIVE SEPARATOR) | ||||
| 90910-05153 |
CE71,72,KE72,73,74,TE74 |
1 | ||
| 95332-06010 |
CE71,72 *H,L=50 |
1 | ||
| 95333-06060 |
CE7#,KE7# *H,L=600 |
1 | ||
| 77022A - HOSE, FUEL(FOR FUEL EVAPORATIVE SEPARATOR) | ||||
| 90910-05153 |
CE71,72,KE72,73,74,TE74 |
1 | ||
| 95332-06010 |
CE71,72 *H,L=50 |
1 | ||
| 95333-06060 |
CE7#,KE7# *H,L=600 |
1 | ||
| 77023 - FILTER SUB-ASSY, FUEL SUCTION TUBE | ||||
| 77023-12050 |
AE70,KE7#,TE70,73,74 |
1 | ||
| 77031 - CAP ASSY, FUEL TANK | ||||
| 77310-12100 |
AE70,KE7#,TE71 |
1 | ||
| 77310-12100 |
AE70,CE7#,KE7#,TE71 |
1 | ||
| 77031B - GASKET (FOR FUEL TANK CAP) | ||||
| 77316-12050 |
AE70,CE7#,KE7#,TE7# |
1 | ||
| 77100 - TANK ASSY, FUEL | ||||
| 77101-19065 |
KE7# |
1 | ||
| 77101-19035 |
CE71,KE72,73,TE74 |
1 | ||
| 77100A - PLUG(FOR FUEL TANK) | ||||
| 90341-20004 |
AE70,CE70,71,KE7#,TE7# OD=42 |
1 | ||
| 90341-24036 |
AE70,CE7#,KE7#,TE7# 0D=46 |
1 | ||
| 77100B - GASKET(FOR FUEL TANK) | ||||
| 90430-24047 |
AE70,CE7#,KE7#,TE7# 0D=42 |
1 | ||
| 90430-20007 |
AE70,CE70,71,KE7#,TE7# OD=35 |
1 | ||
| 77201 - PIPE SUB-ASSY, FUEL TANK INLET | ||||
| 77201-13071 |
CE71,72,KE72,73,74,TE74 |
1 | ||
| 77201A - HOSE, FUEL, NO.1(FOR FUEL TANK INLET PIPE) | ||||
| 90445-18028 |
CE71,72,KE72,73,74,TE74 |
1 | ||
| 77206 - TUBE SUB-ASSY, FUEL TANK SUCTION | ||||
| 77203-13060 |
KE72,73,74,TE74 |
1 | ||
| 77206A - GASKET (FOR FUEL TANK SUCTION TUBE) | ||||
| 77169-14020 |
AE70,CE7#,KE7#,TE7# |
1 | ||
| 77241 - TUBE, FUEL MAIN, NO.1 | ||||
| 77251-13041 |
KE72,73,TE74 |
1 | ||
| 77251-13042 |
KE7# |
1 | ||
| 77241A - HOSE, FUEL, NO.1 (FOR MAIN TUBE, NO.1) | ||||
| 95333-06020 |
KE7# *H,L=150 |
1 | ||
| 95332-06020 |
KE7#,TE70,73,74 *H,L=150 |
1 | ||
| 77241B - HOSE, FUEL, NO.2 (FOR MAIN TUBE, NO.1) | ||||
| 90445-14087 |
CE71,72 |
1 | ||
| 90445-12105 |
KE72,73,74,TE74 *H,L=240 |
1 | ||
| 77254 - TUBE, FUEL EMISSION, NO.1 | ||||
| 77263-13031 |
CE71,72 |
1 | ||
| 77261-13061 |
KE72,73,TE74 |
1 | ||
| 77261-13062 |
KE7# |
1 | ||
| 77254A - HOSE, FUEL, NO.1 (FOR EMISSION TUBE, NO.1) | ||||
| 95332-06030 |
AE70,KE7#,TE70,73 *H,L=240 |
1 | ||
| 77276 - PROTECTOR, FUEL HOSE | ||||
| 77276-13020 |
CE71,72,KE72,73,74,TE74 |
1 | ||
| 77277 - TUBE, FUEL RETURN, NO.1 | ||||
| 77255-13071 |
KE7# |
1 | ||
| 77255-13070 |
KE72,73,TE74 |
1 | ||
| 77277A - HOSE, FUEL, NO.1(FOR RETURN TUBE, NO.1) | ||||
| 95333-04040 |
KE7# *H,L=320 |
1 | ||
| 95332-04040 |
KE7# *H,L=320 |
1 | ||
| 77277B - HOSE, FUEL, NO.2(FOR RETURN TUBE, NO.1) | ||||
| 95332-04030 |
KE72,73,74,TE74 *H,L=260 |
1 | ||
| 95332-06030 |
CE71,72 *H,L=260 |
1 | ||
| 95333-04030 |
KE7# *H,L=260 |
1 | ||
| 77285A - SUPPORT, FUEL RETURN AND MAIN TUBE | ||||
| 77285-13030 |
CE71,72 |
1 | ||
| 77308 - COVER SUB-ASSY, FUEL INLET BOX | ||||
| 77350-13021 |
CE71,72,KE72,73,74,TE74 |
1 | ||
| 77367 - STOPPER, FUEL FILLER OPENING LID | ||||
| 77358-13011 |
CE71,KE72,73,TE74 |
1 | ||
| 77658 - MOULDING, FUEL TANK EDGE | ||||
| 77658-12010 |
AE70,CE70,KE7#,TE7# |
2 | ||
| 77740 - CANISTER ASSY, CHARCOAL | ||||
| 77740-13010 |
KE7# |
1 | ||
| 77704-12260 |
KE7# |
1 | ||
| 77740A - HOSE, FUEL, NO.1(FOR CHARCOAL CANISTER) | ||||
| 95411-19960 |
KE70,72,73 *H,L=450,ﾏｰｸ=#* |
1 | ||
| 95411-19960 |
KE7# *H,L=480,ﾏｰｸ=#* |
1 | ||
| 77740C - HOSE, FUEL, NO.3(FOR CHARCOAL CANISTER) | ||||
| 95332-08030 |
AE70,KE7#,TE74 *H,L=260,内径=7.6 |
1 | ||
| 90445-12123 |
AE70,KE7#,TE74 |
1 | ||
| Common parts | ||||
| 90159-50004 | ||||
| 90179-10033 | ||||
| 90201-10038 | ||||
| 90460-20052 | ||||
| 90460-63008 | ||||
| 90461-07024 | ||||
| 90464-00090 | ||||
| 90464-00102 | ||||
| 90467-12011 | ||||
| 90467-13007 | ||||
| 90480-01416 | ||||
| 90480-01417 | ||||
| 90480-75001 | ||||
| 90480-79001 | ||||
| 91651-40612 | ||||
| 91651-40614 | ||||
| 91656-60825 | ||||
| 91661-40614 | ||||
| 93319-14008 | ||||
| 93319-14010 | ||||
| 93319-15008 | ||||
| 93381-15010 | ||||
| 93540-14010 | ||||
| 96132-30400 | ||||
| 96132-30600 | ||||
| Linked diagrams | ||||
| 8401 | ||||

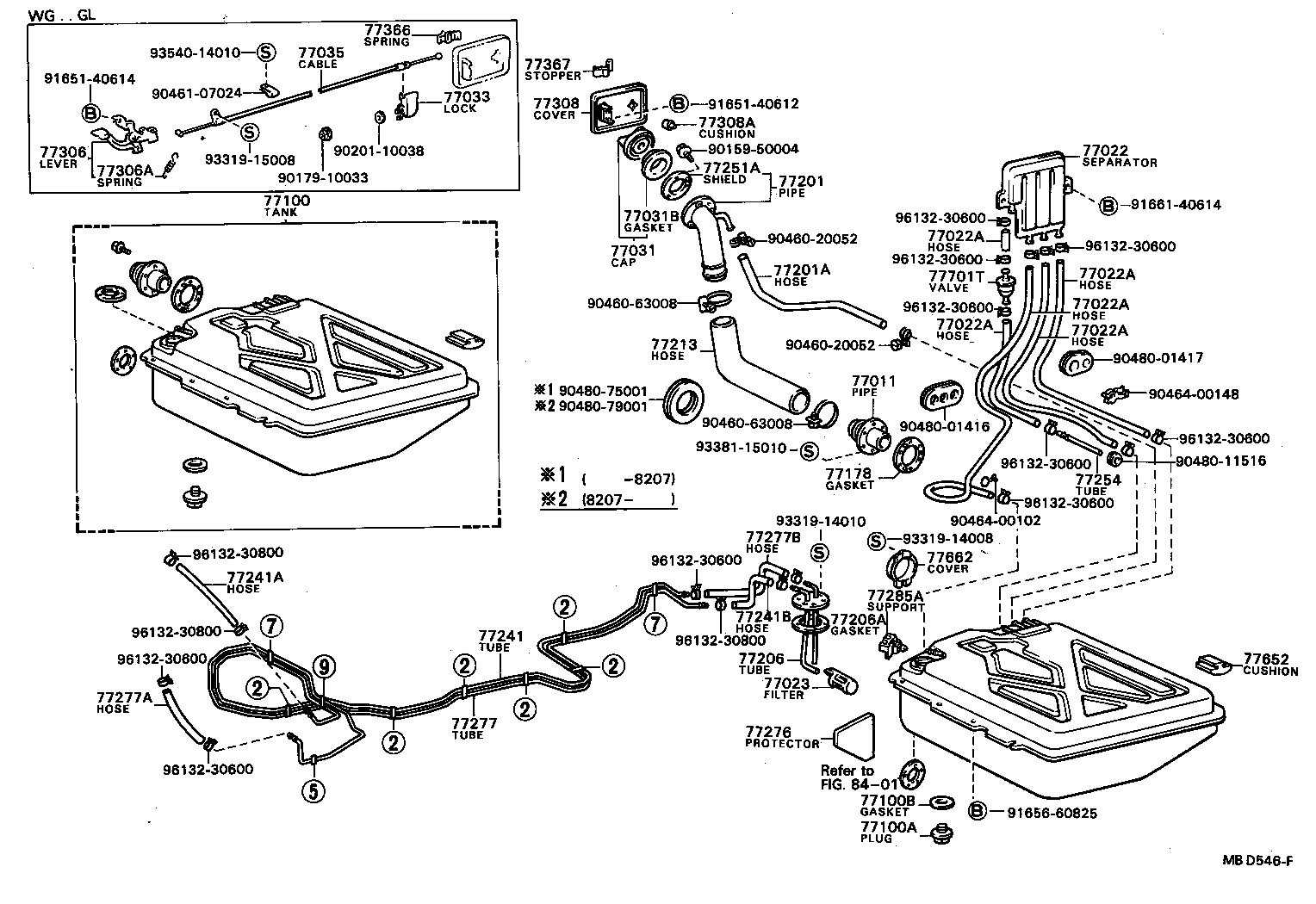

ILLUST NO. 1 OF 2(8202- )CE71,72
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 77022A - HOSE, FUEL(FOR FUEL EVAPORATIVE SEPARATOR) | ||||
| 90910-05153 |
CE71,72,KE72,73,74,TE74 |
1 | ||
| 95332-06010 |
CE71,72 *H,L=50 |
1 | ||
| 95333-06060 |
CE7#,KE7# *H,L=600 |
1 | ||
| 77022A - HOSE, FUEL(FOR FUEL EVAPORATIVE SEPARATOR) | ||||
| 90910-05153 |
CE71,72,KE72,73,74,TE74 |
1 | ||
| 95332-06010 |
CE71,72 *H,L=50 |
1 | ||
| 95333-06060 |
CE7#,KE7# *H,L=600 |
1 | ||
| 77022A - HOSE, FUEL(FOR FUEL EVAPORATIVE SEPARATOR) | ||||
| 90910-05153 |
CE71,72,KE72,73,74,TE74 |
1 | ||
| 95332-06010 |
CE71,72 *H,L=50 |
1 | ||
| 95333-06060 |
CE7#,KE7# *H,L=600 |
1 | ||
| 77022A - HOSE, FUEL(FOR FUEL EVAPORATIVE SEPARATOR) | ||||
| 90910-05153 |
CE71,72,KE72,73,74,TE74 |
1 | ||
| 95332-06010 |
CE71,72 *H,L=50 |
1 | ||
| 95333-06060 |
CE7#,KE7# *H,L=600 |
1 | ||
| 77022A - HOSE, FUEL(FOR FUEL EVAPORATIVE SEPARATOR) | ||||
| 90910-05153 |
CE71,72,KE72,73,74,TE74 |
1 | ||
| 95332-06010 |
CE71,72 *H,L=50 |
1 | ||
| 95333-06060 |
CE7#,KE7# *H,L=600 |
1 | ||
| 77023 - FILTER SUB-ASSY, FUEL SUCTION TUBE | ||||
| 77023-12050 |
AE70,KE7#,TE70,73,74 |
1 | ||
| 77031 - CAP ASSY, FUEL TANK | ||||
| 77310-12100 |
AE70,KE7#,TE71 |
1 | ||
| 77310-12100 |
AE70,CE7#,KE7#,TE71 |
1 | ||
| 77031B - GASKET (FOR FUEL TANK CAP) | ||||
| 77316-12050 |
AE70,CE7#,KE7#,TE7# |
1 | ||
| 77100 - TANK ASSY, FUEL | ||||
| 77101-19065 |
KE7# |
1 | ||
| 77101-19035 |
CE71,KE72,73,TE74 |
1 | ||
| 77100A - PLUG(FOR FUEL TANK) | ||||
| 90341-20004 |
AE70,CE70,71,KE7#,TE7# OD=42 |
1 | ||
| 90341-24036 |
AE70,CE7#,KE7#,TE7# 0D=46 |
1 | ||
| 77100B - GASKET(FOR FUEL TANK) | ||||
| 90430-24047 |
AE70,CE7#,KE7#,TE7# 0D=42 |
1 | ||
| 90430-20007 |
AE70,CE70,71,KE7#,TE7# OD=35 |
1 | ||
| 77201 - PIPE SUB-ASSY, FUEL TANK INLET | ||||
| 77201-13071 |
CE71,72,KE72,73,74,TE74 |
1 | ||
| 77201A - HOSE, FUEL, NO.1(FOR FUEL TANK INLET PIPE) | ||||
| 90445-18028 |
CE71,72,KE72,73,74,TE74 |
1 | ||
| 77206 - TUBE SUB-ASSY, FUEL TANK SUCTION | ||||
| 77203-13060 |
KE72,73,74,TE74 |
1 | ||
| 77206A - GASKET (FOR FUEL TANK SUCTION TUBE) | ||||
| 77169-14020 |
AE70,CE7#,KE7#,TE7# |
1 | ||
| 77241 - TUBE, FUEL MAIN, NO.1 | ||||
| 77251-13041 |
KE72,73,TE74 |
1 | ||
| 77251-13042 |
KE7# |
1 | ||
| 77241A - HOSE, FUEL, NO.1 (FOR MAIN TUBE, NO.1) | ||||
| 95333-06020 |
KE7# *H,L=150 |
1 | ||
| 95332-06020 |
KE7#,TE70,73,74 *H,L=150 |
1 | ||
| 77241B - HOSE, FUEL, NO.2 (FOR MAIN TUBE, NO.1) | ||||
| 90445-14087 |
CE71,72 |
1 | ||
| 90445-12105 |
KE72,73,74,TE74 *H,L=240 |
1 | ||
| 77254 - TUBE, FUEL EMISSION, NO.1 | ||||
| 77263-13031 |
CE71,72 |
1 | ||
| 77261-13061 |
KE72,73,TE74 |
1 | ||
| 77261-13062 |
KE7# |
1 | ||
| 77276 - PROTECTOR, FUEL HOSE | ||||
| 77276-13020 |
CE71,72,KE72,73,74,TE74 |
1 | ||
| 77277 - TUBE, FUEL RETURN, NO.1 | ||||
| 77255-13071 |
KE7# |
1 | ||
| 77255-13070 |
KE72,73,TE74 |
1 | ||
| 77277A - HOSE, FUEL, NO.1(FOR RETURN TUBE, NO.1) | ||||
| 95333-04040 |
KE7# *H,L=320 |
1 | ||
| 95332-04040 |
KE7# *H,L=320 |
1 | ||
| 77277B - HOSE, FUEL, NO.2(FOR RETURN TUBE, NO.1) | ||||
| 95332-04030 |
KE72,73,74,TE74 *H,L=260 |
1 | ||
| 95332-06030 |
CE71,72 *H,L=260 |
1 | ||
| 95333-04030 |
KE7# *H,L=260 |
1 | ||
| 77285A - SUPPORT, FUEL RETURN AND MAIN TUBE | ||||
| 77285-13030 |
CE71,72 |
1 | ||
| 77308 - COVER SUB-ASSY, FUEL INLET BOX | ||||
| 77350-13021 |
CE71,72,KE72,73,74,TE74 |
1 | ||
| 77367 - STOPPER, FUEL FILLER OPENING LID | ||||
| 77358-13011 |
CE71,KE72,73,TE74 |
1 | ||
| Common parts | ||||
| 90159-50004 | ||||
| 90179-10033 | ||||
| 90201-10038 | ||||
| 90460-20052 | ||||
| 90460-63008 | ||||
| 90461-07024 | ||||
| 90464-00102 | ||||
| 90464-00148 | ||||
| 90480-01416 | ||||
| 90480-01417 | ||||
| 90480-11516 | ||||
| 90480-75001 | ||||
| 90480-79001 | ||||
| 91651-40612 | ||||
| 91651-40614 | ||||
| 91656-60825 | ||||
| 91661-40614 | ||||
| 93319-14008 | ||||
| 93319-14010 | ||||
| 93319-15008 | ||||
| 93381-15010 | ||||
| 93540-14010 | ||||
| 96132-30600 | ||||
| 96132-30800 | ||||
| Linked diagrams | ||||
| 8401 | ||||
