KE72V-EXKRS (1981)

Toyota Corolla

Production Aug 1981 - Jul 1987
Engine 4KJ
Transmission 4F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8108-8508)CE71,72,KE72,73,74,TE74

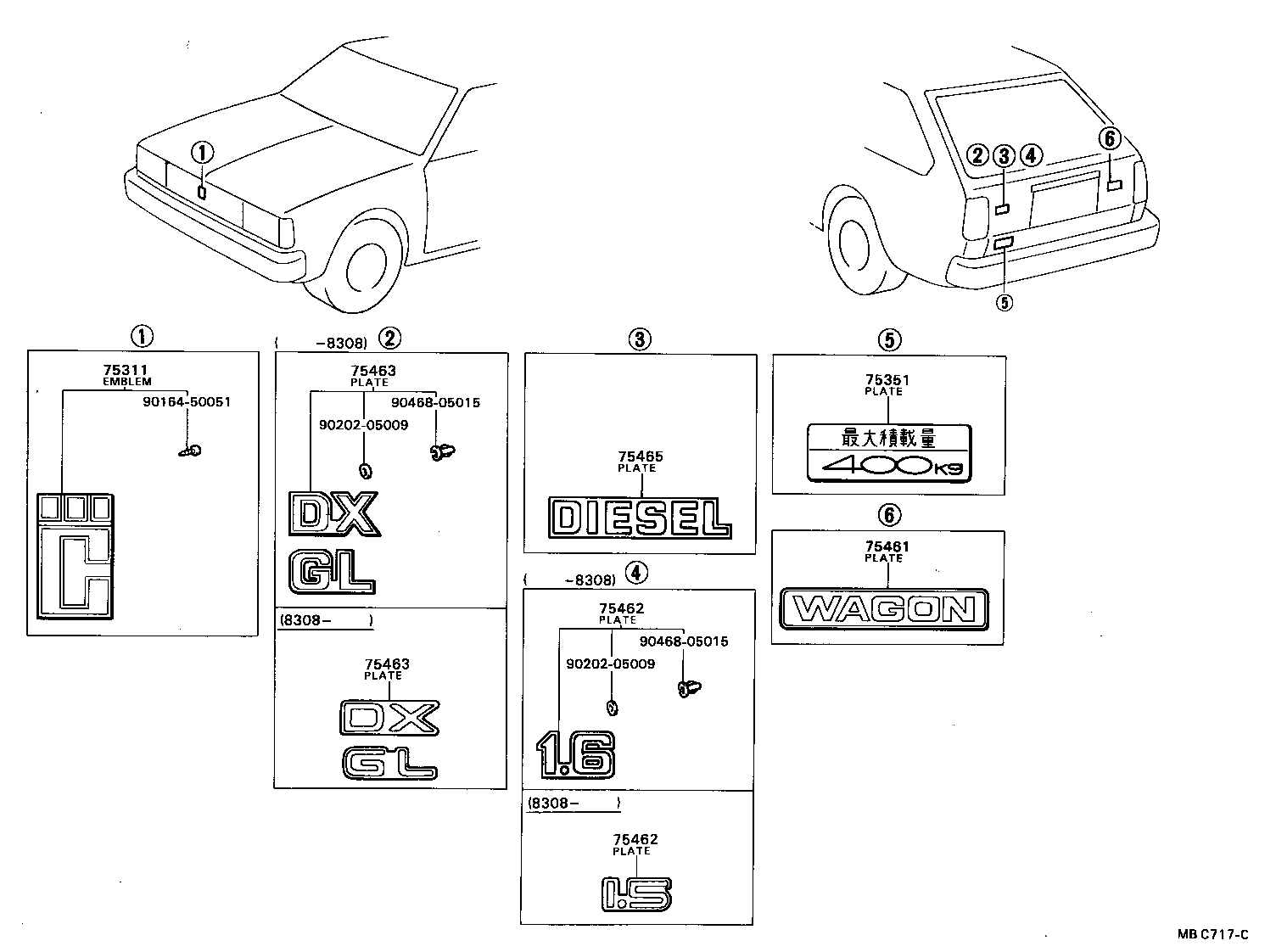

Click highlighted areas on diagram

diagram 75311 75351 75461 75462 75462 75463 75463 75465 9016450051 9020205009 9020205009 9046805015 9046805015
Part # Description Qty Price
75311 - EMBLEM, RADIATOR GRILLE (OR FRONT PANEL)
75301-19135

AE70,KE7#,TE70,73..(SED,V)..(CTD,DX,GL,STD)

GOLD

 1
75311-13011

CE71,KE72,74

 1
75311-80025

CE7#,KE7#

 1
75301-19205

CE71,KE72,73,TE74

 1
75351 - PLATE, REAR NAME, NO.6 (MAXIMUM LOAD)
75472-96440

CE71,KE72,74

400KG,400KG

 1
75461 - PLATE, REAR NAME, NO.2 (MODEL MARK)
75442-12710

AE70,KE7#,TE7#

COROLLA

 1
Common parts
90164-50051
90202-05009
90468-05015

(8508- )

Click highlighted areas on diagram

diagram 75311 75351 75461 75463 9016050002
Part # Description Qty Price
75311 - EMBLEM, RADIATOR GRILLE (OR FRONT PANEL)
75301-19135

AE70,KE7#,TE70,73..(SED,V)..(CTD,DX,GL,STD)

GOLD

 1
75311-13011

CE71,KE72,74

 1
75311-80025

CE7#,KE7#

 1
75301-19205

CE71,KE72,73,TE74

 1
75351 - PLATE, REAR NAME, NO.6 (MAXIMUM LOAD)
75472-96440

CE71,KE72,74

400KG,400KG

 1
75461 - PLATE, REAR NAME, NO.2 (MODEL MARK)
75442-12710

AE70,KE7#,TE7#

COROLLA

 1
Common parts
90160-50002
