KE72V-EXKRS (1981)
Toyota Corolla

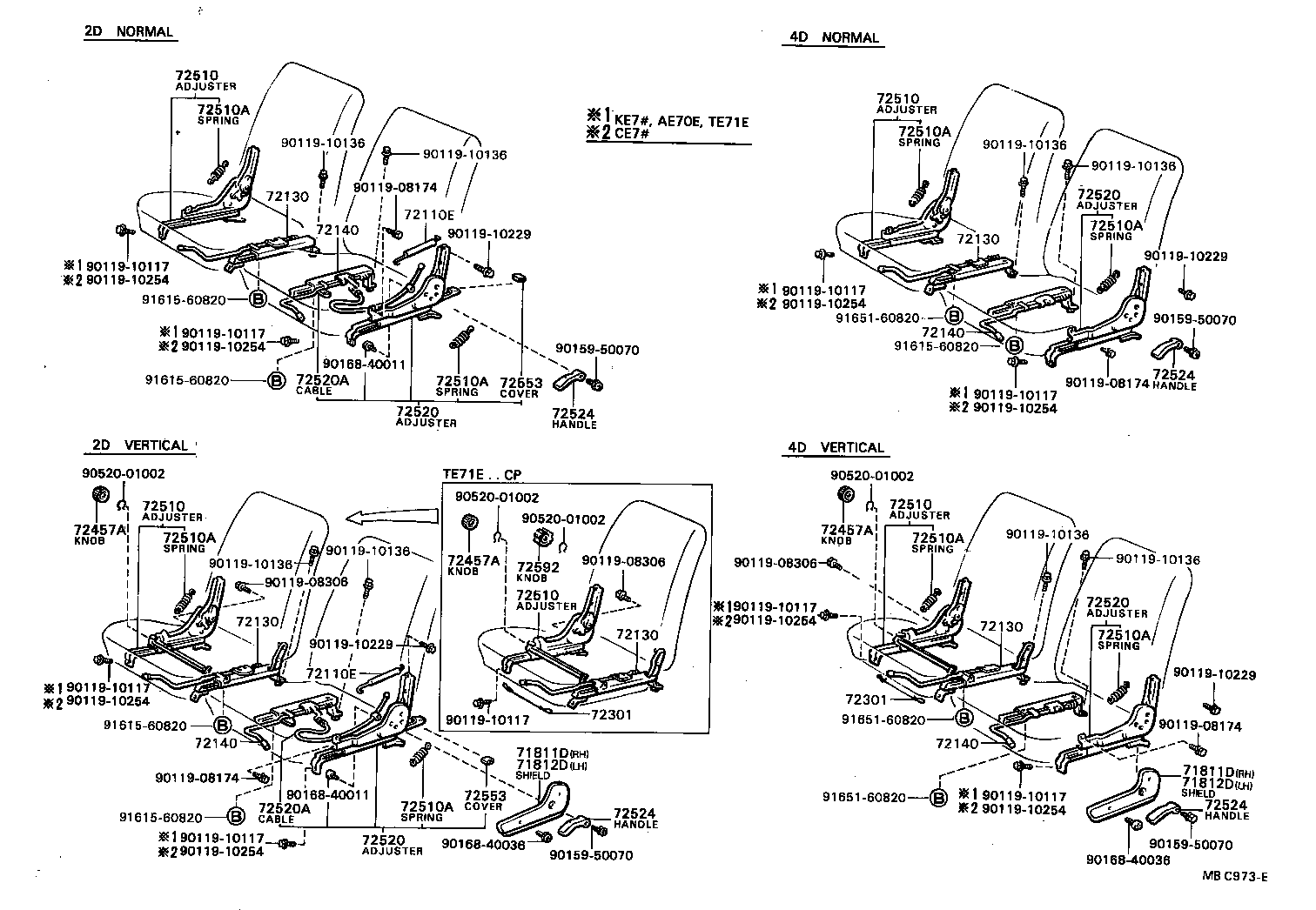

ILLUST NO. 1 OF 3(8108-8508)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 71071S - COVER, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE) | ||||
| 71071-1A18001 |
KE7#..STD VL,BLACK,BLACK,TRIM2# |
1 | ||
| 71071-1A18101 |
KE70,72..STD VL,BLACK,BLACK,TRIM2# |
1 | ||
| 71071-13130 |
KE72..STD VL,GRAY |
1 | ||
| 71071-1313103 |
KE72..STD VL,GRAY,GRAY,TRIM1# |
1 | ||
| 71072S - COVER, FRONT SEAT CUSHION, LH(FOR SEPARATE TYPE) | ||||
| 71072-1A17001 |
KE7#..STD VL,BLACK,BLACK,TRIM2# |
1 | ||
| 71072-13130 |
KE72..STD VL,GRAY |
1 | ||
| 71072-1313103 |
KE72..STD VL,GRAY,GRAY,TRIM1# |
1 | ||
| 71072-1A17101 |
KE70,72..STD VL,BLACK,BLACK,TRIM2# |
1 | ||
| 71073S - COVER, FRONT SEAT BACK, RH(FOR SEPARATE TYPE) | ||||
| 71073-1A26001 |
KE7#..STD VL,BLACK,BLACK,TRIM2# |
1 | ||
| 71073-1A26101 |
KE70,72..STD VL,BLACK,BLACK,TRIM2# |
1 | ||
| 71073-13060 |
KE72..STD VL,GRAY |
1 | ||
| 71073-1306103 |
KE72..STD VL,GRAY,GRAY,TRIM1# |
1 | ||
| 71073S - COVER, FRONT SEAT BACK, RH(FOR SEPARATE TYPE) | ||||
| 71073-1A26001 |
KE7#..STD VL,BLACK,BLACK,TRIM2# |
1 | ||
| 71073-1A26101 |
KE70,72..STD VL,BLACK,BLACK,TRIM2# |
1 | ||
| 71073-13060 |
KE72..STD VL,GRAY |
1 | ||
| 71073-1306103 |
KE72..STD VL,GRAY,GRAY,TRIM1# |
1 | ||
| 71074S - COVER, FRONT SEAT BACK, LH(FOR SEPARATE TYPE) | ||||
| 71073-1A26001 |
KE7#..STD VL,BLACK,BLACK,TRIM2# |
1 | ||
| 71074-1247101 |
KE70,72..STD VL,BLACK,BLACK,TRIM2# |
1 | ||
| 71074-1303103 |
KE72..STD VL,GRAY,GRAY,TRIM1# |
1 | ||
| 71074-13030 |
KE72..STD VL,GRAY |
1 | ||
| 71410S - CUSHION ASSY, FRONT SEAT, RH(FOR SEPARATE TYPE) | ||||
| 71410-1A24001 |
KE7#..STD VL,BLACK,BLACK,TRIM2# |
1 | ||
| 71410-1A24101 |
KE70,72..STD VL,BLACK,BLACK,TRIM2# |
1 | ||
| 71410-1314103 |
KE72..STD VL,GRAY,GRAY,TRIM1# |
1 | ||
| 71410-13140 |
KE72..STD VL,GRAY |
1 | ||
| 71420S - CUSHION ASSY, FRONT SEAT, LH (FOR SEPARATE TYPE) | ||||
| 71420-1A27001 |
KE7#..STD VL,BLACK,BLACK,TRIM2# |
1 | ||
| 71420-1A27101 |
KE70,72..STD VL,BLACK,BLACK,TRIM2# |
1 | ||
| 71420-13140 |
KE72..STD VL,GRAY |
1 | ||
| 71420-1314103 |
KE72..STD VL,GRAY,GRAY,TRIM1# |
1 | ||
| 71430S - BACK ASSY, FRONT SEAT, RH(FOR SEPARATE TYPE) | ||||
| 71430-1A34001 |
KE7#..STD VL,BLACK,BLACK,TRIM2# |
1 | ||
| 71430-1A34101 |
KE70,72..STD VL,BLACK,BLACK,TRIM2# |
1 | ||
| 71430-13070 |
KE72..STD VL,GRAY |
1 | ||
| 71430-1307103 |
KE72..STD VL,GRAY,GRAY,TRIM1# |
1 | ||
| 71430S - BACK ASSY, FRONT SEAT, RH(FOR SEPARATE TYPE) | ||||
| 71430-1A34001 |
KE7#..STD VL,BLACK,BLACK,TRIM2# |
1 | ||
| 71430-1A34101 |
KE70,72..STD VL,BLACK,BLACK,TRIM2# |
1 | ||
| 71430-13070 |
KE72..STD VL,GRAY |
1 | ||
| 71430-1307103 |
KE72..STD VL,GRAY,GRAY,TRIM1# |
1 | ||
| 71430U - PAD, FRONT SEAT BACK, RH NO.2(FOR SEPARATE TYPE) | ||||
| 71561-12140 |
AE70,KE7#,TE73..CTD,DX,STD |
1 | ||
| 71561-12141 |
KE72..STD..05S |
1 | ||
| 71561-12141 |
AE70,CE7#,KE7#,TE74..(SED,V,WG)..(CTD,DX,STD) *HBS |
1 | ||
| 71430U - PAD, FRONT SEAT BACK, RH NO.2(FOR SEPARATE TYPE) | ||||
| 71561-12140 |
AE70,KE7#,TE73..CTD,DX,STD |
1 | ||
| 71561-12141 |
KE72..STD..05S |
1 | ||
| 71561-12141 |
AE70,CE7#,KE7#,TE74..(SED,V,WG)..(CTD,DX,STD) *HBS |
1 | ||
| 71440S - BACK ASSY, FRONT SEAT, LH(FOR SEPARATE TYPE) | ||||
| 71440-1A29001 |
KE7#..STD VL,BLACK,BLACK,TRIM2# |
1 | ||
| 71440-1A29101 |
KE70,72..STD VL,BLACK,BLACK,TRIM2# |
1 | ||
| 71440-13070 |
KE72..STD VL,GRAY |
1 | ||
| 71440-1307103 |
KE72..STD VL,GRAY,GRAY,TRIM1# |
1 | ||
| 71440U - PAD, FRONT SEAT BACK, LH NO.2(FOR SEPARATE TYPE) | ||||
| 71561-12140 |
AE70,KE7#,TE73..CTD,DX,STD |
1 | ||
| 71561-12141 |
KE72..STD..05S |
1 | ||
| 71561-12141 |
AE70,CE7#,KE7#,TE74..(SED,V,WG)..(CTD,DX,STD) *HBS |
1 | ||
| 71511S - PAD, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE) | ||||
| 71511-12290 |
AE70,KE7#,TE7#..SED,V |
1 | ||
| 71511-12291 |
AE70,CE7#,KE7#,TE74..(SED,V,WG)..(CTD,DX,GL,STD) |
1 | ||
| 71511-13010 |
CE7#,KE7# |
1 | ||
| 71512S - PAD, FRONT SEAT CUSHION, LH (FOR SEPARATE TYPE) | ||||
| 71511-12291 |
AE70,CE7#,KE7#,TE74..(SED,V,WG)..(CTD,DX,GL,STD) |
1 | ||
| 71511-12290 |
AE70,KE7#,TE7#..SED,V |
1 | ||
| 71511-13010 |
CE7#,KE7# |
1 | ||
| 71551S - PAD, FRONT SEAT BACK, RH(FOR SEPARATE TYPE) | ||||
| 71551-12280 |
AE70,KE7#,TE73..CTD,DX,STD |
1 | ||
| 71551-12281 |
AE70,CE7#,KE7#,TE74..(SED,V,WG)..(CTD,DX,STD) *HBS |
1 | ||
| 71551-12291 |
KE72..STD..05S |
1 | ||
| 71551-12291 |
AE70,CE7#,KE7#,TE74..(SED,V,WG)..(CTD,DX,STD) *HBS |
1 | ||
| 71551S - PAD, FRONT SEAT BACK, RH(FOR SEPARATE TYPE) | ||||
| 71551-12280 |
AE70,KE7#,TE73..CTD,DX,STD |
1 | ||
| 71551-12281 |
AE70,CE7#,KE7#,TE74..(SED,V,WG)..(CTD,DX,STD) *HBS |
1 | ||
| 71551-12291 |
KE72..STD..05S |
1 | ||
| 71551-12291 |
AE70,CE7#,KE7#,TE74..(SED,V,WG)..(CTD,DX,STD) *HBS |
1 | ||
| 71552S - PAD, FRONT SEAT BACK, LH(FOR SEPARATE TYPE) | ||||
| 71551-12280 |
AE70,KE7#,TE73..CTD,DX,STD |
1 | ||
| 71551-12281 |
AE70,CE7#,KE7#,TE74..(SED,V,WG)..(CTD,DX,STD) *HBS |
1 | ||
| 71551-12291 |
AE70,CE7#,KE7#,TE74..(SED,V,WG)..(CTD,DX,STD) *HBS |
1 | ||
| 71551-12291 |
KE72..STD..05S *HBS |
1 | ||
| 71610S - SPRING ASSY, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE) | ||||
| 71610-12130 |
AE70,KE7#,TE7#..SED,V |
1 | ||
| 71610-12131 |
AE70,CE7#,KE7#,TE74..(SED,V,WG)..(CTD,DX,GL,STD,SX) |
1 | ||
| 71620S - SPRING ASSY, FRONT SEAT CUSHION, LH(FOR SEPARATE TYPE) | ||||
| 71620-12131 |
AE70,CE7#,KE7#,TE7#..SED,V,WG |
1 | ||
| 71620-12130 |
AE70,KE7#,TE7#..SED,V |
1 | ||
| 71630S - SPRING ASSY, FRONT SEAT BACK, RH(FOR SEPARATE TYPE) | ||||
| 71630-12170 |
AE70,KE7#,TE73..(SED,V)..(CTD,DX,STD) |
1 | ||
| 71630-10041 |
AE70,CE7#,KE7#,TE74..(SED,V,WG)..(CTD,DX,STD) *HBS |
1 | ||
| 71630-10041 |
KE72..STD..05S |
1 | ||
| 71630S - SPRING ASSY, FRONT SEAT BACK, RH(FOR SEPARATE TYPE) | ||||
| 71630-12170 |
AE70,KE7#,TE73..(SED,V)..(CTD,DX,STD) |
1 | ||
| 71630-10041 |
AE70,CE7#,KE7#,TE74..(SED,V,WG)..(CTD,DX,STD) *HBS |
1 | ||
| 71630-10041 |
KE72..STD..05S |
1 | ||
| 71640S - SPRING ASSY, FRONT SEAT BACK, LH(FOR SEPARATE TYPE) | ||||
| 71640-12160 |
AE70,KE7#,TE73..(SED,V)..(CTD,DX,STD) |
1 | ||
| 71640-10041 |
AE70,CE7#,KE7#,TE74..(SED,V,WG)..(CTD,DX,STD) *HBS |
1 | ||
| 71640-10041 |
KE72..STD..05S |
1 | ||
| 71812 - CLIP (FOR FRONT SEAT CUSHION COVER) | ||||
| 90468-18071 |
AE70,CE7#,KE7#,TE7# |
1 | ||
| 71812 - CLIP (FOR FRONT SEAT CUSHION COVER) | ||||
| 90468-18071 |
AE70,CE7#,KE7#,TE7# |
1 | ||
| 71812 - CLIP (FOR FRONT SEAT CUSHION COVER) | ||||
| 90468-18071 |
AE70,CE7#,KE7#,TE7# |
1 | ||
| 71812 - CLIP (FOR FRONT SEAT CUSHION COVER) | ||||
| 90468-18071 |
AE70,CE7#,KE7#,TE7# |
1 | ||
| 71812 - CLIP (FOR FRONT SEAT CUSHION COVER) | ||||
| 90468-18071 |
AE70,CE7#,KE7#,TE7# |
1 | ||
| Common parts | ||||
| 90386-12016 | ||||
| 90520-01002 | ||||
| 90523-08001 | ||||
| 93385-16016 | ||||
ILLUST NO. 1 OF 3(8108-8508)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 71071S - COVER, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE) | ||||
| 71071-1A18001 |
KE7#..STD VL,BLACK,BLACK,TRIM2# |
1 | ||
| 71071-1A18101 |
KE70,72..STD VL,BLACK,BLACK,TRIM2# |
1 | ||
| 71071-13130 |
KE72..STD VL,GRAY |
1 | ||
| 71071-1313103 |
KE72..STD VL,GRAY,GRAY,TRIM1# |
1 | ||
| 71072S - COVER, FRONT SEAT CUSHION, LH(FOR SEPARATE TYPE) | ||||
| 71072-1A17001 |
KE7#..STD VL,BLACK,BLACK,TRIM2# |
1 | ||
| 71072-13130 |
KE72..STD VL,GRAY |
1 | ||
| 71072-1313103 |
KE72..STD VL,GRAY,GRAY,TRIM1# |
1 | ||
| 71072-1A17101 |
KE70,72..STD VL,BLACK,BLACK,TRIM2# |
1 | ||
| 71073S - COVER, FRONT SEAT BACK, RH(FOR SEPARATE TYPE) | ||||
| 71073-1A26001 |
KE7#..STD VL,BLACK,BLACK,TRIM2# |
1 | ||
| 71073-1A26101 |
KE70,72..STD VL,BLACK,BLACK,TRIM2# |
1 | ||
| 71073-13060 |
KE72..STD VL,GRAY |
1 | ||
| 71073-1306103 |
KE72..STD VL,GRAY,GRAY,TRIM1# |
1 | ||
| 71073S - COVER, FRONT SEAT BACK, RH(FOR SEPARATE TYPE) | ||||
| 71073-1A26001 |
KE7#..STD VL,BLACK,BLACK,TRIM2# |
1 | ||
| 71073-1A26101 |
KE70,72..STD VL,BLACK,BLACK,TRIM2# |
1 | ||
| 71073-13060 |
KE72..STD VL,GRAY |
1 | ||
| 71073-1306103 |
KE72..STD VL,GRAY,GRAY,TRIM1# |
1 | ||
| 71074S - COVER, FRONT SEAT BACK, LH(FOR SEPARATE TYPE) | ||||
| 71073-1A26001 |
KE7#..STD VL,BLACK,BLACK,TRIM2# |
1 | ||
| 71074-1247101 |
KE70,72..STD VL,BLACK,BLACK,TRIM2# |
1 | ||
| 71074-1303103 |
KE72..STD VL,GRAY,GRAY,TRIM1# |
1 | ||
| 71074-13030 |
KE72..STD VL,GRAY |
1 | ||
| 71410S - CUSHION ASSY, FRONT SEAT, RH(FOR SEPARATE TYPE) | ||||
| 71410-1A24001 |
KE7#..STD VL,BLACK,BLACK,TRIM2# |
1 | ||
| 71410-1A24101 |
KE70,72..STD VL,BLACK,BLACK,TRIM2# |
1 | ||
| 71410-1314103 |
KE72..STD VL,GRAY,GRAY,TRIM1# |
1 | ||
| 71410-13140 |
KE72..STD VL,GRAY |
1 | ||
| 71420S - CUSHION ASSY, FRONT SEAT, LH (FOR SEPARATE TYPE) | ||||
| 71420-1A27001 |
KE7#..STD VL,BLACK,BLACK,TRIM2# |
1 | ||
| 71420-1A27101 |
KE70,72..STD VL,BLACK,BLACK,TRIM2# |
1 | ||
| 71420-13140 |
KE72..STD VL,GRAY |
1 | ||
| 71420-1314103 |
KE72..STD VL,GRAY,GRAY,TRIM1# |
1 | ||
| 71430S - BACK ASSY, FRONT SEAT, RH(FOR SEPARATE TYPE) | ||||
| 71430-1A34001 |
KE7#..STD VL,BLACK,BLACK,TRIM2# |
1 | ||
| 71430-1A34101 |
KE70,72..STD VL,BLACK,BLACK,TRIM2# |
1 | ||
| 71430-13070 |
KE72..STD VL,GRAY |
1 | ||
| 71430-1307103 |
KE72..STD VL,GRAY,GRAY,TRIM1# |
1 | ||
| 71430S - BACK ASSY, FRONT SEAT, RH(FOR SEPARATE TYPE) | ||||
| 71430-1A34001 |
KE7#..STD VL,BLACK,BLACK,TRIM2# |
1 | ||
| 71430-1A34101 |
KE70,72..STD VL,BLACK,BLACK,TRIM2# |
1 | ||
| 71430-13070 |
KE72..STD VL,GRAY |
1 | ||
| 71430-1307103 |
KE72..STD VL,GRAY,GRAY,TRIM1# |
1 | ||
| 71440S - BACK ASSY, FRONT SEAT, LH(FOR SEPARATE TYPE) | ||||
| 71440-1A29001 |
KE7#..STD VL,BLACK,BLACK,TRIM2# |
1 | ||
| 71440-1A29101 |
KE70,72..STD VL,BLACK,BLACK,TRIM2# |
1 | ||
| 71440-13070 |
KE72..STD VL,GRAY |
1 | ||
| 71440-1307103 |
KE72..STD VL,GRAY,GRAY,TRIM1# |
1 | ||
| 71511S - PAD, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE) | ||||
| 71511-12290 |
AE70,KE7#,TE7#..SED,V |
1 | ||
| 71511-12291 |
AE70,CE7#,KE7#,TE74..(SED,V,WG)..(CTD,DX,GL,STD) |
1 | ||
| 71511-13010 |
CE7#,KE7# |
1 | ||
| 71512S - PAD, FRONT SEAT CUSHION, LH (FOR SEPARATE TYPE) | ||||
| 71511-12291 |
AE70,CE7#,KE7#,TE74..(SED,V,WG)..(CTD,DX,GL,STD) |
1 | ||
| 71511-12290 |
AE70,KE7#,TE7#..SED,V |
1 | ||
| 71511-13010 |
CE7#,KE7# |
1 | ||
| 71551S - PAD, FRONT SEAT BACK, RH(FOR SEPARATE TYPE) | ||||
| 71551-12280 |
AE70,KE7#,TE73..CTD,DX,STD |
1 | ||
| 71551-12281 |
AE70,CE7#,KE7#,TE74..(SED,V,WG)..(CTD,DX,STD) *HBS |
1 | ||
| 71551-12291 |
KE72..STD..05S |
1 | ||
| 71551-12291 |
AE70,CE7#,KE7#,TE74..(SED,V,WG)..(CTD,DX,STD) *HBS |
1 | ||
| 71551S - PAD, FRONT SEAT BACK, RH(FOR SEPARATE TYPE) | ||||
| 71551-12280 |
AE70,KE7#,TE73..CTD,DX,STD |
1 | ||
| 71551-12281 |
AE70,CE7#,KE7#,TE74..(SED,V,WG)..(CTD,DX,STD) *HBS |
1 | ||
| 71551-12291 |
KE72..STD..05S |
1 | ||
| 71551-12291 |
AE70,CE7#,KE7#,TE74..(SED,V,WG)..(CTD,DX,STD) *HBS |
1 | ||
| 71552S - PAD, FRONT SEAT BACK, LH(FOR SEPARATE TYPE) | ||||
| 71551-12280 |
AE70,KE7#,TE73..CTD,DX,STD |
1 | ||
| 71551-12281 |
AE70,CE7#,KE7#,TE74..(SED,V,WG)..(CTD,DX,STD) *HBS |
1 | ||
| 71551-12291 |
AE70,CE7#,KE7#,TE74..(SED,V,WG)..(CTD,DX,STD) *HBS |
1 | ||
| 71551-12291 |
KE72..STD..05S *HBS |
1 | ||
| 71610S - SPRING ASSY, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE) | ||||
| 71610-12131 |
AE70,CE7#,KE7#,TE74..(SED,V,WG)..(CTD,DX,GL,STD,SX) |
1 | ||
| 71610-12130 |
AE70,KE7#,TE7#..SED,V |
1 | ||
| 71620S - SPRING ASSY, FRONT SEAT CUSHION, LH(FOR SEPARATE TYPE) | ||||
| 71620-12131 |
AE70,CE7#,KE7#,TE7#..SED,V,WG |
1 | ||
| 71620-12130 |
AE70,KE7#,TE7#..SED,V |
1 | ||
| 71630S - SPRING ASSY, FRONT SEAT BACK, RH(FOR SEPARATE TYPE) | ||||
| 71630-12170 |
AE70,KE7#,TE73..(SED,V)..(CTD,DX,STD) |
1 | ||
| 71630-10041 |
AE70,CE7#,KE7#,TE74..(SED,V,WG)..(CTD,DX,STD) *HBS |
1 | ||
| 71630-10041 |
KE72..STD..05S |
1 | ||
| 71630S - SPRING ASSY, FRONT SEAT BACK, RH(FOR SEPARATE TYPE) | ||||
| 71630-12170 |
AE70,KE7#,TE73..(SED,V)..(CTD,DX,STD) |
1 | ||
| 71630-10041 |
AE70,CE7#,KE7#,TE74..(SED,V,WG)..(CTD,DX,STD) *HBS |
1 | ||
| 71630-10041 |
KE72..STD..05S |
1 | ||
| 71640S - SPRING ASSY, FRONT SEAT BACK, LH(FOR SEPARATE TYPE) | ||||
| 71640-12160 |
AE70,KE7#,TE73..(SED,V)..(CTD,DX,STD) |
1 | ||
| 71640-10041 |
AE70,CE7#,KE7#,TE74..(SED,V,WG)..(CTD,DX,STD) *HBS |
1 | ||
| 71640-10041 |
KE72..STD..05S |
1 | ||
| 71812 - CLIP (FOR FRONT SEAT CUSHION COVER) | ||||
| 90468-18071 |
AE70,CE7#,KE7#,TE7# |
1 | ||
| 71812 - CLIP (FOR FRONT SEAT CUSHION COVER) | ||||
| 90468-18071 |
AE70,CE7#,KE7#,TE7# |
1 | ||
| 71812 - CLIP (FOR FRONT SEAT CUSHION COVER) | ||||
| 90468-18071 |
AE70,CE7#,KE7#,TE7# |
1 | ||
| 71812 - CLIP (FOR FRONT SEAT CUSHION COVER) | ||||
| 90468-18071 |
AE70,CE7#,KE7#,TE7# |
1 | ||
| 71812 - CLIP (FOR FRONT SEAT CUSHION COVER) | ||||
| 90468-18071 |
AE70,CE7#,KE7#,TE7# |
1 | ||
| Common parts | ||||
| 90386-12016 | ||||
| 90520-01002 | ||||
| 90523-08001 | ||||
| 93385-16016 | ||||
| 93540-54012 | ||||
ILLUST NO. 2 OF 3(8108-8508)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 72130 - TRACK ASSY, RH SEAT, INNER | ||||
| 72130-12120 |
AE70,KE7#,TE7# |
1 | ||
| 72130-12190 |
AE70,CE7#,KE7#,TE74..CTD,DX,GL,STD,SX W/O VERTICAL ADJUSTER |
1 | ||
| 72130-12290 |
KE72..STD..05S |
1 | ||
| 72130-12290 |
CE7#,KE7# |
1 | ||
| 72130 - TRACK ASSY, RH SEAT, INNER | ||||
| 72130-12120 |
AE70,KE7#,TE7# |
1 | ||
| 72130-12190 |
AE70,CE7#,KE7#,TE74..CTD,DX,GL,STD,SX W/O VERTICAL ADJUSTER |
1 | ||
| 72130-12290 |
KE72..STD..05S |
1 | ||
| 72130-12290 |
CE7#,KE7# |
1 | ||
| 72130 - TRACK ASSY, RH SEAT, INNER | ||||
| 72130-12120 |
AE70,KE7#,TE7# |
1 | ||
| 72130-12190 |
AE70,CE7#,KE7#,TE74..CTD,DX,GL,STD,SX W/O VERTICAL ADJUSTER |
1 | ||
| 72130-12290 |
KE72..STD..05S |
1 | ||
| 72130-12290 |
CE7#,KE7# |
1 | ||
| 72130 - TRACK ASSY, RH SEAT, INNER | ||||
| 72130-12120 |
AE70,KE7#,TE7# |
1 | ||
| 72130-12190 |
AE70,CE7#,KE7#,TE74..CTD,DX,GL,STD,SX W/O VERTICAL ADJUSTER |
1 | ||
| 72130-12290 |
KE72..STD..05S |
1 | ||
| 72130-12290 |
CE7#,KE7# |
1 | ||
| 72130 - TRACK ASSY, RH SEAT, INNER | ||||
| 72130-12120 |
AE70,KE7#,TE7# |
1 | ||
| 72130-12190 |
AE70,CE7#,KE7#,TE74..CTD,DX,GL,STD,SX W/O VERTICAL ADJUSTER |
1 | ||
| 72130-12290 |
KE72..STD..05S |
1 | ||
| 72130-12290 |
CE7#,KE7# |
1 | ||
| 72140 - TRACK ASSY, LH SEAT, INNER | ||||
| 72140-12280 |
CE7#,KE7#..4D |
1 | ||
| 72140-12100 |
AE70,KE7#,TE7#..4D |
1 | ||
| 72140-12280 |
KE72..STD..4D |
1 | ||
| 72140-12170 |
AE70,CE7#,KE7#,TE7#..4D |
1 | ||
| 72140 - TRACK ASSY, LH SEAT, INNER | ||||
| 72140-12280 |
CE7#,KE7#..4D |
1 | ||
| 72140-12100 |
AE70,KE7#,TE7#..4D |
1 | ||
| 72140-12280 |
KE72..STD..4D |
1 | ||
| 72140-12170 |
AE70,CE7#,KE7#,TE7#..4D |
1 | ||
| 72140 - TRACK ASSY, LH SEAT, INNER | ||||
| 72140-12280 |
CE7#,KE7#..4D |
1 | ||
| 72140-12100 |
AE70,KE7#,TE7#..4D |
1 | ||
| 72140-12280 |
KE72..STD..4D |
1 | ||
| 72140-12170 |
AE70,CE7#,KE7#,TE7#..4D |
1 | ||
| 72140 - TRACK ASSY, LH SEAT, INNER | ||||
| 72140-12280 |
CE7#,KE7#..4D |
1 | ||
| 72140-12100 |
AE70,KE7#,TE7#..4D |
1 | ||
| 72140-12280 |
KE72..STD..4D |
1 | ||
| 72140-12170 |
AE70,CE7#,KE7#,TE7#..4D |
1 | ||
| 72510 - ADJUSTER ASSY, RECLINING SEAT BACK, RH | ||||
| 72010-1222001 |
CE71,KE72,TE74 BLACK,BLACK,TRIM2# |
1 | ||
| 72010-1222003 |
CE71,KE72,74 GRAY,GRAY,TRIM1# |
1 | ||
| 72010-1215003 |
CE7#,KE7# GRAY,GRAY,TRIM1# |
1 | ||
| 72010-1215013 |
KE72..STD..05S GRAY,GRAY,TRIM1# |
1 | ||
| 72510 - ADJUSTER ASSY, RECLINING SEAT BACK, RH | ||||
| 72010-1222001 |
CE71,KE72,TE74 BLACK,BLACK,TRIM2# |
1 | ||
| 72010-1222003 |
CE71,KE72,74 GRAY,GRAY,TRIM1# |
1 | ||
| 72010-1215003 |
CE7#,KE7# GRAY,GRAY,TRIM1# |
1 | ||
| 72010-1215013 |
KE72..STD..05S GRAY,GRAY,TRIM1# |
1 | ||
| 72510 - ADJUSTER ASSY, RECLINING SEAT BACK, RH | ||||
| 72010-1222001 |
CE71,KE72,TE74 BLACK,BLACK,TRIM2# |
1 | ||
| 72010-1222003 |
CE71,KE72,74 GRAY,GRAY,TRIM1# |
1 | ||
| 72010-1215003 |
CE7#,KE7# GRAY,GRAY,TRIM1# |
1 | ||
| 72010-1215013 |
KE72..STD..05S GRAY,GRAY,TRIM1# |
1 | ||
| 72510 - ADJUSTER ASSY, RECLINING SEAT BACK, RH | ||||
| 72010-1222001 |
CE71,KE72,TE74 BLACK,BLACK,TRIM2# |
1 | ||
| 72010-1222003 |
CE71,KE72,74 GRAY,GRAY,TRIM1# |
1 | ||
| 72010-1215003 |
CE7#,KE7# GRAY,GRAY,TRIM1# |
1 | ||
| 72010-1215013 |
KE72..STD..05S GRAY,GRAY,TRIM1# |
1 | ||
| 72510 - ADJUSTER ASSY, RECLINING SEAT BACK, RH | ||||
| 72010-1222001 |
CE71,KE72,TE74 BLACK,BLACK,TRIM2# |
1 | ||
| 72010-1222003 |
CE71,KE72,74 GRAY,GRAY,TRIM1# |
1 | ||
| 72010-1215003 |
CE7#,KE7# GRAY,GRAY,TRIM1# |
1 | ||
| 72010-1215013 |
KE72..STD..05S GRAY,GRAY,TRIM1# |
1 | ||
| 72510A - SPRING, TENSION, NO.1(FOR RECLINING SEAT ADJUSTER) | ||||
| 90506-18015 |
AE70,CE7#,KE7#,TE7# |
2 | ||
| 72510A - SPRING, TENSION, NO.1(FOR RECLINING SEAT ADJUSTER) | ||||
| 90506-18015 |
AE70,CE7#,KE7#,TE7# |
2 | ||
| 72510A - SPRING, TENSION, NO.1(FOR RECLINING SEAT ADJUSTER) | ||||
| 90506-18015 |
AE70,CE7#,KE7#,TE7# |
2 | ||
| 72510A - SPRING, TENSION, NO.1(FOR RECLINING SEAT ADJUSTER) | ||||
| 90506-18015 |
AE70,CE7#,KE7#,TE7# |
2 | ||
| 72510A - SPRING, TENSION, NO.1(FOR RECLINING SEAT ADJUSTER) | ||||
| 90506-18015 |
AE70,CE7#,KE7#,TE7# |
2 | ||
| 72510A - SPRING, TENSION, NO.1(FOR RECLINING SEAT ADJUSTER) | ||||
| 90506-18015 |
AE70,CE7#,KE7#,TE7# |
2 | ||
| 72510A - SPRING, TENSION, NO.1(FOR RECLINING SEAT ADJUSTER) | ||||
| 90506-18015 |
AE70,CE7#,KE7#,TE7# |
2 | ||
| 72510A - SPRING, TENSION, NO.1(FOR RECLINING SEAT ADJUSTER) | ||||
| 90506-18015 |
AE70,CE7#,KE7#,TE7# |
2 | ||
| 72520 - ADJUSTER ASSY, RECLINING SEAT BACK, LH | ||||
| 72020-1221001 |
CE71,KE72,TE74..4D BLACK,BLACK,TRIM2# |
1 | ||
| 72020-1221003 |
CE71,KE72,74..4D GRAY,GRAY,TRIM1# |
1 | ||
| 72020-1221013 |
KE72..STD..4D GRAY,GRAY,TRIM1# |
1 | ||
| 72520 - ADJUSTER ASSY, RECLINING SEAT BACK, LH | ||||
| 72020-1221001 |
CE71,KE72,TE74..4D BLACK,BLACK,TRIM2# |
1 | ||
| 72020-1221003 |
CE71,KE72,74..4D GRAY,GRAY,TRIM1# |
1 | ||
| 72020-1221013 |
KE72..STD..4D GRAY,GRAY,TRIM1# |
1 | ||
| 72520 - ADJUSTER ASSY, RECLINING SEAT BACK, LH | ||||
| 72020-1221001 |
CE71,KE72,TE74..4D BLACK,BLACK,TRIM2# |
1 | ||
| 72020-1221003 |
CE71,KE72,74..4D GRAY,GRAY,TRIM1# |
1 | ||
| 72020-1221013 |
KE72..STD..4D GRAY,GRAY,TRIM1# |
1 | ||
| 72520 - ADJUSTER ASSY, RECLINING SEAT BACK, LH | ||||
| 72020-1221001 |
CE71,KE72,TE74..4D BLACK,BLACK,TRIM2# |
1 | ||
| 72020-1221003 |
CE71,KE72,74..4D GRAY,GRAY,TRIM1# |
1 | ||
| 72020-1221013 |
KE72..STD..4D GRAY,GRAY,TRIM1# |
1 | ||
| 72524 - HANDLE, RECLINING ADJUSTER RELEASE | ||||
| 72525-1208001 |
AE70,CE7#,KE7#,TE7# RH,BLACK,BLACK,TRIM2# |
1 | ||
| 72526-1202001 |
AE70,CE7#,KE7#,TE7# LH,BLACK,BLACK,TRIM2# |
2 | ||
| 72525-1208003 |
CE7#,KE7# RH,GRAY,GRAY,TRIM1# |
1 | ||
| 72526-1202013 |
CE7#,KE7# LH,GRAY,GRAY,TRIM1# |
1 | ||
| 72525-1208013 |
CE7#,KE7# RH,GRAY,GRAY,TRIM1# |
1 | ||
| 72526-1202003 |
CE7#,KE7# LH,GRAY,GRAY,TRIM1# |
1 | ||
| 72524 - HANDLE, RECLINING ADJUSTER RELEASE | ||||
| 72525-1208001 |
AE70,CE7#,KE7#,TE7# RH,BLACK,BLACK,TRIM2# |
1 | ||
| 72526-1202001 |
AE70,CE7#,KE7#,TE7# LH,BLACK,BLACK,TRIM2# |
2 | ||
| 72525-1208003 |
CE7#,KE7# RH,GRAY,GRAY,TRIM1# |
1 | ||
| 72526-1202013 |
CE7#,KE7# LH,GRAY,GRAY,TRIM1# |
1 | ||
| 72525-1208013 |
CE7#,KE7# RH,GRAY,GRAY,TRIM1# |
1 | ||
| 72526-1202003 |
CE7#,KE7# LH,GRAY,GRAY,TRIM1# |
1 | ||
| 72524 - HANDLE, RECLINING ADJUSTER RELEASE | ||||
| 72525-1208001 |
AE70,CE7#,KE7#,TE7# RH,BLACK,BLACK,TRIM2# |
1 | ||
| 72526-1202001 |
AE70,CE7#,KE7#,TE7# LH,BLACK,BLACK,TRIM2# |
2 | ||
| 72525-1208003 |
CE7#,KE7# RH,GRAY,GRAY,TRIM1# |
1 | ||
| 72526-1202013 |
CE7#,KE7# LH,GRAY,GRAY,TRIM1# |
1 | ||
| 72525-1208013 |
CE7#,KE7# RH,GRAY,GRAY,TRIM1# |
1 | ||
| 72526-1202003 |
CE7#,KE7# LH,GRAY,GRAY,TRIM1# |
1 | ||
| 72524 - HANDLE, RECLINING ADJUSTER RELEASE | ||||
| 72525-1208001 |
AE70,CE7#,KE7#,TE7# RH,BLACK,BLACK,TRIM2# |
1 | ||
| 72526-1202001 |
AE70,CE7#,KE7#,TE7# LH,BLACK,BLACK,TRIM2# |
2 | ||
| 72525-1208003 |
CE7#,KE7# RH,GRAY,GRAY,TRIM1# |
1 | ||
| 72526-1202013 |
CE7#,KE7# LH,GRAY,GRAY,TRIM1# |
1 | ||
| 72525-1208013 |
CE7#,KE7# RH,GRAY,GRAY,TRIM1# |
1 | ||
| 72526-1202003 |
CE7#,KE7# LH,GRAY,GRAY,TRIM1# |
1 | ||
| Common parts | ||||
| 90119-08174 | ||||
| 90119-08306 | ||||
| 90119-10117 | ||||
| 90119-10136 | ||||
| 90119-10229 | ||||
| 90119-10254 | ||||
| 90159-50070 | ||||
| 90168-40011 | ||||
| 90168-40036 | ||||
| 90520-01002 | ||||
| 91615-60820 | ||||
| 91651-60820 | ||||
ILLUST NO. 1 OF 3(8508- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 71071S - COVER, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE) | ||||
| 71071-1A18001 |
KE7#..STD VL,BLACK,BLACK,TRIM2# |
1 | ||
| 71071-1A18101 |
KE70,72..STD VL,BLACK,BLACK,TRIM2# |
1 | ||
| 71071-13130 |
KE72..STD VL,GRAY |
1 | ||
| 71071-1313103 |
KE72..STD VL,GRAY,GRAY,TRIM1# |
1 | ||
| 71072S - COVER, FRONT SEAT CUSHION, LH(FOR SEPARATE TYPE) | ||||
| 71072-1A17001 |
KE7#..STD VL,BLACK,BLACK,TRIM2# |
1 | ||
| 71072-13130 |
KE72..STD VL,GRAY |
1 | ||
| 71072-1313103 |
KE72..STD VL,GRAY,GRAY,TRIM1# |
1 | ||
| 71072-1A17101 |
KE70,72..STD VL,BLACK,BLACK,TRIM2# |
1 | ||
| 71073S - COVER, FRONT SEAT BACK, RH(FOR SEPARATE TYPE) | ||||
| 71073-1A26001 |
KE7#..STD VL,BLACK,BLACK,TRIM2# |
1 | ||
| 71073-1A26101 |
KE70,72..STD VL,BLACK,BLACK,TRIM2# |
1 | ||
| 71073-13060 |
KE72..STD VL,GRAY |
1 | ||
| 71073-1306103 |
KE72..STD VL,GRAY,GRAY,TRIM1# |
1 | ||
| 71073S - COVER, FRONT SEAT BACK, RH(FOR SEPARATE TYPE) | ||||
| 71073-1A26001 |
KE7#..STD VL,BLACK,BLACK,TRIM2# |
1 | ||
| 71073-1A26101 |
KE70,72..STD VL,BLACK,BLACK,TRIM2# |
1 | ||
| 71073-13060 |
KE72..STD VL,GRAY |
1 | ||
| 71073-1306103 |
KE72..STD VL,GRAY,GRAY,TRIM1# |
1 | ||
| 71074S - COVER, FRONT SEAT BACK, LH(FOR SEPARATE TYPE) | ||||
| 71073-1A26001 |
KE7#..STD VL,BLACK,BLACK,TRIM2# |
1 | ||
| 71074-1247101 |
KE70,72..STD VL,BLACK,BLACK,TRIM2# |
1 | ||
| 71074-1303103 |
KE72..STD VL,GRAY,GRAY,TRIM1# |
1 | ||
| 71074-13030 |
KE72..STD VL,GRAY |
1 | ||
| 71074S - COVER, FRONT SEAT BACK, LH(FOR SEPARATE TYPE) | ||||
| 71073-1A26001 |
KE7#..STD VL,BLACK,BLACK,TRIM2# |
1 | ||
| 71074-1247101 |
KE70,72..STD VL,BLACK,BLACK,TRIM2# |
1 | ||
| 71074-1303103 |
KE72..STD VL,GRAY,GRAY,TRIM1# |
1 | ||
| 71074-13030 |
KE72..STD VL,GRAY |
1 | ||
| 71410S - CUSHION ASSY, FRONT SEAT, RH(FOR SEPARATE TYPE) | ||||
| 71410-1A24001 |
KE7#..STD VL,BLACK,BLACK,TRIM2# |
1 | ||
| 71410-1A24101 |
KE70,72..STD VL,BLACK,BLACK,TRIM2# |
1 | ||
| 71410-1314103 |
KE72..STD VL,GRAY,GRAY,TRIM1# |
1 | ||
| 71410-13140 |
KE72..STD VL,GRAY |
1 | ||
| 71420S - CUSHION ASSY, FRONT SEAT, LH (FOR SEPARATE TYPE) | ||||
| 71420-1A27001 |
KE7#..STD VL,BLACK,BLACK,TRIM2# |
1 | ||
| 71420-1A27101 |
KE70,72..STD VL,BLACK,BLACK,TRIM2# |
1 | ||
| 71420-13140 |
KE72..STD VL,GRAY |
1 | ||
| 71420-1314103 |
KE72..STD VL,GRAY,GRAY,TRIM1# |
1 | ||
| 71430S - BACK ASSY, FRONT SEAT, RH(FOR SEPARATE TYPE) | ||||
| 71430-1A34001 |
KE7#..STD VL,BLACK,BLACK,TRIM2# |
1 | ||
| 71430-1A34101 |
KE70,72..STD VL,BLACK,BLACK,TRIM2# |
1 | ||
| 71430-13070 |
KE72..STD VL,GRAY |
1 | ||
| 71430-1307103 |
KE72..STD VL,GRAY,GRAY,TRIM1# |
1 | ||
| 71430S - BACK ASSY, FRONT SEAT, RH(FOR SEPARATE TYPE) | ||||
| 71430-1A34001 |
KE7#..STD VL,BLACK,BLACK,TRIM2# |
1 | ||
| 71430-1A34101 |
KE70,72..STD VL,BLACK,BLACK,TRIM2# |
1 | ||
| 71430-13070 |
KE72..STD VL,GRAY |
1 | ||
| 71430-1307103 |
KE72..STD VL,GRAY,GRAY,TRIM1# |
1 | ||
| 71440S - BACK ASSY, FRONT SEAT, LH(FOR SEPARATE TYPE) | ||||
| 71440-1A29001 |
KE7#..STD VL,BLACK,BLACK,TRIM2# |
1 | ||
| 71440-1A29101 |
KE70,72..STD VL,BLACK,BLACK,TRIM2# |
1 | ||
| 71440-13070 |
KE72..STD VL,GRAY |
1 | ||
| 71440-1307103 |
KE72..STD VL,GRAY,GRAY,TRIM1# |
1 | ||
| 71440S - BACK ASSY, FRONT SEAT, LH(FOR SEPARATE TYPE) | ||||
| 71440-1A29001 |
KE7#..STD VL,BLACK,BLACK,TRIM2# |
1 | ||
| 71440-1A29101 |
KE70,72..STD VL,BLACK,BLACK,TRIM2# |
1 | ||
| 71440-13070 |
KE72..STD VL,GRAY |
1 | ||
| 71440-1307103 |
KE72..STD VL,GRAY,GRAY,TRIM1# |
1 | ||
| 71511S - PAD, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE) | ||||
| 71511-12290 |
AE70,KE7#,TE7#..SED,V |
1 | ||
| 71511-12291 |
AE70,CE7#,KE7#,TE74..(SED,V,WG)..(CTD,DX,GL,STD) |
1 | ||
| 71511-13010 |
CE7#,KE7# |
1 | ||
| 71512S - PAD, FRONT SEAT CUSHION, LH (FOR SEPARATE TYPE) | ||||
| 71511-12291 |
AE70,CE7#,KE7#,TE74..(SED,V,WG)..(CTD,DX,GL,STD) |
1 | ||
| 71511-12290 |
AE70,KE7#,TE7#..SED,V |
1 | ||
| 71511-13010 |
CE7#,KE7# |
1 | ||
| 71551S - PAD, FRONT SEAT BACK, RH(FOR SEPARATE TYPE) | ||||
| 71551-12280 |
AE70,KE7#,TE73..CTD,DX,STD |
1 | ||
| 71551-12281 |
AE70,CE7#,KE7#,TE74..(SED,V,WG)..(CTD,DX,STD) *HBS |
1 | ||
| 71551-12291 |
KE72..STD..05S |
1 | ||
| 71551-12291 |
AE70,CE7#,KE7#,TE74..(SED,V,WG)..(CTD,DX,STD) *HBS |
1 | ||
| 71552S - PAD, FRONT SEAT BACK, LH(FOR SEPARATE TYPE) | ||||
| 71551-12280 |
AE70,KE7#,TE73..CTD,DX,STD |
1 | ||
| 71551-12281 |
AE70,CE7#,KE7#,TE74..(SED,V,WG)..(CTD,DX,STD) *HBS |
1 | ||
| 71551-12291 |
AE70,CE7#,KE7#,TE74..(SED,V,WG)..(CTD,DX,STD) *HBS |
1 | ||
| 71551-12291 |
KE72..STD..05S *HBS |
1 | ||
| 71610S - SPRING ASSY, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE) | ||||
| 71610-12131 |
AE70,CE7#,KE7#,TE74..(SED,V,WG)..(CTD,DX,GL,STD,SX) |
1 | ||
| 71610-12130 |
AE70,KE7#,TE7#..SED,V |
1 | ||
| 71620S - SPRING ASSY, FRONT SEAT CUSHION, LH(FOR SEPARATE TYPE) | ||||
| 71620-12131 |
AE70,CE7#,KE7#,TE7#..SED,V,WG |
1 | ||
| 71620-12130 |
AE70,KE7#,TE7#..SED,V |
1 | ||
| 71630S - SPRING ASSY, FRONT SEAT BACK, RH(FOR SEPARATE TYPE) | ||||
| 71630-12170 |
AE70,KE7#,TE73..(SED,V)..(CTD,DX,STD) |
1 | ||
| 71630-10041 |
AE70,CE7#,KE7#,TE74..(SED,V,WG)..(CTD,DX,STD) *HBS |
1 | ||
| 71630-10041 |
KE72..STD..05S |
1 | ||
| 71640S - SPRING ASSY, FRONT SEAT BACK, LH(FOR SEPARATE TYPE) | ||||
| 71640-12160 |
AE70,KE7#,TE73..(SED,V)..(CTD,DX,STD) |
1 | ||
| 71640-10041 |
AE70,CE7#,KE7#,TE74..(SED,V,WG)..(CTD,DX,STD) *HBS |
1 | ||
| 71640-10041 |
KE72..STD..05S |
1 | ||
| 71812 - CLIP (FOR FRONT SEAT CUSHION COVER) | ||||
| 90468-18071 |
AE70,CE7#,KE7#,TE7# |
1 | ||
| 71812 - CLIP (FOR FRONT SEAT CUSHION COVER) | ||||
| 90468-18071 |
AE70,CE7#,KE7#,TE7# |
1 | ||
| 71812 - CLIP (FOR FRONT SEAT CUSHION COVER) | ||||
| 90468-18071 |
AE70,CE7#,KE7#,TE7# |
1 | ||
| 71812 - CLIP (FOR FRONT SEAT CUSHION COVER) | ||||
| 90468-18071 |
AE70,CE7#,KE7#,TE7# |
1 | ||
| 71812 - CLIP (FOR FRONT SEAT CUSHION COVER) | ||||
| 90468-18071 |
AE70,CE7#,KE7#,TE7# |
1 | ||
| Common parts | ||||
| 90386-12016 | ||||
| 90523-08001 | ||||
ILLUST NO. 2 OF 3(8508- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 72130 - TRACK ASSY, RH SEAT, INNER | ||||
| 72130-12120 |
AE70,KE7#,TE7# |
1 | ||
| 72130-12190 |
AE70,CE7#,KE7#,TE74..CTD,DX,GL,STD,SX W/O VERTICAL ADJUSTER |
1 | ||
| 72130-12290 |
KE72..STD..05S |
1 | ||
| 72130-12290 |
CE7#,KE7# |
1 | ||
| 72130 - TRACK ASSY, RH SEAT, INNER | ||||
| 72130-12120 |
AE70,KE7#,TE7# |
1 | ||
| 72130-12190 |
AE70,CE7#,KE7#,TE74..CTD,DX,GL,STD,SX W/O VERTICAL ADJUSTER |
1 | ||
| 72130-12290 |
KE72..STD..05S |
1 | ||
| 72130-12290 |
CE7#,KE7# |
1 | ||
| 72140 - TRACK ASSY, LH SEAT, INNER | ||||
| 72140-12280 |
CE7#,KE7#..4D |
1 | ||
| 72140-12100 |
AE70,KE7#,TE7#..4D |
1 | ||
| 72140-12280 |
KE72..STD..4D |
1 | ||
| 72140-12170 |
AE70,CE7#,KE7#,TE7#..4D |
1 | ||
| 72140 - TRACK ASSY, LH SEAT, INNER | ||||
| 72140-12280 |
CE7#,KE7#..4D |
1 | ||
| 72140-12100 |
AE70,KE7#,TE7#..4D |
1 | ||
| 72140-12280 |
KE72..STD..4D |
1 | ||
| 72140-12170 |
AE70,CE7#,KE7#,TE7#..4D |
1 | ||
| 72510 - ADJUSTER ASSY, RECLINING SEAT BACK, RH | ||||
| 72010-1222001 |
CE71,KE72,TE74 BLACK,BLACK,TRIM2# |
1 | ||
| 72010-1222003 |
CE71,KE72,74 GRAY,GRAY,TRIM1# |
1 | ||
| 72010-1215003 |
CE7#,KE7# GRAY,GRAY,TRIM1# |
1 | ||
| 72010-1215013 |
KE72..STD..05S GRAY,GRAY,TRIM1# |
1 | ||
| 72510 - ADJUSTER ASSY, RECLINING SEAT BACK, RH | ||||
| 72010-1222001 |
CE71,KE72,TE74 BLACK,BLACK,TRIM2# |
1 | ||
| 72010-1222003 |
CE71,KE72,74 GRAY,GRAY,TRIM1# |
1 | ||
| 72010-1215003 |
CE7#,KE7# GRAY,GRAY,TRIM1# |
1 | ||
| 72010-1215013 |
KE72..STD..05S GRAY,GRAY,TRIM1# |
1 | ||
| 72510A - SPRING, TENSION, NO.1(FOR RECLINING SEAT ADJUSTER) | ||||
| 90506-18015 |
AE70,CE7#,KE7#,TE7# |
2 | ||
| 72510A - SPRING, TENSION, NO.1(FOR RECLINING SEAT ADJUSTER) | ||||
| 90506-18015 |
AE70,CE7#,KE7#,TE7# |
2 | ||
| 72510A - SPRING, TENSION, NO.1(FOR RECLINING SEAT ADJUSTER) | ||||
| 90506-18015 |
AE70,CE7#,KE7#,TE7# |
2 | ||
| 72510A - SPRING, TENSION, NO.1(FOR RECLINING SEAT ADJUSTER) | ||||
| 90506-18015 |
AE70,CE7#,KE7#,TE7# |
2 | ||
| 72520 - ADJUSTER ASSY, RECLINING SEAT BACK, LH | ||||
| 72020-1221001 |
CE71,KE72,TE74..4D BLACK,BLACK,TRIM2# |
1 | ||
| 72020-1221003 |
CE71,KE72,74..4D GRAY,GRAY,TRIM1# |
1 | ||
| 72020-1221013 |
KE72..STD..4D GRAY,GRAY,TRIM1# |
1 | ||
| 72520 - ADJUSTER ASSY, RECLINING SEAT BACK, LH | ||||
| 72020-1221001 |
CE71,KE72,TE74..4D BLACK,BLACK,TRIM2# |
1 | ||
| 72020-1221003 |
CE71,KE72,74..4D GRAY,GRAY,TRIM1# |
1 | ||
| 72020-1221013 |
KE72..STD..4D GRAY,GRAY,TRIM1# |
1 | ||
| 72524 - HANDLE, RECLINING ADJUSTER RELEASE | ||||
| 72525-1208001 |
AE70,CE7#,KE7#,TE7# RH,BLACK,BLACK,TRIM2# |
1 | ||
| 72526-1202001 |
AE70,CE7#,KE7#,TE7# LH,BLACK,BLACK,TRIM2# |
2 | ||
| 72525-1208003 |
CE7#,KE7# RH,GRAY,GRAY,TRIM1# |
1 | ||
| 72526-1202013 |
CE7#,KE7# LH,GRAY,GRAY,TRIM1# |
1 | ||
| 72525-1208013 |
CE7#,KE7# RH,GRAY,GRAY,TRIM1# |
1 | ||
| 72526-1202003 |
CE7#,KE7# LH,GRAY,GRAY,TRIM1# |
1 | ||
| 72524 - HANDLE, RECLINING ADJUSTER RELEASE | ||||
| 72525-1208001 |
AE70,CE7#,KE7#,TE7# RH,BLACK,BLACK,TRIM2# |
1 | ||
| 72526-1202001 |
AE70,CE7#,KE7#,TE7# LH,BLACK,BLACK,TRIM2# |
2 | ||
| 72525-1208003 |
CE7#,KE7# RH,GRAY,GRAY,TRIM1# |
1 | ||
| 72526-1202013 |
CE7#,KE7# LH,GRAY,GRAY,TRIM1# |
1 | ||
| 72525-1208013 |
CE7#,KE7# RH,GRAY,GRAY,TRIM1# |
1 | ||
| 72526-1202003 |
CE7#,KE7# LH,GRAY,GRAY,TRIM1# |
1 | ||
| Common parts | ||||
| 90119-08174 | ||||
| 90119-10048 | ||||
| 90119-10136 | ||||
| 90119-10229 | ||||
| 90159-50070 | ||||
| 90168-40011 | ||||
| 91615-60820 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
