KE72V-EXKNS (1981)

Toyota Corolla

Production Aug 1981 - Jul 1987
Engine 4KJ
Transmission 4F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8108- )12TJ,4KJ,5KJ

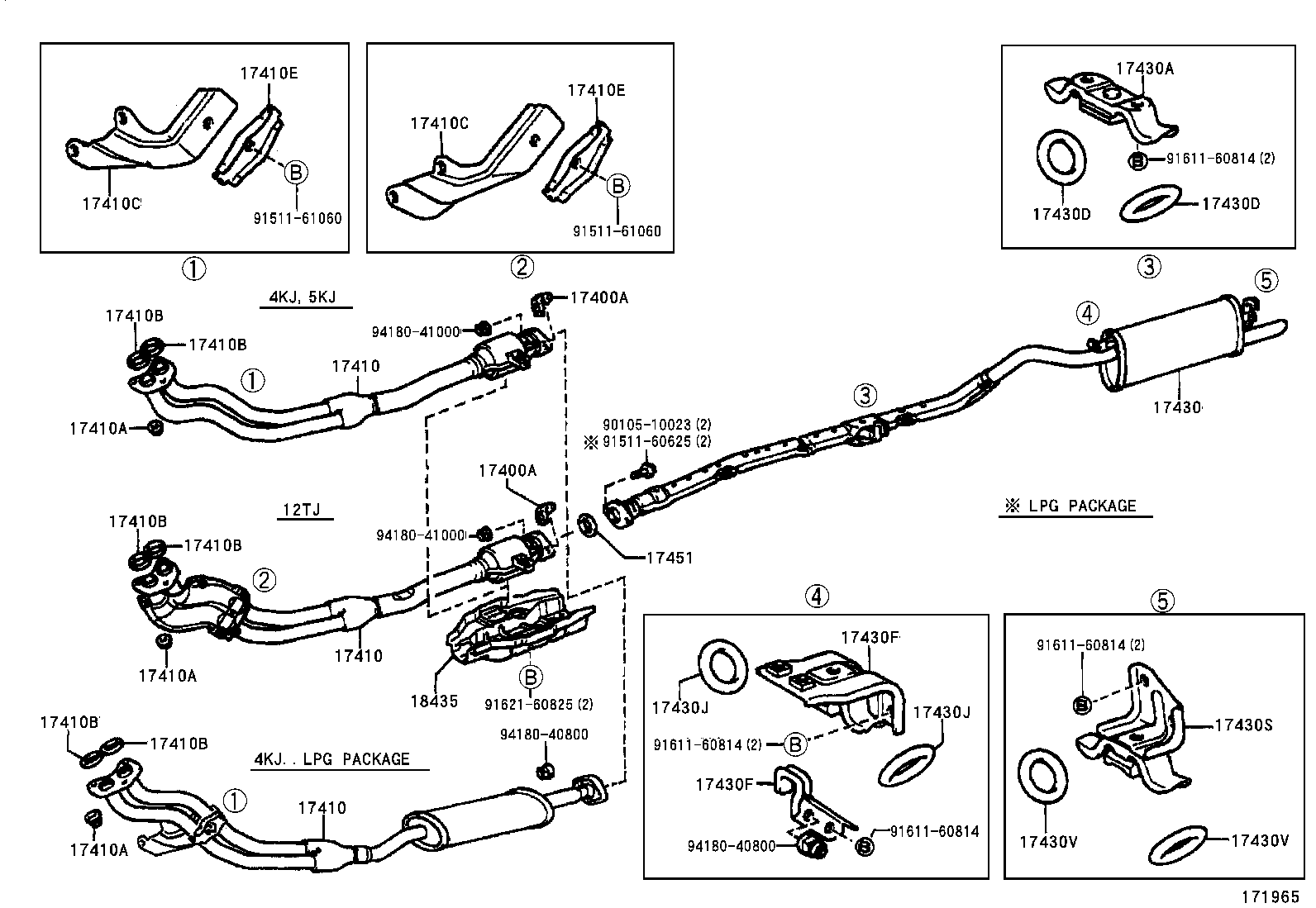

Click highlighted areas on diagram

diagram 17400A 17400A 17410 17410 17410 17410A 17410A 17410A 17410B 17410B 17410B 17410B 17410B 17410B 17410C 17410C 17410E 17410E 17430 17430A 17430D 17430D 17430F 17430F 17430J 17430J 17430S 17430V 17430V 17451 18435 9010510023 9151160625 9151161060 9151161060 9161160814 9161160814 9161160814 9161160814 9162160825 9418040800 9418040800 9418041000 9418041000
Part # Description Qty Price
17400A - FLANGE, THERMOSENSER INLET
18491-18010

12TJ,4KJ,5KJ..KE72,74,TE74

 1
17400A - FLANGE, THERMOSENSER INLET
18491-18010

12TJ,4KJ,5KJ..KE72,74,TE74

 1
17410 - PIPE ASSY, EXHAUST, FRONT
17410-13130

4KJ,5KJ..KE72,74

 1
17410-13131

4KJ,5KJ..KE72,74

 1
17410-13060

4KJ..KE72

LPG PACKAGE

 1
17410 - PIPE ASSY, EXHAUST, FRONT
17410-13130

4KJ,5KJ..KE72,74

 1
17410-13131

4KJ,5KJ..KE72,74

 1
17410-13060

4KJ..KE72

LPG PACKAGE

 1
17410 - PIPE ASSY, EXHAUST, FRONT
17410-13130

4KJ,5KJ..KE72,74

 1
17410-13131

4KJ,5KJ..KE72,74

 1
17410-13060

4KJ..KE72

LPG PACKAGE

 1
17410A - NUT, EXHAUST PIPE SET STUD BOLT
90179-10070

1C,4K#,5KJ..CE7#,KE7#

 3
90179-10010

12TJ,13TU,3AU,1C,4K#,5KJ,2TGEU..AE70,CE7#,KE7#,TE7#

 3
17410A - NUT, EXHAUST PIPE SET STUD BOLT
90179-10070

1C,4K#,5KJ..CE7#,KE7#

 3
90179-10010

12TJ,13TU,3AU,1C,4K#,5KJ,2TGEU..AE70,CE7#,KE7#,TE7#

 3
17410A - NUT, EXHAUST PIPE SET STUD BOLT
90179-10070

1C,4K#,5KJ..CE7#,KE7#

 3
90179-10010

12TJ,13TU,3AU,1C,4K#,5KJ,2TGEU..AE70,CE7#,KE7#,TE7#

 3
17410B - GASKET, EXHAUST PIPE
90917-06006

4KJ,5KJ..KE72,74

 2
90917-06006

4K#..KE7#

 2
17410B - GASKET, EXHAUST PIPE
90917-06006

4KJ,5KJ..KE72,74

 2
90917-06006

4K#..KE7#

 2
17410B - GASKET, EXHAUST PIPE
90917-06006

4KJ,5KJ..KE72,74

 2
90917-06006

4K#..KE7#

 2
17410B - GASKET, EXHAUST PIPE
90917-06006

4KJ,5KJ..KE72,74

 2
90917-06006

4K#..KE7#

 2
17410B - GASKET, EXHAUST PIPE
90917-06006

4KJ,5KJ..KE72,74

 2
90917-06006

4K#..KE7#

 2
17410B - GASKET, EXHAUST PIPE
90917-06006

4KJ,5KJ..KE72,74

 2
90917-06006

4K#..KE7#

 2
17410C - BRACKET, EXHAUST PIPE FRONT (FOR FRONT)
17571-13050

4KJ,5KJ..KE72,74

 1
17571-13050

4K#..KE7#

 1
17410C - BRACKET, EXHAUST PIPE FRONT (FOR FRONT)
17571-13050

4KJ,5KJ..KE72,74

 1
17571-13050

4K#..KE7#

 1
17430 - PIPE ASSY, EXHAUST, TAIL
17430-13120

12TJ,4KJ,5KJ..KE72,74,TE74

 1
17430-13080

4KJ..KE72

LPG PACKAGE

 1
17430-13121

4KJ,5KJ..KE72,74

 1
17430A - BRACKET, EXHAUST TAIL PIPE(FOR FRONT)
17506-13020

12TJ,13TU,3AU,1C,4K#,5KJ,2TGEU..AE70,CE7#,KE7#,TE7#

 1
17430F - BRACKET, EXHAUST TAIL PIPE(FOR CENTER)
17562-64050

1C,4K#,5KJ..CE7#,KE7#

LWR

 1
17507-24020

4K#,5KJ..KE7#

 1
17430F - BRACKET, EXHAUST TAIL PIPE(FOR CENTER)
17562-64050

1C,4K#,5KJ..CE7#,KE7#

LWR

 1
17507-24020

4K#,5KJ..KE7#

 1
17430J - BOLT OR RING, EXHAUST TAIL PIPE(FOR CENTER)
90301-34207

12TJ,13TU,3AU,1C,4K#,5KJ,2TGEU..AE70,CE7#,KE7#,TE7#

 2
17430J - BOLT OR RING, EXHAUST TAIL PIPE(FOR CENTER)
90301-34207

12TJ,13TU,3AU,1C,4K#,5KJ,2TGEU..AE70,CE7#,KE7#,TE7#

 2
17430V - BOLT OR RING, EXHAUST TAIL PIPE (FOR REAR)
90301-34207

12TJ,13TU,3AU,1C,4K#,5KJ,2TGEU..AE70,CE7#,KE7#,TE7#

 2
17430V - BOLT OR RING, EXHAUST TAIL PIPE (FOR REAR)
90301-34207

12TJ,13TU,3AU,1C,4K#,5KJ,2TGEU..AE70,CE7#,KE7#,TE7#

 2
17451 - GASKET, EXHAUST PIPE
90917-06026

4KJ..KE72

LPG PACKAGE

 1
90917-06012

4KJ,5KJ..KE72,74

 1
90917-06008

12TJ,4KJ,5KJ..KE72,74,TE74

 1
18435 - PROTECTOR, CATALYTIC CONVERTER
18407-27010

12TJ,4KJ,5KJ..KE72,74,TE74

 1
Common parts
90105-10023
91511-60625
91511-61060
91611-60814
91621-60825
94180-40800
94180-41000
