KE72V-EXKDS (1981)

Toyota Corolla

Production Aug 1981 - Jul 1987
Engine 4KJ
Transmission 4F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8108- )4KJ

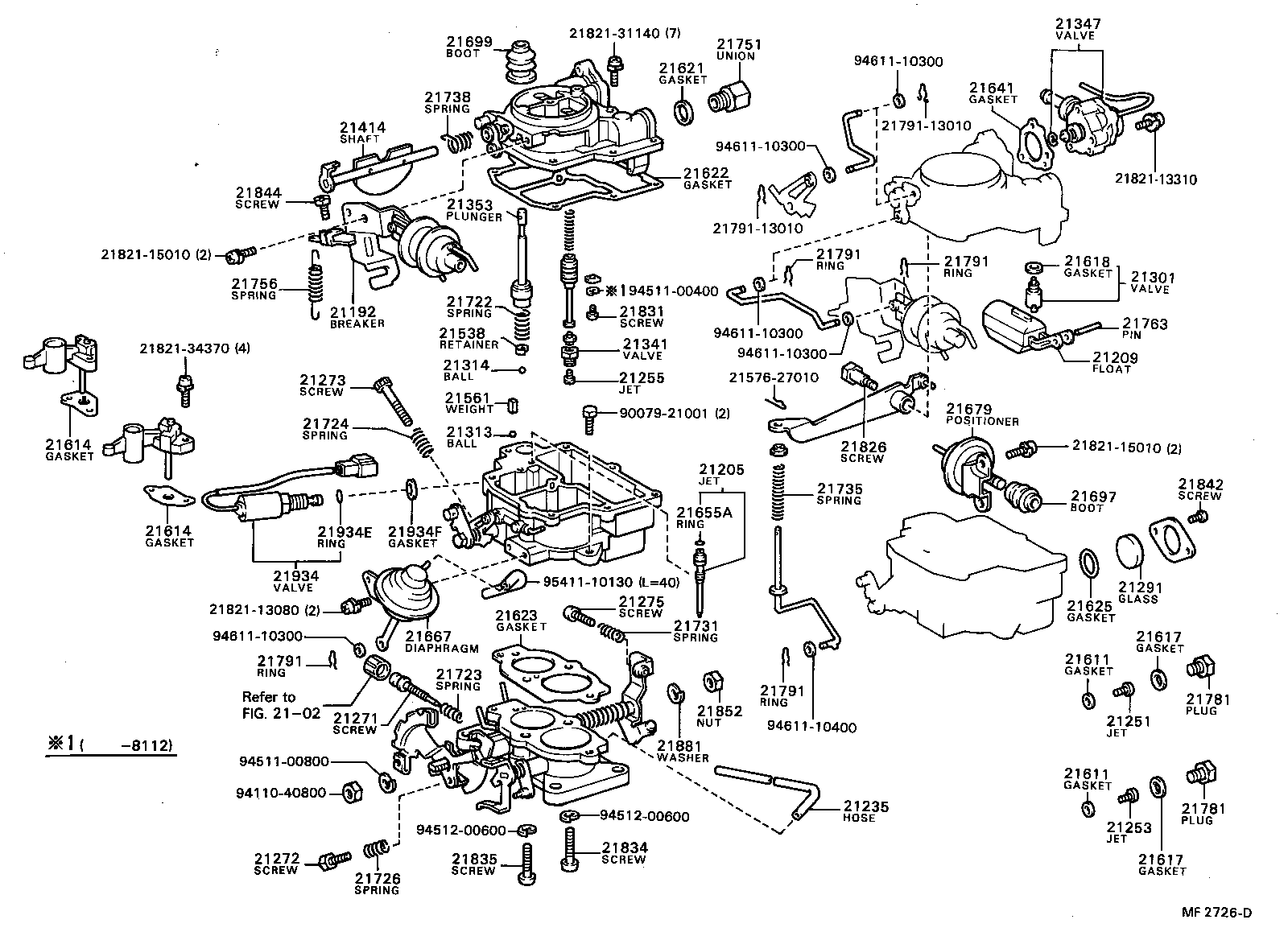

Click highlighted areas on diagram

diagram 2102 21192 21205 21209 21235 21251 21253 21255 21271 21272 21273 21275 21291 21301 21313 21314 21341 21347 21353 21414 21538 21561 2157627010 21611 21611 21614 21614 21617 21617 21618 21621 21622 21623 21625 21641 21655A 21667 21679 21697 21699 21722 21723 21724 21726 21731 21735 21738 21751 21756 21763 21781 21781 21791 21791 21791 21791 2179113010 2179113010 2182113080 2182113310 2182115010 2182115010 2182131140 2182134370 21826 21831 21834 21835 21842 21844 21852 21881 21934 21934E 21934F 9007921001 9411040800 9451100400 9451100800 9451200600 9451200600 9461110300 9461110300 9461110300 9461110300 9461110300 9461110400 9541110130
Part # Description Qty Price
21192 - BREAKER
21192-13080

4K#..KE7#

 1
21192-13080

4KU..KE70..3FC;4KJ,5KJ..KE72,74

 1
21205 - JET SUB-ASSY, SLOW
21205-13280

4K#..KE70,72,73..MTM

 1
21209 - FLOAT SUB-ASSY
21209-24480

4K#,5KJ..KE7#

 1
21235 - PIPE OR HOSE, CONNECTING
21235-13311

4KJ,5KJ..KE72,74

 1
21235-13310

4KJ..KE72

 1
21251 - JET, 1ST MAIN
90999-41104

4K#..KE7#..MTM

ID=1.04

 1
90999-41117

4KJ..KE72

ID=1.17

 1
21253 - JET, 2ND MAIN
90999-42165

4KJ..KE72

ID=1.65

 1
21255 - JET, POWER
90999-43050

4KJ..KE72

ID=0.50

 1
21271 - SCREW, IDLE ADJUSTING
21271-13270

4KJ,5KJ..KE72,74

 1
21271-13270

4K#..KE7#

 1
21271-24470

4K#..KE7#

 1
21272 - SCREW, 1ST IDLE ADJUSTING
21814-33010

4K#,5KJ..KE7#

 1
21273 - SCREW, THROTTLE ADJUSTING
21273-24230

4K#..KE7#

 1
21273-13390

4K#,5KJ..KE7#

 1
21275 - SCREW, ADJUSTING
21275-24360

4K#..KE7#

 1
21291 - GLASS, LEVEL GAGE
21291-34320

4K#,5KJ..KE7#

 1
21291-60200

4K#,5KJ..KE7#

 1
21301 - VALVE SUB-ASSY, NEEDLE
21301-13080

4K#,5KJ..KE7#

 1
21313 - BALL, STEEL, NO.1(FOR DISCHARGE WEIGHT)
21313-11020

4K#,5KJ..KE7#

 1
21314 - BALL, STEEL, NO.2(FOR PUMP PLUNGER)
21314-60010

4K#,5KJ..KE7#

 1
21341 - VALVE, POWER
21341-24230

4KJ..KE72

 1
21347 - VALVE, SOLENOID
21347-13310

4K#,5KJ..KE7#

 1
21353 - PLUNGER, PUMP
21305-22011

4KJ..KE72

 1
21305-22011

4K#..KE7#

 1
21414 - SHAFT, CHOKE
21054-13010

4K#,5KJ..KE7#

 1
21538 - RETAINER, BALL CHECK
21538-31010

4K#,5KJ..KE7#

 1
21561 - WEIGHT, PUMP DISCHARGE
21561-22010

4K#,5KJ..KE7#

 1
21611 - GASKET, MAIN JET
21611-22010

4K#,5KJ..KE7#

 2
21611 - GASKET, MAIN JET
21611-22010

4K#,5KJ..KE7#

 2
21614 - GASKET, VENTURI
21614-22010

4K#,5KJ..KE7#

1ST VENTURI

 1
21614-24360

4K#,5KJ..KE7#

2ND VENTURI

 1
21614 - GASKET, VENTURI
21614-22010

4K#,5KJ..KE7#

1ST VENTURI

 1
21614-24360

4K#,5KJ..KE7#

2ND VENTURI

 1
21617 - GASKET, MAIN PASSAGE PLUG
21617-30010

4K#,5KJ..KE7#

 2
21617 - GASKET, MAIN PASSAGE PLUG
21617-30010

4K#,5KJ..KE7#

 2
21621 - GASKET, UNION NIPPLE
21633-24030

4K#,5KJ..KE7#

 2
21622 - GASKET, AIR HORN
21622-24360

4K#..KE7#

 1
21622-13280

4K#,5KJ..KE7#

 1
21622-24360

4K#,5KJ..KE7#

 1
21623 - GASKET, BODY FLANGE
21623-13080

4K#..KE7#..MTM

 1
21623-13080

4K#,5KJ..KE7#

 1
21625 - GASKET, LEVEL GAGE
21655-60200

4K#,5KJ..KE7#

 1
21641 - GASKET(FOR THERMOSTATIC VALVE COVER)
21641-13310

4K#,5KJ..KE7#

 1
21655A - RING, O(FOR SLOW JET)
21655-44101

4K#,5KJ..KE7#

 1
21667 - DIAPHRAGM
21667-13290

4KJ,5KJ..KE72,74

 1
21679 - POSITIONER
21679-13290

4K#,5KJ..KE7#

 1
21697 - BOOT(FOR SLIDING ROD)
21699-41010

4K#,5KJ..KE7#

 1
21699 - BOOT(FOR PUMP PLUNGER)
21699-21061

4K#..KE7#

 1
21722 - SPRING, PUMP DAMPING
21722-22010

4K#,5KJ..KE7#

 1
21723 - SPRING, IDLE ADJUSTING
21723-21030

4K#,5KJ..KE7#

 1
21724 - SPRING, THROTTLE ADJUSTING
21864-24230

4K#,5KJ..KE7#

 1
21726 - SPRING, 1ST IDLE ADJUSTING
21726-40010

4K#,5KJ..KE7#

 1
21731 - SPRING, DASH POT OR POSITIONER ADJUSTING
21864-24010

4K#,5KJ..KE7#

 1
21735 - SPRING, PUMP ARM
21735-22010

4K#,5KJ..KE7#

 1
21738 - SPRING, CHOKE VALVE RELIEF
21738-13010

4KJ..KE72

 1
21751 - UNION, NIPPLE
21751-24034

4K#,5KJ..KE7#

 1
21751-24034

4K#..KE7#..MTM

 1
21756 - SPRING, BACK(FOR THROTTLE SHAFT)
21864-13290

4K#,5KJ..KE7#

 1
21763 - PIN, FLOAT LEVER
21763-38010

4K#,5KJ..KE7#

 1
21781 - PLUG, MAIN PASSAGE(FOR CARBURETOR JET)
21781-15230

4K#,5KJ..KE7#

 2
21781-30020

4K#..KE7#

 2
21781-15230

4K#..KE7#

 2
21781-30020

4K#..KE7#

 2
21781 - PLUG, MAIN PASSAGE(FOR CARBURETOR JET)
21781-15230

4K#,5KJ..KE7#

 2
21781-30020

4K#..KE7#

 2
21781-15230

4K#..KE7#

 2
21781-30020

4K#..KE7#

 2
21791 - RING, SNAP, NO.1(FOR CARBURETOR LINK)
21791-60010

4K#,5KJ..KE7#

 10
21791 - RING, SNAP, NO.1(FOR CARBURETOR LINK)
21791-60010

4K#,5KJ..KE7#

 10
21791 - RING, SNAP, NO.1(FOR CARBURETOR LINK)
21791-60010

4K#,5KJ..KE7#

 10
21791 - RING, SNAP, NO.1(FOR CARBURETOR LINK)
21791-60010

4K#,5KJ..KE7#

 10
21826 - SCREW, PUMP ARM SET
21826-24470

4K#,5KJ..KE7#

 1
21831 - SCREW, POWER PISTON STOP
21842-33010

4K#..KE7#

 1
21821-15060

4K#,5KJ..KE7#

 1
21842-33010

4K#..KE7#

 1
21834 - SCREW, SET, NO.2(FOR CARBURETOR BODY SET)
21834-31010

4K#,5KJ..KE7#

 1
21835 - SCREW, SET, NO.3(FOR CARBURETOR BODY SET)
21835-40010

4K#,5KJ..KE7#

 1
21842 - SCREW, SET(FOR CARBURETOR LEVEL GAGE CLAMP SET)
21842-33010

4K#,5KJ..KE7#

 2
21844 - SCREW, CHOKE LEVER
21844-24230

4K#,5KJ..KE7#

 1
21852 - NUT, THROTTLE LEVER SET
21852-30010

4K#,5KJ..KE7#

 1
21881 - WASHER, LOCK(FOR THROTTLE SHAFT)
21881-60010

4K#,5KJ..KE7#

 1
21934 - SOLENOID, THROTTLE VALVE
21062-24360

4K#..KE7#

 1
21062-13310

4KJ,5KJ..KE72,74

 1
21934E - RING, O(FOR SOLENOID VALVE)
21655-44101

4K#,5KJ..KE7#

 2
21934F - GASKET
21617-10010

4K#,5KJ..KE7#

 1
21649-38010

4K#,5KJ..KE7#

 1
Common parts
21576-27010
21791-13010
21821-13080
21821-13310
21821-15010
21821-31140
21821-34370
90079-21001
94110-40800
94511-00400
94511-00800
94512-00600
94611-10300
94611-10400
95411-10130
Linked diagrams
2102
