KE72V-EXKDS (1981)

Toyota Corolla

Production Aug 1981 - Jul 1987
Engine 4KJ
Transmission 4F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8108-8508)4KJ

Click highlighted areas on diagram

diagram 17303B 17303C 17303E 17303F 17303G 21381 23262 23265 23281 23285A 23288 23288 9041304005 9041304005 9046315002 9046400115 9046400115 9046400148 9092901001 9165140612 9541110030 9541110030 9541110030 9541110030 9541110130 9541110130 9541110230 9541110230 9541110330 9541110330 9541110430 9541110430 9541110430 9541110430 9541110430 9541110430 9541110630 9541110630 9541110730 9541110830 9541110830 9541110830 9541119930
Part # Description Qty Price
17303B - PIPE SUB-ASSY, AIR, NO.1
17303-13070

4KJ..KE72

 1
17303C - PIPE SUB-ASSY, AIR, NO.2
23818-13030

4K#,5KJ..KE7#

 1
17303E - HOSE, NO.1(FOR AIR PIPE)
90445-14084

4K#,5KJ..KE7#

 1
17303F - HOSE, NO.2(FOR AIR PIPE)
23829-13030

4K#,5KJ..KE7#

 1
23829-13031

4K#,5KJ..KE7#

 1
17303G - HOSE, NO.3(FOR AIR PIPE)
90910-05161

4K#,5KJ..KE7#

 1
21381 - BIMETAL, THERMOSTATIC
21381-13010

4K#..KE7#

 1
21381-13030

4K#,5KJ..KE7#

 1
23262 - VALVE, BIMETAL VACUUM SWITCHING, NO.1
25810-24010

4K#..KE70,72,73

 1
23265 - FILTER, GAS, NO.1
90917-11024

4K#,5KJ..KE7#

DENSO

 1
90917-11027

4K#,5KJ..KE7#

AISIN

 1
23281 - VALVE, VACUUM TRANSMITTING, NO.1
90925-01014

4K#,5KJ..KE7#

 1
23285A - VALVE, CHECK, NO.1
90917-10049

4K#,5KJ..KE7#

 2
23288 - JET, NO.1
90925-04005

4K#,5KJ..KE7#

BLUE

 1
90925-04006

4K#..KE70,72,73

YELLOW

 1
23288 - JET, NO.1
90925-04005

4K#,5KJ..KE7#

BLUE

 1
90925-04006

4K#..KE70,72,73

YELLOW

 1
Common parts
90413-04005
90463-15002
90464-00115
90464-00148
90929-01001
91651-40612
95411-10030
95411-10130
95411-10230
95411-10330
95411-10430
95411-10630
95411-10730
95411-10830
95411-19930

(8508- )4KJ

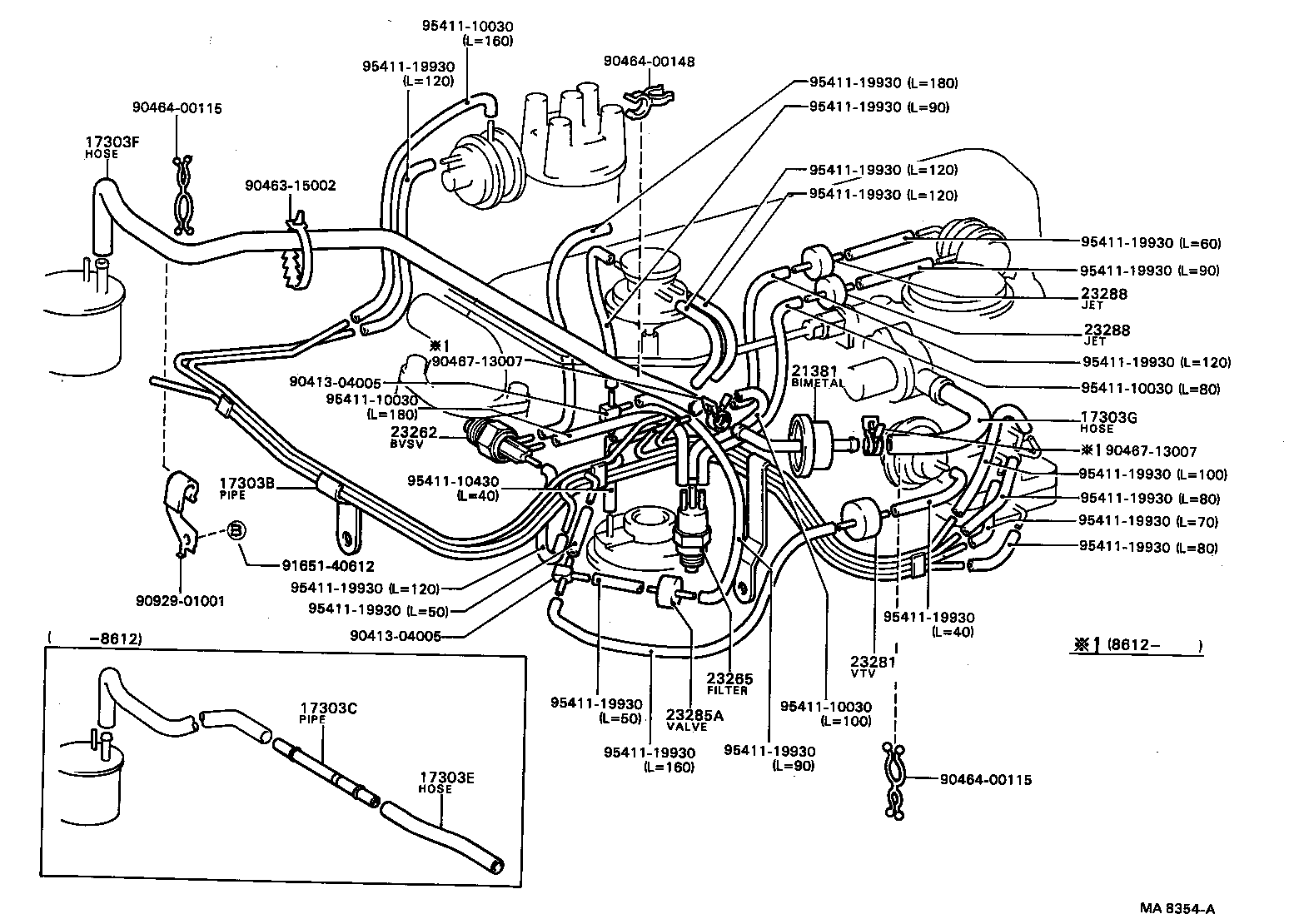

Click highlighted areas on diagram

diagram 17303B 17303C 17303E 17303F 17303G 21381 23262 23265 23281 23285A 23288 23288 9041304005 9041304005 9046315002 9046400115 9046400115 9046400148 9046713007 9046713007 9092901001 9165140612 9541110030 9541110030 9541110030 9541110030 9541110430 9541119930 9541119930 9541119930 9541119930 9541119930 9541119930 9541119930 9541119930 9541119930 9541119930 9541119930 9541119930 9541119930 9541119930 9541119930 9541119930 9541119930 9541119930
Part # Description Qty Price
17303B - PIPE SUB-ASSY, AIR, NO.1
17303-13070

4KJ..KE72

 1
17303C - PIPE SUB-ASSY, AIR, NO.2
23818-13030

4K#,5KJ..KE7#

 1
17303E - HOSE, NO.1(FOR AIR PIPE)
90445-14084

4K#,5KJ..KE7#

 1
17303F - HOSE, NO.2(FOR AIR PIPE)
23829-13030

4K#,5KJ..KE7#

 1
23829-13031

4K#,5KJ..KE7#

 1
17303G - HOSE, NO.3(FOR AIR PIPE)
90910-05161

4K#,5KJ..KE7#

 1
21381 - BIMETAL, THERMOSTATIC
21381-13010

4K#..KE7#

 1
21381-13030

4K#,5KJ..KE7#

 1
23262 - VALVE, BIMETAL VACUUM SWITCHING, NO.1
25810-24010

4K#..KE70,72,73

 1
23265 - FILTER, GAS, NO.1
90917-11024

4K#,5KJ..KE7#

DENSO

 1
90917-11027

4K#,5KJ..KE7#

AISIN

 1
23281 - VALVE, VACUUM TRANSMITTING, NO.1
90925-01014

4K#,5KJ..KE7#

 1
23285A - VALVE, CHECK, NO.1
90917-10049

4K#,5KJ..KE7#

 2
23288 - JET, NO.1
90925-04005

4K#,5KJ..KE7#

BLUE

 1
90925-04006

4K#..KE70,72,73

YELLOW

 1
23288 - JET, NO.1
90925-04005

4K#,5KJ..KE7#

BLUE

 1
90925-04006

4K#..KE70,72,73

YELLOW

 1
Common parts
90413-04005
90463-15002
90464-00115
90464-00148
90467-13007
90929-01001
91651-40612
95411-10030
95411-10430
95411-19930
