KE72V-EVKRS (1981)
Toyota Corolla
Production
Aug 1981
-
Jul 1987
Engine
4KJ
Transmission
4F MTM
Displacement
2500cc
Power
168 HP (125 kW)
(8108-8508)
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 53031 - HOUSING, HEADLAMP, RH | ||||
| 53131-12250 |
AE70,KE7#,TE73..(SED,V)..(CTD,DX,STD) |
1 | ||
| 53031A - PROTECTOR, HEADLAMP DOOR, RH | ||||
| 53169-12010 |
AE70,KE7#,TE7#..SED,V SIDE |
1 | ||
| 53139-12060 |
AE70,KE7#,TE7#..SED,V LWR |
1 | ||
| 53032 - HOUSING, HEADLAMP, LH | ||||
| 53132-12160 |
AE70,KE7#,TE73..(SED,V)..(CTD,DX,STD) |
1 | ||
| 53032A - PROTECTOR, HEADLAMP DOOR, LH | ||||
| 53139-12060 |
AE70,KE7#,TE7#..SED,V LWR |
1 | ||
| 53169-12010 |
AE70,KE7#,TE7#..SED,V SIDE |
1 | ||
| 53111 - GRILLE, RADIATOR | ||||
| 53111-12400 |
AE70,KE7#,TE73..(SED,V)..(CTD,DX,STD) |
1 | ||
| 53100-12140 |
CE71,KE72,TE74 |
1 | ||
| 53100-13010 |
CE7#,KE7#..DX,STD |
1 | ||
| 53100-13011 |
CE7#,KE7#..DX,STD |
1 | ||
| 53111 - GRILLE, RADIATOR | ||||
| 53111-12400 |
AE70,KE7#,TE73..(SED,V)..(CTD,DX,STD) |
1 | ||
| 53100-12140 |
CE71,KE72,TE74 |
1 | ||
| 53100-13010 |
CE7#,KE7#..DX,STD |
1 | ||
| 53100-13011 |
CE7#,KE7#..DX,STD |
1 | ||
| 53111 - GRILLE, RADIATOR | ||||
| 53111-12400 |
AE70,KE7#,TE73..(SED,V)..(CTD,DX,STD) |
1 | ||
| 53100-12140 |
CE71,KE72,TE74 |
1 | ||
| 53100-13010 |
CE7#,KE7#..DX,STD |
1 | ||
| 53100-13011 |
CE7#,KE7#..DX,STD |
1 | ||
| Common parts | ||||
| 90189-04008 | ||||
| 90467-12008 | ||||
| 90467-13005 | ||||
| 90467-13011 | ||||
| 93560-54016 | ||||

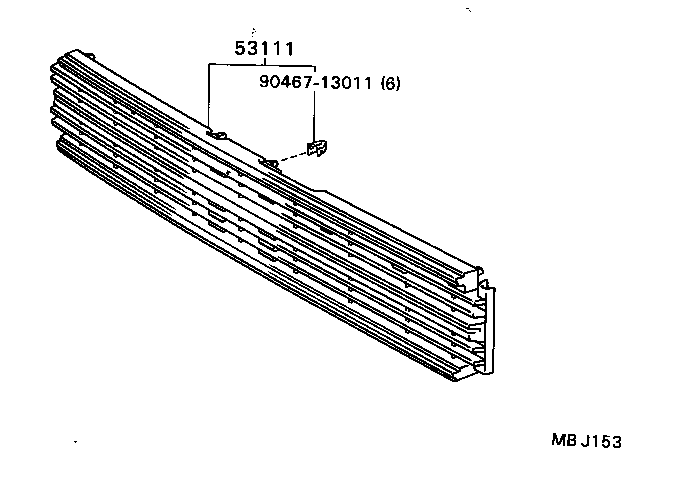

(8508- )
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 53111 - GRILLE, RADIATOR | ||||
| 53111-12400 |
AE70,KE7#,TE73..(SED,V)..(CTD,DX,STD) |
1 | ||
| 53100-12140 |
CE71,KE72,TE74 |
1 | ||
| 53100-13010 |
CE7#,KE7#..DX,STD |
1 | ||
| 53100-13011 |
CE7#,KE7#..DX,STD |
1 | ||
| Common parts | ||||
| 90467-13011 | ||||
