KE72V-EVKRS (1981)

Toyota Corolla

Production Aug 1981 - Jul 1987
Engine 4KJ
Transmission 4F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8108- )CTD,DX,STD

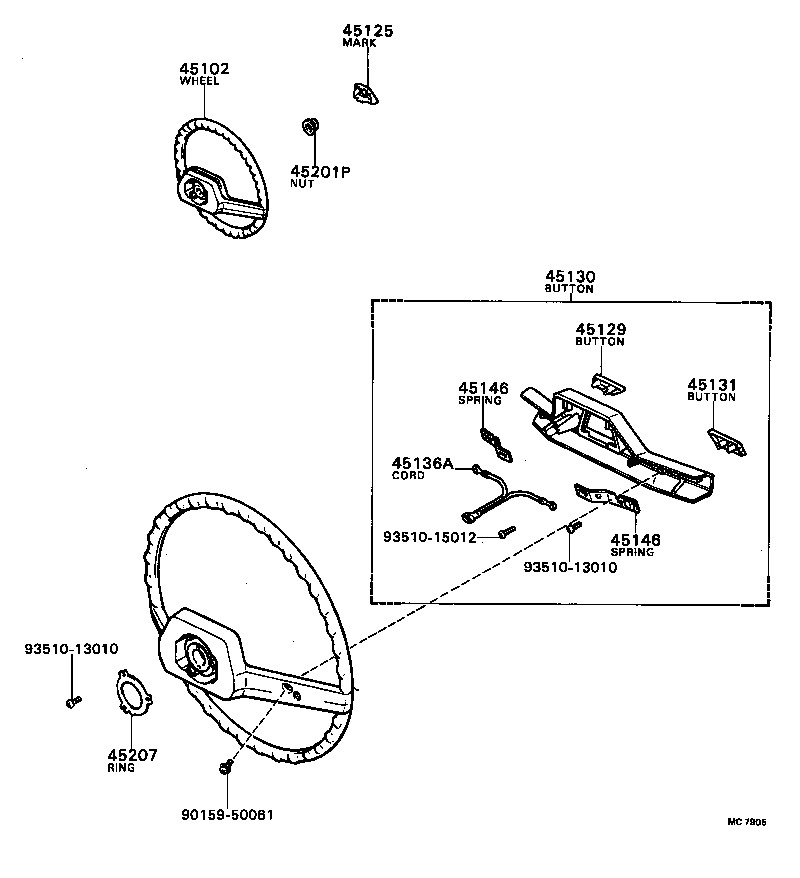

Click highlighted areas on diagram

diagram 45102 45125 45129 45130 45131 45136A 45146 45146 45201P 45207 9015950061 9351013010 9351013010 9351015012
Part # Description Qty Price
45102 - WHEEL SUB-ASSY, STEERING
45100-12121

AE70,KE7#,TE73..CTD,DX,STD

BLACK

 1
45100-12310

AE70,CE7#,KE7#,TE74..CTD,DX,STD

BLACK

 1
45100-1231103

CE7#,KE7#..DX,STD

GRAY,GRAY,TRIM1#

 1
45125 - MARK, STEERING WHEEL PAD
45125-12170

AE70,KE7#,TE73..CTD,DX,STD

BLACK

 1
45125-1228001

AE70,CE7#,KE7#,TE74..CTD,DX,STD

BLACK,BLACK,TRIM2#

 1
45129 - BUTTON, HORN, NO.2
45131-12061

AE70,KE7#,TE73..CTD,DX,STD

 1
45131-12170

AE70,CE7#,KE7#,TE74..CTD,DX,STD

 1
45131-12200

CE7#,KE7#..DX,STD

 1
45130 - BUTTON ASSY, HORN
45130-12111

AE70,KE7#,TE73..CTD,DX,STD

BLACK

 1
45130-1222103

CE7#,KE7#..DX,STD

GRAY,GRAY,TRIM1#

 1
45130-12220

AE70,CE7#,KE7#,TE74..CTD,DX,STD

BLACK

 1
45131 - BUTTON, HORN, NO.1
45129-12100

CE7#,KE7#..DX,STD

 1
45129-12020

AE70,KE7#,TE73..CTD,DX,STD

 1
45129-12070

AE70,CE7#,KE7#,TE74..CTD,DX,STD

 1
45136A - CORD(FOR HORN CONTACT RING)
90945-02061

AE70,CE7#,KE7#,TE74..CTD,DX,STD

 1
90945-02026

AE70,KE7#,TE7#..CTD,DX,GL,GT,LVN,SL,STD

 1
45146 - SPRING, HORN BUTTON CONTACT
45146-12021

AE70,KE7#,TE73..CTD,DX,STD

 2
45146-12080

AE70,CE7#,KE7#,TE74..CTD,DX,STD

 2
45146 - SPRING, HORN BUTTON CONTACT
45146-12021

AE70,KE7#,TE73..CTD,DX,STD

 2
45146-12080

AE70,CE7#,KE7#,TE74..CTD,DX,STD

 2
45201P - NUT, STEERING WHEEL SET
90179-12086

AE70,CE7#,KE7#,TE7#

 1
45207 - RING, HORN CONTACT
45176-20030

AE70,CE7#,KE7#,TE7#..CTD,DX,GL,GT,LVN,SL,STD

 1
Common parts
90159-50061
93510-13010
93510-15012
