KE71V-EXKRSW (1979)
Toyota Corolla
Production
Aug 1979
-
Aug 1981
Engine
4KJ
Transmission
4F MTM
Displacement
2500cc
Power
168 HP (125 kW)
(7903-8108)KE7#

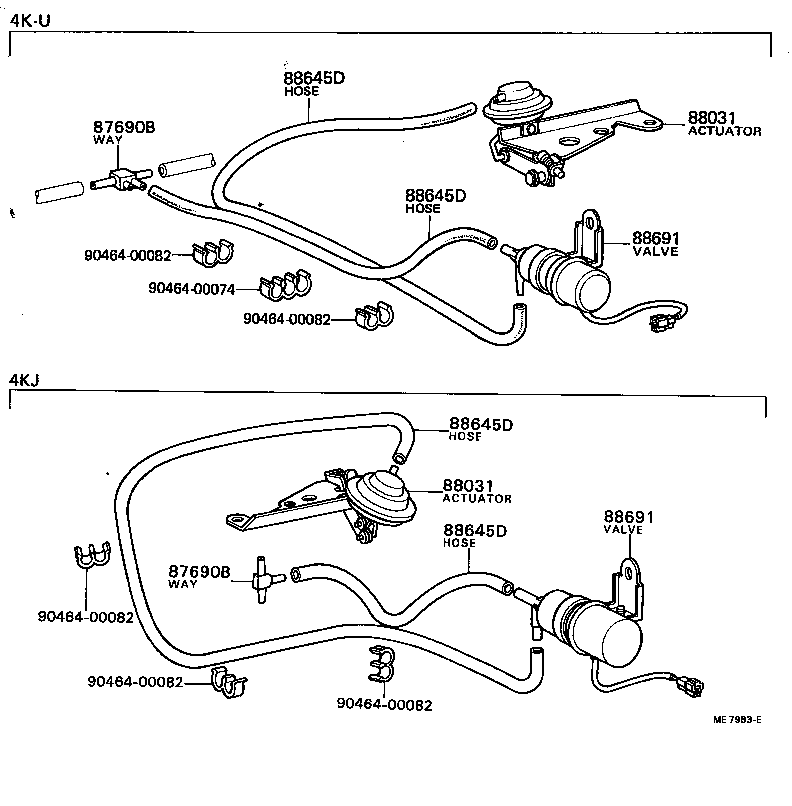

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 87690B - WAY, 3 | ||||
| 90413-04005 |
AE70,KE71 |
1 | ||
| 87690B - WAY, 3 | ||||
| 90413-04005 |
AE70,KE71 |
1 | ||
| 88031 - ACTUATOR SET, IDLE-UP | ||||
| 88031-12081 |
KE7# |
1 | ||
| 88031 - ACTUATOR SET, IDLE-UP | ||||
| 88031-12081 |
KE7# |
1 | ||
| 88645D - HOSE (FOR IDLE UP DEVICE) | ||||
| 95411-10030 |
KE71 *H,L=280,ﾏｰｸ=#0 |
1 | ||
| 95411-19960 |
KE71 *H,L=510,ﾏｰｸ=#* |
1 | ||
| 88645D - HOSE (FOR IDLE UP DEVICE) | ||||
| 95411-10030 |
KE71 *H,L=280,ﾏｰｸ=#0 |
1 | ||
| 95411-19960 |
KE71 *H,L=510,ﾏｰｸ=#* |
1 | ||
| 88645D - HOSE (FOR IDLE UP DEVICE) | ||||
| 95411-10030 |
KE71 *H,L=280,ﾏｰｸ=#0 |
1 | ||
| 95411-19960 |
KE71 *H,L=510,ﾏｰｸ=#* |
1 | ||
| 88645D - HOSE (FOR IDLE UP DEVICE) | ||||
| 95411-10030 |
KE71 *H,L=280,ﾏｰｸ=#0 |
1 | ||
| 95411-19960 |
KE71 *H,L=510,ﾏｰｸ=#* |
1 | ||
| 88691 - VALVE, MAGNET (FOR IDLE UP DEVICE) | ||||
| 88690-12150 |
KE7# |
1 | ||
| 88691 - VALVE, MAGNET (FOR IDLE UP DEVICE) | ||||
| 88690-12150 |
KE7# |
1 | ||
| Common parts | ||||
| 90464-00074 | ||||
| 90464-00082 | ||||
