KE71V-EXKRSW (1979)
Toyota Corolla
Production
Aug 1979
-
Aug 1981
Engine
4KJ
Transmission
4F MTM
Displacement
2500cc
Power
168 HP (125 kW)
(7903-8308)4K#

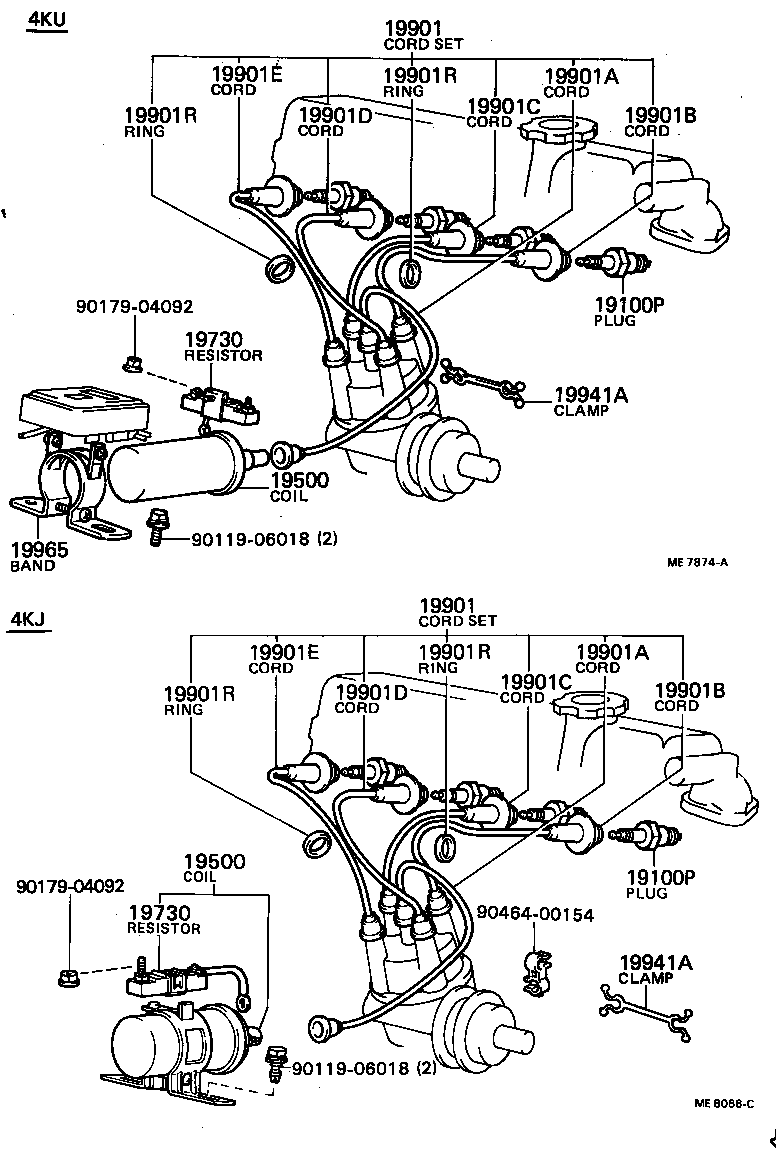

Click highlighted areas on diagram
ME7874A,ME8066C
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 19100P - PLUG, SPARK | ||||
| 90919-01059 |
4KJ..KE71 W16EX−U,W16EX-U |
4 | ||
| 19100P - PLUG, SPARK | ||||
| 90919-01059 |
4KJ..KE71 W16EX−U,W16EX-U |
4 | ||
| 19500 - COIL ASSY, IGNITION | ||||
| 90919-02098 |
4KJ..KE71 |
1 | ||
| 19500 - COIL ASSY, IGNITION | ||||
| 90919-02098 |
4KJ..KE71 |
1 | ||
| 19730 - RESISTOR, IGNITION COIL | ||||
| 90919-04027 |
4KJ..KE71 |
1 | ||
| 90919-04027 |
4KJ..KE71 |
1 | ||
| 19730 - RESISTOR, IGNITION COIL | ||||
| 90919-04027 |
4KJ..KE71 |
1 | ||
| 90919-04027 |
4KJ..KE71 |
1 | ||
| 19901 - CORD SET, COIL & SPARK, W/RESISTIVE | ||||
| 90919-21070 |
4K#,5KJ..KE7# |
1 | ||
| 19901 - CORD SET, COIL & SPARK, W/RESISTIVE | ||||
| 90919-21070 |
4K#,5KJ..KE7# |
1 | ||
| 19901A - CORD, COIL RESISTIVE | ||||
| 90919-13048 |
4K#,5KJ..KE7# |
1 | ||
| 19901A - CORD, COIL RESISTIVE | ||||
| 90919-13048 |
4K#,5KJ..KE7# |
1 | ||
| 19901B - CORD, SPARK PLUG RESISTIVE, NO.1 | ||||
| 90919-12084 |
4K#,5KJ..KE7# |
1 | ||
| 19901B - CORD, SPARK PLUG RESISTIVE, NO.1 | ||||
| 90919-12084 |
4K#,5KJ..KE7# |
1 | ||
| 19901C - CORD, SPARK PLUG RESISTIVE, NO.2 | ||||
| 90919-12083 |
4K#,5KJ..KE7# |
1 | ||
| 19901C - CORD, SPARK PLUG RESISTIVE, NO.2 | ||||
| 90919-12083 |
4K#,5KJ..KE7# |
1 | ||
| 19901D - CORD, SPARK PLUG RESISTIVE, NO.3 | ||||
| 90919-12083 |
4K#,5KJ..KE7# |
1 | ||
| 19901D - CORD, SPARK PLUG RESISTIVE, NO.3 | ||||
| 90919-12083 |
4K#,5KJ..KE7# |
1 | ||
| 19901E - CORD, SPARK PLUG RESISTIVE, NO.4 | ||||
| 90919-12084 |
4K#,5KJ..KE7# |
1 | ||
| 19901E - CORD, SPARK PLUG RESISTIVE, NO.4 | ||||
| 90919-12084 |
4K#,5KJ..KE7# |
1 | ||
| 19901R - RING, RUBBER SPARK PLUG RESISTIVE CORD | ||||
| 90202-11067 |
4K#,5KJ..KE7# |
2 | ||
| 19901R - RING, RUBBER SPARK PLUG RESISTIVE CORD | ||||
| 90202-11067 |
4K#,5KJ..KE7# |
2 | ||
| 19901R - RING, RUBBER SPARK PLUG RESISTIVE CORD | ||||
| 90202-11067 |
4K#,5KJ..KE7# |
2 | ||
| 19901R - RING, RUBBER SPARK PLUG RESISTIVE CORD | ||||
| 90202-11067 |
4K#,5KJ..KE7# |
2 | ||
| 19941A - CLAMP(FOR RESISTIVE CORD) | ||||
| 90464-00073 |
4K#,5KJ..KE7# |
1 | ||
| 19941A - CLAMP(FOR RESISTIVE CORD) | ||||
| 90464-00073 |
4K#,5KJ..KE7# |
1 | ||
| Common parts | ||||
| 90119-06018 | ||||
| 90179-04092 | ||||
| 90464-00154 | ||||
