KE71V-EXKNSW (1979)
Toyota Corolla
Production
Aug 1979
-
Aug 1981
Engine
4KJ
Transmission
4F MTM
Displacement
2500cc
Power
168 HP (125 kW)
(7908-8108)KE71

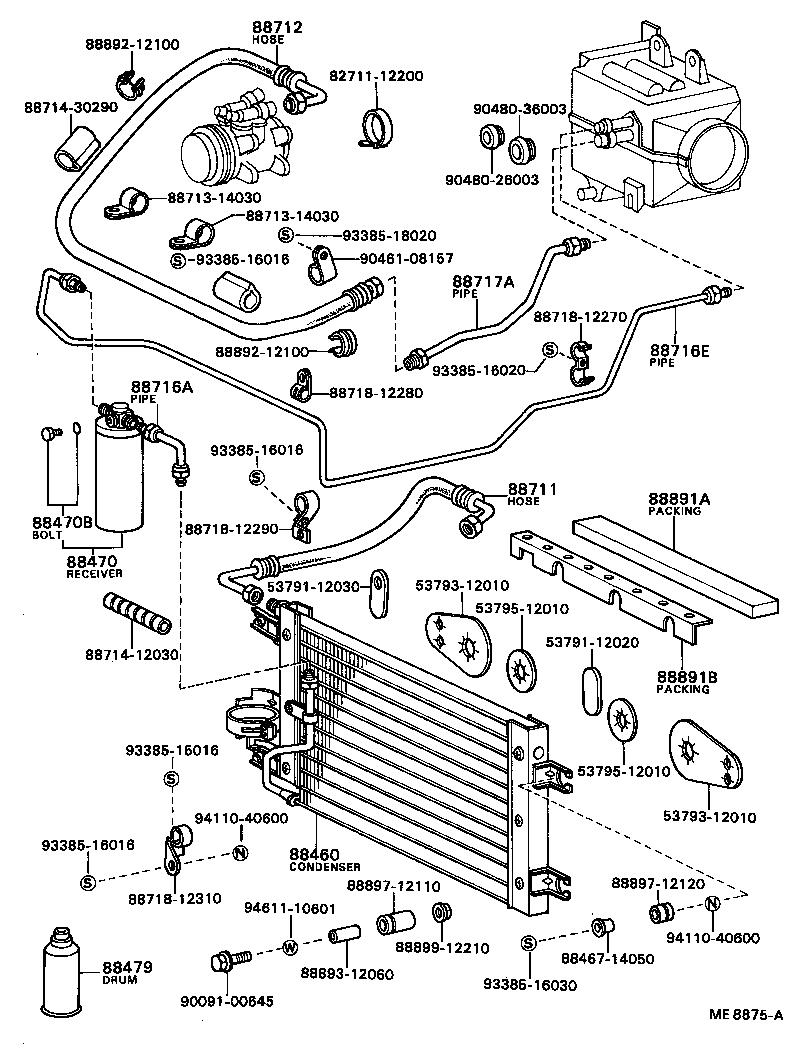

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 88460 - CONDENSER ASSY, COOLER | ||||
| 88460-12120 |
KE71,TE70,73 |
1 | ||
| 88470 - RECEIVER & DRYER ASSY, COOLER | ||||
| 88470-12050 |
KE71,TE7# |
1 | ||
| 88470B - BOLT, FUSE | ||||
| 90099-04579 |
AE70,CE7#,KE7#,TE7# |
1 | ||
| 88479 - FREON GAS, AIR CONDITIONER (DRUM, COOLER REFRIGERANT) | ||||
| 90986-02001 |
AE70,CE7#,KE7#,TE7# 400G |
2 | ||
| 88711 - HOSE, COOLER REFRIGERANT DISCHARGE, NO.1 | ||||
| 88711-12190 |
KE71 |
1 | ||
| 88712 - HOSE, COOLER REFRIGERANT SUCTION, NO.1 | ||||
| 88712-12320 |
KE71 |
1 | ||
| 88716A - PIPE, COOLER REFRIGERANT LIQUID, A | ||||
| 88716-12420 |
AE70,KE71,TE7# |
1 | ||
| 88716E - PIPE, COOLER REFRIGERANT LIQUID, E | ||||
| 88716-12450 |
KE71,TE7# |
1 | ||
| 88717A - PIPE, COOLER REFRIGERANT SUCTION, A | ||||
| 88717-12130 |
KE71 |
1 | ||
| 88891A - PACKING A (FOR COOLER) | ||||
| 53291-12030 |
KE7# |
1 | ||
| Common parts | ||||
| 53791-12020 | ||||
| 53791-12030 | ||||
| 53793-12010 | ||||
| 53795-12010 | ||||
| 82711-12200 | ||||
| 88467-14050 | ||||
| 88713-14030 | ||||
| 88714-12030 | ||||
| 88714-30290 | ||||
| 88718-12270 | ||||
| 88718-12280 | ||||
| 88718-12290 | ||||
| 88718-12310 | ||||
| 88892-12100 | ||||
| 88893-12060 | ||||
| 88897-12110 | ||||
| 88897-12120 | ||||
| 88899-12210 | ||||
| 90091-00645 | ||||
| 90461-08157 | ||||
| 90480-26003 | ||||
| 90480-36003 | ||||
| 93385-15016 | ||||
| 93385-16016 | ||||
| 93385-16020 | ||||
| 93385-16030 | ||||
| 93385-18020 | ||||
| 94110-40600 | ||||
| 94611-10601 | ||||
