KE71V-EXKNSW (1979)

Toyota Corolla

Production Aug 1979 - Aug 1981
Engine 4KJ
Transmission 4F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(7908- )CE71,72,KE71,72,73,74,TE73,74

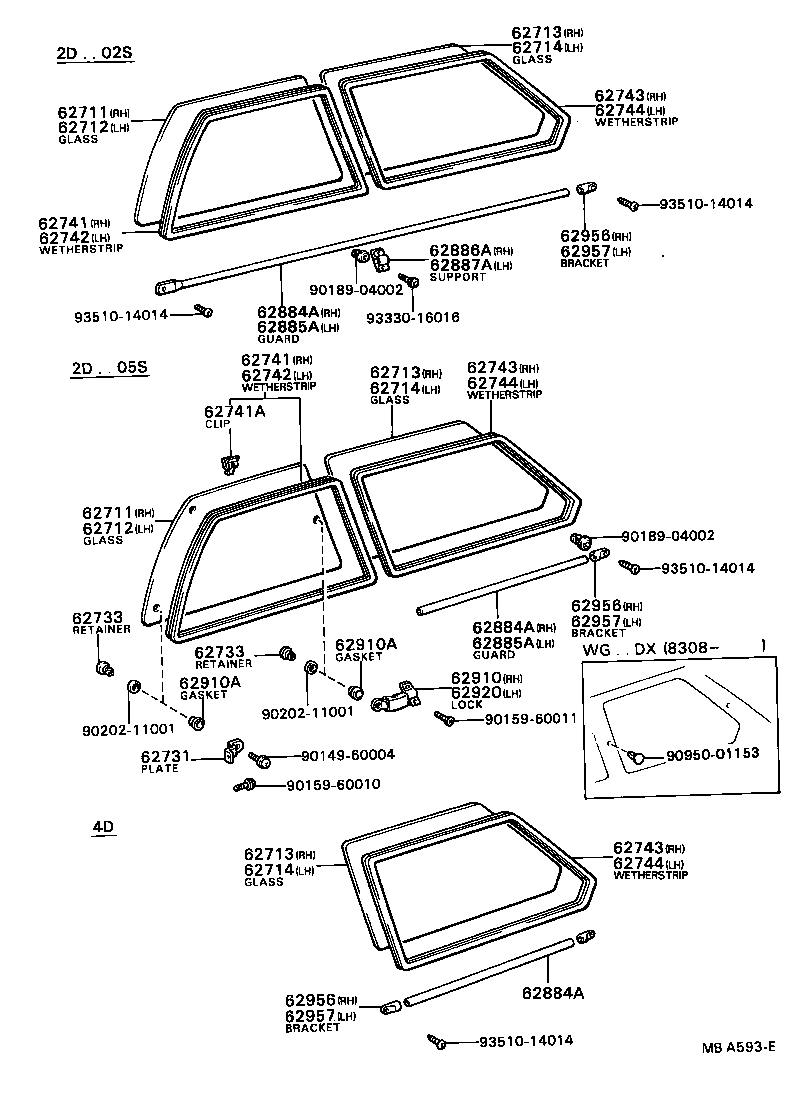

Click highlighted areas on diagram

diagram 62711 62711 62712 62712 62713 62713 62713 62714 62714 62714 62731 62733 62733 62741 62741 62741A 62742 62742 62743 62743 62743 62744 62744 62744 62884A 62884A 62884A 62885A 62885A 62886A 62887A 62910 62910A 62910A 62920 62956 62956 62956 62957 62957 62957 9014960004 9015960010 9015960011 9018904002 9018904002 9020211001 9020211001 9095001153 9333016016 9351014014 9351014014 9351014014 9351014014
Part # Description Qty Price
62713 - GLASS, QUARTER WINDOW, REAR RH
62713-13090

KE71,TE73

*TEM,T=4.0

 1
62713 - GLASS, QUARTER WINDOW, REAR RH
62713-13090

KE71,TE73

*TEM,T=4.0

 1
62713 - GLASS, QUARTER WINDOW, REAR RH
62713-13090

KE71,TE73

*TEM,T=4.0

 1
62714 - GLASS, QUARTER WINDOW, REAR LH
62714-13090

KE71,TE73

*TEM,T=4.0

 1
62714 - GLASS, QUARTER WINDOW, REAR LH
62714-13090

KE71,TE73

*TEM,T=4.0

 1
62714 - GLASS, QUARTER WINDOW, REAR LH
62714-13090

KE71,TE73

*TEM,T=4.0

 1
62884A - GUARD, QUARTER WINDOW, RH
62884-13030

KE71,TE73..4D

 1
62884A - GUARD, QUARTER WINDOW, RH
62884-13030

KE71,TE73..4D

 1
62884A - GUARD, QUARTER WINDOW, RH
62884-13030

KE71,TE73..4D

 1
62885A - GUARD, QUARTER WINDOW, LH
62884-13030

KE71,TE73..4D

 1
62885A - GUARD, QUARTER WINDOW, LH
62884-13030

KE71,TE73..4D

 1
62956 - BRACKET, GUARD PIPE QUARTER WINDOW, FRONT RH
62881-13030

KE71,TE73

 1
62956 - BRACKET, GUARD PIPE QUARTER WINDOW, FRONT RH
62881-13030

KE71,TE73

 1
62956 - BRACKET, GUARD PIPE QUARTER WINDOW, FRONT RH
62881-13030

KE71,TE73

 1
62957 - BRACKET, GUARD PIPE QUARTER WINDOW, FRONT LH
62881-13030

KE71,TE73

 1
62957 - BRACKET, GUARD PIPE QUARTER WINDOW, FRONT LH
62881-13030

KE71,TE73

 1
62957 - BRACKET, GUARD PIPE QUARTER WINDOW, FRONT LH
62881-13030

KE71,TE73

 1
Common parts
90149-60004
90159-60010
90159-60011
90189-04002
90202-11001
90950-01153
93330-16016
93510-14014
