KE71V-EXKNSW (1979)
Toyota Corolla
(7903-8304)AE70,CE70,KE70,TE70,71
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 48257 - INSULATOR, REAR COIL SPRING | ||||
| 48257-12020 |
AE70,CE70,KE70,TE70,71 |
2 | ||
| 48257A - INSULATOR, REAR COIL SPRING, LOWER | ||||
| 48258-12010 |
AE70,CE70,KE70,TE70,71 |
2 | ||
| 48306 - BUMPER SUB-ASSY, REAR SPRING | ||||
| 48341-19025 |
KE71,TE73 |
2 | ||
| 48306-14030 |
AE70,CE70,KE70,TE70,71 |
2 | ||
| 48530 - ABSORBER ASSY, SHOCK, REAR RH | ||||
| 48531-19635 |
KE71,TE73 |
1 | ||
| 48530A - BUSH(FOR REAR SHOCK ABSORBER) | ||||
| 90385-16001 |
AE70,CE7#,KE7#,TE7# |
2 | ||
| 48530B - WASHER, REAR SHOCK ABSORBER CUSHION, NO.1 | ||||
| 90948-02002 |
AE70,CE7#,KE7#,TE7# |
4 | ||
| 48530B - WASHER, REAR SHOCK ABSORBER CUSHION, NO.1 | ||||
| 90948-02002 |
AE70,CE7#,KE7#,TE7# |
4 | ||
| 48530C - WASHER, REAR SHOCK ABSORBER CUSHION, NO.2 | ||||
| 90948-02007 |
AE70,CE7#,KE7#,TE7# |
2 | ||
| 48530D - WASHER, REAR SHOCK ABSORBER CUSHION, NO.3 | ||||
| 90948-03012 |
AE70,KE7#,TE7# |
2 | ||
| 48530E - WASHER, REAR SHOCK ABSORBER CUSHION, NO.4 | ||||
| 90948-03004 |
AE70,CE7#,KE7#,TE7# |
2 | ||
| 48530G - CUSHION, REAR SHOCK ABSORBER, NO.1 | ||||
| 90948-01018 |
AE70,KE70,TE70,71 |
4 | ||
| 90948-01003 |
AE70,KE7#,TE7# |
4 | ||
| 48530G - CUSHION, REAR SHOCK ABSORBER, NO.1 | ||||
| 90948-01018 |
AE70,KE70,TE70,71 |
4 | ||
| 90948-01003 |
AE70,KE7#,TE7# |
4 | ||
| 48540 - ABSORBER ASSY, SHOCK, REAR LH | ||||
| 48531-19635 |
KE71,TE73 |
1 | ||
| 48715A - BOLT, HEXAGON(FOR UPPER CONTROL ARM) | ||||
| 90101-12044 |
AE70,CE70,KE70,TE70,71 L=77 |
2 | ||
| 90101-12045 |
AE70,CE70,KE70,TE70,71 L=149 |
2 | ||
| 48715A - BOLT, HEXAGON(FOR UPPER CONTROL ARM) | ||||
| 90101-12044 |
AE70,CE70,KE70,TE70,71 L=77 |
2 | ||
| 90101-12045 |
AE70,CE70,KE70,TE70,71 L=149 |
2 | ||
| 48720 - ARM ASSY, LOWER CONTROL, RH | ||||
| 48720-12020 |
AE70,CE70,KE70,TE70,71 |
1 | ||
| 48725A - BOLT(FOR LOWER CONTROL ARM) | ||||
| 90101-12044 |
AE70,CE70,KE70,TE70,71 |
4 | ||
| 48730 - ARM ASSY, LOWER CONTROL, LH | ||||
| 48720-12020 |
AE70,CE70,KE70,TE70,71 |
1 | ||
| 48740 - ROD ASSY, REAR LATERAL CONTROL | ||||
| 48740-12010 |
AE70,KE70,TE70,71 |
1 | ||
| 48745 - BUSH, LATERAL CONTROL ROD | ||||
| 48706-14010 |
AE70,CE70,KE70,TE70,71 ROD X BODY |
1 | ||
| 90385-20001 |
AE70,CE70,KE70,TE70,71 L=15,ROD X HOUSING |
2 | ||
| 90386-20001 |
AE70,CE70,KE70,TE70,71 L=12,ROD X HOUSING |
1 | ||
| 48745 - BUSH, LATERAL CONTROL ROD | ||||
| 48706-14010 |
AE70,CE70,KE70,TE70,71 ROD X BODY |
1 | ||
| 90385-20001 |
AE70,CE70,KE70,TE70,71 L=15,ROD X HOUSING |
2 | ||
| 90386-20001 |
AE70,CE70,KE70,TE70,71 L=12,ROD X HOUSING |
1 | ||
| 48745 - BUSH, LATERAL CONTROL ROD | ||||
| 48706-14010 |
AE70,CE70,KE70,TE70,71 ROD X BODY |
1 | ||
| 90385-20001 |
AE70,CE70,KE70,TE70,71 L=15,ROD X HOUSING |
2 | ||
| 90386-20001 |
AE70,CE70,KE70,TE70,71 L=12,ROD X HOUSING |
1 | ||
| 48745 - BUSH, LATERAL CONTROL ROD | ||||
| 48706-14010 |
AE70,CE70,KE70,TE70,71 ROD X BODY |
1 | ||
| 90385-20001 |
AE70,CE70,KE70,TE70,71 L=15,ROD X HOUSING |
2 | ||
| 90386-20001 |
AE70,CE70,KE70,TE70,71 L=12,ROD X HOUSING |
1 | ||
| 48745A - BOLT, HEXAGON(FOR LATERAL CONTROL ROD) | ||||
| 90101-12032 |
AE70,CE70,KE70,TE70,71 |
1 | ||
| 48745B - WASHER, LATERAL CONTROL ROD CUSHION | ||||
| 90201-12010 |
AE70,CE70,KE70,TE70,71 |
1 | ||
| 48745C - WASHER, LATERAL CONTROL ROD CUSHION | ||||
| 94612-12000 |
AE70,CE70,KE70,TE70,71 |
1 | ||
| Common parts | ||||
| 90102-10015 | ||||
| 90170-12005 | ||||
| 91121-41045 | ||||
| 91165-71230 | ||||
| 91611-40814 | ||||
| 91611-61016 | ||||
| 91611-61020 | ||||
| 91615-61230 | ||||
| 94110-41000 | ||||
| 94141-41000 | ||||
| 94182-10800 | ||||
| 94182-11000 | ||||
| 94183-60800 | ||||
| 94184-61200 | ||||
| 94512-01200 | ||||
| 94531-01200 | ||||
| 95381-02525 | ||||

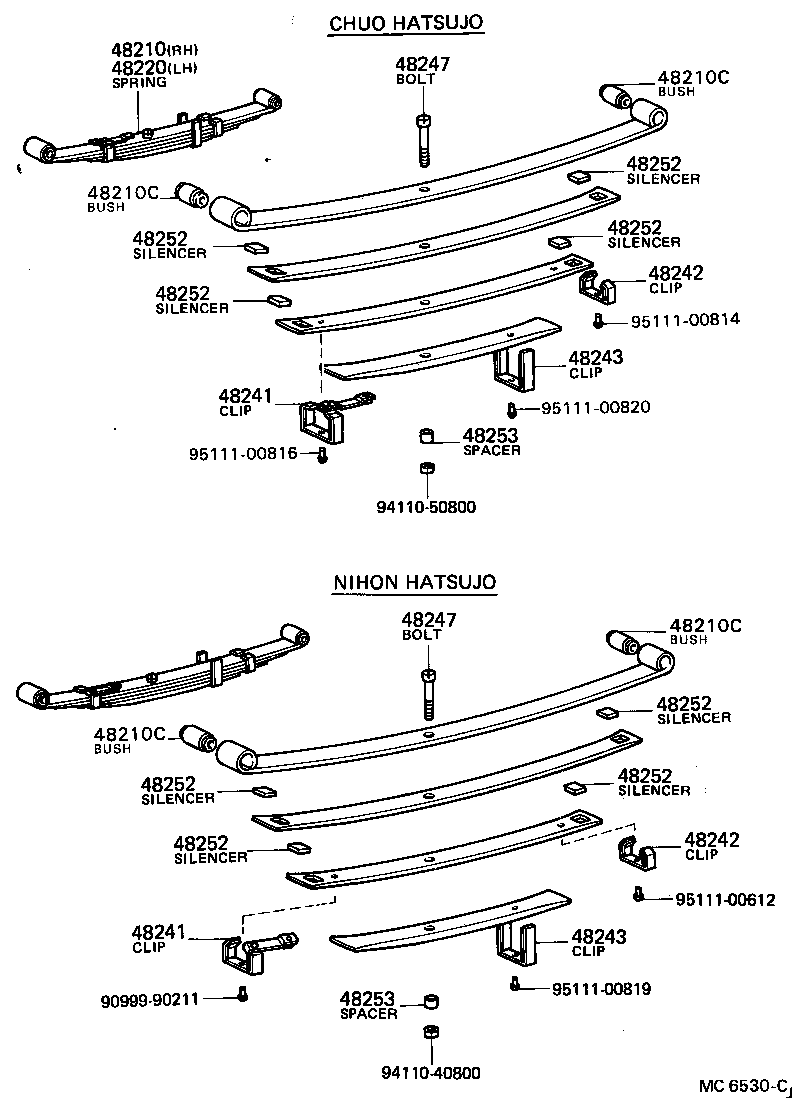

ILLUST NO. 2 OF 2(7908- )CE71,KE71,72,74,TE73,74
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 48210 - SPRING ASSY, REAR RH | ||||
| 48210-13150 |
KE71,TE73 |
1 | ||
| 48220 - SPRING ASSY, REAR LH | ||||
| 48210-13150 |
KE71,TE73 |
1 | ||
| Common parts | ||||
| 90999-90211 | ||||
| 94110-40800 | ||||
| 94110-50800 | ||||
| 95111-00612 | ||||
| 95111-00814 | ||||
| 95111-00816 | ||||
| 95111-00819 | ||||
| 95111-00820 | ||||

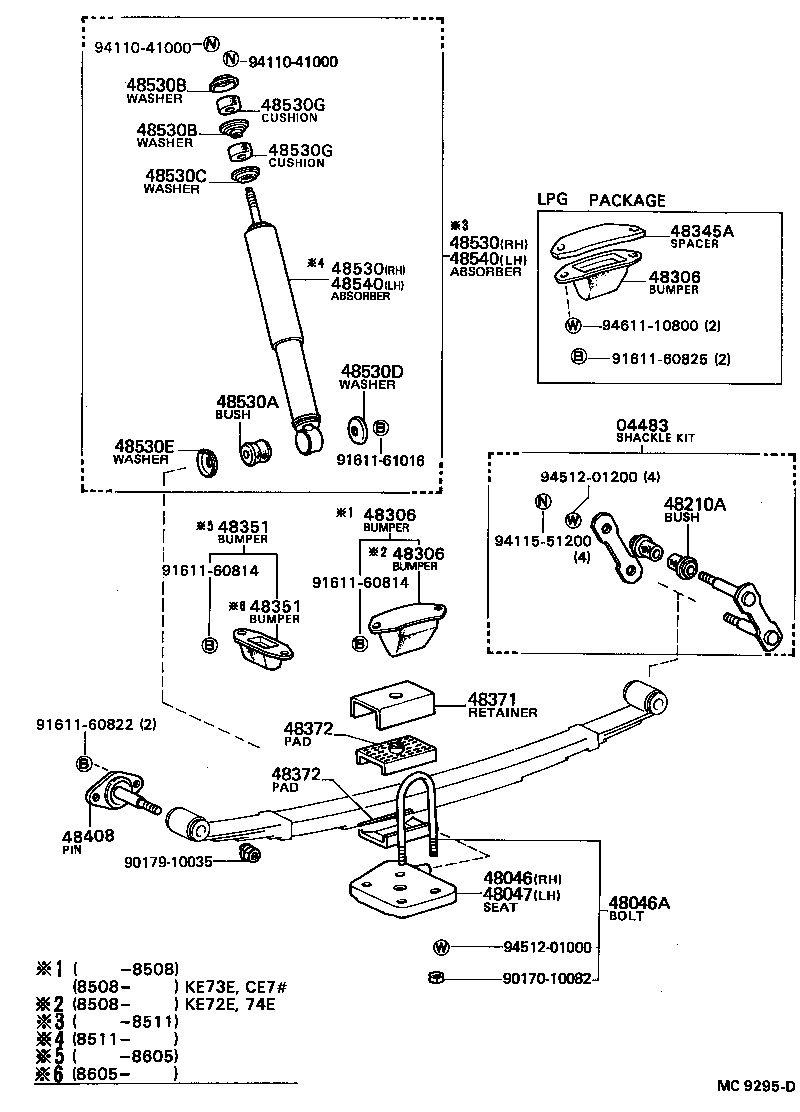

ILLUST NO. 1 OF 2(7908- )CE71,72,KE71,72,73,74,TE73,74
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 48306 - BUMPER SUB-ASSY, REAR SPRING | ||||
| 48341-19025 |
KE71,TE73 |
2 | ||
| 48306-14030 |
AE70,CE70,KE70,TE70,71 |
2 | ||
| 48306 - BUMPER SUB-ASSY, REAR SPRING | ||||
| 48341-19025 |
KE71,TE73 |
2 | ||
| 48306-14030 |
AE70,CE70,KE70,TE70,71 |
2 | ||
| 48306 - BUMPER SUB-ASSY, REAR SPRING | ||||
| 48341-19025 |
KE71,TE73 |
2 | ||
| 48306-14030 |
AE70,CE70,KE70,TE70,71 |
2 | ||
| 48530 - ABSORBER ASSY, SHOCK, REAR RH | ||||
| 48531-19635 |
KE71,TE73 |
1 | ||
| 48530 - ABSORBER ASSY, SHOCK, REAR RH | ||||
| 48531-19635 |
KE71,TE73 |
1 | ||
| 48530A - BUSH(FOR REAR SHOCK ABSORBER) | ||||
| 90385-16001 |
AE70,CE7#,KE7#,TE7# |
2 | ||
| 48530B - WASHER, REAR SHOCK ABSORBER CUSHION, NO.1 | ||||
| 90948-02002 |
AE70,CE7#,KE7#,TE7# |
4 | ||
| 48530B - WASHER, REAR SHOCK ABSORBER CUSHION, NO.1 | ||||
| 90948-02002 |
AE70,CE7#,KE7#,TE7# |
4 | ||
| 48530C - WASHER, REAR SHOCK ABSORBER CUSHION, NO.2 | ||||
| 90948-02007 |
AE70,CE7#,KE7#,TE7# |
2 | ||
| 48530D - WASHER, REAR SHOCK ABSORBER CUSHION, NO.3 | ||||
| 90948-03012 |
AE70,KE7#,TE7# |
2 | ||
| 48530E - WASHER, REAR SHOCK ABSORBER CUSHION, NO.4 | ||||
| 90948-03004 |
AE70,CE7#,KE7#,TE7# |
2 | ||
| 48530G - CUSHION, REAR SHOCK ABSORBER, NO.1 | ||||
| 90948-01018 |
AE70,KE70,TE70,71 |
4 | ||
| 90948-01003 |
AE70,KE7#,TE7# |
4 | ||
| 48530G - CUSHION, REAR SHOCK ABSORBER, NO.1 | ||||
| 90948-01018 |
AE70,KE70,TE70,71 |
4 | ||
| 90948-01003 |
AE70,KE7#,TE7# |
4 | ||
| 48540 - ABSORBER ASSY, SHOCK, REAR LH | ||||
| 48531-19635 |
KE71,TE73 |
1 | ||
| 48540 - ABSORBER ASSY, SHOCK, REAR LH | ||||
| 48531-19635 |
KE71,TE73 |
1 | ||
| Common parts | ||||
| 90170-10082 | ||||
| 90179-10035 | ||||
| 91611-60814 | ||||
| 91611-60822 | ||||
| 91611-60825 | ||||
| 91611-61016 | ||||
| 94110-41000 | ||||
| 94115-51200 | ||||
| 94512-01000 | ||||
| 94512-01200 | ||||
| 94611-10800 | ||||
