KE71V-EXKNSW (1979)

Toyota Corolla

Production Aug 1979 - Aug 1981
Engine 4KJ
Transmission 4F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(7908-8108)4KJ

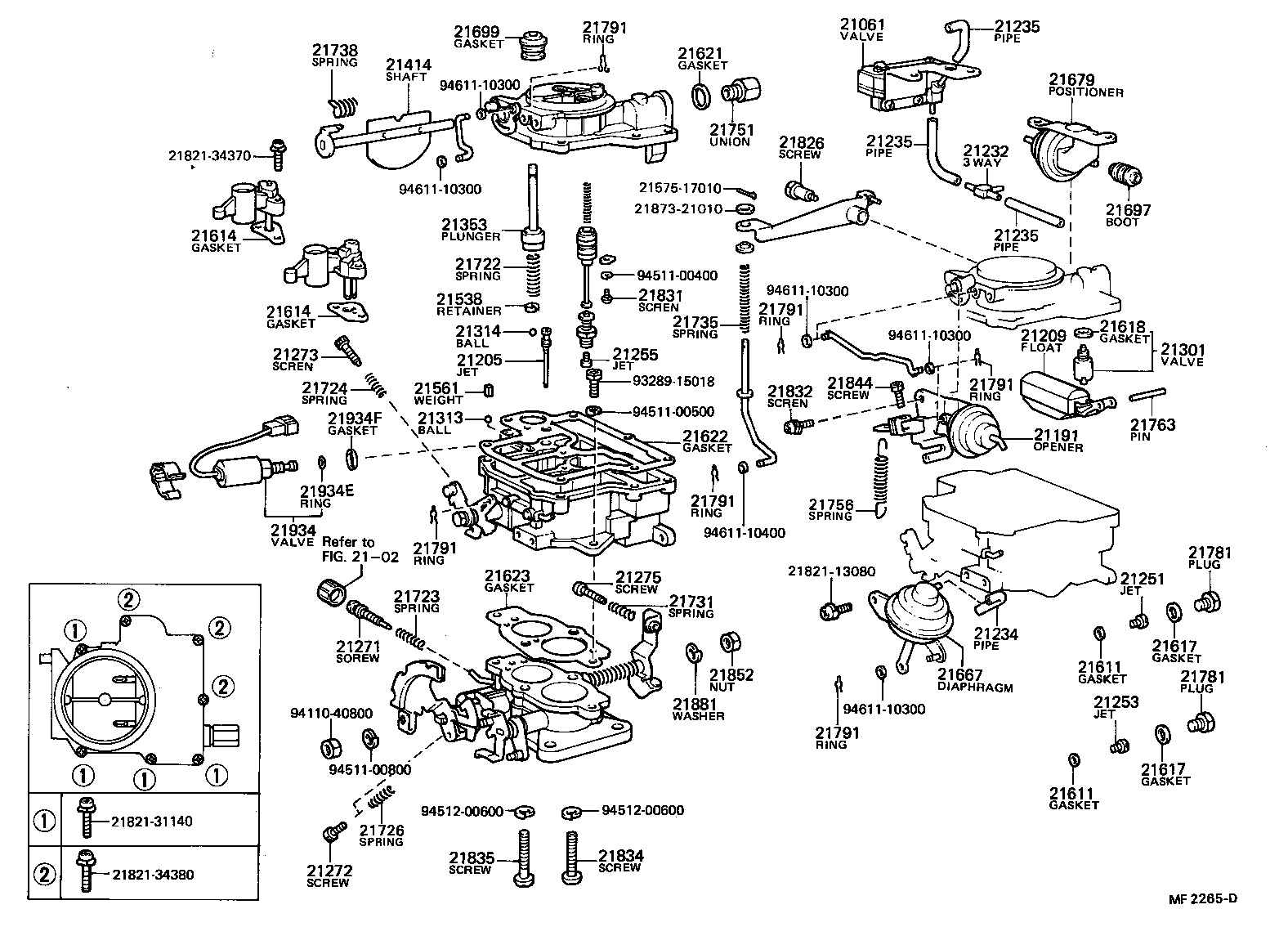

Click highlighted areas on diagram

diagram 2102 21061 21191 21205 21209 21232 21234 21235 21235 21235 21251 21253 21255 21271 21272 21273 21275 21301 21313 21314 21353 21414 21538 21561 2157517010 21611 21611 21614 21614 21617 21617 21618 21621 21622 21623 21667 21679 21697 21699 21722 21723 21724 21726 21731 21735 21738 21751 21756 21763 21781 21781 21791 21791 21791 21791 21791 21791 2182113080 2182131140 2182134370 2182134380 21826 21831 21832 21834 21835 21844 21852 2187321010 21881 21934 21934E 21934F 9328915018 9411040800 9451100400 9451100500 9451100800 9451200600 9451200600 9461110300 9461110300 9461110300 9461110300 9461110300 9461110400
Part # Description Qty Price
21061 - VALVE SUB-ASSY, THERMOSTATIC
21061-24500

4KJ..KE71

 1
21191 - OPENER
21191-13140

4KJ..KE71

 1
21191-24500

4KJ..KE71

 1
21205 - JET SUB-ASSY, SLOW
21205-13140

4KJ..KE71

ID=0.48

 1
21209 - FLOAT SUB-ASSY
21209-24480

4K#,5KJ..KE7#

 1
21232 - TUBE
21232-13050

4KJ..KE71

 1
21234 - PIPE OR HOSE
95411-10130

4K#..KE7#..MTM

*H,L=40

 1
21235 - PIPE OR HOSE, CONNECTING
21235-13050

4KJ..KE71

LWR

 1
21235-13051

4KJ..KE71

LWR

 1
21234-13140

4KJ..KE71

UPR

 1
21235 - PIPE OR HOSE, CONNECTING
21235-13050

4KJ..KE71

LWR

 1
21235-13051

4KJ..KE71

LWR

 1
21234-13140

4KJ..KE71

UPR

 1
21235 - PIPE OR HOSE, CONNECTING
21235-13050

4KJ..KE71

LWR

 1
21235-13051

4KJ..KE71

LWR

 1
21234-13140

4KJ..KE71

UPR

 1
21251 - JET, 1ST MAIN
90999-41104

4K#..KE7#..MTM

ID=1.04

 1
21253 - JET, 2ND MAIN
90999-42156

4KJ..KE71

ID=1.56

 1
21255 - JET, POWER
90999-43047

4KJ..KE71

ID=0.47

 1
21271 - SCREW, IDLE ADJUSTING
21271-24470

4K#..KE7#

 1
21272 - SCREW, 1ST IDLE ADJUSTING
21814-33010

4K#,5KJ..KE7#

 1
21273 - SCREW, THROTTLE ADJUSTING
21273-24230

4K#..KE7#

 1
21275 - SCREW, ADJUSTING
21275-24360

4K#..KE7#

 1
21301 - VALVE SUB-ASSY, NEEDLE
21301-24500

4KJ..KE71

 1
21301-24501

4KJ..KE71

 1
21313 - BALL, STEEL, NO.1(FOR DISCHARGE WEIGHT)
21313-11020

4K#,5KJ..KE7#

 1
21314 - BALL, STEEL, NO.2(FOR PUMP PLUNGER)
21314-60010

4K#,5KJ..KE7#

 1
21353 - PLUNGER, PUMP
21305-22011

4K#..KE7#

 1
21414 - SHAFT, CHOKE
21054-24010

4KJ..KE71

 1
21538 - RETAINER, BALL CHECK
21538-31010

4K#,5KJ..KE7#

 1
21561 - WEIGHT, PUMP DISCHARGE
21561-22010

4K#,5KJ..KE7#

 1
21611 - GASKET, MAIN JET
21611-22010

4K#,5KJ..KE7#

 2
21611 - GASKET, MAIN JET
21611-22010

4K#,5KJ..KE7#

 2
21614 - GASKET, VENTURI
21614-22010

4K#,5KJ..KE7#

1ST VENTURI

 1
21614-24360

4K#,5KJ..KE7#

2ND VENTURI

 1
21614 - GASKET, VENTURI
21614-22010

4K#,5KJ..KE7#

1ST VENTURI

 1
21614-24360

4K#,5KJ..KE7#

2ND VENTURI

 1
21617 - GASKET, MAIN PASSAGE PLUG
21617-30010

4K#,5KJ..KE7#

 2
21617 - GASKET, MAIN PASSAGE PLUG
21617-30010

4K#,5KJ..KE7#

 2
21621 - GASKET, UNION NIPPLE
21633-24030

4K#,5KJ..KE7#

 2
21622 - GASKET, AIR HORN
21622-24360

4K#..KE7#

 1
21623 - GASKET, BODY FLANGE
21623-13080

4K#..KE7#..MTM

 1
21667 - DIAPHRAGM
21667-24360

4KJ..KE71

 1
21679 - POSITIONER
21679-13140

4KJ..KE71

 1
21697 - BOOT(FOR SLIDING ROD)
21699-24360

4KJ..KE71

 1
21699 - BOOT(FOR PUMP PLUNGER)
21699-21061

4K#..KE7#

 1
21722 - SPRING, PUMP DAMPING
21722-22010

4K#,5KJ..KE7#

 1
21723 - SPRING, IDLE ADJUSTING
21723-21030

4K#,5KJ..KE7#

 1
21724 - SPRING, THROTTLE ADJUSTING
21864-24230

4K#,5KJ..KE7#

 1
21726 - SPRING, 1ST IDLE ADJUSTING
21726-40010

4K#,5KJ..KE7#

 1
21731 - SPRING, DASH POT OR POSITIONER ADJUSTING
21864-24010

4K#,5KJ..KE7#

 1
21735 - SPRING, PUMP ARM
21735-24360

4KJ..KE71

 1
21738 - SPRING, CHOKE VALVE RELIEF
21738-24030

4KJ..KE71

 1
21751 - UNION, NIPPLE
21751-24034

4K#..KE7#..MTM

 1
21756 - SPRING, BACK(FOR THROTTLE SHAFT)
21864-13080

4KJ..KE71

 1
21864-13140

4KJ..KE71

 1
21763 - PIN, FLOAT LEVER
21763-38010

4K#,5KJ..KE7#

 1
21781 - PLUG, MAIN PASSAGE(FOR CARBURETOR JET)
21781-30020

4K#..KE7#

 2
21781 - PLUG, MAIN PASSAGE(FOR CARBURETOR JET)
21781-30020

4K#..KE7#

 2
21791 - RING, SNAP, NO.1(FOR CARBURETOR LINK)
21791-60010

4K#,5KJ..KE7#

 10
21791 - RING, SNAP, NO.1(FOR CARBURETOR LINK)
21791-60010

4K#,5KJ..KE7#

 10
21791 - RING, SNAP, NO.1(FOR CARBURETOR LINK)
21791-60010

4K#,5KJ..KE7#

 10
21791 - RING, SNAP, NO.1(FOR CARBURETOR LINK)
21791-60010

4K#,5KJ..KE7#

 10
21791 - RING, SNAP, NO.1(FOR CARBURETOR LINK)
21791-60010

4K#,5KJ..KE7#

 10
21791 - RING, SNAP, NO.1(FOR CARBURETOR LINK)
21791-60010

4K#,5KJ..KE7#

 10
21826 - SCREW, PUMP ARM SET
21826-31012

4KJ..KE71

 1
21831 - SCREW, POWER PISTON STOP
21842-33010

4K#..KE7#

 1
21842-33010

4K#..KE7#

 1
21832 - SCREW(FOR CHOKE LEVER ADAPTER SET)
21821-15010

4K#..KE7#..MTM

 2
21834 - SCREW, SET, NO.2(FOR CARBURETOR BODY SET)
21834-31010

4K#,5KJ..KE7#

 1
21835 - SCREW, SET, NO.3(FOR CARBURETOR BODY SET)
21835-40010

4K#,5KJ..KE7#

 1
21844 - SCREW, CHOKE LEVER
21844-24230

4KJ..KE71

 1
21852 - NUT, THROTTLE LEVER SET
21852-30010

4K#,5KJ..KE7#

 1
21881 - WASHER, LOCK(FOR THROTTLE SHAFT)
21881-60010

4K#,5KJ..KE7#

 1
21934 - SOLENOID, THROTTLE VALVE
21062-24360

4K#..KE7#

 1
21934E - RING, O(FOR SOLENOID VALVE)
21655-44101

4K#,5KJ..KE7#

 2
21934F - GASKET
21617-10010

4K#,5KJ..KE7#

 1
Common parts
21575-17010
21821-13080
21821-31140
21821-34370
21821-34380
21873-21010
93289-15018
94110-40800
94511-00400
94511-00500
94511-00800
94512-00600
94611-10300
94611-10400
Linked diagrams
2102
