KE71V-EXKDSW (1979)

Toyota Corolla

Production Aug 1979 - Aug 1981
Engine 4KJ
Transmission 4F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(7908- )CE71,72,KE71,72,73,74,TE73,74

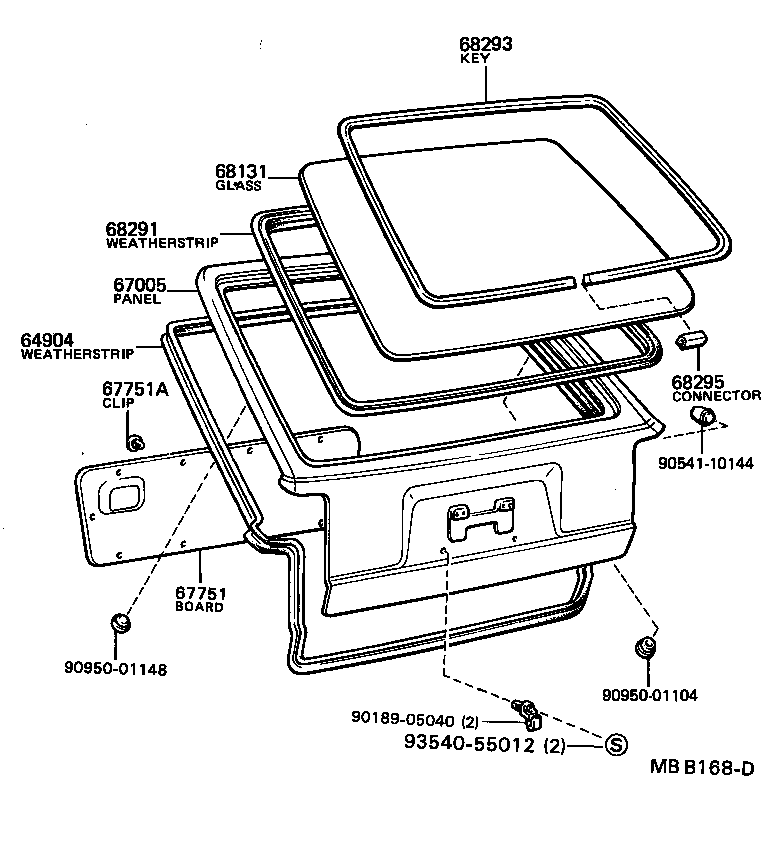

Click highlighted areas on diagram

diagram 64904 67005 67751 67751A 68131 68291 68293 68295 9018905040 9054110144 9095001104 9095001148 9354055012
Part # Description Qty Price
67005 - PANEL SUB-ASSY, BACK DOOR
67005-13913

KE71,TE73..DX,GL

W/RR DEFOGGER

 1
67005-13350

KE71;TE73..DX

 1
67751 - BOARD, BACK DOOR TRIM
67751-1306006

KE71,TE73..DX,GL

W/O RR WIPER,LIGHT BROWN,BROWN,TRIM4#

 1
67751A - CLIP(FOR BACK DOOR TRIM BOARD)
90467-0801501

KE71,TE73

BLACK,BLACK,TRIM2#

 10
90467-0801506

KE71,TE73..DX,GL

LIGHT BROWN,BROWN,TRIM4#

 10
90467-0801516

KE71,TE73..DX,GL

LIGHT BROWN,BROWN,TRIM4#

 10
Common parts
90189-05040
90541-10144
90950-01104
90950-01148
93540-55012
