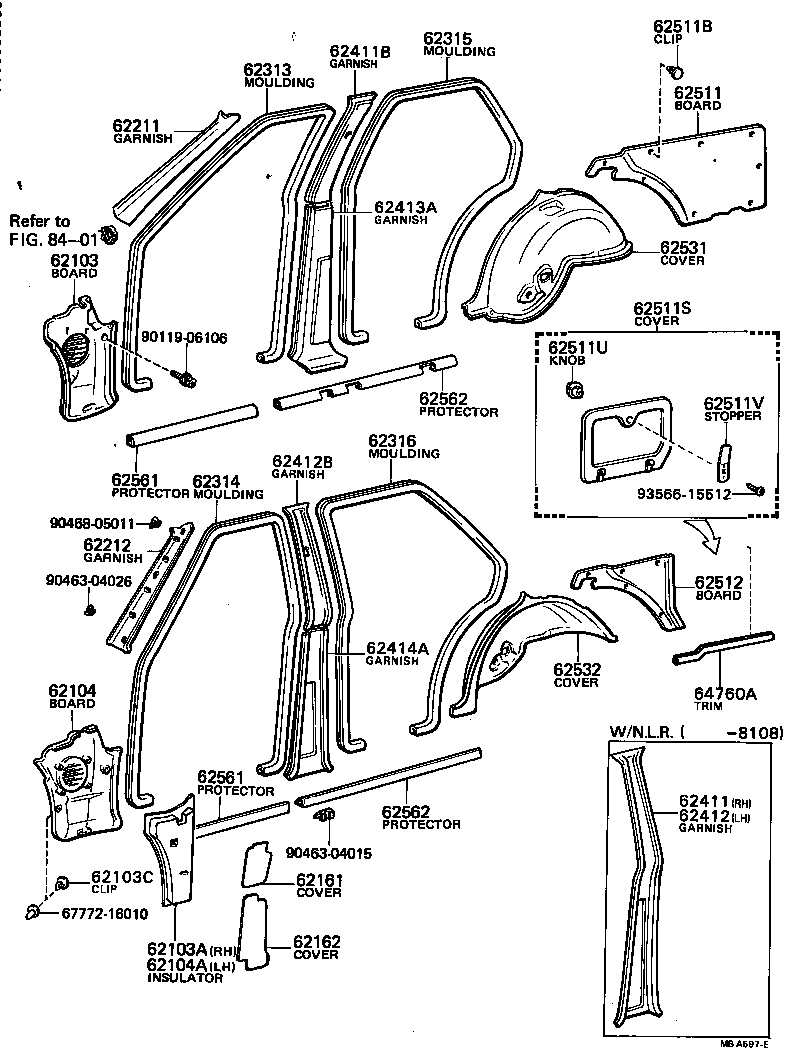

KE71V-EXKDSW (1979)
Toyota Corolla
(7903-8304)AE70,CE70,KE70,TE70,71..4D
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 62103 - BOARD SUB-ASSY, COWL SIDE TRIM, RH | ||||
| 62101-1205016 |
AE70,KE7#,TE7#..(SED,V)..(CTD,DX,GL,GT,SE) L-BROWN,BROWN,TRIM4# |
1 | ||
| 62101-1205006 |
AE70,KE7#,TE7#..(SED,V)..(CTD,DX,GL,GT,SE) L-BROWN,BROWN,TRIM4# |
1 | ||
| 62101-1205001 |
AE70,KE7#,TE7#..SED,V BLACK,BLACK,TRIM2# |
1 | ||
| 62103A - INSULATOR SUB-ASSY, COWL SIDE, RH | ||||
| 62105-12030 |
AE70,CE7#,KE7#,TE7# |
1 | ||
| 62103C - CLIP, COWL SIDE TRIM BOARD SET | ||||
| 90467-0901226 |
AE70,KE7#,TE7#..(SED,V)..(CTD,DX,GL,GT,SE) L-BROWN,BROWN,TRIM4# |
2 | ||
| 90467-0901206 |
AE70,KE7#,TE7#..(SED,V)..(CTD,DX,GL,GT,SE) L-BROWN,BROWN,TRIM4# |
2 | ||
| 90467-0901204 |
AE70,CE70,KE70,TE70,71..CTD,DX,GL,GT,LVN,LVS,SE,SL,SR,SX BLUE,BLUE,TRIM8# |
2 | ||
| 90467-0901201 |
AE70,CE7#,KE7#,TE7# BLACK,BLACK,TRIM2# |
2 | ||
| 62104 - BOARD SUB-ASSY, COWL SIDE TRIM, LH | ||||
| 62102-1206016 |
AE70,KE7#,TE7#..(SED,V)..(CTD,DX,GL,GT,SE) L-BROWN,BROWN,TRIM4# |
1 | ||
| 62102-1206006 |
AE70,KE7#,TE7#..(SED,V)..(CTD,DX,GL,GT,SE) L-BROWN,BROWN,TRIM4# |
1 | ||
| 62102-1206001 |
AE70,CE7#,KE7#,TE7#..SED,V,WG BLACK,BLACK,TRIM2# |
1 | ||
| 62104A - INSULATOR SUB-ASSY, COWL SIDE, LH | ||||
| 62106-12020 |
AE70,KE7#,TE7# |
1 | ||
| 62161 - COVER, COWL SIDE TRIM SERVICE HOLE, UPPER | ||||
| 61198-12010 |
AE70,CE7#,KE7#,TE7#..SED,V,WG LH |
1 | ||
| 61197-12010 |
AE70,CE7#,KE7#,TE7#..SED,V,WG RH |
1 | ||
| 62161 - COVER, COWL SIDE TRIM SERVICE HOLE, UPPER | ||||
| 61198-12010 |
AE70,CE7#,KE7#,TE7#..SED,V,WG LH |
1 | ||
| 61197-12010 |
AE70,CE7#,KE7#,TE7#..SED,V,WG RH |
1 | ||
| 62162 - COVER, COWL SIDE TRIM SERVICE HOLE, LOWER | ||||
| 62161-12030 |
AE70,CE7#,KE7#,TE7#..SED,V,WG RH |
1 | ||
| 62162-12030 |
AE70,CE7#,KE7#,TE7#..SED,V,WG LH |
1 | ||
| 62162 - COVER, COWL SIDE TRIM SERVICE HOLE, LOWER | ||||
| 62161-12030 |
AE70,CE7#,KE7#,TE7#..SED,V,WG RH |
1 | ||
| 62162-12030 |
AE70,CE7#,KE7#,TE7#..SED,V,WG LH |
1 | ||
| 62211 - GARNISH, FRONT PILLAR, RH | ||||
| 62211-1302006 |
KE71,TE73..DX,GL L-BROWN,BROWN,TRIM4# |
1 | ||
| 62211-1302016 |
KE71,TE73..DX,GL L-BROWN,BROWN,TRIM4# |
1 | ||
| 62212 - GARNISH, FRONT PILLAR, LH | ||||
| 62212-1302016 |
KE71,TE73..DX,GL L-BROWN,BROWN,TRIM4# |
1 | ||
| 62212-1302006 |
KE71,TE73..DX,GL L-BROWN,BROWN,TRIM4# |
1 | ||
| 62313 - MOULDING, FRONT DOOR OPENING TRIM, RH | ||||
| 62313-1208006 |
AE70,KE7#,TE7#..(CTD,DX,GL,GT,SE)..4D L-BROWN,BROWN,TRIM4# |
1 | ||
| 62313-1208016 |
AE70,KE7#,TE7#..(CTD,DX,GL,GT,SE)..4D L-BROWN,BROWN,TRIM4# |
1 | ||
| 62313-1208001 |
AE70,CE7#,KE7#,TE7#..4D BLACK,BLACK,TRIM2# |
1 | ||
| 62313-1208004 |
AE70,CE70,KE70,TE70,71..(CTD,DX,GL,GT,SE,SX)..4D BLUE,BLUE,TRIM8# |
1 | ||
| 62314 - MOULDING, FRONT DOOR OPENING TRIM, LH | ||||
| 62313-1208004 |
AE70,CE70,KE70,TE70,71..(CTD,DX,GL,GT,SE,SX)..4D BLUE,BLUE,TRIM8# |
1 | ||
| 62313-1208016 |
AE70,KE7#,TE7#..(CTD,DX,GL,GT,SE)..4D L-BROWN,BROWN,TRIM4# |
1 | ||
| 62313-1208001 |
AE70,CE7#,KE7#,TE7#..4D BLACK,BLACK,TRIM2# |
1 | ||
| 62313-1208006 |
AE70,KE7#,TE7#..(CTD,DX,GL,GT,SE)..4D L-BROWN,BROWN,TRIM4# |
1 | ||
| 62315 - MOULDING, REAR DOOR OPENING TRIM, RH | ||||
| 62333-1201001 |
AE70,KE70,TE70,71..4D BLACK,BLACK,TRIM2# |
1 | ||
| 62333-1201006 |
AE70,KE7#,TE7#..(CTD,DX,GL,GT,SE)..4D L-BROWN,BROWN,TRIM4# |
1 | ||
| 62333-1201006 |
AE70,KE70,TE70,71..(CTD,DX,GL,GT,SE)..4D L-BROWN,BROWN,TRIM4# |
1 | ||
| 62333-1302001 |
KE71,TE73..4D BLACK,BLACK,TRIM2# |
1 | ||
| 62333-1201016 |
AE70,KE7#,TE7#..(CTD,DX,GL,GT,SE)..4D L-BROWN,BROWN,TRIM4# |
1 | ||
| 62333-1302006 |
KE71,TE73..(DX,GL)..4D L-BROWN,BROWN,TRIM4# |
1 | ||
| 62333-1201004 |
AE70,CE70,KE70,TE70,71..(CTD,DX,GL,GT,SE,SX)..4D BLUE,BLUE,TRIM8# |
1 | ||
| 62316 - MOULDING, REAR DOOR OPENING TRIM, LH | ||||
| 62333-1201006 |
AE70,KE7#,TE7#..(CTD,DX,GL,GT,SE)..4D L-BROWN,BROWN,TRIM4# |
1 | ||
| 62333-1201006 |
AE70,KE70,TE70,71..(CTD,DX,GL,GT,SE)..4D L-BROWN,BROWN,TRIM4# |
1 | ||
| 62333-1201001 |
AE70,KE70,TE70,71..4D BLACK,BLACK,TRIM2# |
1 | ||
| 62333-1302006 |
KE71,TE73..(DX,GL)..4D L-BROWN,BROWN,TRIM4# |
1 | ||
| 62333-1201016 |
AE70,KE7#,TE7#..(CTD,DX,GL,GT,SE)..4D L-BROWN,BROWN,TRIM4# |
1 | ||
| 62333-1201004 |
AE70,CE70,KE70,TE70,71..(CTD,DX,GL,GT,SE,SX)..4D BLUE,BLUE,TRIM8# |
1 | ||
| 62333-1302001 |
KE71,TE73..4D BLACK,BLACK,TRIM2# |
1 | ||
| 62411 - GARNISH, CENTER PILLAR, RH | ||||
| 62411-1215006 |
KE7#..(CTD,DX)..4D *NLR BELT,L-BROWN,BROWN,TRIM4# |
1 | ||
| 62411-1215016 |
KE7#..(CTD,DX)..4D *NLR BELT,L-BROWN,BROWN,TRIM4# |
1 | ||
| 62411-1215001 |
KE7#..(CTD,DX,STD)..4D *NLR BELT,BLACK,BLACK,TRIM2# |
1 | ||
| 62411B - GARNISH, CENTER PILLAR, UPPER RH | ||||
| 62411-1217004 |
AE70,CE70,KE70,TE70,71..(CTD,DX,GL,GT,SE,SX)..4D TOYOTA TUSHO,BLUE,BLUE,TRIM8# |
1 | ||
| 62411-1216016 |
AE70,KE7#,TE7#..(CTD,DX,GL,GT,SE)..4D *(H),L-BROWN,BROWN,TRIM4# |
1 | ||
| 62411-1217006 |
AE70,KE7#,TE7#..(CTD,DX,GL,GT,SE)..4D TOYOTA TUSHO,L-BROWN,BROWN,TRIM4# |
1 | ||
| 62411-1216004 |
AE70,CE70,KE70,TE70,71..(CTD,DX,GL,GT,SE,SX)..4D *(H),BLUE,BLUE,TRIM8# |
1 | ||
| 62411-1216006 |
AE70,KE7#,TE7#..(CTD,DX,GL,GT,SE)..4D *(H),L-BROWN,BROWN,TRIM4# |
1 | ||
| 62411-1217016 |
AE70,KE7#,TE7#..(CTD,DX,GL,GT,SE)..4D TOYOTA TUSHO,L-BROWN,BROWN,TRIM4# |
1 | ||
| 62411-1217001 |
AE70,CE7#,KE70,71,72,TE7#..4D TOYOTA TUSHO,BLACK,BLACK,TRIM2# |
1 | ||
| 62411-1216001 |
AE70,CE7#,KE70,71,72,TE7#..4D *(H),BLACK,BLACK,TRIM2# |
1 | ||
| 62412 - GARNISH, CENTER PILLAR, LH | ||||
| 62412-1215006 |
KE7#..(CTD,DX)..4D *NLR BELT,L-BROWN,BROWN,TRIM4# |
1 | ||
| 62412-1215016 |
KE7#..(CTD,DX)..4D *NLR BELT,L-BROWN,BROWN,TRIM4# |
1 | ||
| 62412-1215001 |
KE7#..(CTD,DX,STD)..4D *NLR BELT,BLACK,BLACK,TRIM2# |
1 | ||
| 62412B - GARNISH, CENTER PILLAR, UPPER LH | ||||
| 62412-1217006 |
AE70,KE7#,TE7#..(CTD,DX,GL,GT,SE)..4D TOYOTA TUSHO,L-BROWN,BROWN,TRIM4# |
1 | ||
| 62412-1216016 |
AE70,KE7#,TE7#..(CTD,DX,GL,GT,SE)..4D *(H),L-BROWN,BROWN,TRIM4# |
1 | ||
| 62412-1217001 |
AE70,CE7#,KE70,71,72,TE7#..4D TOYOTA TUSHO,BLACK,BLACK,TRIM2# |
1 | ||
| 62412-1216006 |
AE70,KE7#,TE7#..(CTD,DX,GL,GT,SE)..4D *(H),L-BROWN,BROWN,TRIM4# |
1 | ||
| 62412-1217016 |
AE70,KE7#,TE7#..(CTD,DX,GL,GT,SE)..4D TOYOTA TUSHO,L-BROWN,BROWN,TRIM4# |
1 | ||
| 62412-1216001 |
AE70,CE7#,KE70,71,72,TE7#..4D *(H),BLACK,BLACK,TRIM2# |
1 | ||
| 62412-1216004 |
AE70,CE70,KE70,TE70,71..(CTD,DX,GL,GT,SE,SX)..4D *(H),BLUE,BLUE,TRIM8# |
1 | ||
| 62412-1217004 |
AE70,CE70,KE70,TE70,71..(CTD,DX,GL,GT,SE,SX)..4D TOYOTA TUSHO,BLUE,BLUE,TRIM8# |
1 | ||
| 62413A - GARNISH, CENTER PILLAR, LOWER RH | ||||
| 62413-1212006 |
AE70,KE7#,TE7#..(CTD,DX,GL,GT,SE)..4D *(H),L-BROWN,BROWN,TRIM4# |
1 | ||
| 62413-1213006 |
AE70,KE7#,TE7#..(CTD,DX,GL,GT,SE)..4D TOYOTA TUSHO,L-BROWN,BROWN,TRIM4# |
1 | ||
| 62413-1213001 |
AE70,KE7#,TE7#..4D TOYOTA TUSHO,BLACK,BLACK,TRIM2# |
1 | ||
| 62413-1212001 |
AE70,KE7#,TE7#..4D *(H),BLACK,BLACK,TRIM2# |
1 | ||
| 62413-1212004 |
AE70,KE70,TE70,71..(CTD,DX,GL,GT,SE)..4D *(H),BLUE,BLUE,TRIM8# |
1 | ||
| 62413-1213016 |
AE70,KE7#,TE7#..(CTD,DX,GL,GT,SE)..4D TOYOTA TUSHO,L-BROWN,BROWN,TRIM4# |
1 | ||
| 62413-1213004 |
AE70,KE70,TE70,71..(CTD,DX,GL,GT,SE)..4D TOYOTA TUSHO,BLUE,BLUE,TRIM8# |
1 | ||
| 62413-1212016 |
AE70,KE7#,TE7#..(CTD,DX,GL,GT,SE)..4D *(H),L-BROWN,BROWN,TRIM4# |
1 | ||
| 62414A - GARNISH, CENTER PILLAR, LOWER LH | ||||
| 62414-1212006 |
AE70,KE7#,TE7#..(CTD,DX,GL,GT,SE)..4D *(H),L-BROWN,BROWN,TRIM4# |
1 | ||
| 62414-1213001 |
AE70,KE7#,TE7#..4D TOYOTA TUSHO,BLACK,BLACK,TRIM2# |
1 | ||
| 62414-1213006 |
AE70,KE7#,TE7#..(CTD,DX,GL,GT,SE)..4D TOYOTA TUSHO,L-BROWN,BROWN,TRIM4# |
1 | ||
| 62414-1213004 |
AE70,KE70,TE70,71..(CTD,DX,GL,GT,SE)..4D TOYOTA TUSHO,BLUE,BLUE,TRIM8# |
1 | ||
| 62414-1212016 |
AE70,KE7#,TE7#..(CTD,DX,GL,GT,SE)..4D *(H),L-BROWN,BROWN,TRIM4# |
1 | ||
| 62414-1212004 |
AE70,KE70,TE70,71..(CTD,DX,GL,GT,SE)..4D *(H),BLUE,BLUE,TRIM8# |
1 | ||
| 62414-1213016 |
AE70,KE7#,TE7#..(CTD,DX,GL,GT,SE)..4D TOYOTA TUSHO,L-BROWN,BROWN,TRIM4# |
1 | ||
| 62414-1212001 |
AE70,KE7#,TE7#..4D *(H),BLACK,BLACK,TRIM2# |
1 | ||
| 62461 - GARNISH, ROOF SIDE TRIM, RH | ||||
| 62405-1201006 |
AE70,KE70,TE70,71..(CTD,DX,GL,GT,SE)..4D L-BROWN,BROWN,TRIM4# |
1 | ||
| 62405-1201004 |
AE70,CE70,KE70,TE70,71..(CTD,DX,GL,GT,SE,SX)..4D BLUE,BLUE,TRIM8# |
1 | ||
| 62405-1201016 |
AE70,KE70,TE70,71..(CTD,DX,GL,GT,SE)..4D L-BROWN,BROWN,TRIM4# |
1 | ||
| 62405-1201001 |
AE70,CE70,KE70,TE70,71..4D BLACK,BLACK,TRIM2# |
1 | ||
| 62461F - CLIP (FOR ROOF SIDE TRIM GARNISH) | ||||
| 90467-1000526 |
AE70,KE70,TE70,71..(CTD,DX,GL,GT,SE)..4D L-BROWN,BROWN,TRIM4# |
2 | ||
| 90467-1000504 |
AE70,CE70,KE70,TE70,71..(CTD,DX,GL,GT,SE,SX)..4D BLUE,BLUE,TRIM8# |
2 | ||
| 90467-1000506 |
AE70,KE70,TE70,71..(CTD,DX,GL,GT,SE)..4D L-BROWN,BROWN,TRIM4# |
2 | ||
| 90467-1000501 |
AE70,CE70,KE70,TE70,71..4D BLACK,BLACK,TRIM2# |
2 | ||
| 62462 - GARNISH, ROOF SIDE TRIM, LH | ||||
| 62406-1201001 |
AE70,CE70,KE70,TE70,71..4D BLACK,BLACK,TRIM2# |
1 | ||
| 62406-1201006 |
AE70,KE70,TE70,71..(CTD,DX,GL,GT,SE)..4D L-BROWN,BROWN,TRIM4# |
1 | ||
| 62406-1201004 |
AE70,CE70,KE70,TE70,71..(CTD,DX,GL,GT,SE,SX)..4D BLUE,BLUE,TRIM8# |
1 | ||
| 62406-1201016 |
AE70,KE70,TE70,71..(CTD,DX,GL,GT,SE)..4D L-BROWN,BROWN,TRIM4# |
1 | ||
| 62561 - PROTECTOR, ROCKER PANEL, INNER FRONT | ||||
| 62561-12020 |
AE70,CE7#,KE7#,TE7# |
2 | ||
| 62561 - PROTECTOR, ROCKER PANEL, INNER FRONT | ||||
| 62561-12020 |
AE70,CE7#,KE7#,TE7# |
2 | ||
| 62562 - PROTECTOR, ROCKER PANEL, INNER REAR | ||||
| 62563-12010 |
AE70,KE7#,TE7# RH |
1 | ||
| 62564-12010 |
AE70,KE7#,TE7# LH |
1 | ||
| 62562 - PROTECTOR, ROCKER PANEL, INNER REAR | ||||
| 62563-12010 |
AE70,KE7#,TE7# RH |
1 | ||
| 62564-12010 |
AE70,KE7#,TE7# LH |
1 | ||
| Common parts | ||||
| 67772-16010 | ||||
| 90119-06106 | ||||
| 90463-04014 | ||||
| 90463-04026 | ||||
| 90468-05011 | ||||
| 93540-54510 | ||||
| Linked diagrams | ||||
| 8401 | ||||
(7908- )CE71,KE71,72,74,TE73,74..4D ; (8205-)CE72,KE73..DX
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 62103 - BOARD SUB-ASSY, COWL SIDE TRIM, RH | ||||
| 62101-1205016 |
AE70,KE7#,TE7#..(SED,V)..(CTD,DX,GL,GT,SE) L-BROWN,BROWN,TRIM4# |
1 | ||
| 62101-1205006 |
AE70,KE7#,TE7#..(SED,V)..(CTD,DX,GL,GT,SE) L-BROWN,BROWN,TRIM4# |
1 | ||
| 62101-1205001 |
AE70,KE7#,TE7#..SED,V BLACK,BLACK,TRIM2# |
1 | ||
| 62103A - INSULATOR SUB-ASSY, COWL SIDE, RH | ||||
| 62105-12030 |
AE70,CE7#,KE7#,TE7# |
1 | ||
| 62103C - CLIP, COWL SIDE TRIM BOARD SET | ||||
| 90467-0901226 |
AE70,KE7#,TE7#..(SED,V)..(CTD,DX,GL,GT,SE) L-BROWN,BROWN,TRIM4# |
2 | ||
| 90467-0901206 |
AE70,KE7#,TE7#..(SED,V)..(CTD,DX,GL,GT,SE) L-BROWN,BROWN,TRIM4# |
2 | ||
| 90467-0901204 |
AE70,CE70,KE70,TE70,71..CTD,DX,GL,GT,LVN,LVS,SE,SL,SR,SX BLUE,BLUE,TRIM8# |
2 | ||
| 90467-0901201 |
AE70,CE7#,KE7#,TE7# BLACK,BLACK,TRIM2# |
2 | ||
| 62104 - BOARD SUB-ASSY, COWL SIDE TRIM, LH | ||||
| 62102-1206016 |
AE70,KE7#,TE7#..(SED,V)..(CTD,DX,GL,GT,SE) L-BROWN,BROWN,TRIM4# |
1 | ||
| 62102-1206006 |
AE70,KE7#,TE7#..(SED,V)..(CTD,DX,GL,GT,SE) L-BROWN,BROWN,TRIM4# |
1 | ||
| 62102-1206001 |
AE70,CE7#,KE7#,TE7#..SED,V,WG BLACK,BLACK,TRIM2# |
1 | ||
| 62104A - INSULATOR SUB-ASSY, COWL SIDE, LH | ||||
| 62106-12020 |
AE70,KE7#,TE7# |
1 | ||
| 62161 - COVER, COWL SIDE TRIM SERVICE HOLE, UPPER | ||||
| 61198-12010 |
AE70,CE7#,KE7#,TE7#..SED,V,WG LH |
1 | ||
| 61197-12010 |
AE70,CE7#,KE7#,TE7#..SED,V,WG RH |
1 | ||
| 62162 - COVER, COWL SIDE TRIM SERVICE HOLE, LOWER | ||||
| 62161-12030 |
AE70,CE7#,KE7#,TE7#..SED,V,WG RH |
1 | ||
| 62162-12030 |
AE70,CE7#,KE7#,TE7#..SED,V,WG LH |
1 | ||
| 62211 - GARNISH, FRONT PILLAR, RH | ||||
| 62211-1302006 |
KE71,TE73..DX,GL L-BROWN,BROWN,TRIM4# |
1 | ||
| 62211-1302016 |
KE71,TE73..DX,GL L-BROWN,BROWN,TRIM4# |
1 | ||
| 62212 - GARNISH, FRONT PILLAR, LH | ||||
| 62212-1302016 |
KE71,TE73..DX,GL L-BROWN,BROWN,TRIM4# |
1 | ||
| 62212-1302006 |
KE71,TE73..DX,GL L-BROWN,BROWN,TRIM4# |
1 | ||
| 62313 - MOULDING, FRONT DOOR OPENING TRIM, RH | ||||
| 62313-1208006 |
AE70,KE7#,TE7#..(CTD,DX,GL,GT,SE)..4D L-BROWN,BROWN,TRIM4# |
1 | ||
| 62313-1208016 |
AE70,KE7#,TE7#..(CTD,DX,GL,GT,SE)..4D L-BROWN,BROWN,TRIM4# |
1 | ||
| 62313-1208001 |
AE70,CE7#,KE7#,TE7#..4D BLACK,BLACK,TRIM2# |
1 | ||
| 62313-1208004 |
AE70,CE70,KE70,TE70,71..(CTD,DX,GL,GT,SE,SX)..4D BLUE,BLUE,TRIM8# |
1 | ||
| 62314 - MOULDING, FRONT DOOR OPENING TRIM, LH | ||||
| 62313-1208004 |
AE70,CE70,KE70,TE70,71..(CTD,DX,GL,GT,SE,SX)..4D BLUE,BLUE,TRIM8# |
1 | ||
| 62313-1208016 |
AE70,KE7#,TE7#..(CTD,DX,GL,GT,SE)..4D L-BROWN,BROWN,TRIM4# |
1 | ||
| 62313-1208001 |
AE70,CE7#,KE7#,TE7#..4D BLACK,BLACK,TRIM2# |
1 | ||
| 62313-1208006 |
AE70,KE7#,TE7#..(CTD,DX,GL,GT,SE)..4D L-BROWN,BROWN,TRIM4# |
1 | ||
| 62315 - MOULDING, REAR DOOR OPENING TRIM, RH | ||||
| 62333-1201001 |
AE70,KE70,TE70,71..4D BLACK,BLACK,TRIM2# |
1 | ||
| 62333-1201006 |
AE70,KE7#,TE7#..(CTD,DX,GL,GT,SE)..4D L-BROWN,BROWN,TRIM4# |
1 | ||
| 62333-1201006 |
AE70,KE70,TE70,71..(CTD,DX,GL,GT,SE)..4D L-BROWN,BROWN,TRIM4# |
1 | ||
| 62333-1302001 |
KE71,TE73..4D BLACK,BLACK,TRIM2# |
1 | ||
| 62333-1201016 |
AE70,KE7#,TE7#..(CTD,DX,GL,GT,SE)..4D L-BROWN,BROWN,TRIM4# |
1 | ||
| 62333-1302006 |
KE71,TE73..(DX,GL)..4D L-BROWN,BROWN,TRIM4# |
1 | ||
| 62333-1201004 |
AE70,CE70,KE70,TE70,71..(CTD,DX,GL,GT,SE,SX)..4D BLUE,BLUE,TRIM8# |
1 | ||
| 62316 - MOULDING, REAR DOOR OPENING TRIM, LH | ||||
| 62333-1201006 |
AE70,KE7#,TE7#..(CTD,DX,GL,GT,SE)..4D L-BROWN,BROWN,TRIM4# |
1 | ||
| 62333-1201006 |
AE70,KE70,TE70,71..(CTD,DX,GL,GT,SE)..4D L-BROWN,BROWN,TRIM4# |
1 | ||
| 62333-1201001 |
AE70,KE70,TE70,71..4D BLACK,BLACK,TRIM2# |
1 | ||
| 62333-1302006 |
KE71,TE73..(DX,GL)..4D L-BROWN,BROWN,TRIM4# |
1 | ||
| 62333-1201016 |
AE70,KE7#,TE7#..(CTD,DX,GL,GT,SE)..4D L-BROWN,BROWN,TRIM4# |
1 | ||
| 62333-1201004 |
AE70,CE70,KE70,TE70,71..(CTD,DX,GL,GT,SE,SX)..4D BLUE,BLUE,TRIM8# |
1 | ||
| 62333-1302001 |
KE71,TE73..4D BLACK,BLACK,TRIM2# |
1 | ||
| 62411 - GARNISH, CENTER PILLAR, RH | ||||
| 62411-1215006 |
KE7#..(CTD,DX)..4D *NLR BELT,L-BROWN,BROWN,TRIM4# |
1 | ||
| 62411-1215016 |
KE7#..(CTD,DX)..4D *NLR BELT,L-BROWN,BROWN,TRIM4# |
1 | ||
| 62411-1215001 |
KE7#..(CTD,DX,STD)..4D *NLR BELT,BLACK,BLACK,TRIM2# |
1 | ||
| 62411B - GARNISH, CENTER PILLAR, UPPER RH | ||||
| 62411-1217004 |
AE70,CE70,KE70,TE70,71..(CTD,DX,GL,GT,SE,SX)..4D TOYOTA TUSHO,BLUE,BLUE,TRIM8# |
1 | ||
| 62411-1216016 |
AE70,KE7#,TE7#..(CTD,DX,GL,GT,SE)..4D *(H),L-BROWN,BROWN,TRIM4# |
1 | ||
| 62411-1217006 |
AE70,KE7#,TE7#..(CTD,DX,GL,GT,SE)..4D TOYOTA TUSHO,L-BROWN,BROWN,TRIM4# |
1 | ||
| 62411-1216004 |
AE70,CE70,KE70,TE70,71..(CTD,DX,GL,GT,SE,SX)..4D *(H),BLUE,BLUE,TRIM8# |
1 | ||
| 62411-1216006 |
AE70,KE7#,TE7#..(CTD,DX,GL,GT,SE)..4D *(H),L-BROWN,BROWN,TRIM4# |
1 | ||
| 62411-1217016 |
AE70,KE7#,TE7#..(CTD,DX,GL,GT,SE)..4D TOYOTA TUSHO,L-BROWN,BROWN,TRIM4# |
1 | ||
| 62411-1217001 |
AE70,CE7#,KE70,71,72,TE7#..4D TOYOTA TUSHO,BLACK,BLACK,TRIM2# |
1 | ||
| 62411-1216001 |
AE70,CE7#,KE70,71,72,TE7#..4D *(H),BLACK,BLACK,TRIM2# |
1 | ||
| 62412 - GARNISH, CENTER PILLAR, LH | ||||
| 62412-1215006 |
KE7#..(CTD,DX)..4D *NLR BELT,L-BROWN,BROWN,TRIM4# |
1 | ||
| 62412-1215016 |
KE7#..(CTD,DX)..4D *NLR BELT,L-BROWN,BROWN,TRIM4# |
1 | ||
| 62412-1215001 |
KE7#..(CTD,DX,STD)..4D *NLR BELT,BLACK,BLACK,TRIM2# |
1 | ||
| 62412B - GARNISH, CENTER PILLAR, UPPER LH | ||||
| 62412-1217006 |
AE70,KE7#,TE7#..(CTD,DX,GL,GT,SE)..4D TOYOTA TUSHO,L-BROWN,BROWN,TRIM4# |
1 | ||
| 62412-1216016 |
AE70,KE7#,TE7#..(CTD,DX,GL,GT,SE)..4D *(H),L-BROWN,BROWN,TRIM4# |
1 | ||
| 62412-1217001 |
AE70,CE7#,KE70,71,72,TE7#..4D TOYOTA TUSHO,BLACK,BLACK,TRIM2# |
1 | ||
| 62412-1216006 |
AE70,KE7#,TE7#..(CTD,DX,GL,GT,SE)..4D *(H),L-BROWN,BROWN,TRIM4# |
1 | ||
| 62412-1217016 |
AE70,KE7#,TE7#..(CTD,DX,GL,GT,SE)..4D TOYOTA TUSHO,L-BROWN,BROWN,TRIM4# |
1 | ||
| 62412-1216001 |
AE70,CE7#,KE70,71,72,TE7#..4D *(H),BLACK,BLACK,TRIM2# |
1 | ||
| 62412-1216004 |
AE70,CE70,KE70,TE70,71..(CTD,DX,GL,GT,SE,SX)..4D *(H),BLUE,BLUE,TRIM8# |
1 | ||
| 62412-1217004 |
AE70,CE70,KE70,TE70,71..(CTD,DX,GL,GT,SE,SX)..4D TOYOTA TUSHO,BLUE,BLUE,TRIM8# |
1 | ||
| 62413A - GARNISH, CENTER PILLAR, LOWER RH | ||||
| 62413-1212006 |
AE70,KE7#,TE7#..(CTD,DX,GL,GT,SE)..4D *(H),L-BROWN,BROWN,TRIM4# |
1 | ||
| 62413-1213006 |
AE70,KE7#,TE7#..(CTD,DX,GL,GT,SE)..4D TOYOTA TUSHO,L-BROWN,BROWN,TRIM4# |
1 | ||
| 62413-1213001 |
AE70,KE7#,TE7#..4D TOYOTA TUSHO,BLACK,BLACK,TRIM2# |
1 | ||
| 62413-1212001 |
AE70,KE7#,TE7#..4D *(H),BLACK,BLACK,TRIM2# |
1 | ||
| 62413-1212004 |
AE70,KE70,TE70,71..(CTD,DX,GL,GT,SE)..4D *(H),BLUE,BLUE,TRIM8# |
1 | ||
| 62413-1213016 |
AE70,KE7#,TE7#..(CTD,DX,GL,GT,SE)..4D TOYOTA TUSHO,L-BROWN,BROWN,TRIM4# |
1 | ||
| 62413-1213004 |
AE70,KE70,TE70,71..(CTD,DX,GL,GT,SE)..4D TOYOTA TUSHO,BLUE,BLUE,TRIM8# |
1 | ||
| 62413-1212016 |
AE70,KE7#,TE7#..(CTD,DX,GL,GT,SE)..4D *(H),L-BROWN,BROWN,TRIM4# |
1 | ||
| 62414A - GARNISH, CENTER PILLAR, LOWER LH | ||||
| 62414-1212006 |
AE70,KE7#,TE7#..(CTD,DX,GL,GT,SE)..4D *(H),L-BROWN,BROWN,TRIM4# |
1 | ||
| 62414-1213001 |
AE70,KE7#,TE7#..4D TOYOTA TUSHO,BLACK,BLACK,TRIM2# |
1 | ||
| 62414-1213006 |
AE70,KE7#,TE7#..(CTD,DX,GL,GT,SE)..4D TOYOTA TUSHO,L-BROWN,BROWN,TRIM4# |
1 | ||
| 62414-1213004 |
AE70,KE70,TE70,71..(CTD,DX,GL,GT,SE)..4D TOYOTA TUSHO,BLUE,BLUE,TRIM8# |
1 | ||
| 62414-1212016 |
AE70,KE7#,TE7#..(CTD,DX,GL,GT,SE)..4D *(H),L-BROWN,BROWN,TRIM4# |
1 | ||
| 62414-1212004 |
AE70,KE70,TE70,71..(CTD,DX,GL,GT,SE)..4D *(H),BLUE,BLUE,TRIM8# |
1 | ||
| 62414-1213016 |
AE70,KE7#,TE7#..(CTD,DX,GL,GT,SE)..4D TOYOTA TUSHO,L-BROWN,BROWN,TRIM4# |
1 | ||
| 62414-1212001 |
AE70,KE7#,TE7#..4D *(H),BLACK,BLACK,TRIM2# |
1 | ||
| 62511 - BOARD, QUARTER INSIDE TRIM, RH | ||||
| 62631-1312006 |
KE71,TE73..DX,GL RR,L-BROWN,BROWN,TRIM4# |
1 | ||
| 62631-1312016 |
KE71,TE73..DX,GL RR,L-BROWN,BROWN,TRIM4# |
1 | ||
| 62631-13080 |
KE71,TE73 RR,BLACK |
1 | ||
| 62511B - CLIP (FOR QUARTER INSIDE TRIM BOARD) | ||||
| 90467-0801501 |
KE71,TE73 BLACK,BLACK,TRIM2# |
13 | ||
| 90467-0801516 |
KE71,TE73..DX,GL L-BROWN,BROWN,TRIM4# |
13 | ||
| 90467-0801506 |
KE71,TE73..DX,GL L-BROWN,BROWN,TRIM4# |
13 | ||
| 62511S - COVER, QUARTER TRIM JACK | ||||
| 64707-13030 |
KE71,TE73..DX,GL L-BROWN |
1 | ||
| 62511U - KNOB, JACK COVER | ||||
| 64769-1301006 |
KE71,TE73..DX,GL L-BROWN,BROWN,TRIM4# |
1 | ||
| 62512 - BOARD, QUARTER INSIDE TRIM, LH | ||||
| 62632-1317006 |
KE71,TE73..DX,GL RR,L-BROWN,BROWN,TRIM4# |
1 | ||
| 62632-13130 |
KE71,TE73 RR,BLACK |
1 | ||
| 62632-1317016 |
KE71,TE73..DX,GL RR,L-BROWN,BROWN,TRIM4# |
1 | ||
| 62561 - PROTECTOR, ROCKER PANEL, INNER FRONT | ||||
| 62561-12020 |
AE70,CE7#,KE7#,TE7# |
2 | ||
| 62561 - PROTECTOR, ROCKER PANEL, INNER FRONT | ||||
| 62561-12020 |
AE70,CE7#,KE7#,TE7# |
2 | ||
| 62562 - PROTECTOR, ROCKER PANEL, INNER REAR | ||||
| 62563-12010 |
AE70,KE7#,TE7# RH |
1 | ||
| 62564-12010 |
AE70,KE7#,TE7# LH |
1 | ||
| 62562 - PROTECTOR, ROCKER PANEL, INNER REAR | ||||
| 62563-12010 |
AE70,KE7#,TE7# RH |
1 | ||
| 62564-12010 |
AE70,KE7#,TE7# LH |
1 | ||
| Common parts | ||||
| 67772-16010 | ||||
| 90119-06106 | ||||
| 90463-04015 | ||||
| 90463-04026 | ||||
| 90468-05011 | ||||
| 93566-15512 | ||||
| Linked diagrams | ||||
| 8401 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
