KE71V-EXKDSW (1979)

Toyota Corolla

Production Aug 1979 - Aug 1981
Engine 4KJ
Transmission 4F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(7903-8304)AE70,CE70,KE70,TE70,71

Click highlighted areas on diagram

diagram 5305 5305 5305 57207 57207 57673 58101 58101B 58101C 58101C 58101D 58142 58171 58208 58208B 58208C 58208D 58233 58236B 58247 58253A 58255 58260 58275A 58286 58288 58298 58301A 58305 58307 58311 58313F 58313F 58314F 58314F 58346 58364B 58376C 58379A 58381 58708 6101 64602A 9011906182 9095001005 9095001005 9095001005 9095001005 9095001005 9095001005 9095001005 9095001005 9095001027 9095001027 9095001027 9095001027 9095001027 9095001038 9095001060 9095001060 9095001086 9095001086 9095001132 9095001133 9095001241 9165140614 9165140616 9165160616
Part # Description Qty Price
57207 - BRACKET SUB-ASSY, ENGINE REAR MOUNTING MEMBER
57207-12030

AE70,KE7#,TE7#

RH

 1
57208-12040

AE70,KE7#,TE7#

LH

 1
57207 - BRACKET SUB-ASSY, ENGINE REAR MOUNTING MEMBER
57207-12030

AE70,KE7#,TE7#

RH

 1
57208-12040

AE70,KE7#,TE7#

LH

 1
58101 - PAN SUB-ASSY, FRONT FLOOR
58111-12140

AE70,CE7#,KE7#,TE7#

 1
58101B - RETAINER, CONSOLE BOX MOUNTING
58164-12010

AE70,CE7#,KE7#,TE7#

 1
58101C - REINFORCEMENT SUB-ASSY, DRIVE SHAFT SUPPORT
58205-12020

AE70,CE7#,KE7#,TE7#

RH

 1
58206-12020

AE70,CE7#,KE7#,TE7#

LH

 1
58101C - REINFORCEMENT SUB-ASSY, DRIVE SHAFT SUPPORT
58205-12020

AE70,CE7#,KE7#,TE7#

RH

 1
58206-12020

AE70,CE7#,KE7#,TE7#

LH

 1
58101D - BRACKET, PARKING BRAKE CABLE GUIDE
58264-12020

AE70,CE7#,KE7#,TE7#

 1
58142 - REINFORCEMENT, FLOOR SIDE MEMBER TO FLOOR PAN
58141-16010

AE70,CE7#,KE7#,TE7#

 2
58171 - REINFORCEMENT, PARKING BRAKE BASE
58171-12040

AE70,CE7#,KE7#,TE7#

 1
58208 - PAN, CENTER FLOOR
58211-12090

AE70,KE70,TE70,71

 1
58208B - BRACKET, CENTER FLOOR HEAT INSULATOR
58236-14010

AE70,CE7#,KE7#,TE7#

 3
58208C - COVER, CENTER FLOOR HOLE
58285-12010

AE70,CE70,KE70,TE70,71

 1
58233 - BRACKET, EXHAUST PIPE MOUNTING
58233-12010

AE70,CE70,KE70,TE70,71

 1
58255 - CLAMP, PARKING BRAKE CABLE, NO.1
58208-12040

AE70,CE70,KE70,TE70,71

LH

 1
58207-12040

AE70,CE70,KE70,TE70,71

RH

 1
58260 - COVER ASSY, TRANSMISSION, FRONT
58281-12010

AE70,CE7#,KE7#,TE7#..MTM

 1
58286 - BOOT, SHIFT & SELECT LEVER, NO.1
58280-12090

AE70,KE7#,TE73..4F..(CTD,DX,STD)

 1
58288 - SEAL, SHIFT LEVER BOOT
58288-12060

KE7#

 1
58305 - BRACKET SUB-ASSY, SPARE WHEEL CLAMP
58305-10011

AE70,CE70,KE70,TE70,71

 1
Common parts
90119-06182
90950-01005
90950-01027
90950-01038
90950-01060
90950-01086
90950-01132
90950-01133
90950-01241
91651-40614
91651-40616
91651-60616
Linked diagrams
5305
6101

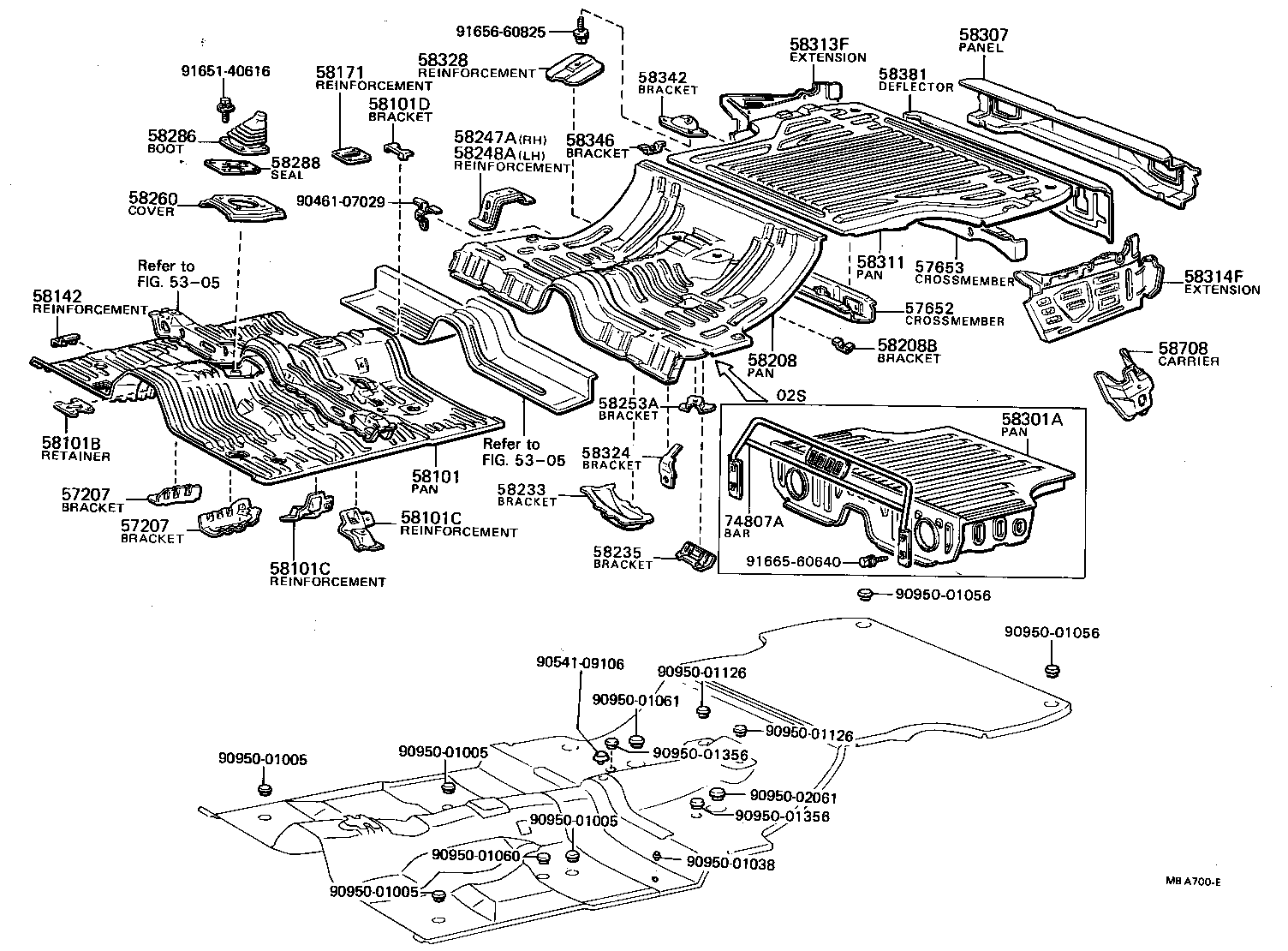

(7908- )CE71,72,KE71,72,73,74,TE73,74

Click highlighted areas on diagram

diagram 5305 5305 57207 57207 57652 57653 58101 58101B 58101C 58101C 58101D 58142 58171 58208 58208B 58233 58235 58247A 58248A 58253A 58260 58286 58288 58301A 58307 58311 58313F 58314F 58324 58328 58342 58346 58381 58708 74807A 9046107029 9054109106 9095001005 9095001005 9095001005 9095001005 9095001038 9095001056 9095001056 9095001060 9095001061 9095001126 9095001126 9095001356 9095001356 9095002061 9165140616 9165660825 9166560640
Part # Description Qty Price
57207 - BRACKET SUB-ASSY, ENGINE REAR MOUNTING MEMBER
57207-12030

AE70,KE7#,TE7#

RH

 1
57208-12040

AE70,KE7#,TE7#

LH

 1
57207 - BRACKET SUB-ASSY, ENGINE REAR MOUNTING MEMBER
57207-12030

AE70,KE7#,TE7#

RH

 1
57208-12040

AE70,KE7#,TE7#

LH

 1
58101 - PAN SUB-ASSY, FRONT FLOOR
58111-12140

AE70,CE7#,KE7#,TE7#

 1
58101B - RETAINER, CONSOLE BOX MOUNTING
58164-12010

AE70,CE7#,KE7#,TE7#

 1
58101C - REINFORCEMENT SUB-ASSY, DRIVE SHAFT SUPPORT
58205-12020

AE70,CE7#,KE7#,TE7#

RH

 1
58206-12020

AE70,CE7#,KE7#,TE7#

LH

 1
58101C - REINFORCEMENT SUB-ASSY, DRIVE SHAFT SUPPORT
58205-12020

AE70,CE7#,KE7#,TE7#

RH

 1
58206-12020

AE70,CE7#,KE7#,TE7#

LH

 1
58101D - BRACKET, PARKING BRAKE CABLE GUIDE
58264-12020

AE70,CE7#,KE7#,TE7#

 1
58142 - REINFORCEMENT, FLOOR SIDE MEMBER TO FLOOR PAN
58141-16010

AE70,CE7#,KE7#,TE7#

 2
58171 - REINFORCEMENT, PARKING BRAKE BASE
58171-12040

AE70,CE7#,KE7#,TE7#

 1
58208 - PAN, CENTER FLOOR
58211-12090

AE70,KE70,TE70,71

 1
58208B - BRACKET, CENTER FLOOR HEAT INSULATOR
58236-14010

AE70,CE7#,KE7#,TE7#

 3
58233 - BRACKET, EXHAUST PIPE MOUNTING
58233-12010

AE70,CE70,KE70,TE70,71

 1
58260 - COVER ASSY, TRANSMISSION, FRONT
58281-12010

AE70,CE7#,KE7#,TE7#..MTM

 1
58286 - BOOT, SHIFT & SELECT LEVER, NO.1
58280-12090

AE70,KE7#,TE73..4F..(CTD,DX,STD)

 1
58288 - SEAL, SHIFT LEVER BOOT
58288-12060

KE7#

 1
Common parts
90461-07029
90541-09106
90950-01005
90950-01038
90950-01056
90950-01060
90950-01061
90950-01126
90950-01356
90950-02061
91651-40616
91656-60825
91665-60640
Linked diagrams
5305
