KE71V-EVKRSW (1979)

Toyota Corolla

Production Aug 1979 - Aug 1981
Engine 4KJ
Transmission 4F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(7903-8304)TE70,71

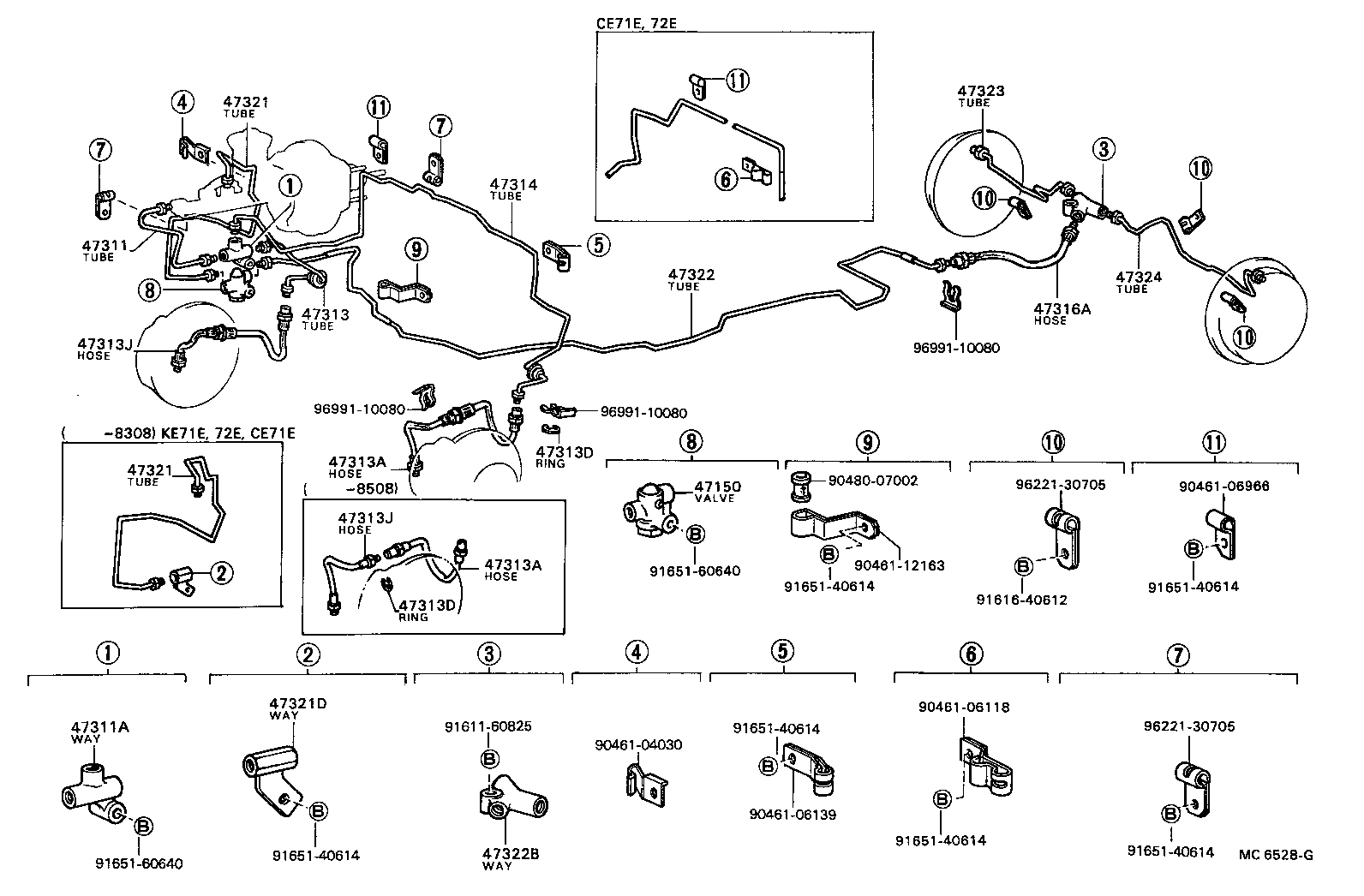

Click highlighted areas on diagram

diagram 47150 47311 47311A 47313 47313A 47313A 47313D 47313D 47313J 47313J 47314 47316A 47318F 47319F 47321 47322 47322B 47323 47323 47324 47324 9046106139 9161160825 9161640612 9165140614 9165140614 9165160640 9165160640 9622130705 9622130705 9699110080 9699110080 9699110080 9699110080
Part # Description Qty Price
47150 - VALVE ASSY, PROPORTIONING
47150-12031

AE70,CE70,KE70,73,TE70,71

 1
47311 - TUBE, FRONT BRAKE, NO.1
47312-12040

AE70,CE7#,KE7#

 1
47311A - WAY(FOR FRONT BRAKE TUBE)
90413-10002

AE70,CE7#,KE7#,TE7#

 1
47313 - TUBE, FRONT BRAKE, NO.3
47314-12110

AE70,CE7#,KE7#

 1
47313A - HOSE, FLEXIBLE, NO.1(FOR FRONT)
90947-02393

AE70,CE7#,KE7#,TE7#

 2
47313A - HOSE, FLEXIBLE, NO.1(FOR FRONT)
90947-02393

AE70,CE7#,KE7#,TE7#

 2
47313D - RING, E(FOR FRONT FLEXIBLE HOSE SETTING)
96160-01200

AE70,CE7#,KE7#,TE7#

 4
47313D - RING, E(FOR FRONT FLEXIBLE HOSE SETTING)
96160-01200

AE70,CE7#,KE7#,TE7#

 4
47313J - HOSE, FLEXIBLE, NO.2(FOR FRONT)
90947-02224

AE70,CE7#,KE7#,TE7#

 2
47313J - HOSE, FLEXIBLE, NO.2(FOR FRONT)
90947-02224

AE70,CE7#,KE7#,TE7#

 2
47314 - TUBE, FRONT BRAKE, NO.4
47315-12250

AE70,KE7#

 1
47316A - HOSE, FLEXIBLE(FOR REAR BRAKE TUBE)
96940-32805

AE70,CE70,KE70,TE70,71

 1
47321 - TUBE, REAR BRAKE, NO.1
47322-12010

TE70,71

 1
47322 - TUBE, REAR BRAKE, NO.2
47323-12020

TE70,71

 1
47322B - WAY, NO.2(FOR REAR BRAKE TUBE)
90413-10098

AE70,CE70,KE70,TE70,71

 1
Common parts
90461-06139
91611-60825
91616-40612
91651-40614
91651-60640
96221-30705
96991-10080

(7908- )CE71,72,KE71,72,73,74

Click highlighted areas on diagram

diagram 47150 47311 47311A 47313 47313A 47313A 47313D 47313D 47313J 47313J 47314 47316A 47321 47321 47321D 47322 47322B 47323 47324 9046104030 9046106118 9046106139 9046106966 9046112163 9048007002 9161160825 9161640612 9165140614 9165140614 9165140614 9165140614 9165140614 9165140614 9165160640 9165160640 9622130705 9622130705 9699110080 9699110080 9699110080
Part # Description Qty Price
47150 - VALVE ASSY, PROPORTIONING
47150-12031

AE70,CE70,KE70,73,TE70,71

 1
47311 - TUBE, FRONT BRAKE, NO.1
47312-12040

AE70,CE7#,KE7#

 1
47311A - WAY(FOR FRONT BRAKE TUBE)
90413-10002

AE70,CE7#,KE7#,TE7#

 1
47313 - TUBE, FRONT BRAKE, NO.3
47314-12110

AE70,CE7#,KE7#

 1
47313A - HOSE, FLEXIBLE, NO.1(FOR FRONT)
90947-02393

AE70,CE7#,KE7#,TE7#

 2
47313A - HOSE, FLEXIBLE, NO.1(FOR FRONT)
90947-02393

AE70,CE7#,KE7#,TE7#

 2
47313D - RING, E(FOR FRONT FLEXIBLE HOSE SETTING)
96160-01200

AE70,CE7#,KE7#,TE7#

 4
47313D - RING, E(FOR FRONT FLEXIBLE HOSE SETTING)
96160-01200

AE70,CE7#,KE7#,TE7#

 4
47313J - HOSE, FLEXIBLE, NO.2(FOR FRONT)
90947-02224

AE70,CE7#,KE7#,TE7#

 2
47313J - HOSE, FLEXIBLE, NO.2(FOR FRONT)
90947-02224

AE70,CE7#,KE7#,TE7#

 2
47314 - TUBE, FRONT BRAKE, NO.4
47315-12250

AE70,KE7#

 1
47316A - HOSE, FLEXIBLE(FOR REAR BRAKE TUBE)
96940-32805

AE70,CE70,KE70,TE70,71

 1
47321 - TUBE, REAR BRAKE, NO.1
47322-12010

TE70,71

 1
47321 - TUBE, REAR BRAKE, NO.1
47322-12010

TE70,71

 1
47322 - TUBE, REAR BRAKE, NO.2
47323-12020

TE70,71

 1
47322B - WAY, NO.2(FOR REAR BRAKE TUBE)
90413-10098

AE70,CE70,KE70,TE70,71

 1
Common parts
90461-04030
90461-06118
90461-06139
90461-06966
90461-12163
90480-07002
91611-60825
91616-40612
91651-40614
91651-60640
96221-30705
96991-10080
