KE71V-EVKNSW (1979)

Toyota Corolla

Production Aug 1979 - Aug 1981
Engine 4KJ
Transmission 4F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(7903-8304)AE70,CE70,KE70,TE70,71

Click highlighted areas on diagram

diagram 81270 81270 81270B 81270B 81271 81271 81272 81274 81278 81278 8127920180 8127922110 8173922060 9018904018 9018904018
Part # Description Qty Price
81270 - LAMP ASSY, LICENSE PLATE
81270-19615

TE73;KE71..GL

 1
81270 - LAMP ASSY, LICENSE PLATE
81270-19615

TE73;KE71..GL

 1
81270B - BULB (FOR LICENSE PLATE LAMP)
99132-11100

AE70,CE70,KE70,TE70,71..DX,GL,GT,LVN,LVS,SE,SL,SR,SX

12V 10W,12V 10W

 2
81270B - BULB (FOR LICENSE PLATE LAMP)
99132-11100

AE70,CE70,KE70,TE70,71..DX,GL,GT,LVN,LVS,SE,SL,SR,SX

12V 10W,12V 10W

 2
81274 - GASKET, LICENSE PLATE LAMP BODY
81274-13100

KE71,TE73

 1
81694-16010

AE70,CE70,KE70,TE70,71..DX,GL,GT,LVN,LVS,SE,SL,SR,SX

LH,W/URETHANE BUMPER

 1
81274-16020

AE70,CE70,KE70,TE70,71..DX,GL,GT,LVN,LVS,SE,SL,SR,SX

RH,W/URETHANE BUMPER

 1
Common parts
81279-20180
81279-22110
81739-22060
90189-04018

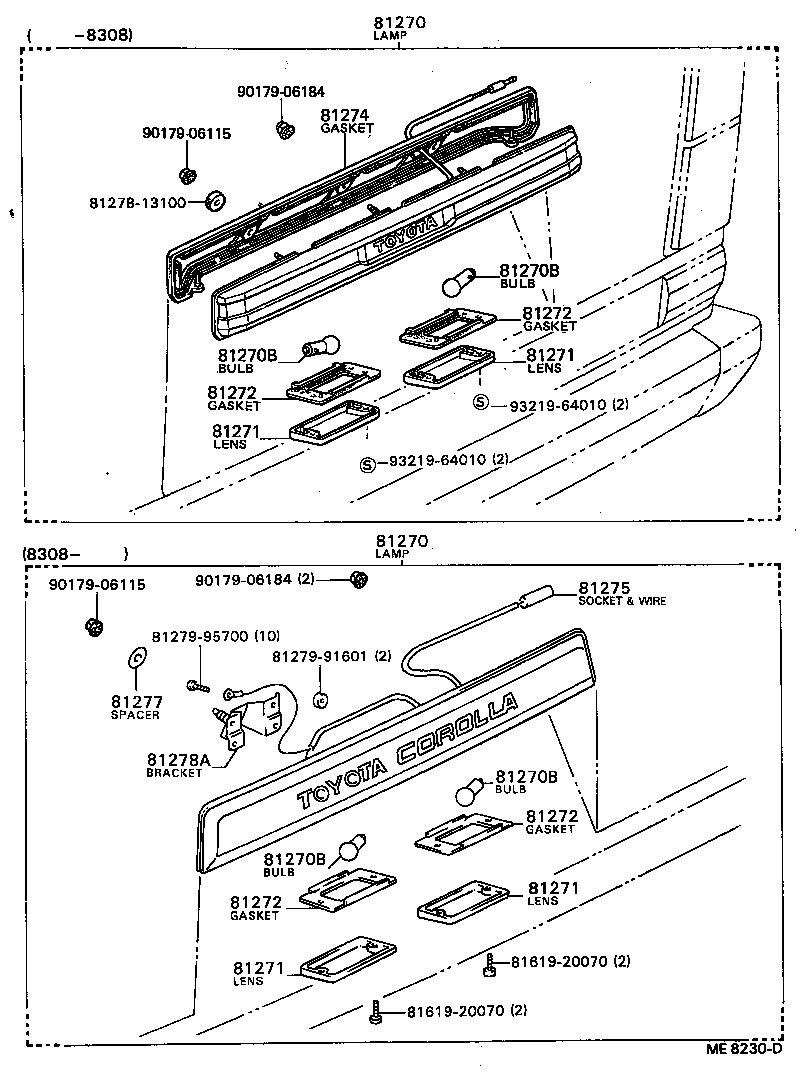

(7908- )CE71,KE71,72,74,TE73,74 ; (8205- )CE72,KE73

Click highlighted areas on diagram

diagram 81270 81270 81270B 81270B 81270B 81270B 81271 81271 81271 81271 81272 81272 81272 81272 81274 81275 81277 8127813100 81278A 8127991601 8127995700 8161920070 8161920070 9017906115 9017906115 9017906184 9017906184 9321964010 9321964010
Part # Description Qty Price
81270 - LAMP ASSY, LICENSE PLATE
81270-19615

TE73;KE71..GL

 1
81270 - LAMP ASSY, LICENSE PLATE
81270-19615

TE73;KE71..GL

 1
81270B - BULB (FOR LICENSE PLATE LAMP)
99132-11100

AE70,CE70,KE70,TE70,71..DX,GL,GT,LVN,LVS,SE,SL,SR,SX

12V 10W,12V 10W

 2
81270B - BULB (FOR LICENSE PLATE LAMP)
99132-11100

AE70,CE70,KE70,TE70,71..DX,GL,GT,LVN,LVS,SE,SL,SR,SX

12V 10W,12V 10W

 2
81270B - BULB (FOR LICENSE PLATE LAMP)
99132-11100

AE70,CE70,KE70,TE70,71..DX,GL,GT,LVN,LVS,SE,SL,SR,SX

12V 10W,12V 10W

 2
81270B - BULB (FOR LICENSE PLATE LAMP)
99132-11100

AE70,CE70,KE70,TE70,71..DX,GL,GT,LVN,LVS,SE,SL,SR,SX

12V 10W,12V 10W

 2
81274 - GASKET, LICENSE PLATE LAMP BODY
81274-13100

KE71,TE73

 1
81694-16010

AE70,CE70,KE70,TE70,71..DX,GL,GT,LVN,LVS,SE,SL,SR,SX

LH,W/URETHANE BUMPER

 1
81274-16020

AE70,CE70,KE70,TE70,71..DX,GL,GT,LVN,LVS,SE,SL,SR,SX

RH,W/URETHANE BUMPER

 1
Common parts
81278-13100
81279-91601
81279-95700
81619-20070
90179-06115
90179-06184
93219-64010

(7903-8304)AE70,CE70,KE70,TE70,71

Click highlighted areas on diagram

diagram 81270 81270B 81274 81277D 81278 9017905177 9044607534 9351015020
Part # Description Qty Price
81270 - LAMP ASSY, LICENSE PLATE
81270-19615

TE73;KE71..GL

 1
81270B - BULB (FOR LICENSE PLATE LAMP)
99132-11100

AE70,CE70,KE70,TE70,71..DX,GL,GT,LVN,LVS,SE,SL,SR,SX

12V 10W,12V 10W

 2
81274 - GASKET, LICENSE PLATE LAMP BODY
81274-13100

KE71,TE73

 1
81694-16010

AE70,CE70,KE70,TE70,71..DX,GL,GT,LVN,LVS,SE,SL,SR,SX

LH,W/URETHANE BUMPER

 1
81274-16020

AE70,CE70,KE70,TE70,71..DX,GL,GT,LVN,LVS,SE,SL,SR,SX

RH,W/URETHANE BUMPER

 1
81277D - REFLECTOR, LICENSE PLATE LAMP
81697-16010

AE70,KE70,TE70,71..DX,GL,GT,LVN,SE,SL,SR

LH

 1
81277-16020

AE70,KE70,TE70,71..DX,GL,GT,LVN,SE,SL,SR

RH

 1
Common parts
90179-05177
90446-07534
93510-15020
