KE71V-EVKNSW (1979)

Toyota Corolla

Production Aug 1979 - Aug 1981
Engine 4KJ
Transmission 4F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(7908-8108)KE71,TE73

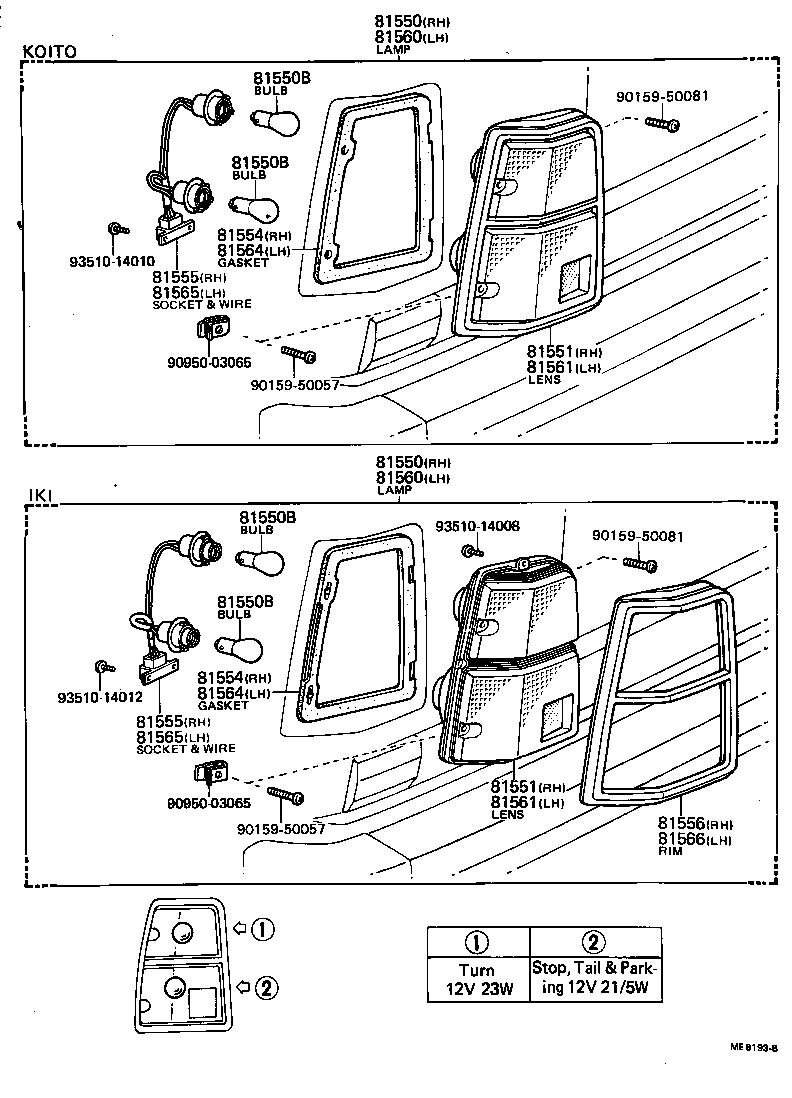

Click highlighted areas on diagram

diagram 81550 81550 81550B 81550B 81550B 81550B 81551 81551 81554 81554 81555 81555 81556 81560 81560 81561 81561 81564 81564 81565 81565 81566 9015950057 9015950057 9015950081 9015950081 9095003065 9095003065 9351014008 9351014010 9351014012
Part # Description Qty Price
81550 - LAMP ASSY, REAR COMBINATION, RH
81550-80053

TE73;KE71..GL

IKI

 1
81550-80052

TE73;KE71..GL

KOITO

 1
81550 - LAMP ASSY, REAR COMBINATION, RH
81550-80053

TE73;KE71..GL

IKI

 1
81550-80052

TE73;KE71..GL

KOITO

 1
81550B - BULB(FOR REAR COMBINATION LAMP)
99132-11230

AE70,CE7#,KE7#,TE7#

12V 23W,12V 23W

 4
99132-21210

AE70,CE7#,KE7#,TE7#

12V 21/5W,12V 21/5W

 4
81550B - BULB(FOR REAR COMBINATION LAMP)
99132-11230

AE70,CE7#,KE7#,TE7#

12V 23W,12V 23W

 4
99132-21210

AE70,CE7#,KE7#,TE7#

12V 21/5W,12V 21/5W

 4
81550B - BULB(FOR REAR COMBINATION LAMP)
99132-11230

AE70,CE7#,KE7#,TE7#

12V 23W,12V 23W

 4
99132-21210

AE70,CE7#,KE7#,TE7#

12V 21/5W,12V 21/5W

 4
81550B - BULB(FOR REAR COMBINATION LAMP)
99132-11230

AE70,CE7#,KE7#,TE7#

12V 23W,12V 23W

 4
99132-21210

AE70,CE7#,KE7#,TE7#

12V 21/5W,12V 21/5W

 4
81551 - LENS, REAR COMBINATION LAMP, RH
81551-13220

KE71,TE73

IKI

 1
81551-13210

TE73;KE71..GL

KOITO

 1
81551 - LENS, REAR COMBINATION LAMP, RH
81551-13220

KE71,TE73

IKI

 1
81551-13210

TE73;KE71..GL

KOITO

 1
81554 - GASKET, REAR COMBINATION LAMP BODY, RH
81554-13210

KE71,TE73

KOITO

 1
81554-13220

KE71,TE73

IKI

 1
81554 - GASKET, REAR COMBINATION LAMP BODY, RH
81554-13210

KE71,TE73

KOITO

 1
81554-13220

KE71,TE73

IKI

 1
81555 - SOCKET & WIRE SUB-ASSY, REAR COMBINATION LAMP, RH
81555-13210

KE71,TE73

KOITO

 1
81555 - SOCKET & WIRE SUB-ASSY, REAR COMBINATION LAMP, RH
81555-13210

KE71,TE73

KOITO

 1
81556 - RIM, REAR COMBINATION LAMP, RH
81556-13220

TE73;KE71..GL

IKI

 1
81560 - LAMP ASSY, REAR COMBINATION, LH
81560-80055

TE73;KE71..GL

IKI

 1
81560-80054

TE73;KE71..GL

KOITO

 1
81560 - LAMP ASSY, REAR COMBINATION, LH
81560-80055

TE73;KE71..GL

IKI

 1
81560-80054

TE73;KE71..GL

KOITO

 1
81561 - LENS, REAR COMBINATION LAMP, LH
81561-13220

KE71,TE73

IKI

 1
81561-13210

TE73;KE71..GL

KOITO

 1
81561 - LENS, REAR COMBINATION LAMP, LH
81561-13220

KE71,TE73

IKI

 1
81561-13210

TE73;KE71..GL

KOITO

 1
81564 - GASKET, REAR COMBINATION LAMP BODY, LH
81564-13220

KE71,TE73

IKI

 1
81554-13210

KE71,TE73

KOITO

 1
81564 - GASKET, REAR COMBINATION LAMP BODY, LH
81564-13220

KE71,TE73

IKI

 1
81554-13210

KE71,TE73

KOITO

 1
81565 - SOCKET & WIRE SUB-ASSY, REAR COMBINATION LAMP, LH
81555-13210

KE71,TE73

KOITO

 1
81565 - SOCKET & WIRE SUB-ASSY, REAR COMBINATION LAMP, LH
81555-13210

KE71,TE73

KOITO

 1
81566 - RIM, REAR COMBINATION LAMP, LH
81566-13220

TE73;KE71..GL

IKI

 1
Common parts
90159-50057
90159-50081
90950-03065
93510-14008
93510-14010
93510-14012
