KE71V-EVKNSW (1979)
Toyota Corolla
Production
Aug 1979
-
Aug 1981
Engine
4KJ
Transmission
4F MTM
Displacement
2500cc
Power
168 HP (125 kW)

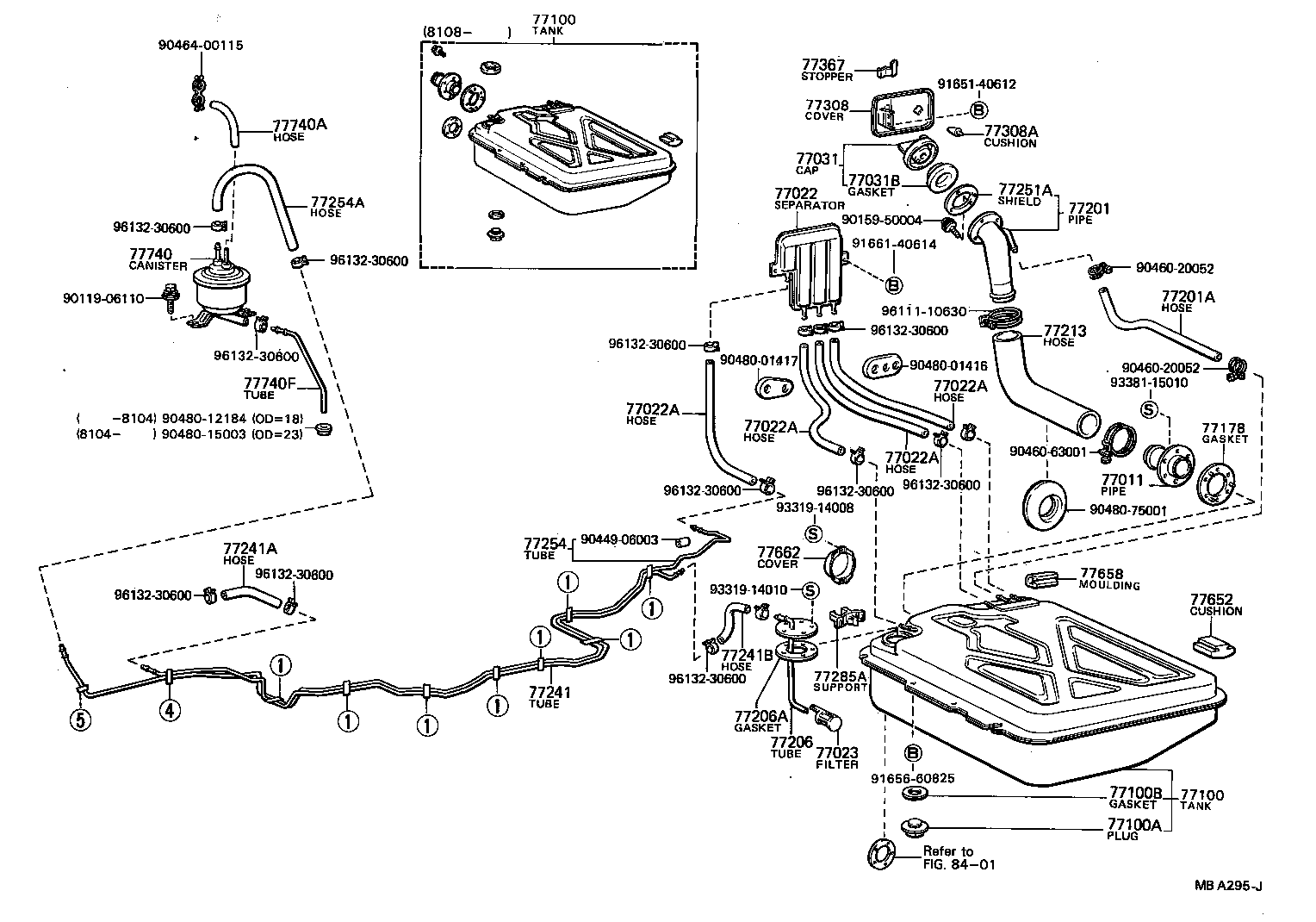

ILLUST NO. 1 OF 2(7908-8108)KE71,TE73
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 77011 - PIPE SUB-ASSY, FUEL TANK FILLER, LOWER | ||||
| 77011-12010 |
AE70,CE70,KE70,TE70,71 |
1 | ||
| 77022A - HOSE, FUEL(FOR FUEL EVAPORATIVE SEPARATOR) | ||||
| 90445-12040 |
KE71,TE73 L=630 |
1 | ||
| 77022A - HOSE, FUEL(FOR FUEL EVAPORATIVE SEPARATOR) | ||||
| 90445-12040 |
KE71,TE73 L=630 |
1 | ||
| 77022A - HOSE, FUEL(FOR FUEL EVAPORATIVE SEPARATOR) | ||||
| 90445-12040 |
KE71,TE73 L=630 |
1 | ||
| 77022A - HOSE, FUEL(FOR FUEL EVAPORATIVE SEPARATOR) | ||||
| 90445-12040 |
KE71,TE73 L=630 |
1 | ||
| 77023 - FILTER SUB-ASSY, FUEL SUCTION TUBE | ||||
| 77023-12050 |
AE70,KE7#,TE70,73,74 |
1 | ||
| 77031B - GASKET (FOR FUEL TANK CAP) | ||||
| 77316-12050 |
AE70,CE7#,KE7#,TE7# |
1 | ||
| 77100 - TANK ASSY, FUEL | ||||
| 77101-13900 |
KE71,TE73 |
1 | ||
| 77100 - TANK ASSY, FUEL | ||||
| 77101-13900 |
KE71,TE73 |
1 | ||
| 77100A - PLUG(FOR FUEL TANK) | ||||
| 90341-24036 |
AE70,CE7#,KE7#,TE7# 0D=46 |
1 | ||
| 77100B - GASKET(FOR FUEL TANK) | ||||
| 90430-24047 |
AE70,CE7#,KE7#,TE7# 0D=42 |
1 | ||
| 77178 - GASKET, FUEL TANK FILLER PIPE, LOWER | ||||
| 77178-10010 |
AE70,CE70,KE70,TE70,71 |
1 | ||
| 77201A - HOSE, FUEL, NO.1(FOR FUEL TANK INLET PIPE) | ||||
| 90445-18002 |
KE71,TE73 |
1 | ||
| 90445-18046 |
AE70,CE70,KE70,TE70,71 |
1 | ||
| 77206 - TUBE SUB-ASSY, FUEL TANK SUCTION | ||||
| 77203-13050 |
KE71,TE73 |
1 | ||
| 77206A - GASKET (FOR FUEL TANK SUCTION TUBE) | ||||
| 77169-14020 |
AE70,CE7#,KE7#,TE7# |
1 | ||
| 77213 - HOSE, FUEL TANK SUB INLET | ||||
| 77213-12110 |
AE70,CE70,KE70,TE70,71 |
1 | ||
| 77241 - TUBE, FUEL MAIN, NO.1 | ||||
| 77251-13040 |
KE71,TE73 |
1 | ||
| 77241A - HOSE, FUEL, NO.1 (FOR MAIN TUBE, NO.1) | ||||
| 95332-06020 |
KE7#,TE70,73,74 *H,L=150 |
1 | ||
| 77241B - HOSE, FUEL, NO.2 (FOR MAIN TUBE, NO.1) | ||||
| 90445-12085 |
KE71,TE73 L=220 |
1 | ||
| 77254 - TUBE, FUEL EMISSION, NO.1 | ||||
| 77261-13060 |
KE71,TE73 |
1 | ||
| 77254A - HOSE, FUEL, NO.1 (FOR EMISSION TUBE, NO.1) | ||||
| 95332-06030 |
AE70,KE7#,TE70,73 *H,L=240 |
1 | ||
| 77308 - COVER SUB-ASSY, FUEL INLET BOX | ||||
| 77350-13020 |
KE71,TE73 |
1 | ||
| 77652 - CUSHION, FUEL TANK, NO.1 | ||||
| 77651-12040 |
AE70,KE70,TE70,71 |
2 | ||
| 77651-12040 |
AE70,KE70,TE70,71 FR |
1 | ||
| 77658 - MOULDING, FUEL TANK EDGE | ||||
| 77658-12010 |
AE70,CE70,KE7#,TE7# |
2 | ||
| 77740 - CANISTER ASSY, CHARCOAL | ||||
| 77740-13010 |
KE7# |
1 | ||
| 77740A - HOSE, FUEL, NO.1(FOR CHARCOAL CANISTER) | ||||
| 90445-08188 |
KE71 L=1270 |
1 | ||
| 90445-08204 |
KE71 *H,L=1270 |
1 | ||
| 77740F - TUBE, FUEL, NO.1(FOR CHARCOAL CANISTER) | ||||
| 77264-12070 |
AE70,KE7#,TE70,73 |
1 | ||
| Common parts | ||||
| 90119-06110 | ||||
| 90159-50004 | ||||
| 90449-06003 | ||||
| 90460-20052 | ||||
| 90460-63001 | ||||
| 90464-00115 | ||||
| 90480-01416 | ||||
| 90480-01417 | ||||
| 90480-12184 | ||||
| 90480-15003 | ||||
| 90480-75001 | ||||
| 91651-40612 | ||||
| 91656-60825 | ||||
| 91661-40614 | ||||
| 93319-14008 | ||||
| 93319-14010 | ||||
| 93381-15010 | ||||
| 96111-10630 | ||||
| 96132-30600 | ||||
| Linked diagrams | ||||
| 8401 | ||||
