KE71V-EVKNSW (1979)

Toyota Corolla

Production Aug 1979 - Aug 1981
Engine 4KJ
Transmission 4F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(7908-8108)4KJ

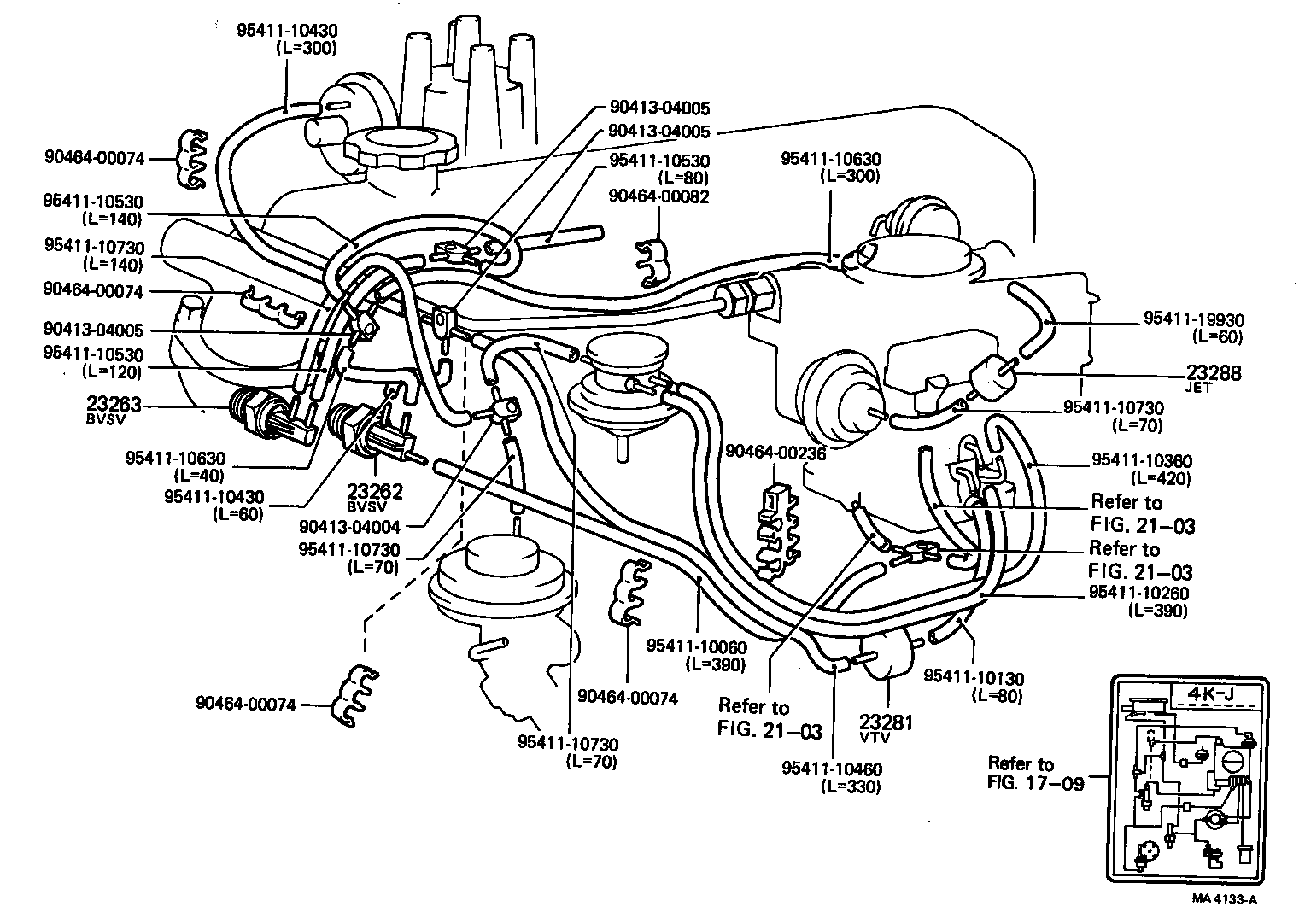

Click highlighted areas on diagram

diagram 1709 2103 2103 2103 23262 23263 23281 23288 9041304004 9041304005 9041304005 9041304005 9046400074 9046400074 9046400074 9046400074 9046400082 9046400236 9541110060 9541110130 9541110260 9541110360 9541110430 9541110430 9541110460 9541110530 9541110530 9541110530 9541110630 9541110630 9541110730 9541110730 9541110730 9541110730 9541119930
Part # Description Qty Price
23262 - VALVE, BIMETAL VACUUM SWITCHING, NO.1
25810-24010

4KJ..KE71

 1
23263 - VALVE, BIMETAL VACUUM SWITCHING, NO.2
90925-05052

4KJ..KE71

 1
23281 - VALVE, VACUUM TRANSMITTING, NO.1
90925-01014

4KJ..KE71

 1
23288 - JET, NO.1
90925-04005

4KJ..KE71

 1
Common parts
90413-04004
90413-04005
90464-00074
90464-00082
90464-00236
95411-10060
95411-10130
95411-10260
95411-10360
95411-10430
95411-10460
95411-10530
95411-10630
95411-10730
95411-19930
Linked diagrams
1709
2103
