KE71V-EVKNSW (1979)
Toyota Corolla

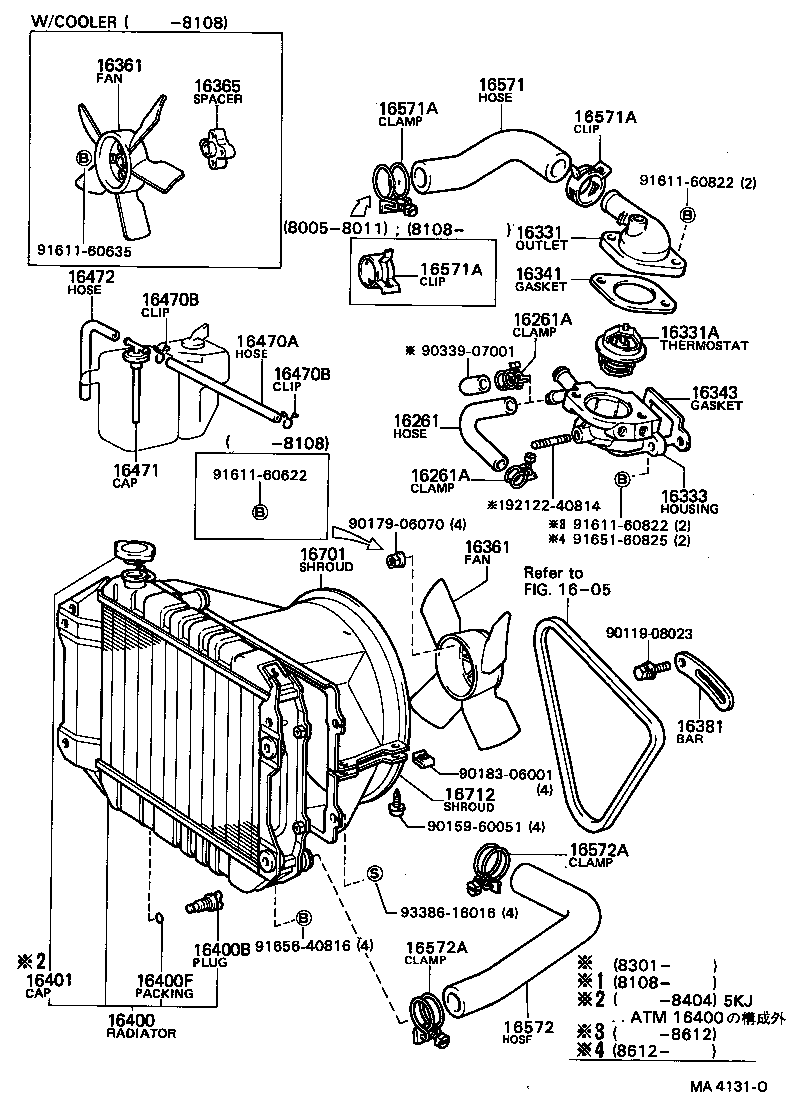

ILLUST NO. 1 OF 2(7908-8108)4KJ ; (8108- )4KJ,5KJ ; (8108-)4KU..KE70..3FC
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 16261 - HOSE, WATER BY-PASS | ||||
| 16261-13010 |
4K#..KE7# |
1 | ||
| 16261A - CLAMP OR CLIP, HOSE(FOR WATER BY-PASS HOSE) | ||||
| 90460-15001 |
4K#..KE7# |
2 | ||
| 16261A - CLAMP OR CLIP, HOSE(FOR WATER BY-PASS HOSE) | ||||
| 90460-15001 |
4K#..KE7# |
2 | ||
| 16331A - THERMOSTAT | ||||
| 90916-03037 |
4K#..KE7# *WAX 82-95,KUZEH |
1 | ||
| 90916-03038 |
4KJ..KE71 *WAX 82-95,KUZEH |
1 | ||
| 90916-03036 |
4KJ..KE71 COLD SPEC,*WAX 88-100,*(F) |
1 | ||
| 90916-03020 |
4KJ..KE71 *WAX 82-95,*(F) |
1 | ||
| 90916-03034 |
4K#..KE7# *WAX 82-95,*(F) |
1 | ||
| 16333 - HOUSING, WATER OUTLET | ||||
| 16333-13060 |
4KJ..KE71 |
1 | ||
| 16341 - GASKET, WATER OUTLET | ||||
| 16341-13011 |
4K#,5KJ..KE7# |
1 | ||
| 16343 - GASKET, WATER OUTLET HOUSING | ||||
| 16343-22010 |
4K#..KE7# |
1 | ||
| 16361 - FAN | ||||
| 16361-24031 |
4KJ..KE71 4 BLADES,OD=300 |
1 | ||
| 16361-31030 |
4KJ..KE71 W/COOLER,5 BLADES,OD=340 |
1 | ||
| 16361 - FAN | ||||
| 16361-24031 |
4KJ..KE71 4 BLADES,OD=300 |
1 | ||
| 16361-31030 |
4KJ..KE71 W/COOLER,5 BLADES,OD=340 |
1 | ||
| 16365 - SPACER, FAN | ||||
| 16365-24010 |
4KJ..KE71 W/COOLER |
1 | ||
| 16381 - BAR, FAN BELT ADJUSTING | ||||
| 16381-24011 |
4K#,5KJ..KE7# |
1 | ||
| 16400 - RADIATOR ASSY | ||||
| 16400-13110 |
4KJ..KE71 |
1 | ||
| 16400B - PLUG, RADIATOR DRAIN COCK | ||||
| 90910-09054 |
4K#,5KJ..KE7# |
1 | ||
| 16400F - PACKING(FOR RADIATOR DRAIN COCK) | ||||
| 96710-01007 |
4K#..KE7# |
1 | ||
| 16401 - CAP SUB-ASSY, RADIATOR | ||||
| 16401-36011 |
4K#,5KJ..KE7# |
1 | ||
| 16470A - HOSE OR PIPE(FOR RADIATOR RESERVE TANK) | ||||
| 90445-12073 |
4K#..KE7# 長さ=420 |
1 | ||
| 16470B - CLAMP OR CLIP(FOR RADIATOR RESERVE TANK HOSE) | ||||
| 90467-11085 |
4K#,5KJ..KE7# |
2 | ||
| 16470B - CLAMP OR CLIP(FOR RADIATOR RESERVE TANK HOSE) | ||||
| 90467-11085 |
4K#,5KJ..KE7# |
2 | ||
| 16471 - CAP SUB-ASSY, RESERVE TANK | ||||
| 85339-12010 |
4K#,5KJ..KE7# |
1 | ||
| 16472 - HOSE, BREATHER | ||||
| 85338-16010 |
4K#,5KJ..KE7# |
1 | ||
| 16571 - HOSE, RADIATOR, INLET | ||||
| 16572-13060 |
4KJ..KE71 |
1 | ||
| 16571A - CLAMP OR CLIP, HOSE(FOR RADIATOR INLET) | ||||
| 90467-37001 |
4K#..KE7# WATER OUTLET SIDE |
1 | ||
| 90467-37001 |
4K#..KE7# |
2 | ||
| 96111-10430 |
4K#..KE7# RADIATOR SIDE |
1 | ||
| 90467-37001 |
4K#..KE7# WATER OUTLET SIDE |
1 | ||
| 96111-10430 |
4K#..KE7# RADIATOR SIDE |
1 | ||
| 16571A - CLAMP OR CLIP, HOSE(FOR RADIATOR INLET) | ||||
| 90467-37001 |
4K#..KE7# WATER OUTLET SIDE |
1 | ||
| 90467-37001 |
4K#..KE7# |
2 | ||
| 96111-10430 |
4K#..KE7# RADIATOR SIDE |
1 | ||
| 90467-37001 |
4K#..KE7# WATER OUTLET SIDE |
1 | ||
| 96111-10430 |
4K#..KE7# RADIATOR SIDE |
1 | ||
| 16571A - CLAMP OR CLIP, HOSE(FOR RADIATOR INLET) | ||||
| 90467-37001 |
4K#..KE7# WATER OUTLET SIDE |
1 | ||
| 90467-37001 |
4K#..KE7# |
2 | ||
| 96111-10430 |
4K#..KE7# RADIATOR SIDE |
1 | ||
| 90467-37001 |
4K#..KE7# WATER OUTLET SIDE |
1 | ||
| 96111-10430 |
4K#..KE7# RADIATOR SIDE |
1 | ||
| 16572A - CLAMP OR CLIP, HOSE(FOR RADIATOR OUTLET NO.1) | ||||
| 90460-47036 |
4K#,5KJ..KE7# |
2 | ||
| 16572A - CLAMP OR CLIP, HOSE(FOR RADIATOR OUTLET NO.1) | ||||
| 90460-47036 |
4K#,5KJ..KE7# |
2 | ||
| 16701 - SHROUD SUB-ASSY, FAN | ||||
| 16711-13080 |
4KJ..KE71 |
1 | ||
| 16711-13090 |
4KJ..KE71 W/COOLER |
1 | ||
| 16712 - SHROUD, FAN, NO.2 | ||||
| 16712-13010 |
4KJ..KE71 |
1 | ||
| 16712-13020 |
4KJ..KE71 W/COOLER |
1 | ||
| Common parts | ||||
| 90119-08023 | ||||
| 90159-60051 | ||||
| 90179-06070 | ||||
| 90183-06001 | ||||
| 90339-07001 | ||||
| 91611-60622 | ||||
| 91611-60635 | ||||
| 91611-60822 | ||||
| 91651-60825 | ||||
| 91656-40816 | ||||
| 92122-40814 | ||||
| 93386-16016 | ||||
| Linked diagrams | ||||
| 1605 | ||||
