KE70-ESKNS (1979)
Toyota Corolla
(7903-7910)4KU

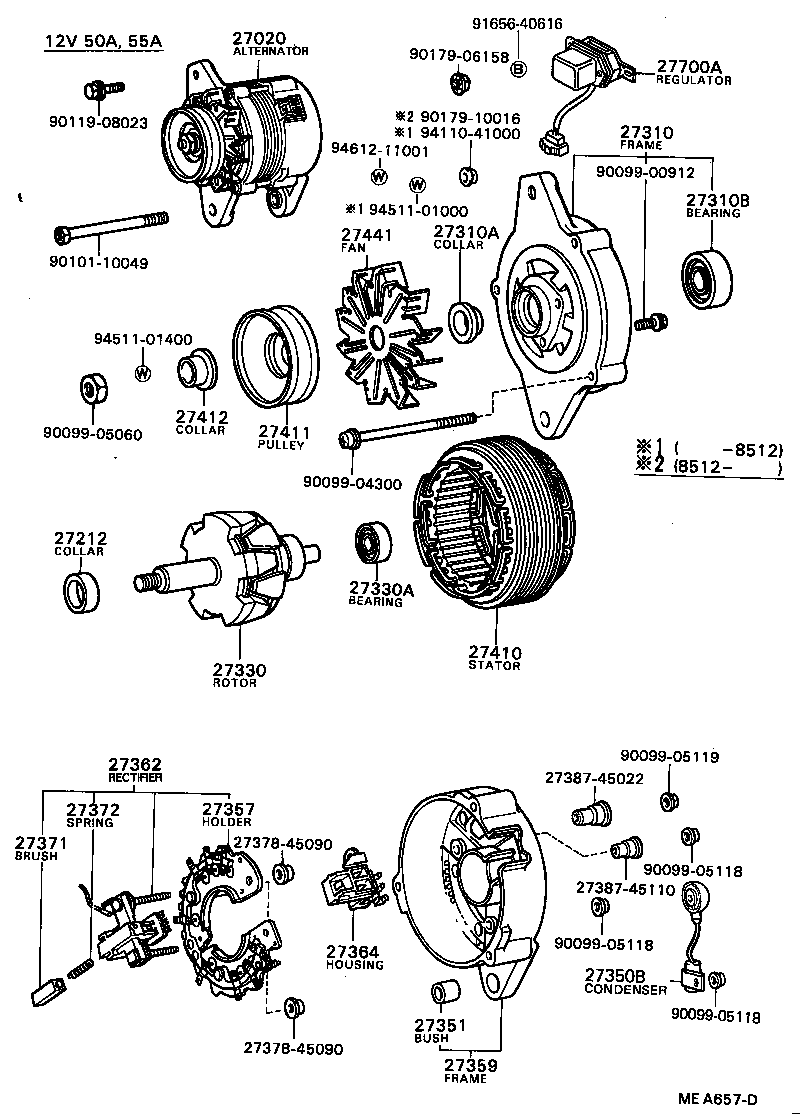

| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 27020 - ALTERNATOR ASSY | ||||
| 27020-24101 |
4KU..KE70 12V 50A |
1 | ||
| 27020-24100 |
4KU..KE70 12V 50A |
1 | ||
| 27020-24102 |
4KU..KE70 12V 50A |
1 | ||
| 27039 - COVER, ALTERNATOR REAR END | ||||
| 27039-15010 |
4KU..KE70 12V 50A |
1 | ||
| 27039-15010 |
3AU,4KU..AE70,KE70 12V 50A |
1 | ||
| 27212 - RING, SPACE(FOR ALTERNATOR ROTOR) | ||||
| 27412-45070 |
13TU,3AU,4K#,2TGEU..AE70,KE7#,TE70,71 12V 40A,50A,55A |
1 | ||
| 27310 - FRAME ASSY, DRIVE END, ALTERNATOR | ||||
| 27310-24071 |
4KU..KE70,73 12V 50A,55A |
1 | ||
| 27310A - COLLAR OR NUT(FOR ALTERNATOR DRIVE END FRAME) | ||||
| 27412-31040 |
12TJ,13TU,3AU,4K#,5KJ,2TGEU..AE70,KE7#,TE7# 12V 40A,45A,50A,55A |
1 | ||
| 27310B - BEARING(FOR ALTERNATOR DRIVE END FRAME) | ||||
| 90099-10114 |
3AU,4KU..AE70,KE70 12V 50A |
1 | ||
| 27330 - ROTOR ASSY, ALTERNATOR | ||||
| 27330-45070 |
13TU,3AU,4KU..AE70,KE70,TE70 12V 50A |
1 | ||
| 27330A - BEARING(FOR ALTERNATOR ROTOR) | ||||
| 90099-10111 |
12TJ,3AU,4K#,5KJ..AE70,KE7#,TE73,74 12V 40A,45A,50A,55A |
1 | ||
| 27350 - FRAME ASSY, RECTIFIER END | ||||
| 27350-24100 |
4KU..KE70 12V 50A |
1 | ||
| 27351 - BUSH(FOR ALTERNATOR RECTIFIER END FRAME) | ||||
| 27351-38051 |
12TJ,13TU,3AU,4K#,5KJ,2TGEU..AE70,KE7#,TE7# 12V 40A,45A,50A,55A |
1 | ||
| 27353 - HOLDER, W/RECTIFIER POSITIVE, ALTERNATOR | ||||
| 27353-24102 |
4KU..KE70 12V 50A |
1 | ||
| 27353-24101 |
4KU..KE70 12V 50A |
1 | ||
| 27356 - HOLDER, W/RECTIFIER NEGATIVE, ALTERNATOR | ||||
| 27356-24101 |
4KU..KE70 12V 50A |
1 | ||
| 27356-24071 |
4KU..KE70 12V 50A |
1 | ||
| 27359 - FRAME, ALTERNATOR RECTIFIER END | ||||
| 27359-24071 |
4KU..KE70 12V 50A |
1 | ||
| 27359-24060 |
4KU..KE70 12V 50A |
1 | ||
| 27370 - HOLDER ASSY, ALTERNATOR BRUSH | ||||
| 27370-24101 |
4KU..KE70 12V 50A |
1 | ||
| 27370-24102 |
4KU..KE70 12V 50A |
1 | ||
| 27371 - BRUSH, ALTERNATOR | ||||
| 27371-44070 |
13TU,3AU,4KU,2TGEU..AE70,KE70,TE70,71 12V 50A,55A |
2 | ||
| 27371-44070 |
13TU,4KU,2TGEU..KE70,TE70,71 12V 50A,55A |
2 | ||
| 27372 - SPRING, ALTERNATOR BRUSH | ||||
| 90099-17114 |
13TU,4KU,2TGEU..KE70,TE70,71 12V 50A,55A |
2 | ||
| 90099-17114 |
13TU,3AU,4KU,2TGEU..AE70,KE70,TE70,71 12V 50A,55A |
2 | ||
| 27379 - WIRE, ALTERNATOR LEAD | ||||
| 27037-24100 |
4K#..KE7# 12V 40A,50A |
1 | ||
| 27037-24101 |
4K#..KE7# 12V 40A,50A |
1 | ||
| 27410 - STATOR ASSY, ALTERNATOR | ||||
| 27410-34050 |
3AU,4KU..AE70,KE70 12V 50A |
1 | ||
| 27410-41080 |
13TU,3AU,4KU,2TGEU..AE70,KE70,TE70,71 12V 50A,55A |
1 | ||
| 27411 - PULLEY, ALTERNATOR | ||||
| 27411-26111 |
3AU,4K#,2TGEU..AE70,KE7#,TE71 12V 40A,50A,55A |
1 | ||
| 27412 - COLLAR, SPACER(FOR ALTERNATOR PULLEY) | ||||
| 27412-44030 |
12TJ,13TU,3AU,4K#,2TGEU..AE70,KE7#,TE7# 12V 40A,50A,55A |
1 | ||
| 27441 - FAN, ALTERNATOR | ||||
| 27441-34030 |
12TJ,13TU,3AU,4K#,5KJ..AE70,KE7#,TE70,73,74 12V 40A,45A,50A,55A |
1 | ||
| 27700A - REGULATOR ASSY, GENERATOR | ||||
| 27700-15010 |
12TJ,13TU,3AU,4K#..AE70,KE7#,TE70,73 |
1 | ||
| Common parts | ||||
| 27378-45090 | ||||
| 27387-24071 | ||||
| 27447-24071 | ||||
| 90099-00912 | ||||
| 90099-04300 | ||||
| 90099-05060 | ||||
| 90099-05118 | ||||
| 90099-05138 | ||||
| 90101-10049 | ||||
| 90119-08023 | ||||
| 90179-06158 | ||||
| 91656-40616 | ||||
| 94110-41000 | ||||
| 94511-01000 | ||||
| 94511-01400 | ||||
| 94612-11001 | ||||
(7910-8108)4KU
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 27020 - ALTERNATOR ASSY | ||||
| 27020-24101 |
4KU..KE70 12V 50A |
1 | ||
| 27020-24100 |
4KU..KE70 12V 50A |
1 | ||
| 27020-24102 |
4KU..KE70 12V 50A |
1 | ||
| 27039 - COVER, ALTERNATOR REAR END | ||||
| 27039-15010 |
4KU..KE70 12V 50A |
1 | ||
| 27039-15010 |
3AU,4KU..AE70,KE70 12V 50A |
1 | ||
| 27212 - RING, SPACE(FOR ALTERNATOR ROTOR) | ||||
| 27412-45070 |
13TU,3AU,4K#,2TGEU..AE70,KE7#,TE70,71 12V 40A,50A,55A |
1 | ||
| 27310 - FRAME ASSY, DRIVE END, ALTERNATOR | ||||
| 27310-24071 |
4KU..KE70,73 12V 50A,55A |
1 | ||
| 27310A - COLLAR OR NUT(FOR ALTERNATOR DRIVE END FRAME) | ||||
| 27412-31040 |
12TJ,13TU,3AU,4K#,5KJ,2TGEU..AE70,KE7#,TE7# 12V 40A,45A,50A,55A |
1 | ||
| 27310B - BEARING(FOR ALTERNATOR DRIVE END FRAME) | ||||
| 90099-10114 |
3AU,4KU..AE70,KE70 12V 50A |
1 | ||
| 27330 - ROTOR ASSY, ALTERNATOR | ||||
| 27330-45070 |
13TU,3AU,4KU..AE70,KE70,TE70 12V 50A |
1 | ||
| 27330A - BEARING(FOR ALTERNATOR ROTOR) | ||||
| 90099-10111 |
12TJ,3AU,4K#,5KJ..AE70,KE7#,TE73,74 12V 40A,45A,50A,55A |
1 | ||
| 27351 - BUSH(FOR ALTERNATOR RECTIFIER END FRAME) | ||||
| 27351-38051 |
12TJ,13TU,3AU,4K#,5KJ,2TGEU..AE70,KE7#,TE7# 12V 40A,45A,50A,55A |
1 | ||
| 27353 - HOLDER, W/RECTIFIER POSITIVE, ALTERNATOR | ||||
| 27353-24102 |
4KU..KE70 12V 50A |
1 | ||
| 27353-24101 |
4KU..KE70 12V 50A |
1 | ||
| 27356 - HOLDER, W/RECTIFIER NEGATIVE, ALTERNATOR | ||||
| 27356-24101 |
4KU..KE70 12V 50A |
1 | ||
| 27356-24071 |
4KU..KE70 12V 50A |
1 | ||
| 27359 - FRAME, ALTERNATOR RECTIFIER END | ||||
| 27359-24071 |
4KU..KE70 12V 50A |
1 | ||
| 27359-24060 |
4KU..KE70 12V 50A |
1 | ||
| 27370 - HOLDER ASSY, ALTERNATOR BRUSH | ||||
| 27370-24101 |
4KU..KE70 12V 50A |
1 | ||
| 27370-24102 |
4KU..KE70 12V 50A |
1 | ||
| 27371 - BRUSH, ALTERNATOR | ||||
| 27371-44070 |
13TU,3AU,4KU,2TGEU..AE70,KE70,TE70,71 12V 50A,55A |
2 | ||
| 27371-44070 |
13TU,4KU,2TGEU..KE70,TE70,71 12V 50A,55A |
2 | ||
| 27372 - SPRING, ALTERNATOR BRUSH | ||||
| 90099-17114 |
13TU,4KU,2TGEU..KE70,TE70,71 12V 50A,55A |
2 | ||
| 90099-17114 |
13TU,3AU,4KU,2TGEU..AE70,KE70,TE70,71 12V 50A,55A |
2 | ||
| 27379 - WIRE, ALTERNATOR LEAD | ||||
| 27037-24100 |
4K#..KE7# 12V 40A,50A |
1 | ||
| 27037-24101 |
4K#..KE7# 12V 40A,50A |
1 | ||
| 27379 - WIRE, ALTERNATOR LEAD | ||||
| 27037-24100 |
4K#..KE7# 12V 40A,50A |
1 | ||
| 27037-24101 |
4K#..KE7# 12V 40A,50A |
1 | ||
| 27410 - STATOR ASSY, ALTERNATOR | ||||
| 27410-34050 |
3AU,4KU..AE70,KE70 12V 50A |
1 | ||
| 27410-41080 |
13TU,3AU,4KU,2TGEU..AE70,KE70,TE70,71 12V 50A,55A |
1 | ||
| 27411 - PULLEY, ALTERNATOR | ||||
| 27411-26111 |
3AU,4K#,2TGEU..AE70,KE7#,TE71 12V 40A,50A,55A |
1 | ||
| 27412 - COLLAR, SPACER(FOR ALTERNATOR PULLEY) | ||||
| 27412-44030 |
12TJ,13TU,3AU,4K#,2TGEU..AE70,KE7#,TE7# 12V 40A,50A,55A |
1 | ||
| 27441 - FAN, ALTERNATOR | ||||
| 27441-34030 |
12TJ,13TU,3AU,4K#,5KJ..AE70,KE7#,TE70,73,74 12V 40A,45A,50A,55A |
1 | ||
| 27700A - REGULATOR ASSY, GENERATOR | ||||
| 27700-15010 |
12TJ,13TU,3AU,4K#..AE70,KE7#,TE70,73 |
1 | ||
| Common parts | ||||
| 27378-45090 | ||||
| 27387-24071 | ||||
| 27447-24071 | ||||
| 27447-24072 | ||||
| 27447-24100 | ||||
| 90099-00912 | ||||
| 90099-04300 | ||||
| 90099-05060 | ||||
| 90099-05118 | ||||
| 90099-05138 | ||||
| 90101-10049 | ||||
| 90119-08023 | ||||
| 90179-06158 | ||||
| 91656-40616 | ||||
| 94110-41000 | ||||
| 94511-01000 | ||||
| 94511-01400 | ||||
| 94611-10500 | ||||
| 94612-11001 | ||||
(8108- )4KU
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 27020 - ALTERNATOR ASSY | ||||
| 27020-24101 |
4KU..KE70 12V 50A |
1 | ||
| 27020-24100 |
4KU..KE70 12V 50A |
1 | ||
| 27020-24102 |
4KU..KE70 12V 50A |
1 | ||
| 27212 - RING, SPACE(FOR ALTERNATOR ROTOR) | ||||
| 27412-45070 |
13TU,3AU,4K#,2TGEU..AE70,KE7#,TE70,71 12V 40A,50A,55A |
1 | ||
| 27310 - FRAME ASSY, DRIVE END, ALTERNATOR | ||||
| 27310-24071 |
4KU..KE70,73 12V 50A,55A |
1 | ||
| 27310A - COLLAR OR NUT(FOR ALTERNATOR DRIVE END FRAME) | ||||
| 27412-31040 |
12TJ,13TU,3AU,4K#,5KJ,2TGEU..AE70,KE7#,TE7# 12V 40A,45A,50A,55A |
1 | ||
| 27310B - BEARING(FOR ALTERNATOR DRIVE END FRAME) | ||||
| 90099-10114 |
3AU,4KU..AE70,KE70 12V 50A |
1 | ||
| 27330 - ROTOR ASSY, ALTERNATOR | ||||
| 27330-45070 |
13TU,3AU,4KU..AE70,KE70,TE70 12V 50A |
1 | ||
| 27330A - BEARING(FOR ALTERNATOR ROTOR) | ||||
| 90099-10111 |
12TJ,3AU,4K#,5KJ..AE70,KE7#,TE73,74 12V 40A,45A,50A,55A |
1 | ||
| 27351 - BUSH(FOR ALTERNATOR RECTIFIER END FRAME) | ||||
| 27351-38051 |
12TJ,13TU,3AU,4K#,5KJ,2TGEU..AE70,KE7#,TE7# 12V 40A,45A,50A,55A |
1 | ||
| 27359 - FRAME, ALTERNATOR RECTIFIER END | ||||
| 27359-24071 |
4KU..KE70 12V 50A |
1 | ||
| 27359-24060 |
4KU..KE70 12V 50A |
1 | ||
| 27371 - BRUSH, ALTERNATOR | ||||
| 27371-44070 |
13TU,3AU,4KU,2TGEU..AE70,KE70,TE70,71 12V 50A,55A |
2 | ||
| 27371-44070 |
13TU,4KU,2TGEU..KE70,TE70,71 12V 50A,55A |
2 | ||
| 27372 - SPRING, ALTERNATOR BRUSH | ||||
| 90099-17114 |
13TU,4KU,2TGEU..KE70,TE70,71 12V 50A,55A |
2 | ||
| 90099-17114 |
13TU,3AU,4KU,2TGEU..AE70,KE70,TE70,71 12V 50A,55A |
2 | ||
| 27410 - STATOR ASSY, ALTERNATOR | ||||
| 27410-34050 |
3AU,4KU..AE70,KE70 12V 50A |
1 | ||
| 27410-41080 |
13TU,3AU,4KU,2TGEU..AE70,KE70,TE70,71 12V 50A,55A |
1 | ||
| 27411 - PULLEY, ALTERNATOR | ||||
| 27411-26111 |
3AU,4K#,2TGEU..AE70,KE7#,TE71 12V 40A,50A,55A |
1 | ||
| 27412 - COLLAR, SPACER(FOR ALTERNATOR PULLEY) | ||||
| 27412-44030 |
12TJ,13TU,3AU,4K#,2TGEU..AE70,KE7#,TE7# 12V 40A,50A,55A |
1 | ||
| 27441 - FAN, ALTERNATOR | ||||
| 27441-34030 |
12TJ,13TU,3AU,4K#,5KJ..AE70,KE7#,TE70,73,74 12V 40A,45A,50A,55A |
1 | ||
| 27700A - REGULATOR ASSY, GENERATOR | ||||
| 27700-15010 |
12TJ,13TU,3AU,4K#..AE70,KE7#,TE70,73 |
1 | ||
| Common parts | ||||
| 27378-45090 | ||||
| 27387-45022 | ||||
| 27387-45110 | ||||
| 90099-00912 | ||||
| 90099-04300 | ||||
| 90099-05060 | ||||
| 90099-05118 | ||||
| 90099-05119 | ||||
| 90101-10049 | ||||
| 90119-08023 | ||||
| 90179-06158 | ||||
| 90179-10016 | ||||
| 91656-40616 | ||||
| 94110-41000 | ||||
| 94511-01000 | ||||
| 94511-01400 | ||||
| 94612-11001 | ||||
