KE70-ESCNS (1979)

Toyota Corolla

Production Mar 1979 - Aug 1981
Engine 4KU
Transmission 2FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(7903- )

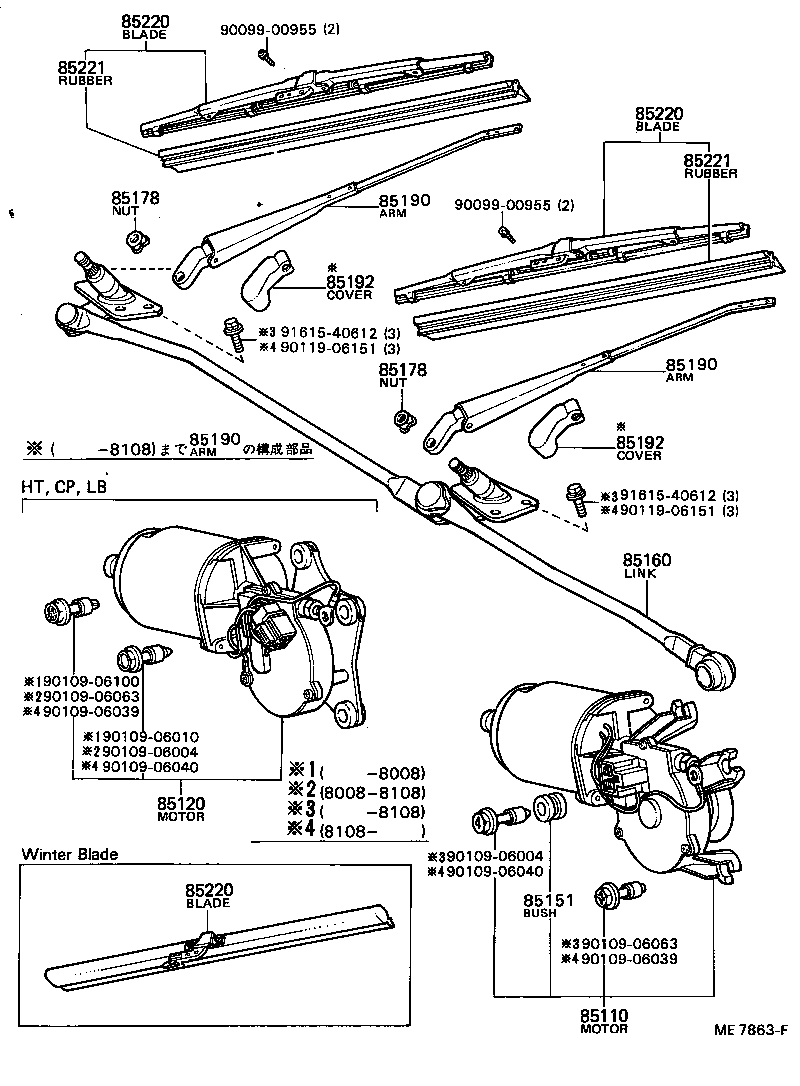

Click highlighted areas on diagram

diagram 85110 85120 85151 85160 85178 85178 85190 85190 85190 85192 85192 85220 85220 85220 85221 85221 9009900955 9009900955 9010906004 9010906004 9010906010 9010906039 9010906039 9010906040 9010906040 9010906063 9010906063 9010906100 9011906151 9011906151 9161540612 9161540612
Part # Description Qty Price
85120 - MOTOR AND BRACKET ASSY, WINDSHIELD WIPER
85120-12120

AE70,KE70,TE70,71..CP,HT,LB

 1
85160 - LINK ASSY, WINDSHIELD WIPER
85160-12241

AE70,KE70,TE70,71..CP,HT,LB

 1
85160-12240

AE70,KE70,TE70,71..CP,HT,LB

 1
85178 - NUT (FOR FRONT WIPER ARM SETTING)
90176-08016

AE70,KE7#,TE7#

 2
85178 - NUT (FOR FRONT WIPER ARM SETTING)
90176-08016

AE70,KE7#,TE7#

 2
85190 - ARM ASSY, WINDSHIELD WIPER
85190-12430

AE70,KE70,TE70,71..CP,HT,LB

RH

 1
85210-12010

AE70,KE70,TE70,71..CP,HT,LB

LH

 1
85190 - ARM ASSY, WINDSHIELD WIPER
85190-12430

AE70,KE70,TE70,71..CP,HT,LB

RH

 1
85210-12010

AE70,KE70,TE70,71..CP,HT,LB

LH

 1
85190 - ARM ASSY, WINDSHIELD WIPER
85190-12430

AE70,KE70,TE70,71..CP,HT,LB

RH

 1
85210-12010

AE70,KE70,TE70,71..CP,HT,LB

LH

 1
85192 - COVER, WINDSHIELD WIPER ARM
85192-12030

AE70,KE7#,TE7#

 2
85192 - COVER, WINDSHIELD WIPER ARM
85192-12030

AE70,KE7#,TE7#

 2
85220 - BLADE ASSY, WINDSHIELD WIPER
85220-12302

AE70,KE70,TE70,71..CP,HT,LB

 2
85220-12301

AE70,KE70,TE70,71..CP,HT,LB

 2
85220-30110

AE70,CE7#,KE70,72,73,74,TE70,71,74

WINTER BLADE

 2
85220 - BLADE ASSY, WINDSHIELD WIPER
85220-12302

AE70,KE70,TE70,71..CP,HT,LB

 2
85220-12301

AE70,KE70,TE70,71..CP,HT,LB

 2
85220-30110

AE70,CE7#,KE70,72,73,74,TE70,71,74

WINTER BLADE

 2
85220 - BLADE ASSY, WINDSHIELD WIPER
85220-12302

AE70,KE70,TE70,71..CP,HT,LB

 2
85220-12301

AE70,KE70,TE70,71..CP,HT,LB

 2
85220-30110

AE70,CE7#,KE70,72,73,74,TE70,71,74

WINTER BLADE

 2
85221 - BLADE, WINDSHIELD WIPER
85221-12090

AE70,KE70,TE70,71..CP,HT,LB

L=425

 2
85221-14180

AE70,KE70,TE70,71..CP,HT,LB

L=438

 2
85221 - BLADE, WINDSHIELD WIPER
85221-12090

AE70,KE70,TE70,71..CP,HT,LB

L=425

 2
85221-14180

AE70,KE70,TE70,71..CP,HT,LB

L=438

 2
Common parts
90099-00955
90109-06004
90109-06010
90109-06039
90109-06040
90109-06063
90109-06100
90119-06151
91615-40612
